Planetary gearboxes are complex mechanical systems used to transmit power and change speed or torque in various applications, including robotics, automotive, and industrial machinery. Understanding how to calculate torque in these systems is crucial for designing and optimizing their performance. This article will delve into the principles of planetary gearboxes, the methods for calculating torque, and provide examples and illustrations to clarify the concepts.

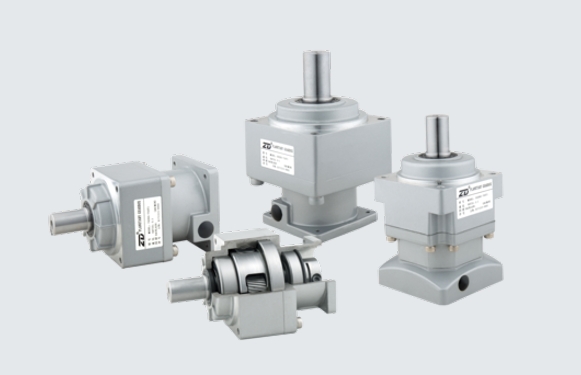

A planetary gearbox consists of four main components: the sun gear, planet gears, ring gear, and carrier. The sun gear is typically the input, while the planet gears orbit around it and are connected by the carrier. The ring gear encloses the planet gears and determines their orbit. The unique arrangement allows for multiple configurations and transmission ratios by fixing different components.
- Sun Gear: Central gear that drives the system.
- Planet Gears: Orbit around the sun gear.
- Ring Gear: Internally toothed gear that encloses the planet gears.
- Carrier: Connects the planet gears and transfers their motion.
To calculate torque in a planetary gearbox, you need to understand the torque ratios between the components. The torque applied to the ring gear (Tr), sun gear (Ts), and carrier (Tc) can be related using the number of teeth on the sun and ring gears (Ns and Nr).
1. Torque on the Sun Gear:
Ts=Tr×Ns/Nr
2. Torque on the Carrier:
Tc=−Tr×(Nr+Ns)/Nr
These equations assume a steady-state condition with no losses. In practice, friction and other losses must be considered for accurate calculations.
Suppose a planetary gearbox has a sun gear with 20 teeth and a ring gear with 80 teeth. If the torque applied to the ring gear is 100 Nm, calculate the torque on the sun gear and the carrier.
Torque on the Sun Gear:
Ts=100×20/80=25 Nm
Torque on the Carrier:
Tc=−100×(80+20)/80=−125 Nm
Static torque analysis involves examining the torque distribution among the components under static conditions. It assumes negligible gear inertia and conservation of power. The sum of torques acting on the sun gear, ring gear, and carrier is zero:
Ts+Tr+Tc=0
This equation helps in understanding how torque is distributed when the system is not moving.
Using free-body diagrams, you can visualize the forces acting on each component. By applying Newton's laws of motion, you can calculate the torques on each gear.
Dynamic analysis considers the accelerations of the components. It involves more complex equations that account for the inertia of the gears and the power transmitted through the system.
The accelerations of the sun, ring, and carrier can be derived from the torque equations and the conservation of power:
ωs×Ts+ωr×Tr+ωc×Tc=0
Where ω represents the angular velocity of each component.
In real-world applications, losses due to friction in the gears and bearings must be considered. These losses affect the efficiency of the gearbox and alter the torque calculations.
The efficiency of a planetary gearbox is influenced by the gear ratio, material properties, and operating conditions. A higher efficiency means less energy is lost as heat, resulting in more effective power transmission.
If the efficiency of a gearbox is 95%, and the input torque is 100 Nm, the output torque would be reduced by 5% due to losses.
When designing a planetary gearbox, it's essential to select the appropriate gear ratios and materials to meet the application requirements. This includes considering the desired output speed, torque, and efficiency.
For prototyping or educational purposes, planetary gearboxes can be designed and 3D printed. This involves modeling each component and ensuring proper meshing and clearance.
Planetary gearboxes are widely used in various industries due to their compact design and ability to handle high torque loads.
In the automotive industry, planetary gearboxes are crucial in automatic transmissions, allowing for smooth gear shifting and efficient power transmission.
In aerospace, planetary gearboxes provide high reduction ratios in a compact and lightweight design, used in aircraft engines for optimal performance and fuel efficiency.
In industrial machinery, planetary gearboxes are used in heavy-duty cranes, conveyor systems, and machine tools, providing excellent torque control and precise speed regulation.
In robotics, planetary gearboxes enable precise movement of robotic arms by providing the necessary gear reduction.
Planetary gearboxes are used in solar tracking systems to adjust the orientation of solar panels for optimal exposure to sunlight.
In marine propulsion systems, planetary gearboxes control the speed and torque of ship engines, ensuring efficient power transmission.
A practical example of torque calculation in a conveyor system involves determining the required torque and selecting an appropriate gearbox. The process includes calculating acceleration and deceleration requirements, linear force, and then the torque needed for the driven wheel.
1. Calculate Acceleration and Deceleration Requirements: Determine the time needed for acceleration and deceleration.
2. Calculate Linear Force: Convert the force into torque using the wheel diameter.
3. Calculate Torque and Speed for the Driven Wheel: Use the gear ratio to find the required torque and speed.
4. Select Gearbox and Motor: Choose components that meet the calculated torque and speed requirements.
When designing a planetary gearbox, several advanced considerations must be taken into account:
The planet carrier is crucial for maintaining the position and stability of the planet gears. It can be designed in various shapes, such as star or triangle configurations, to optimize weight and reduce friction. The choice of bearings for the planet gears is also important, with options ranging from friction bearings to small ball bearings depending on the load conditions.
Adding more planet gears increases the load capacity and torsional rigidity of the gearbox. However, it also introduces challenges in balancing the load across the gears. Ensuring precise positioning of the planet gears around the sun gear axis is critical to avoid imbalances that could lead to uneven wear and reduced performance.
The choice of materials for the gears and other components affects the gearbox's efficiency and durability. High-strength materials can handle higher loads, while lightweight materials reduce inertia and improve responsiveness.
Proper lubrication is essential to reduce friction and prevent overheating. Cooling systems may be necessary for high-power applications to maintain optimal operating temperatures.
Regular maintenance is crucial to extend the lifespan of a planetary gearbox. This includes checking for wear, replacing worn parts, and ensuring proper alignment of components.
Future developments in planetary gearboxes include advancements in materials and manufacturing techniques, such as the use of advanced composites and 3D printing technologies. These innovations will further enhance efficiency, reduce weight, and improve performance.
In robotics, there is a growing trend towards using high-ratio planetary gearboxes for their ability to provide precise control and high torque in compact designs. This trend is driven by the need for lightweight yet powerful actuators in collaborative robots and other advanced robotic systems.
In aerospace, planetary gearboxes are being optimized for reduced weight and increased efficiency. New designs focus on regulating backlash and modifying tooth surfaces to achieve a uniform load distribution among planet gears.
In renewable energy, planetary gearboxes continue to play a vital role in optimizing the efficiency of wind turbines and solar tracking systems. Advances in materials and design are expected to further enhance their performance in these applications.
Recent innovations in gear design have significantly improved the performance of planetary gearboxes. Optimized tooth geometry and surface treatments reduce noise and vibration, enhancing user comfort and extending the lifespan of machinery[2]. Additionally, the integration of smart technologies allows for real-time monitoring and predictive maintenance, reducing downtime and improving operational efficiency[2].
Calculating torque in a planetary gearbox involves understanding the relationships between the sun gear, ring gear, and carrier. By applying basic torque equations and considering losses, designers can optimize gearbox performance for various applications. Whether in robotics, automotive, or industrial machinery, planetary gearboxes offer versatile solutions for power transmission.
The main components of a planetary gearbox are the sun gear, planet gears, ring gear, and carrier. Each plays a crucial role in transmitting power and changing speed or torque.
The torque on the sun gear (Ts) is calculated using the formula:
Ts=Tr×Ns/Nr
where Tr is the torque on the ring gear, Ns is the number of teeth on the sun gear, and Nr is the number of teeth on the ring gear.
Static torque analysis helps in understanding how torque is distributed among the components when the system is not moving. It assumes negligible gear inertia and conservation of power, providing insights into the mechanical behavior of the gearbox.
Losses due to friction in gears and bearings reduce the efficiency of a planetary gearbox. These losses result in less effective power transmission, as some energy is converted into heat rather than being used to perform work.
Yes, planetary gearboxes can be designed and 3D printed for prototyping or educational purposes. This involves modeling each component to ensure proper meshing and clearance, allowing for rapid testing and iteration of designs.
