Hydraulic systems are the backbone of many industrial and mechanical applications, ranging from construction equipment to manufacturing machinery. While hydraulic pumps and motors share similar principles of operation, they are designed for distinct purposes. However, under certain circumstances, it is possible to convert a hydraulic pump into a hydraulic motor. This article provides a detailed guide on how to achieve this transformation, including technical considerations, step-by-step instructions, and practical insights. Whether you're an engineer, technician, or enthusiast, this guide will help you navigate the process effectively.
To successfully convert a hydraulic pump into a motor, it's crucial to understand the fundamental differences between these two components.

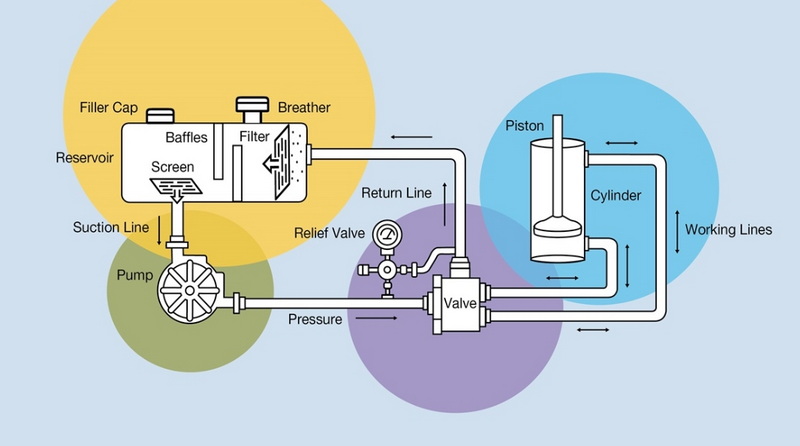

A hydraulic pump is a device that converts mechanical energy into hydraulic energy. It generates fluid flow that powers other components in the system.
- Primary Function: Creates fluid flow by pressurizing hydraulic fluid.
- Design Focus: Optimized for pressure generation and flow rate.
Common Types:
- Gear pumps
- Vane pumps
- Piston pumps

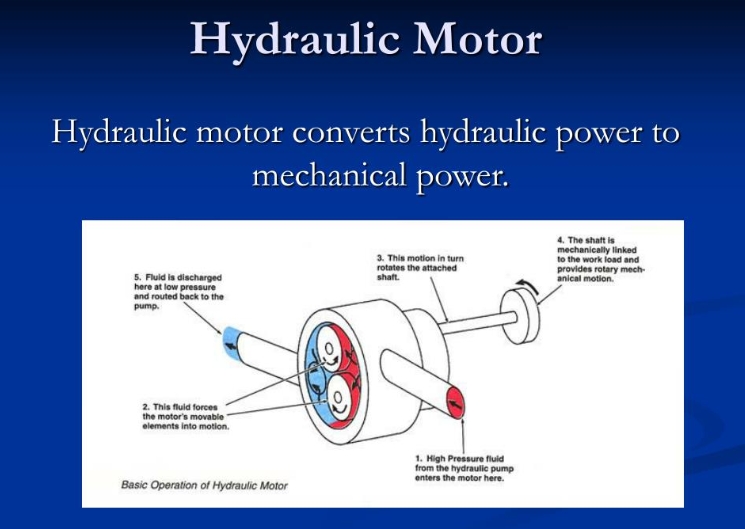

A hydraulic motor performs the opposite function of a pump. It converts hydraulic energy (fluid flow) back into mechanical energy (rotational motion).
- Primary Function: Produces torque and rotational motion.
- Design Focus: Built to handle torque loads and rotational forces.
Common Types:
- Gear motors
- Vane motors
- Radial piston motors
Hydraulic pumps and motors operate on similar principles of fluid dynamics, which makes conversion theoretically possible. However, there are several factors to consider:
1. Efficiency Trade-offs: Pumps are not optimized for torque output, so efficiency may drop when used as motors.
2. Design Limitations: The internal design of some pumps may not support reverse operation.
3. Performance Requirements: Converted pumps may not meet the torque or speed demands of certain applications.
While converting a pump into a motor can be cost-effective in specific scenarios, it is generally advisable to use dedicated hydraulic motors for high-performance requirements.
The process of converting a hydraulic pump into a motor involves several technical steps. Follow this guide carefully to ensure success.
Before starting the conversion process, evaluate whether the pump is suitable for use as a motor.

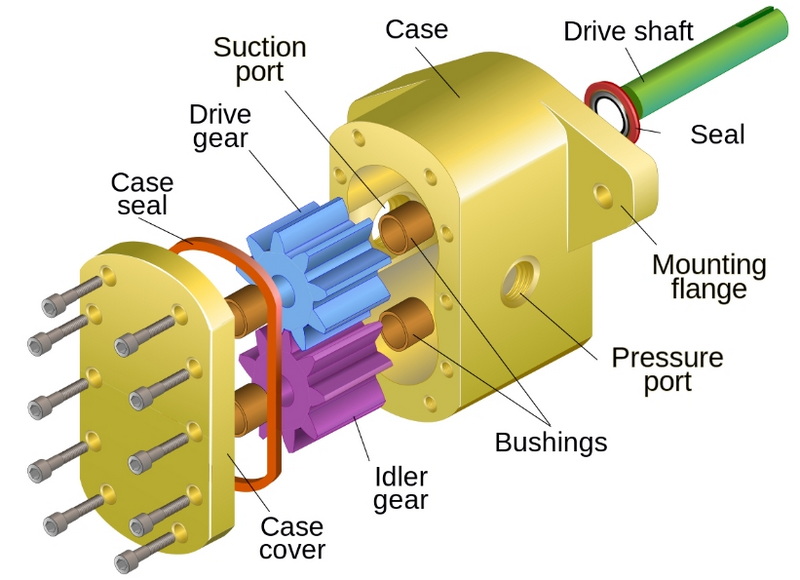

- Pump Type: Gear pumps are more adaptable than vane or piston pumps because of their simpler design.
- Specifications: Check the pump's displacement (cubic inches per revolution), pressure rating (psi), and flow capacity (GPM).
- Internal Design: Ensure that internal components like gears or vanes can handle reverse operation without damage.
To function as a motor, the pump's flow direction must be reversed.
- Swap the inlet and outlet ports to allow fluid to enter where it would normally exit.
- Ensure proper sealing to prevent leaks during operation.
- Modify any check valves or directional controls that may impede reverse flow.
The internal components of the pump must be inspected and adjusted for motor functionality.
- Gears or Vanes: Examine for wear and tear. Replace any damaged components.
- Bearings: Ensure that bearings can handle rotational forces in both directions.
- Seals: Upgrade seals if necessary to prevent leaks under higher pressures.
Hydraulic motors generate more heat than pumps due to their torque output. Proper lubrication and cooling are essential.
- Use hydraulic fluid with viscosity recommended for motor applications.
- Add cooling mechanisms such as heat exchangers if the motor will operate under heavy loads or continuous duty cycles.
Testing is crucial to ensure that the converted pump functions effectively as a motor.
1. Connect the modified pump to a test bench or low-pressure system.
2. Gradually increase pressure while monitoring performance metrics such as RPM (revolutions per minute), torque output, and efficiency.
3. Address any issues such as overheating, leaks, or unusual noises before deploying the motor in real-world applications.
Converting a hydraulic pump into a motor requires an understanding of key technical concepts. Here are some important considerations:
1. Torque (T):
T=(CIR×PSI)/6.28
Where:
- CIR = Cubic inches per revolution
- PSI = Pressure difference across the motor
2. Speed (RPM):
RPM=(GPM×231)/CID
Where:
- GPM = Gallons per minute
- CID = Cubic inch displacement
3. Power Output (HP):
HP=(T×RPM)/63025
Efficiency is critical when converting a pump into a motor:
- Volumetric Efficiency: Measures how effectively the motor converts fluid flow into rotational motion.
- Mechanical Efficiency: Indicates how well the motor converts pressure into torque without losses due to friction or leakage.
While converting a hydraulic pump into a motor can be straightforward in theory, several challenges may arise during implementation:
1. Leakage Issues: Pumps not designed for reverse operation may develop leaks at seals or ports.
2. Overheating: Motors generate more heat than pumps; inadequate cooling can lead to overheating.
3. Torque Limitations: Pumps may not produce sufficient torque for demanding applications.
4. Noise Levels: Converted pumps may produce more noise due to inefficiencies in design.
To mitigate these challenges, consider consulting with an expert or testing extensively before full-scale deployment.
Converting a hydraulic pump into a motor is an innovative solution when cost or availability constraints make dedicated motors impractical. However, this process requires careful planning, technical knowledge, and attention to detail. While converted pumps can perform adequately in low-torque applications, they may not match the efficiency or durability of purpose-built hydraulic motors for demanding tasks.
By following this guide and addressing potential challenges proactively, you can successfully repurpose hydraulic pumps as motors for various applications.
No, not all pumps can be converted due to design constraints. Gear pumps are generally more adaptable than vane or piston pumps because their simpler design allows for easier modification.
Converted pumps are often used in experimental setups or low-torque applications such as small machinery where high performance is not critical.
Dedicated motors are significantly more efficient because they are specifically designed for torque output and rotational motion. Converted pumps often suffer from efficiency losses due to design limitations.
Use hydraulic fluid with viscosity recommended by the manufacturer for both pumps and motors. Proper lubrication is critical for preventing overheating and ensuring smooth operation.
Yes, risks include reduced lifespan due to wear on internal components, overheating under heavy loads, potential leakage issues, and lower overall efficiency compared to dedicated motors.
