Hydraulic motors are essential components in a wide range of industrial and mobile applications, converting hydraulic energy into mechanical power. Selecting the right hydraulic motor is critical to achieving optimal performance, efficiency, and reliability in your system. This article provides a comprehensive guide to choosing the best hydraulic motor for your application, covering key considerations, types of motors, practical tips, and frequently asked questions.

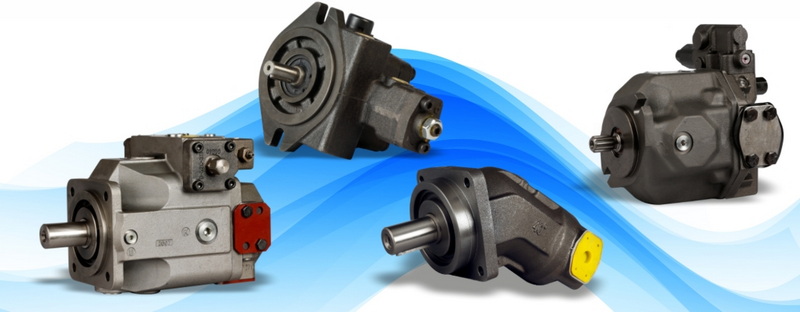

Hydraulic motors operate by converting fluid pressure and flow into rotational motion and torque. They are widely used in machinery such as conveyors, cranes, agricultural equipment, and more. The three main types of hydraulic motors are:

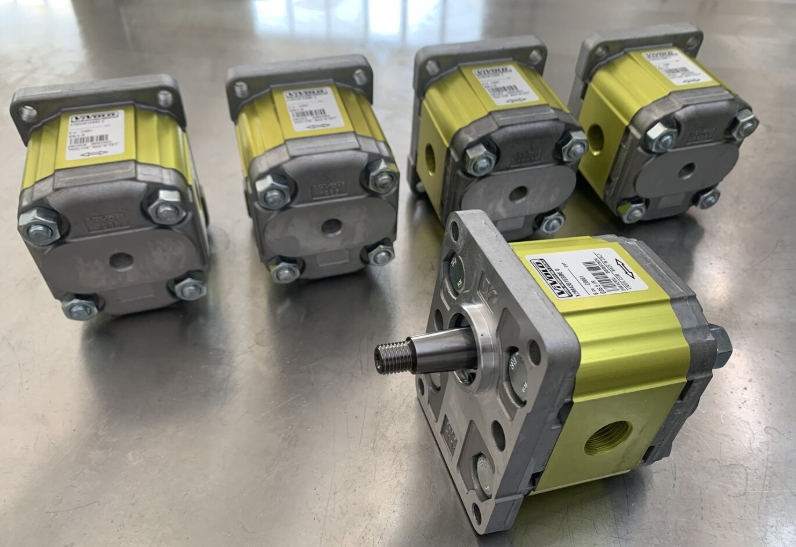

- Gear Motors: Known for their simplicity and reliability.
- Vane Motors: Offer smooth operation at medium pressures.
- Piston Motors: Provide high efficiency and torque for demanding applications.
Each type has unique characteristics that make it suitable for specific tasks.
Hydraulic motors work by utilizing pressurized fluid to create mechanical energy. The process involves:
1. Fluid Flow: Pressurized hydraulic fluid enters the motor through an inlet port.
2. Mechanical Rotation: The fluid's energy drives internal components (e.g., gears, vanes, or pistons), causing the motor shaft to rotate.
3. Output Power: The rotational motion is transmitted to machinery or equipment.
This simple yet powerful mechanism makes hydraulic motors versatile and effective in various industries.
Selecting the right hydraulic motor involves evaluating several technical and operational parameters:
- Determine the torque needed for your application (starting torque vs. running torque).
- Ensure the motor can handle peak loads without failure.
Example: A crane lifting heavy loads requires high starting torque to overcome inertia.
- Identify the required operating speed range.
- Match the motor's speed capabilities to your system's needs.
Tip: High-speed applications may benefit from gear motors, while low-speed tasks often require piston or gerotor motors.
- Check the maximum pressure rating of the motor.
- Ensure compatibility with your hydraulic system's pressure.
Note: Exceeding pressure limits can damage internal components.
- Displacement affects torque and speed; choose fixed or variable displacement based on your application.
Fixed Displacement: Provides consistent performance for simple systems like conveyors.
Variable Displacement: Offers flexibility for systems requiring adjustable speed or torque.
- Verify that the motor is compatible with the hydraulic fluid used (e.g., bio-based, fire-resistant).
- Consider operating temperatures, contamination potential, and noise levels.
- For outdoor applications, ensure the motor is resistant to corrosion and extreme weather conditions.
- Assess ease of maintenance and expected lifespan.
- Opt for robust designs for harsh environments.
Here's a breakdown of common types of hydraulic motors:
| Type | Features | Applications |
|---|---|---|
| Gear Motors | Simple design, low cost, moderate efficiency | Conveyors, small machinery |
| Vane Motors | Smooth operation, medium pressure | Injection molding machines |
| Axial Piston | High efficiency, high torque | Heavy-duty equipment |
| Radial Piston | Compact design, dual displacement options | Cranes, winches |
| Gerotor/Geroller | High starting torque, compact size | Agricultural equipment |
Follow these steps to choose the right hydraulic motor:
- List all operational needs such as load capacity, speed range, and environmental factors.
- Use formulas or consult experts to determine required torque and speed values.
- Example formula:
Torque Nm =(Force N ×Distance m)/2π
- Ensure the motor matches your system's operating pressure and flow rate.
- Select a motor type based on performance needs (e.g., gear for simplicity or piston for high torque).
- Balance budget constraints with long-term efficiency and durability.
1. Ignoring Torque Requirements
Underestimating torque can lead to system failure or inefficiency.
2. Overlooking Environmental Factors
Failing to account for temperature or contamination can reduce lifespan.
3. Choosing Based on Price Alone
Low-cost options may result in higher maintenance costs later.
4. Neglecting Fluid Compatibility
Using incompatible fluids can damage seals and components.
5. Skipping Professional Advice
Consult experts for complex systems or unique requirements.
To maximize the performance and longevity of your hydraulic motor:
- Inspect seals regularly for leaks.
- Replace worn-out components promptly.
- Clean filters to prevent contamination buildup.
- Align the motor shaft correctly with connected components.
- Use high-quality hoses and fittings to avoid leaks or pressure drops.
- Track operating pressure, temperature, and flow rate.
- Use sensors or monitoring tools for real-time data analysis.
- Replace outdated motors with modern designs offering better efficiency or features like noise reduction.
Choosing the right hydraulic motor is a critical step in designing an efficient hydraulic system. By understanding your application's requirements and carefully evaluating motor specifications such as torque, speed, displacement, and compatibility with your system's parameters, you can ensure optimal performance and longevity. Additionally, regular maintenance practices will help you get the most out of your investment while minimizing downtime or unexpected failures.
Whether you're working on industrial machinery or mobile equipment, selecting the correct type of hydraulic motor—gear, vane, piston, or gerotor—can make all the difference in achieving reliable operation tailored to your specific needs.
Fixed displacement motors deliver constant torque at a given speed, while variable displacement motors allow adjustable speed and torque by changing fluid flow. Variable displacement motors are ideal for applications requiring flexibility in performance settings.
Torque can be calculated using this formula:
Torque Nm =(Force N ×Distance m)/2π
For complex calculations involving dynamic loads or varying conditions, consult manufacturers or use online calculators designed specifically for hydraulic systems.
Axial piston motors are ideal for heavy-duty tasks due to their high efficiency and ability to handle high pressures while delivering substantial torque output.
To reduce noise:
- Choose low-noise motors like vane types.
- Use proper filtration systems to minimize contamination-induced noise.
- Install vibration dampers if necessary.
Regular maintenance includes:
- Checking fluid levels.
- Inspecting seals for leaks.
- Cleaning filters regularly.
- Monitoring performance metrics like pressure and temperature to detect early signs of wear or damage.
