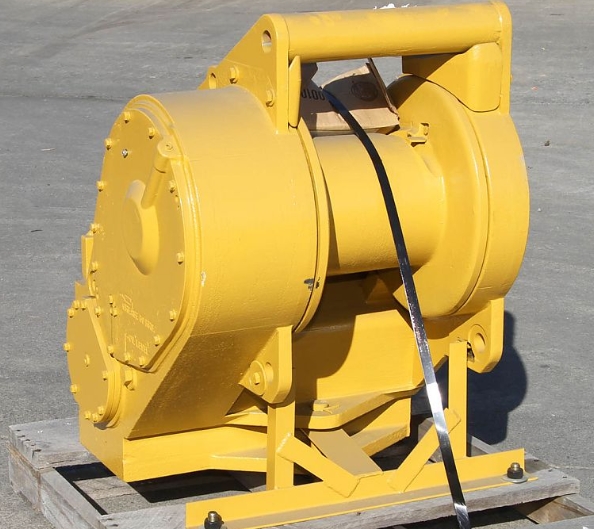

The service factor of a gear reducer is a crucial parameter to consider when selecting a gearbox for a specific application[2]. It is a numerical value that indicates the gear reducer's capacity to handle the demands of the application, considering factors such as load variations, operating conditions, and desired service life[2]. In essence, the service factor acts as a safety margin, ensuring that the gearbox can reliably perform its intended function without premature failure[2].
In this article, we will delve into the intricacies of configuring the service factor of a gear reducer, covering its definition, importance, determination methods, and the factors that influence its selection. By understanding these aspects, engineers and technicians can make informed decisions when choosing gear reducers, optimizing their performance, and ensuring long-term reliability.
The gearbox service factor is defined as the ratio of the gearbox's rated horsepower (or torque) to the horsepower (or torque) required by the application[1]. It represents the amount of overloading a gearbox can withstand before failure[1]. A higher service factor means the gearbox becomes more capable[1]. A higher service factor indicates a more robust gearbox design that can handle greater stress and load fluctuations[1].
Selecting a gear reducer with the correct service factor is crucial for several reasons[2]:
- Accounting for Application and Operating Conditions: The service factor helps match the gearbox rating to the application's specific demands, ensuring it can withstand the anticipated stresses and loads[5].
- Considering Shock Loads: Many applications involve transient loads, vibrations, or shock loads that are difficult to quantify precisely[5]. The service factor provides an extra margin of safety to account for these unknown or unpredictable loading conditions[5].
- Achieving Desired Gearbox Life: Properly sizing the gearbox with an appropriate service factor ensures that the gearbox components (gears, bearings, and shafts) can achieve their expected lifespan without premature failures due to overloading or fatigue[5].
- Avoiding Under-Sizing or Over-Sizing: Using too low of a service factor risks under-sizing the gearbox, leading to excessive wear, noise, and potential failures[5]. Conversely, an overly conservative service factor results in an oversized and costly gearbox[5].
Ignoring the service factor can lead to a poorly designed drive[1]. Poorly designed drives will lead to excessive wear, mostly to the internal gearing, which will trigger premature failure of the reducer[1]. Replacement leads to downtime, which will cost you money and cause lost production time[1].
Several factors influence the selection of an appropriate service factor for a gear reducer. These factors include[5]:
1. Type of Driven Machine: The nature of the driven machine and its load characteristics play a significant role in determining the service factor[5]. Machines with uniform loads generally require lower service factors than machines with shock loads[6].
2. Operating Hours per Day: The number of hours the gear reducer operates per day affects the service factor. Applications with continuous operation typically require higher service factors than those with intermittent operation[5].
3. Frequency of Starts and Stops: Frequent starts and stops can subject the gear reducer to additional stress and wear. Applications with a high number of starts and stops per hour require higher service factors[5].
4. Load Characteristics: The nature of the load, whether uniform, moderate shock, or heavy shock, influences the service factor[6]. Shock loads impose higher stresses on the gear reducer, necessitating higher service factors[5].
5. Environmental Conditions: Harsh environmental conditions, such as high temperatures, humidity, or exposure to corrosive substances, can affect the gear reducer's performance and lifespan[5]. In such cases, a higher service factor may be necessary to compensate for these adverse conditions[5].
6. Reliability Requirements: The desired reliability and service life of the gear reducer also influence the service factor. Applications where downtime is costly or unacceptable require higher service factors to ensure reliable operation[6].
The service factor for a specific application can be determined using several methods:
1. AGMA Guidelines: AGMA provides tables and charts that list recommended service factors for various applications based on their load characteristics, operating conditions, and service duty[6]. These guidelines are a valuable resource for selecting an appropriate service factor[6].
2. Manufacturer's Recommendations: Gear reducer manufacturers typically provide service factor recommendations for their products based on specific applications and operating conditions[5]. Consulting the manufacturer's catalog or technical documentation is essential for selecting the correct service factor[5].
3. Experience and Historical Data: In some cases, experience and historical data from similar applications can be used to determine the service factor. However, this method should be used cautiously and only when reliable data is available[5].
Here are a few examples of how to select the appropriate service factor for different applications:
- Example 1: Uniformly Loaded Screw Conveyor: A uniformly loaded screw conveyor operating for 8 hours per day is a class II application and would typically require a service factor of 1.4[1].
- Example 2: Compactor with Intermittent Use: A compactor used for any period is a class III application, and due to its heavy shock load, would require a service factor of 2.0 or higher[1].
- Example 3: Rock Crusher: A rock crusher, due to its difficult operating conditions and heavy shock loads, would require a very high service factor, possibly in the range of 3.0 or higher.
When configuring the service factor of a gear reducer, it is essential to consider the following practical aspects:
- Consult with Experts: If you are unsure about selecting the appropriate service factor, consult with a certified distributor or a gearbox manufacturer's representative[5]. Their expertise can help ensure you choose the correct gearbox for your application[5].
- Err on the Side of Caution: It is generally better to err on the side of caution and select a slightly higher service factor than to risk under-sizing the gearbox[5]. The additional cost of a slightly larger gearbox is often outweighed by the increased reliability and reduced downtime[5].
- Consider Future Expansion: If there is a possibility of future expansion or increased load requirements, consider selecting a gear reducer with a service factor that can accommodate these potential changes.
- Regular Inspection and Maintenance: Regularly inspect and maintain the gear reducer to ensure it operates within its design parameters. This includes checking the oil level, monitoring the operating temperature, and inspecting for any signs of wear or damage[3].
Calculating the service factor involves a series of steps, each designed to consider various operational conditions and ensure that the final figure accurately reflects the demands placed on the gear reducer[2].
The first step is a thorough assessment of your operational conditions. This includes understanding the type of application (whether it's light, moderate, or heavy-duty), the typical duration of operation (hours per day), and any environmental factors that might influence performance (such as extreme temperatures or corrosive atmospheres)[5].
Ask yourself the following questions:
- What type of machine will the gear reducer be driving?
- Will the load be uniform, moderate shock, or heavy shock?
- How many hours per day will the gear reducer be operating?
- How many times per hour will the gear reducer be started and stopped?
- What are the environmental conditions (temperature, humidity, etc.)?
- What is the desired reliability and service life of the gear reducer?
Industry standards play a crucial role in determining the appropriate service factor. Organizations like the American Gear Manufacturers Association (AGMA) provide detailed guidelines based on years of research and field data[6]. These guidelines categorize various applications and operational conditions, suggesting base service factors accordingly[5].
Consult AGMA guidelines or the gear reducer manufacturer's recommendations to find the base service factor for your application[5]. These resources typically provide tables or charts that list recommended service factors for different types of machines and operating conditions[5]. If your application is not in the AGMA listing, there are ways to determine the service factor yourself[1].
To perform a detailed calculation, consider the following steps:
1. Identify the Application Class: Determine which class (I, II, III, etc.) your application falls into according to AGMA or similar standards[1]. Each class correlates with different types of operation, from light to heavy-duty[1].
2. Determine the Base Service Factor: Based on the application class, find the starting service factor value recommended by the guidelines[5].
3. Adjust for Operational Hours: If your equipment operates beyond standard hours, you may need to increase the service factor to account for the added strain on the gear reducer.
4. Environmental Adjustments: Factor in any environmental conditions that could impact the gear reducer's performance[5]. Extreme conditions might necessitate a higher service factor[5].
5. Account for Additional Factors: Consider any other factors that may affect the service factor, such as frequent starts and stops, shock loads, or high temperatures[5]. Adjust the service factor accordingly based on these factors[5].
Armed with the calculated service factor, the selection of a gear reducer becomes a more informed process[2]. Opt for a gear reducer whose ratings meet or exceed the derived service factor[2]. This ensures that the reducer is capable of handling the expected operational loads, plus an additional safety margin[2].
Multiply the required horsepower or torque by the service factor to determine the gear reducer's rated horsepower or torque[1]. Select a gear reducer with a rated horsepower or torque that is equal to or greater than this value[1].
To ensure the longevity and reliability of your gear reducer, follow these best practices[2]:
Adequate service factor notwithstanding, regular maintenance is indispensable[2]. Routine checks and servicing can preempt wear and tear, ensuring that the gear reducer operates within its intended capacity[2].
- Check the oil level regularly and change the oil according to the manufacturer's recommendations[3].
- Inspect the gear reducer for any signs of leaks, damage, or wear[3].
- Lubricate the bearings and gears as needed[3].
- Keep the gear reducer clean and free of debris[3].
To properly maintain the lubricating oil, regularly check the oil level and quality[3]. Also, visual inspection of components to identify any abnormalities in the gear reducer components is recommended[3].
Implementing systems for continuous monitoring of the gear reducer can provide real-time data on its performance[2]. This allows for timely adjustments to operational parameters, ensuring the longevity of the equipment[2].
- Monitor the operating temperature of the gear reducer[5].
- Measure the vibration levels of the gear reducer[5].
- Track the number of starts and stops of the gear reducer[5].
- Analyze the oil for signs of contamination or degradation[3].
The standards and guidelines for calculating service factors evolve, reflecting advancements in technology and materials[2]. Staying updated with these changes is crucial for maintaining the efficiency and reliability of your gear reducers[2].
- Attend industry conferences and workshops[5].
- Read technical publications and journals[5].
- Consult with gear reducer manufacturers and experts[5].
- Stay informed about the latest AGMA standards and guidelines[6].
By following these best practices, you can maximize the lifespan and performance of your gear reducers and minimize the risk of costly downtime and repairs[2].
Configuring the service factor of a gear reducer is a critical step in selecting a gearbox that can reliably meet the demands of a specific application[2]. By understanding the definition, importance, and factors influencing service factor selection, engineers and technicians can make informed decisions that optimize gearbox performance and ensure long-term reliability[2]. Utilizing AGMA guidelines, manufacturer's recommendations, and practical experience, along with regular inspection and maintenance, will contribute to the successful operation and longevity of gear reducers in various industrial applications[2].
The service factor of a gear reducer is the ratio of the gearbox's rated horsepower (or torque) to the horsepower (or torque) required by the application[1]. It represents the amount of overloading a gearbox can withstand before failure[1].
The service factor is important because it helps match the gearbox rating to the application's specific demands, considers shock loads, achieves the desired gearbox life, and avoids under-sizing or over-sizing[5].
Several factors influence the selection of a service factor, including the type of driven machine, operating hours per day, frequency of starts and stops, load characteristics, environmental conditions, and reliability requirements[5].
The service factor can be determined using AGMA guidelines, manufacturer's recommendations, experience and historical data, or by calculating it using the formula: Service Factor = Motor Rated Power / (Motor Rated Torque x Motor Rated Speed)[5].
If the service factor is too low, it risks under-sizing the gearbox, leading to excessive wear, noise, and potential failures[5].
