Views: 222 Author: Ella Publish Time: 2025-02-16 Origin: Site
Content Menu
● Understanding the Components
>> Hydraulic Hoses and Fittings
● Planning and Design Considerations
● Step-by-Step Connection Process
>> Step 1: Prepare the Rearend
>> Step 2: Mount the Hydraulic Motor
>> Step 3: Connect Hydraulic System Components
>> Step 4: Test & Adjust System Performance
● FAQ
>> 1. What type of hydraulic motor is best for this application?
>> 2. What size hydraulic pump do I need?
>> 3. How do I align my motor shaft with my rearend input shaft?
>> 4. What type of hydraulic fluid should I use?
>> 5. How do I prevent my hydraulic system from overheating?
Hydraulic motors offer a robust solution for converting fluid power into rotational motion. Combining them with an automotive rearend can create a powerful and versatile system suitable for various applications, from off-road vehicles to custom machinery. This article provides a detailed guide on how to connect a hydraulic motor to an automotive rearend, covering essential considerations, step-by-step instructions, and frequently asked questions.
Before diving into the connection process, it's crucial to understand the key components involved:
A hydraulic motor converts hydraulic fluid pressure and flow into rotational force (torque) and speed. Different types of hydraulic motors exist, including gear, vane, and piston motors. Each type offers varying performance characteristics in terms of speed, torque, and efficiency.
- Gear Motors: These are typically used for applications requiring high torque at low speeds. They are simple in design and reliable.
- Vane Motors: Vane motors offer a good balance between speed and torque and are often used in applications where space is limited.
- Piston Motors: These motors are highly efficient and can handle high pressures, making them suitable for demanding applications.
The automotive rearend (also known as a differential) is a critical component of a vehicle's drivetrain. It serves multiple purposes:
- Transmitting Power: It receives power from the engine (via the transmission) and transmits it to the wheels.
- Differential Action: It allows the wheels to rotate at different speeds during turns, preventing binding and ensuring smooth handling.
- Gear Reduction: It provides a final gear reduction, increasing torque to the wheels.
The rearend is often equipped with gears that can be selected based on the desired performance characteristics of the vehicle.
A hydraulic pump is the heart of the hydraulic system, converting mechanical energy into hydraulic energy by pumping fluid from a reservoir into the system. The pump's flow rate (gallons per minute or liters per minute) and pressure rating (PSI or bar) must be matched to the hydraulic motor's requirements.
Hydraulic hoses and fittings are used to connect the hydraulic pump to the motor and to route fluid within the system. They must be rated for the system's maximum pressure and compatible with the hydraulic fluid being used.
Control valves regulate the flow and pressure of hydraulic fluid, allowing you to control the speed and direction of the hydraulic motor. These valves can be manual or electronic, depending on your application needs.
Successful integration of a hydraulic motor and automotive rearend requires careful planning and design:
Determine the specific requirements of your application, including:
- Torque Requirements: How much torque is needed to drive the load? This will dictate your choice of motor size.
- Speed Requirements: What is the desired speed range of the output? Consider both minimum and maximum speeds.
- Duty Cycle: How often and for how long will the system be operated? Continuous operation may require more robust components.
- Environmental Conditions: Will the system be exposed to extreme temperatures, moisture, or contaminants? This may influence your material choices.
Choose components that meet your application requirements. Consider the following:
- Hydraulic Motor Size and Type: Select a motor with sufficient torque and speed capabilities based on your calculations.
- Rearend Ratio: Choose a rearend ratio that provides optimal performance for your specific application. A lower gear ratio will yield higher torque but lower top speeds.
- Pump Flow and Pressure: Ensure that your pump can deliver adequate flow rates at pressures compatible with both your motor and rearend.
- Control Valve Type: Select a valve that provides necessary control functions (e.g., directional control, flow control). Proportional valves offer fine control over speed.
Proper mounting and alignment are crucial for preventing premature wear and failure. Consider these aspects:
- Motor Mounting: Design a robust mounting system that securely attaches the hydraulic motor to the rearend housing. The mount should withstand vibrations during operation.
- Shaft Alignment: Ensure that the motor shaft aligns precisely with the rearend input shaft. Misalignment can lead to increased wear on bearings.
- Flexible Couplings: If slight misalignments occur during installation or operation, consider using flexible couplings that can accommodate these discrepancies without damaging components.
Design a hydraulic system that provides adequate cooling, filtration, and pressure regulation. Consider these factors:
- Reservoir Size: Choose a reservoir with sufficient capacity to accommodate fluid expansion due to temperature changes.
- Cooling Systems: Implement cooling systems such as air-cooled or water-cooled heat exchangers if high temperatures are expected.
- Filtration Systems: Install filters at various points in your hydraulic circuit to remove contaminants from fluid. This is crucial for prolonging component life.
- Pressure Relief Mechanisms: Include pressure relief valves in your design to prevent damage due to overpressure situations.
Follow these steps to connect a hydraulic motor to an automotive rearend:
1. Clean the Rearend:
- Thoroughly clean the rearend housing using degreasers or solvents designed for automotive applications. Remove all dirt, grease, or debris that could interfere with mounting surfaces.
2. Inspect Components:
- Inspect all components for signs of damage or wear. Replace any worn or damaged parts before proceeding.
3. Modify Input Shaft (If Necessary):
- Depending on your specific setup, you may need to modify or adapt the input shaft of either component. This could involve machining or welding an adapter onto it.

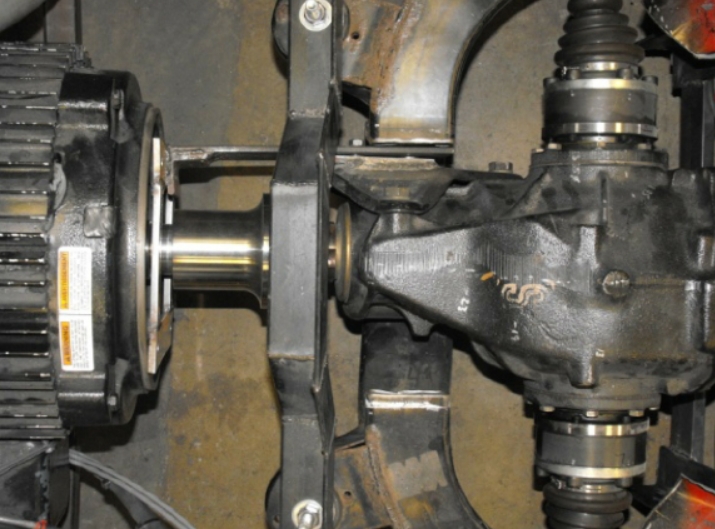

1. Fabricate a Mounting Bracket:
- Design and fabricate a robust mounting bracket using high-strength steel or aluminum alloy that securely attaches the hydraulic motor to the rearend housing.
2. Align Motor Shaft:
- Carefully align both shafts using precision measuring tools like dial indicators or laser alignment tools. This ensures minimal stress on bearings during operation.
3. Secure Motor:
- Bolt down securely using high-strength bolts along with lock washers or thread-locking compounds as necessary.
1. Install Hoses & Fittings:
- Connect all hoses using appropriate fittings rated for your system's maximum pressure. Ensure all connections are tight but avoid over-tightening which can damage fittings.
2. Fill Hydraulic System:
- Fill up your hydraulic reservoir with recommended fluid type based on manufacturer specifications (e.g., ISO VG 32 oil).
3. Bleed Air from System:
- Bleed air out of lines by opening bleed screws on valves until only fluid flows out without bubbles present.
1. Conduct Initial Test Run:
- Start up your hydraulic pump slowly while monitoring pressure gauges closely for any irregularities indicating leaks or malfunctions.
2. Adjust Control Valves:
- Fine-tune control valves based on observed performance during testing—this may involve adjusting flow rates or directional controls based on application needs.
3. Load Testing:
- Gradually apply load while monitoring performance metrics such as temperature rise in both motors/gearboxes; make adjustments as needed until optimal performance is achieved without overheating issues occurring under load conditions.
Safety should always be prioritized when working with hydraulic systems:
- Wear Protective Gear: Always wear safety glasses along with gloves when working near pressurized systems.
- Relieve Pressure Before Disconnection: Ensure all pressure has been relieved before disconnecting any lines; this prevents sudden releases causing injury.
- Use Proper Tools & Equipment: Utilize appropriate tools designed specifically for working with hydraulics—this includes wrenches suited for high-torque applications.
- Consult Manufacturer Guidelines: Follow instructions provided by manufacturers regarding installation procedures; they often contain critical safety information relevant to their products.
- Maintain Clean Work Area: Keep workspace organized free from clutter which could lead accidents during assembly/disassembly processes.
- Seek Professional Help When Needed: If unsure about any steps involved consult experts familiarized within this field—better safe than sorry!
Connecting a hydraulic motor to an automotive rearend can be an exciting project offering significant benefits in terms of power delivery efficiency across various applications—from industrial machinery setups down through custom vehicle builds tailored towards specialized tasks! By carefully planning each stage involved—from component selection through installation/testing phases—you'll ensure successful integration resulting in reliable performance over time!
With this comprehensive guide at hand along with adherence towards safety protocols outlined throughout—you're well-equipped now embark upon this journey confidently!
The best type of hydraulic motor depends on your specific needs. Gear motors are ideal for low-speed, high-torque applications due to their simplicity and reliability; vane motors provide balanced performance across speed ranges; piston motors excel under high-pressure conditions making them suitable for demanding tasks requiring efficiency over extended periods!
The size of your required pump depends directly upon both flow rate (GPM/LPM) requirements dictated by chosen motor specs along with maximum operating pressures (PSI/bar). Consult manufacturer documentation regarding compatibility between components!
Precise alignment is essential! Use dial indicators measuring vertical/horizontal planes ensuring minimal misalignment occurs—shims may be utilized where necessary correcting any discrepancies found during alignment checks!
Choosing appropriate fluids hinges upon manufacturer recommendations alongside operating temperature ranges encountered within specific setups—commonly utilized fluids include ISO VG grades tailored towards respective applications!
Overheating prevention strategies include installing dedicated cooling solutions such as air/water-cooled heat exchangers alongside ensuring reservoir sizes accommodate thermal expansion adequately—monitoring temperatures regularly also assists identifying potential issues before they escalate further!
