Hydraulic motors are the power behind countless heavy-duty operations, offering unparalleled torque and reliability. However, taming this raw power requires precise control. This article delves deeper into controlling hydraulic motors using the Arduino platform, empowering you to build sophisticated and responsive hydraulic systems. We will expand on the core principles, explore advanced control techniques, address practical considerations, and provide a more comprehensive guide to achieving accurate and reliable hydraulic motor control.
Let's recap and expand on the core components and concepts:
As mentioned before, the type of hydraulic motor is a critical consideration. Gear motors are cost-effective and suitable for lower-precision applications. Vane motors offer a good balance of performance and cost. Piston motors are the kings of precision, offering high torque and speed control but come at a higher price point. Consider the specific torque and speed requirements of your application when selecting a motor. Don't forget to consult the motor's datasheet for critical specifications like maximum pressure, flow rate, and operating temperature.
The HPU is more than just a pump and reservoir. It's the heart of your hydraulic system, providing the pressurized fluid that drives the motor. Ensure the HPU has sufficient capacity (flow rate in gallons per minute or liters per minute) and pressure (measured in PSI or bar) to meet the motor's demands. A pressure relief valve is an essential safety component, preventing over-pressurization and potential damage to the system. Consider HPUs with integrated filtration to maintain fluid cleanliness and prolong the life of your hydraulic components.
The proportional valve is the key to Arduino-based control. These valves allow for *variable-control of fluid flow, unlike simple on/off valves. They are typically controlled by an electrical signal, making them ideal for interfacing with microcontrollers. Common types include proportional directional control valves and proportional pressure control valves. The valve's specifications are critical: flow capacity, operating pressure, and control voltage must be compatible with your system.
While the Arduino Uno/Nano are excellent starting points, consider more powerful Arduino alternatives like the Mega or Due for applications requiring more processing power, memory, or I/O pins. The choice depends on the complexity of your control algorithms, the number of sensors you're using, and the need for real-time performance.
Accurate control demands feedback. An optoelectronic pole wheel (often used with a toothed wheel on the motor shaft) or a rotary encoder are common choices. Rotary encoders provide more precise position and speed feedback. Understanding the encoder's resolution (pulses per revolution) is crucial for accurate speed calculations. For more advanced applications, consider using pressure sensors to monitor the hydraulic pressure within the system.
Proportional valves often require more current than an Arduino pin can supply. Motor drivers act as amplifiers, boosting the Arduino's signal to the necessary level. MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are often preferred over relays for PWM control due to their faster switching speeds, resulting in smoother and more precise valve control.

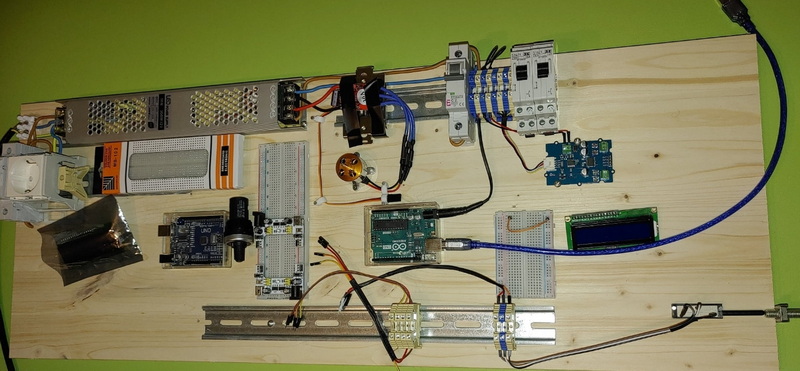

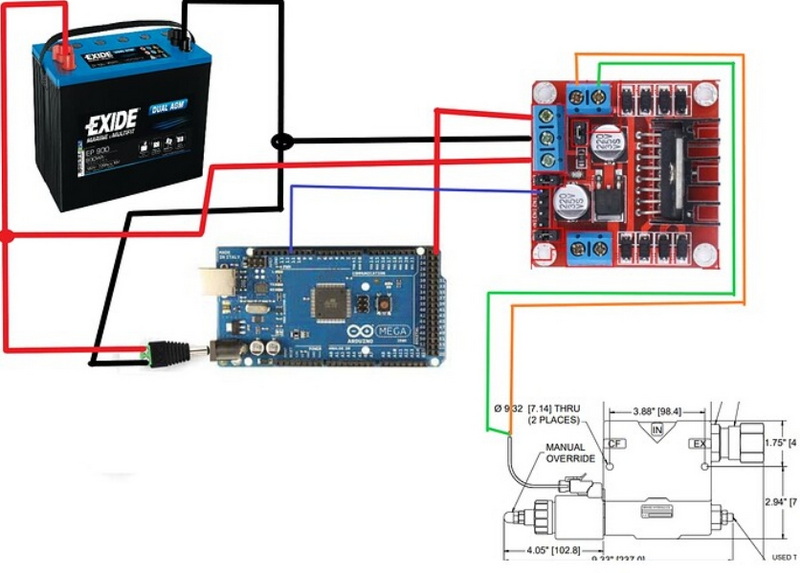

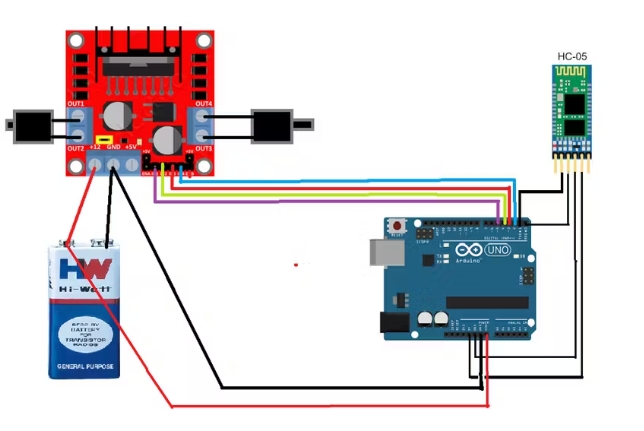

Let's expand on the wiring diagram to address potential challenges and best practices:
1. Potentiometer: Use shielded cable for the potentiometer wires to minimize noise and interference, especially in environments with electrical noise.
2. Encoder: Pay close attention to the encoder's wiring. Incorrect wiring can lead to inaccurate readings or damage the encoder. Use pull-up resistors on the encoder's output signals if your Arduino board doesn't have internal pull-up resistors enabled.
3. Motor Driver: Ensure the motor driver's power supply is properly grounded to the Arduino's ground. This prevents ground loops and potential damage. Use a flyback diode across the proportional valve's coil to protect the MOSFET from voltage spikes when the valve is switched off.
4. Power Supply: Choose a power supply with sufficient headroom. Don't operate the power supply at its maximum rated current continuously. This can lead to overheating and failure.
The basic code example provided earlier can be significantly enhanced. Here are some improvements:
Use a moving average filter to smooth out the potentiometer input signal. This reduces jitter and improves the stability of the control system.
The updateEncoder() interrupt routine should be as short and efficient as possible. Avoid performing lengthy calculations or serial printing within the interrupt routine. Instead, simply update the encoderCount variable and perform the calculations in the main loop.
Use a timer interrupt to execute the control loop at a fixed frequency. This ensures consistent and predictable control performance.
Implement error handling to detect and respond to potential problems, such as encoder errors, over-pressure conditions, or communication failures.
The PID controller is a powerful tool, but understanding its parameters is crucial for optimal performance.
Tuning the PID Parameters: Tuning the PID parameters (Kp, Ki, Kd) can be a challenging process. The Ziegler-Nichols method is a common technique for finding initial values for the parameters. Experimentation and iterative refinement are often necessary to achieve optimal performance.
Anti-Windup: The integral term in a PID controller can accumulate excessively if the control output is saturated (e.g., the valve is fully open or fully closed). This can lead to overshoot and oscillations. Implement anti-windup techniques to prevent the integral term from accumulating excessively.
Feedforward Control: Feedforward control can improve the responsiveness of the system by anticipating the control action required to achieve the desired setpoint. This is particularly useful for systems with significant delays or non-linearities.
Adaptive Control: For systems with varying operating conditions, consider using adaptive control techniques to automatically adjust the PID parameters.
Hydraulic Fluid Selection: Choose a hydraulic fluid that is compatible with the components in your system and suitable for the operating temperature range.
- Filtration: Use proper filtration to keep the hydraulic fluid clean. Contaminated fluid can damage the motor and valve.
- Leakage: Check for leaks regularly and repair them promptly.
- Temperature: Monitor the hydraulic fluid temperature. Overheating can damage the fluid and components.
- Vibration: Minimize vibration in the hydraulic system. Vibration can damage components and cause leaks.
- Regular Maintenance: Perform regular maintenance on the hydraulic system, including fluid changes, filter replacements, and component inspections.
- Internet of Things (IoT) Integration: Connect your Arduino-controlled hydraulic system to the internet to enable remote monitoring and control.
- Machine Learning (ML): Use machine learning algorithms to optimize the control system's performance and predict potential failures.
- Virtual Reality (VR) and Augmented Reality (AR): Use VR and AR technologies to visualize and interact with the hydraulic system in a more intuitive way.
Controlling a hydraulic motor with Arduino is a rewarding and powerful capability. By understanding the underlying principles, selecting the right components, and implementing a robust control system, you can unlock a new level of precision and automation in your hydraulic applications. This expanded guide provides a more comprehensive foundation for building sophisticated and reliable Arduino-controlled hydraulic systems. Remember to prioritize safety, follow best practices, and continuously learn and experiment to push the boundaries of what's possible.
Choosing the right size proportional valve involves calculating the required flow rate based on the motor's displacement and desired speed. Consult the motor's datasheet and use the following formula: Flow Rate = (Motor Displacement x Motor Speed) / 231 (if displacement is in cubic inches and speed is in RPM, the result is in gallons per minute). Select a valve with a flow capacity that meets or exceeds this calculated flow rate.
Common problems include valve hysteresis (delay in response), non-linearity, and dither (small oscillations). Hysteresis can be minimized by using a valve with low hysteresis and by implementing a feedforward control strategy. Non-linearity can be compensated for by calibrating the valve and creating a look-up table to map the PWM signal to the actual flow rate. Dither can be introduced by adding a small, high-frequency PWM signal on top of the control signal.
Use sealed enclosures to protect the Arduino and other electronic components from moisture, dust, and vibration. Use shielded cables to minimize noise and interference. Consider using optocouplers to isolate the Arduino from the high-voltage circuits of the motor driver and proportional valve.
CAN bus (Controller Area Network) is a robust and reliable communication protocol that is commonly used in automotive and industrial applications. It offers several benefits, including high noise immunity, error detection, and the ability to connect multiple devices to a single bus. This can simplify wiring and improve the overall reliability of the system.
You can use a Wi-Fi or Ethernet shield to connect the Arduino to the internet. Then, you can create a web server on the Arduino to handle requests from a smartphone or web browser. You can use a library like "Webduino" to simplify the process of creating the web server and handling the communication. Alternatively, you can use a cloud-based platform like ThingSpeak or Adafruit IO to collect data from the Arduino and control the motor remotely.
