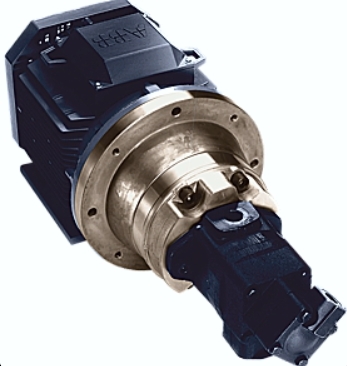

A drive coupling serves to connect the shaft of an electric motor to the shaft of a hydraulic pump. Hydraulic couplings are commonly found in heavy machinery like pumps, mills, crushers, and conveyors to move power from electric motors or internal combustion engines. These couplings can compensate for angular and radial misalignments between the motor and pump because of their flexible design, and they greatly reduce noise produced by the driveline.
A drive coupling is a component used to connect the shaft of an electric motor to the shaft of a hydraulic pump. It ensures efficient power transmission between the motor and the pump, which is crucial for the hydraulic system's operation.

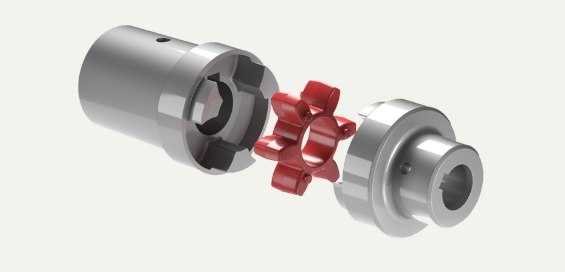

Typically, hydraulic couplings are made from aluminum alloy for die-and shell-casting. The rubber spider, which provides flexibility, is often made from Acryl-Nitrile-BuNa with a hardness of 75 or 92 shore. On request, cast iron and steel couplings are also available. The choice of material depends on the specific application and the environmental conditions in which the coupling will operate. For instance, stainless steel couplings are preferred in corrosive environments to prevent rust and ensure longevity.
These couplings are designed to operate within a working temperature range of -30° to +80°C. Understanding the operating conditions helps in selecting the right coupling material and design for specific applications. Extreme temperatures can affect the performance and lifespan of the coupling. For example, in high-temperature environments, couplings made from heat-resistant materials like special alloys or polymers are necessary to prevent degradation and failure.

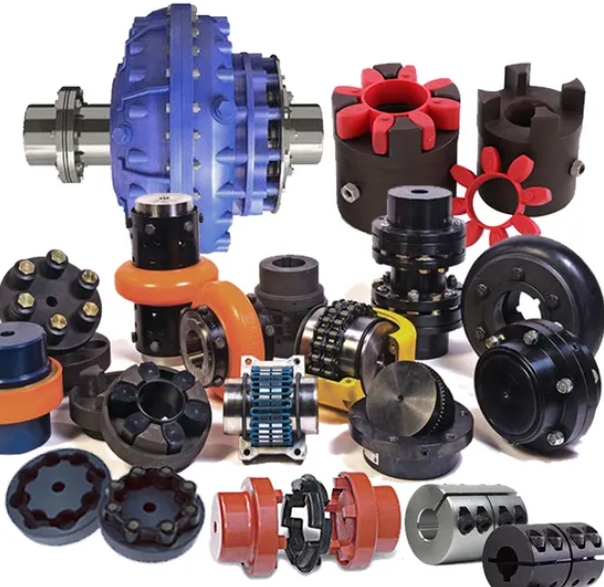

There are two main types of couplings: rigid and flexible.
These are used to connect two shafts that are precisely aligned with each other. Rigid couplings do not tolerate any misalignment. They are often used in applications where precision and stability are paramount. For example, in high-speed rotating machinery, rigid couplings ensure that the shafts remain perfectly aligned, minimizing vibration and wear.
These are used when the shafts are not perfectly aligned. Flexible couplings can accommodate slight misalignments, which is beneficial in many practical applications. By virtue of their flexible structure, they can compensate for angular and radial misalignments between motor and pump, and appreciably attenuate the noise generated through the drive line. Common types of flexible couplings include jaw couplings, gear couplings, and disc couplings. Each type offers different levels of flexibility and torque capacity, making them suitable for various applications.
To select the correct coupling for a pump, it is essential to study the pump, its application, and maintenance requirements carefully. Matching the coupling to the application avoids maintenance problems and ensures a long service life for the pump.
1. Ease of Maintenance: How easy is it to maintain the pump with the selected coupling? Consider the accessibility of the coupling and the ease with which its components can be inspected and replaced.
2. Replacement of Flexible Elements: How easy is it to replace the coupling's flexible components? Some couplings are designed with easily replaceable flexible elements, which can significantly reduce downtime and maintenance costs.
3. Plant Maintenance Constraints: What are the maintenance limitations of the plant? Consider the availability of tools, equipment, and trained personnel for maintaining the coupling.
4. Forces on Bearings: What forces does the coupling exert on the bearings when misaligned? Misalignment can cause excessive stress on the bearings, leading to premature failure. Choose a coupling that minimizes these forces.
The size of the coupling should be selected to ensure a satisfactory service life without being excessively large or expensive. The primary factors determining coupling size are power and speed. Torque (or horsepower per hundreds of rpm) can also be a selection criterion, especially when the operating speed is less than the maximum rated speed.
Torque is determined by the pump's demand, not the motor's nameplate rating. For example, if an 18 hp pump is driven by a 20 hp motor, the pump rating (18 hp) should be used to select the coupling size.
The formula to calculate torque is:
Torque=(Pump hp×63,025)/rpm (lb-in)
It's also crucial to consider safety factors. In applications where the load fluctuates significantly or where there are frequent start-stop cycles, it's advisable to select a coupling with a higher torque rating to accommodate these dynamic loads.
Converting a hydraulic pump to a motor coupling involves several steps to ensure proper alignment and functionality. Here is a detailed guide:
- Safety First: Before starting any mechanical work, ensure that the power supply to both the motor and the hydraulic pump is disconnected. This prevents accidental start-up during the conversion process. Use lockout/tagout procedures to ensure that the power remains off during the entire process.
- Gather Tools: Collect all necessary tools, including wrenches, screwdrivers, alignment tools, and measuring devices. Having the right tools at hand saves time and ensures precision. A comprehensive toolset should include items like torque wrenches, dial indicators, laser alignment tools, and precision measuring instruments.
- Review Manuals: Consult the manuals for both the hydraulic pump and the motor. Understanding the specifications and requirements of each component is crucial for a successful conversion. Pay close attention to torque specifications, alignment tolerances, and lubrication requirements.
- Disconnect Hydraulic Lines: Carefully disconnect all hydraulic lines from the pump. Ensure to drain any remaining fluid to prevent spillage. Use drip pans to catch any residual fluid and dispose of it properly according to environmental regulations.
- Remove Mounting Bolts: Locate and remove the bolts that secure the pump to its mounting. Use the appropriate wrenches to loosen and remove these bolts. Depending on the application, these bolts may be corroded or difficult to access. Use penetrating oil to loosen stubborn bolts.
- Detach the Pump: Once the bolts are removed, carefully detach the pump from its mounting. If the pump is heavy, use lifting equipment to prevent injury. Use a hoist or crane to lift the pump, ensuring that it is properly supported to prevent accidents.
- Assess the Application: Determine the specific requirements of the application, including torque, speed, and operating conditions. Consider factors like the type of fluid being pumped, the operating temperature, and the presence of any corrosive substances.
- Choose Coupling Type: Based on the application, select either a rigid or flexible coupling. Flexible couplings are generally preferred due to their ability to accommodate slight misalignments. Consider the specific type of flexible coupling that best suits the application. For example, jaw couplings are suitable for general-purpose applications, while gear couplings are better for high-torque applications.
- Match Coupling Size: Calculate the required torque and select a coupling that matches or exceeds this value. Ensure the coupling is compatible with both the motor and pump shafts. Use the torque calculation formula and safety factors discussed earlier to ensure the coupling is adequately sized.
- Prepare the Motor Shaft: Clean the motor shaft to remove any dirt or debris. Inspect the shaft for damage and ensure it is in good condition. Use a wire brush or emery cloth to remove any rust or corrosion from the shaft.
- Attach the Coupling: Slide the motor coupling onto the motor shaft. Secure it in place using the provided hardware, such as screws or bolts. Ensure that the coupling is properly aligned with the shaft and that the hardware is correctly installed.
- Tighten Fasteners: Use a torque wrench to tighten the fasteners to the specified torque. This ensures a secure connection and prevents loosening during operation. Consult the coupling manufacturer's specifications for the correct torque values.
- Position the Motor: Place the motor in the correct position relative to the pump. Use shims to adjust the height and alignment as needed. Ensure that the motor is securely mounted and that the shims are properly placed to provide a stable base.
- Rough Alignment: Perform a rough alignment using a straightedge or laser alignment tool. This involves aligning the motor and pump shafts visually. Use a straightedge or laser to visually check the alignment.
- Precision Alignment: Use precision alignment tools, such as dial indicators, to achieve accurate alignment. Measure the misalignment in both the vertical and horizontal planes. Mount the dial indicators on the motor and pump shafts and take readings at multiple points.
- Adjust Alignment: Adjust the motor position by adding or removing shims until the misalignment is within the acceptable range. Continue to take dial indicator readings and adjust the shims until the alignment is within the specified tolerances.
- Prepare the Pump Shaft: Clean the pump shaft and inspect it for damage. Ensure it is compatible with the motor coupling. Use the same cleaning and inspection procedures as with the motor shaft.
- Attach the Pump Coupling: Slide the pump coupling onto the pump shaft. Secure it in place using the appropriate hardware. Ensure the coupling is properly aligned with the shaft and that the hardware is correctly installed.
- Tighten Fasteners: Tighten the fasteners to the specified torque to ensure a secure connection. Consult the coupling manufacturer's specifications for the correct torque values.
- Inspect Lines: Check all hydraulic lines for damage or wear. Replace any lines that are in poor condition. Look for cracks, kinks, or signs of wear.
- Connect Lines: Reconnect the hydraulic lines to the pump. Ensure the connections are tight to prevent leaks. Use new seals or O-rings to ensure a tight seal.
- Verify Connections: Double-check all connections to ensure they are secure and properly sealed. Use a torque wrench to tighten the connections to the specified torque.
- Initial Test: Start the motor and observe the pump operation. Check for any unusual noises or vibrations. Listen for any unusual sounds and feel for any excessive vibration.
- Monitor Performance: Monitor the pump's performance, including flow rate and pressure. Verify that it meets the required specifications. Use a flow meter and pressure gauge to monitor the pump's performance.
- Check for Leaks: Inspect all hydraulic connections for leaks. Tighten any connections as needed. Look for any signs of fluid leakage around the connections.
- Final Adjustments: Make any necessary adjustments to the alignment or connections to optimize performance. Continue to monitor the pump's performance and make any necessary adjustments to ensure optimal operation.
- Flexibility in Design: Hydraulic couplings allow for greater flexibility in the design of machinery. The use of hydraulic pump-motor coupling allows the use of a hydraulic pump instead of a mechanical motor. This flexibility can be particularly useful in applications where space is limited or where the motor and pump need to be located in different areas.
- Remote Operation: Hydraulic systems can be used in remote or mobile equipment, providing power where it is needed. This is particularly advantageous in construction, agriculture, and other industries where equipment needs to operate in remote locations.
- Lightweight Alternative: The coupling provides a lightweight alternative to traditional motors and pumps. This can be especially important in mobile applications where weight is a critical factor.
- Durability and Ease of Use: Hydraulic couplings are designed to be durable and easy to use, making them attractive to businesses. Their robust construction and simple design contribute to their long lifespan and ease of maintenance.
- Misalignment: Misalignment between the motor and pump shafts can cause excessive wear and vibration. Regular alignment checks are essential. Use precision alignment tools, such as dial indicators or laser alignment tools, to regularly check and correct misalignment.
- Coupling Wear: Over time, the flexible elements in the coupling can wear out. Regularly inspect and replace these elements as needed. Develop a preventative maintenance schedule that includes regular inspections of the coupling and replacement of worn components.
- Hydraulic Leaks: Leaks in the hydraulic lines or connections can reduce efficiency and cause damage. Regularly inspect and tighten connections. Use new seals or O-rings when reconnecting hydraulic lines to ensure a tight seal.
- Overheating: Overheating can occur if the hydraulic system is overloaded or not properly cooled. Ensure the system is properly sized and cooled. Use a temperature gauge to monitor the temperature of the hydraulic fluid and ensure that it remains within the specified operating range.
For applications requiring high torque, steel half couplings designed for high torque applications with parallel or splined shafts are ideal. These couplings are easy to install and save time on maintenance and repairs. High-torque couplings are often used in heavy-duty machinery such as mining equipment, steel mills, and large industrial presses.
Flexible couplings attenuate the noise generated through the drive line. Low-noise versions of flexible half couplings are available in aluminum, cast iron, and steel. These couplings are designed with special features that help to dampen vibrations and reduce noise levels.
These are specifically designed to suit high torque applications with parallel or splined shafts, easy to install and save time on maintenance and repairs. Engine flexible half couplings are commonly used in construction equipment, agricultural machinery, and other vehicles with internal combustion engines.
A large industrial conveyor system used hydraulic couplings to connect electric motors to hydraulic pumps. The system experienced frequent breakdowns due to misalignment issues. By implementing a precision alignment program and using flexible couplings, the company reduced downtime by 40% and extended the lifespan of the equipment. The precision alignment program involved training maintenance personnel on proper alignment techniques and investing in laser alignment tools.
A mobile hydraulic unit used in construction equipment benefited from the lightweight and durable design of hydraulic couplings. The unit experienced fewer failures and required less maintenance compared to traditional mechanical systems. The use of hydraulic couplings also allowed for remote operation, increasing the versatility of the equipment. The reduction in weight also improved the fuel efficiency of the construction equipment.
- Regular Inspections: Conduct regular inspections of the hydraulic couplings to identify any signs of wear or damage. Develop a checklist to ensure that all critical components are inspected.
- Proper Alignment: Ensure proper alignment between the motor and pump shafts. Use precision alignment tools for accurate alignment. Invest in laser alignment tools and train maintenance personnel on their proper use.
- Tighten Connections: Regularly tighten all connections to prevent leaks and ensure a secure fit. Use a torque wrench to ensure that the connections are tightened to the specified torque.
- Replace Worn Components: Replace any worn or damaged components, such as flexible elements or seals, promptly. Keep a supply of spare parts on hand to minimize downtime.
- Lubrication: Lubricate the coupling as needed to reduce friction and wear. Use the lubricant recommended by the coupling manufacturer.
- Monitor Performance: Monitor the performance of the hydraulic system, including flow rate, pressure, and temperature. Use sensors and data logging systems to track these parameters over time.
- Keep Clean: Keep the coupling and surrounding area clean to prevent dirt and debris from causing damage. Regularly clean the coupling and surrounding area with a mild detergent and water.
Advancements in materials and design continue to improve the performance and reliability of hydraulic couplings. Some recent innovations include:
- High-Strength Alloys: The use of high-strength alloys, such as titanium and advanced steel, increases the durability and load-bearing capacity of couplings. These alloys offer improved resistance to corrosion, wear, and fatigue.
- Improved Flexible Elements: New flexible materials, such as advanced polymers and elastomers, provide better flexibility and resistance to wear. These materials can withstand higher temperatures and more aggressive chemicals.
- Smart Couplings: Smart couplings incorporate sensors and monitoring systems to detect misalignment, wear, and other issues. These couplings can provide early warnings of potential problems, allowing for proactive maintenance. The sensors can measure parameters such as vibration, temperature, and torque.
- Compact Designs: Compact coupling designs reduce the overall size and weight of the hydraulic system, making it suitable for mobile and space-constrained applications. These designs often utilize advanced materials and manufacturing techniques to achieve high performance in a small package.
The future of hydraulic couplings will likely involve increased use of smart technology and advanced materials. Smart couplings with integrated sensors will provide real-time monitoring of performance, allowing for predictive maintenance and reduced downtime. Advanced materials, such as nanocomposites and self-healing polymers, will further enhance the durability and reliability of couplings. Additionally, the development of standardized coupling designs will simplify the selection and installation process, making hydraulic systems more accessible and user-friendly. The integration of artificial intelligence and machine learning will enable predictive maintenance and optimize coupling performance.
Converting a hydraulic pump to a motor coupling is a multifaceted process that demands careful planning, precise execution, and a thorough understanding of the components involved. By adhering to the step-by-step guide provided, selecting the appropriate coupling, and implementing best practices for maintenance, you can ensure the longevity and optimal performance of your hydraulic systems. The integration of visual aids, such as images and videos, further enhances comprehension and facilitates the practical application of the concepts discussed. As technology advances, innovations in materials and smart systems will continue to improve the efficiency and reliability of hydraulic couplings, making them an indispensable component in a wide range of industrial and mobile applications.
A hydraulic coupling connects a hydraulic pump to an electric motor, enabling the use of the hydraulic pump. The coupling is designed to transmit power efficiently while accommodating slight misalignments and reducing noise.
When selecting a hydraulic coupling, consider the pump application conditions, ease of maintenance, replacement of flexible elements, plant maintenance constraints, and the forces the coupling imposes on bearings when misaligned.
The size of the coupling is determined by power and speed, or torque (horsepower per hundreds of rpm). Use the pump's demand, not the motor's nameplate rating, to calculate torque. The formula is Torque = (Pump hp × 63,025) / rpm (lb-in).
The two main types of hydraulic couplings are rigid and flexible. Rigid couplings are for aligned shafts, while flexible couplings accommodate slight misalignments.
Common issues include misalignment, coupling wear, hydraulic leaks, and overheating. Misalignment requires regular checks and adjustments, worn elements should be replaced, leaks need tight connections, and overheating requires proper system sizing and cooling.
