● Designing a Four-Gear Speed Reducer
>> 8. Material Selection: A Deeper Dive
>> 10. Common Problems and Pitfalls in Gear Design
>> 11. Advanced Design Considerations
>> Innovations in Speed Reducer Technology
>> Animation
● FAQ
>> 2. Why are gear reducers used?
>> 3. What types of gears are commonly used in speed reducers?
>> 4. What materials are suitable for manufacturing gears and housings?
>> 5. What design considerations are important for a gear reducer?

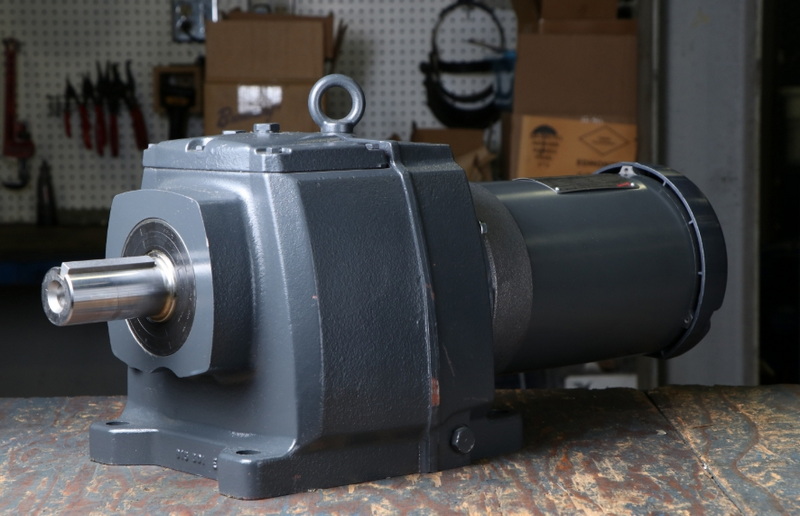

A speed reducer, also known as a gear reducer or gearbox, is a mechanical device used to reduce rotational speed while increasing torque. It achieves this by using a system of gears to modify the input speed from a motor or engine before transmitting power to the output shaft. Gear reducers are widely used in industrial machinery, automation systems, vehicles, and heavy-duty equipment where precise motion control is required.
The main function of a speed reducer is to adjust the torque and speed characteristics between the input and output shafts of a system. Understanding the application's torque and rotational speed is crucial before purchasing a gear reducer.
Speed reducers or gearboxes are used to reduce motor rotation speed and increase output torque, which improves the working capacity of the motor. In addition, the output direction change is available through a speed reducer. The motor output shaft clockwise rotation can be changed to counterclockwise through a speed reducer, or the output direction is turned 90 degrees by a right angle gearbox to save the installation space.

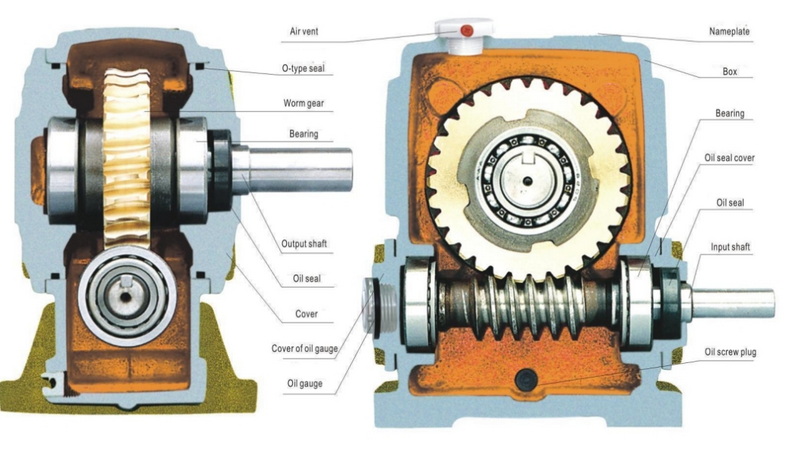

Speed reducers come in various designs, each suited for specific applications. Some of the most common types include:
- Gear Reducers:Utilize gears to modify speed and torque efficiently.
- Worm Gear Reducers:Provide high torque output with a compact design but lower efficiency.

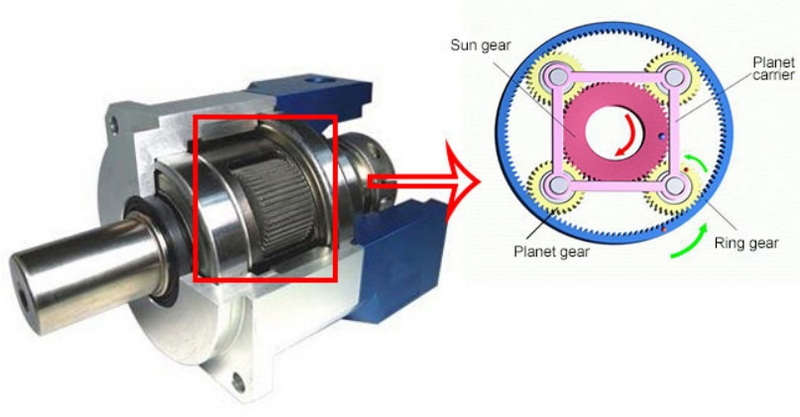

- Planetary Gear Reducers: Offer high efficiency and a compact structure, commonly used in robotics and automation. The reduction ratios of 1-stage planetary gear reducers are limited to 3 ~ 10.
- Cycloidal Reducers: Designed for high-precision applications with excellent shock resistance.
Designing a four-gear speed reducer involves selecting appropriate gears, arranging them to achieve the desired speed reduction and torque amplification, and ensuring the assembly is robust and efficient. Here's a detailed guide:
- Input Speed and Torque: Know the input speed (RPM) and torque from the motor.
- Output Speed and Torque: Determine the desired output speed and torque for the application.
- Gear Ratio: Calculate the overall gear ratio needed. For a four-gear system, this ratio will be distributed across the gear pairs.
Overall Gear Ratio=Input Speed/Output Speed
- Application: Understand the application to select appropriate materials and gear types. Specific information regarding the reduction ratios, input speed, and torque are critical when selecting the correct gearbox design for an application. It is also important to define the real duty cycle for the equipment, defining the frequency and details of the start/stops, variations in the running torque and speed etc.
Gear Types:
- Spur Gears: Simplest type, efficient for parallel shafts.
- Helical Gears: Quieter and can handle more load than spur gears, also for parallel shafts.
- Bevel Gears: For transmitting motion between non-parallel shafts.
- Worm Gears: High gear ratios in a compact space, often used for right-angle drives.
Material:
- Steel: High strength and durability.
- Cast Iron: Good for housings and less stressed components.
- Bronze: Often used for worm gears due to good sliding properties.
- Aluminum: Lightweight, suitable for housings.
- Number of Teeth: Choose the number of teeth for each gear to achieve the desired gear ratio.
Gear Ratio between two gears=Number of teeth on driven gear/Number of teeth on driving gear
A four-gear speed reducer typically consists of two pairs of gears. Here are a few possible arrangements:
- Two-Stage Spur Gear Reducer: Two pairs of spur gears to reduce speed in two stages.
- Compound Gear Train: An input shaft connected to Gear A, which meshes with Gear B on an intermediate shaft. Another gear, Gear C, is on the same intermediate shaft and meshes with Gear D on the output shaft.
- Center Distance: Determine the distance between the gear axes.
Center Distance=[Pitch Diameter of Gear 1+Pitch Diameter of Gear 2]/2
- Module: Select a standard module (size of teeth) for the gears.
- Pressure Angle: Commonly 20 degrees, affects gear forces and tooth strength.
- Backlash: Ensure proper backlash to prevent jamming and allow for lubrication. Every gearbox will have some backlash designed into it, to allow lubrication of the gears and prevent the gearbox from locking up.
- Material: Cast iron or aluminum for rigidity and heat dissipation.
- Lubrication: Design a system for lubricating the gears, either splash lubrication or forced lubrication. The quality and quantity of the lubricant are important for preventing bearing failure.
- Sealing: Use oil seals to prevent leakage. Damage to the seal can lead to oil leakage from the equipment.
- Mounting: Design mounting features for easy installation. The location of the application is critical, as the design may have to consider ambient and environmental conditions, space requirements, mounting arrangements, weight, noise, and maintenance requirements.
1. Define Input Parameters:
- Input Speed Nin
- Input Torque TinTin
- Desired Output Speed Nout
- Desired Output Torque Tout
2. Calculate Overall Gear Ratio:
Roverall=Nin/Nout
3. Distribute Gear Ratio:
- Divide the overall gear ratio into two stages.
R1×R2=Roverall
- Where R1 is the gear ratio for the first pair and R2 is the gear ratio for the second pair.
4. Select Number of Teeth:
- Choose NA,NB,Nc,and ND such that:
R1=NB/NA and R2=ND/NC
Where:
- NA = Number of teeth on Gear A (input gear)
- NB = Number of teeth on Gear B (intermediate gear)
- NC = Number of teeth on Gear C (intermediate gear)
- ND = Number of teeth on Gear D (output gear)
5. Calculate Pitch Diameters:
- Use a standard module m (e.g., 1mm, 2mm).
D=m×N
Where:
- D = Pitch diameter
- m = Module
- N = Number of teeth
6. Determine Center Distances:
For the first pair (Gears A and B):
C1=(DA+DB)/2
- For the second pair (Gears C and D):
C2=(DC+DD)/2
7. Calculate Gear Forces:
Tangential Force:
Ft=T/r
Where:
- T = Torque
- r = Pitch radius
- Consider radial and axial forces depending on the gear type.
8. Bearing Selection:
- Select appropriate bearings to support the shafts, considering the forces acting on them. Bearing failure is a common problem in reducers, often due to lubricant issues or wear.
9. Housing Design:
- Design the housing to support the gears and bearings, provide lubrication, and protect the components. The rigidity of the box itself must meet specific standard requirements to avoid deformation under internal and external forces.
- CAD Software: Use software like SolidWorks, AutoCAD, or Fusion 360 for 3D modeling and assembly.
- FEA Software: Use ANSYS or similar software to analyze stress and deformation.
Material selection is a cornerstone of gear reducer design. The materials used significantly impact the reducer's durability, efficiency, and overall performance.
- Steel Alloys: High-strength steel alloys like AISI 4140 or 4340 are frequently employed for gears due to their excellent tensile strength and fatigue resistance. These alloys can withstand high loads and cyclic stresses, crucial for long-term gear performance.
- Surface Hardening: Techniques like case hardening (carburizing or nitriding) can enhance the surface hardness of steel gears, improving their wear resistance without compromising the core's toughness.
- Cast Iron Grades: For housings, gray cast iron (ASTM A48) is a common choice due to its vibration damping properties and cost-effectiveness. Ductile iron (ASTM A536) offers higher tensile strength and ductility for more demanding applications.
- Aluminum Alloys: Aluminum alloys like 6061-T6 provide a lightweight alternative for housings, beneficial in applications where weight reduction is critical. They also offer good corrosion resistance.
- Plastics and Composites: In certain low-load applications, engineered plastics like nylon or composites can be used for gears or housing components. These materials offer advantages like self-lubrication and noise reduction.
Effective lubrication is crucial for minimizing friction, dissipating heat, and preventing wear in gear reducers.
- Oil Selection: Selecting the appropriate oil viscosity and type (mineral oil, synthetic oil) is essential. Synthetic oils often offer superior thermal stability and lubrication properties.
- Splash Lubrication: In this simple method, the gears dip into an oil sump, and the rotation of the gears splashes oil onto the gear teeth and bearings.
- Forced Lubrication: For high-speed or high-load applications, a pump-driven forced lubrication system delivers oil directly to critical areas, ensuring adequate lubrication and cooling.
- Grease Lubrication: Grease can be used for certain low-speed or intermittent-duty applications. It offers good sealing properties but may require more frequent replenishment.
Several pitfalls and problems are associated with the successful design of a new gear transmission. These relate to an inadequate evaluation of areas such as lubrication and cooling requirements, complete static and dynamic load analysis, evaluation of materials and heat treatment, and the latest manufacturing technology.
- Inadequate Lubrication: Insufficient or improper lubrication can lead to increased friction, heat, and wear, reducing the lifespan of the gears and bearings.
- Incorrect Material Selection: Choosing the wrong material for the gears can result in premature failure due to insufficient strength, hardness, or wear resistance.
- Inaccurate Dimensioning and Tolerancing: Accurate gear design hinges on precise dimensions and tolerances. Engineers must understand the interplay between tolerances, manufacturing processes, and gear functionality to set appropriate standards.
- Overlooking Material Selection and Analysis: Material selection and analysis are critical for gear design.
- Gear Failures: Gears in the speed reducer, during operation, are also prone to failure. Gears will be reduced in thickness after a sudden overload phenomenon or a serious wear phenomenon, making the gears appear broken.
- Bearing Failures: Bearing failure is one of the core components of the transmission system of the reducer.
- Finite Element Analysis (FEA): Employing FEA during the design phase can help optimize gear tooth profiles, housing structures, and bearing arrangements to minimize stress concentrations and improve overall structural integrity.
- Vibration Analysis: Understanding and mitigating vibration is crucial for reducing noise and preventing premature wear. Techniques like modal analysis can identify resonant frequencies and guide design modifications to minimize vibration.
- Thermal Management: Heat generation due to friction can significantly impact gear reducer performance and lifespan. Effective thermal management strategies, such as optimized housing design and forced cooling, can help maintain operating temperatures within acceptable limits.
- Sealing Solutions: Reliable sealing is essential for preventing oil leakage and contamination. Advanced sealing solutions, such as labyrinth seals and magnetic seals, can provide superior performance in demanding environments.
Let's design a simple two-stage spur gear reducer.
1. Requirements:
- Input Speed: 1750 RPM
- Output Speed: 350 RPM
- Overall Gear Ratio: Roverall=1750/350=5
2. Distribute Gear Ratio:
-Let R1=2.5 and R2=2
3. Select Number of Teeth:
- Gear A: 20 teeth
- Gear B: 50 teeth
- Gear C: 25 teeth
- Gear D: 50 teeth
4. Verify Gear Ratios:
R1=50/20=2.5
R2=50/25=2
5. Select Module:
-Let m=2 mmm=2mm
6. Calculate Pitch Diameters:
- DA=2×20=40mm
-DB=2×50=100 mm
-DC=2×25=50 mm
-DD=2×50=100 mm
7. Calculate Center Distances:
-C1=(40+100)/2=70 mm
-C2=(50+100)/2=75 mm
- Standard Components: Use standard bearings, seals, and fasteners to reduce costs and improve availability.
- Lubrication: Proper lubrication is crucial for gear life and efficiency.
- Manufacturing: Consider manufacturing methods (e.g., CNC machining) when designing the gears and housing.
- Testing: Prototype and test the design to validate performance and identify potential issues.
- Duty Cycle: Defining the duty cycle for the equipment helps in accurately selecting and designing a solution that will perform for the required life of the machine.
- Miniaturization: Modern advancements have effectively miniaturized speed reducers, enabling the creation of more streamlined and nimble robots.
- Torque Density: Modern robot speed reducers utilize advanced materials and design principles to boost torque density.
- Gear Design: Innovations in gear design, like alterations to tooth profiles and materials, have significantly improved the efficiency and reliability of planetary gear systems.
- Smart Sensors: Innovations in the robot speed reducer include the smooth integration of smart sensors that offer real-time data on temperature, load, and performance.
- Adaptive Motion Control: Innovations extend to adaptive motion control, empowering robots to adjust their speed, torque, and movements dynamically based on the specific requirements of the task at hand.
- AI in Speed Limiter Systems: AI-enabled speed limiters can analyze a range of factors in real-time, such as road conditions, traffic patterns, and even driver behavior.
- Machine Learning and Personalized Speed Control: Machine learning allows speed limiters to learn from specific drivers, routes, and conditions.
By following these steps and considerations, you can design an effective four-gear speed reducer tailored to your specific application.
To visualize the motion, animation can be added to the assembly to test its functionality.
Designing a four-gear speed reducer requires a systematic approach, beginning with defining the application requirements and selecting appropriate gear types and materials. Distributing the gear ratio across multiple stages, considering design factors like center distance and module, and utilizing software tools for modeling and analysis are crucial steps. Proper lubrication, selection of standard components, and thorough testing ensure the efficiency and durability of the final design. Innovations in materials, gear design, and control systems are continually advancing the capabilities of speed reducers, making them more efficient, precise, and adaptable.
A gear reducer, also known as a speed reducer or gearbox, is a mechanical device used to reduce rotational speed while increasing torque. It is commonly used in various machinery and systems requiring precise motion control.
Gear reducers are used to decrease the rotational speed of a motor while increasing the output torque, enhancing the motor's working capacity. They can also change the output direction to save installation space.
Common gear types include spur gears, helical gears, bevel gears, worm gears, planetary gears, and cycloidal gears. Each type is suited for specific applications based on factors like efficiency, load capacity, and space requirements.
Gears are commonly made from steel for its high strength and durability, while housings are often made from cast iron or aluminum for rigidity and heat dissipation. Bronze is also used for worm gears due to its good sliding properties.
Important design considerations include determining the gear ratio, selecting the number of teeth, calculating pitch diameters and center distances, selecting appropriate bearings, designing the housing for support and lubrication, and ensuring proper backlash.
