How To Design A Gear Reducer?

Content Menu

Introduction to Gear Reducers

Understanding the Basics

Step-by-Step Design Process

Key Considerations for Reducer Transmission Schemes

Gear Parameter Design

Additional Factors

Types of Gear Reducers

Right Angle Reducers

Advanced Gear Design (AGD)

Common Applications

Potential Breakdowns

Optimizing Gearbox Design for High-Speed Applications

Spur Gear Design Innovations

Future Trends in Gearbox Technology

The Evolution of Industrial Gearbox Technology

Smart Gearboxes

Variable Speed Gearboxes

Additive Manufacturing

Lightweight Designs

Diversified Types

Conclusion

FAQ

>> 1. What is a gear reducer?

>> 2. What are the main types of gear reducers?

>> 3. How do I choose the right gear reducer?

>> 4. What factors should I consider when designing a gear reducer?

>> 5. How important is maintenance for gear reducers?

Citations:

Designing a gear reducer, or gearbox, is a multifaceted engineering task requiring a thorough grasp of mechanical principles, material science, and application-specific needs. This guide aims to dissect the design process into understandable steps, providing a foundation for designing gear reducers that meet specific requirements for efficiency, durability, and performance.

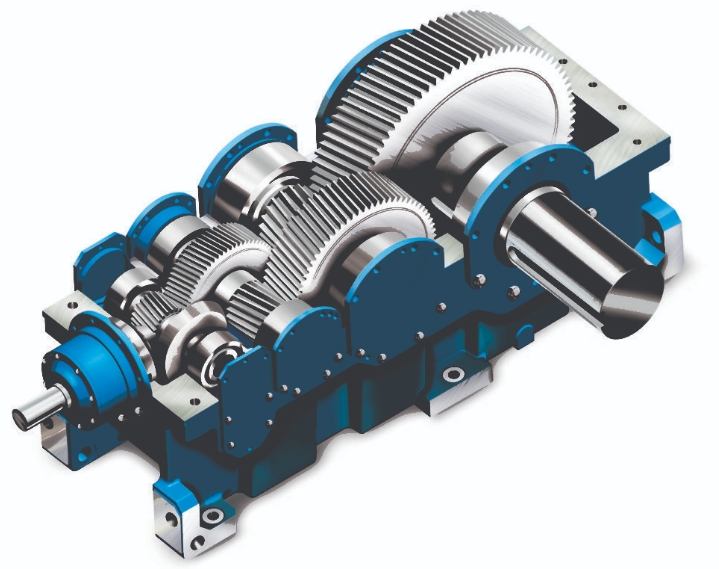

How To Design A Gear Reducer_1

Introduction to Gear Reducers

A gear reducer is a mechanical device that reduces the speed of an input shaft, such as from an engine, while increasing torque. This is crucial in machinery where the direct output of a motor isn't suitable for the task. Gear reducers are vital in industries like automotive, aerospace, manufacturing, and robotics[2].

Understanding the Basics

Before starting the design, understanding the key components of a gear reducer is crucial:

-  Gears: The core of the reducer, influencing the reduction ratio and efficiency, available in various types like spur, helical, bevel, and worm.

-  Shafts: Input and output axes of the gearbox, critical for efficient power transfer.

-  Bearings: Support shafts for smooth rotation with minimal friction.

-  Housing: Protects internal components and provides structural support.

Step-by-Step Design Process

1. Define Application Requirements:

-  Clearly define the necessary input and output speeds, torque, rotation direction, and any space or weight limitations.

-  Consider the operating environment's impact on material selection and the necessity for features like sealing or cooling.

-  Determine the appropriate reduction ratio according to the working load and speed requirements of the equipment to ensure that the output shaft has sufficient torque and speed.

2. Select the Type of Gear:

-  Choose a gear type that best fits the application needs, each offering different characteristics.

-  Spur gears: Efficient for high-speed applications but can be noisy.

-  Helical gears: Smoother operation and higher load capacity than spur gears.

-  Bevel gears: Change the axis of rotation, ideal for right-angle configurations.

-  Worm gears: High reduction ratios in a compact size but with lower efficiency.

-  Planetary gear reducer: Compact structure, high load-bearing capacity, high transmission efficiency, and can achieve multi-stage reduction[1].

3. Determine Gear Ratio:

-  The gear ratio is the ratio of teeth on the output gear to teeth on the input gear, determining speed reduction and torque increase.

-  Calculate the gear ratio based on the required input and output speeds. For instance, if a smaller gear completes two rotations to make a larger gear rotate once, the gear ratio is 2:1, indicating that the output speed is reduced by half.

-  The general reduction ratio is between 1:3 and 1:500.

4. Design Gears and Shafts:

-  Design the gears and shafts by calculating dimensions, materials, and heat treatments to withstand operational loads.

-  Consider factors such as bending stress, surface durability, and gear tooth profile.

-  Select high-strength, wear-resistant, and corrosion-resistant materials to improve the load-bearing capacity and service life of the reducer.

5. Select Bearings and Housing Material:

-  Choose bearings that support the calculated loads and speeds.

-  The housing material should provide adequate strength, stiffness, and resistance to environmental conditions. Common materials include cast iron, steel, and aluminum.

6. Incorporate Safety Factors:

-  Include safety factors in the design to account for unexpected loads or conditions, ensuring reliable operation under peak loads and extended service life.

-  Ensure that the reducer can withstand the maximum torque generated by the equipment during operation to avoid overload damage.

7. Lubrication and Cooling:

-  Design a reasonable lubrication and cooling system to ensure that the reducer maintains proper temperature and lubrication during operation.

8. Create Detailed Drawings:

-  Make detailed engineering drawings with all critical dimensions, tolerances, materials, and manufacturing instructions.

9. Prototype and Test:

-  Build a prototype of the gear reducer and test it under real or simulated operating conditions to validate the design and make necessary adjustments.

Key Considerations for Reducer Transmission Schemes

-  Meet Load Requirements: Ensure the output shaft has sufficient torque and speed.

-  High Efficiency and Energy Saving: Select a reducer type with high transmission efficiency to reduce energy loss, energy consumption, and operating costs. Generally speaking, the transmission efficiency of a high-quality reducer can reach more than 90%.

-  Compact Structure: Reduce the size and weight of the reducer as much as possible to adapt to the limited installation space and reduce the overall weight of the equipment[7].

-  Low Noise and Low Vibration: Select a reducer with low noise and low vibration to improve the working environment and reduce maintenance costs. Generally, the noise level should be controlled below 85dB.

-  Easy to Maintain: Design a structure that is easy to maintain, such as easy to replace lubricating oil, check gears and bearings, etc., to extend the service life of the reducer.

Gear Parameter Design

Gear parameter design is a crucial aspect of gearbox design. The quality of the gear parameter design directly determines the performance of the gearbox. Gear parameter design typically needs to consider factors such as strength, noise, efficiency, and weight.

-  Module Selection: The size of the module is determined by the bending strength of the gear. Increasing the module can improve the bending strength, while decreasing the module increases the overlap ratio, which helps reduce vibration and noise.

-  Pressure Angle Selection: For standard gear designs, a 20° pressure angle is typically used. Increasing the pressure angle can enhance the gear's contact and bending fatigue strength, while reducing the sliding ratio.

-  Number of Teeth: The number of teeth also needs to be considered in gear parameter design.

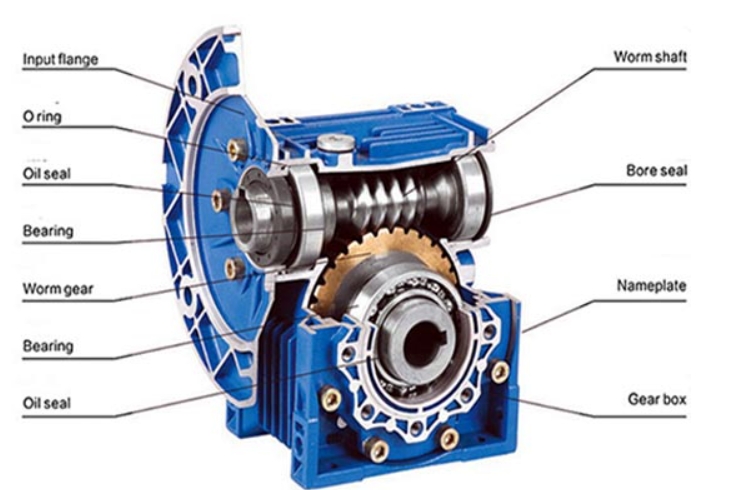

How To Design A Gear Reducer_2

Additional Factors

-  Torque, speed, and horsepower: These specifications must be collected to properly size and install the unit.

-  Reducer efficiency: It is important to consider the reducer efficiency to calculate the output torque accurately.

-  Service factor: This factor accounts for the load characteristics and duty cycle of the application.

-  Mounting position: The orientation of the reducer affects lubrication and cooling.

-  Connection variables: Proper alignment is necessary when connecting a speed reducer with a coupling to avoid excessive side loads on the shaft bearings.

-  Life required: The desired lifespan of the reducer influences material selection and design.

-  Backlash: In applications with reversing or intermittent loads, minimize backlash.

-  Transmission error: This is the positional variance of output motion relative to input motion and is important for precise and predictable motion[4].

-  Torsional rigidity: This is a reducer's resistance to twist under load, important when precise motion must be maintained during acceleration and deceleration.

-  Moment of inertia: In fast acceleration applications, the gearbox inertia increases the motor torque required to move the load.

Types of Gear Reducers

1. Worm Gear Reducers:

-  Typically have the lowest upfront cost.

-  The input is at a right angle to the output.

-  High friction and very inefficient; in a 50:1 reduction, less than 70% of the input horsepower is converted to output horsepower, and the rest is converted to heat.

2. Helical Gear Reducers:

-  More expensive but far more efficient than worm gear reducers, up to 96%.

-  Input is parallel to the output.

-  They can also handle greater horsepower in a smaller box because multiple gear sets can achieve cumulative reduction in the same space.

3. Planetary Gear Reducers:

-  Known for compact size, light weight, and multi-degrees of freedom, commonly used in various transmissions.

-  Suitable for high-torque, low-speed and heavy-load applications, such as lifting machinery and excavators.

-  The reduction ratios of 1-stage planetary gear reducers are generally limited to 3 ~ 10[1].

4. Fixed-Axis Gear Reducers:

-  Simple structure, easy manufacturing and maintenance, and high transmission efficiency.

-  Suitable for applications with medium torque and speed, such as conveying machinery and agitators.

Right Angle Reducers

-  Typically made with worm gearing or bevel gearing, though hybrid drives are also available.

-  Worm gears are perhaps the most cost-effective reduction solution but usually have a minimum 5:1 ratio and lose considerable efficiency as ratios go higher.

-  Bevel reducers are very efficient but have an effective speed reduction upper limit of 6:1.

Advanced Gear Design (AGD)

Advanced Gear Design (AGD) logically unites the advantages of the method of Direct Gear Design (DGD) and of Dynamic Blocking Contours (DBC). Practical implementation of the new method allows to look at the process of computer-aided design of involute spur and helical gears in a new way, enriching considerably its contents and results. It also creates new generation gears with considerably better characteristics and with the possibility of their application in new mechanisms and machines.

Common Applications

Gear reducers are commonly found in conveyors, where throughput capacity requires specific running speeds and increased torque to move materials from one location to another.

Potential Breakdowns

1. Poor System Design or Specification:

-  Choosing the wrong reducer, failing to consider all requirements or operating environments, or undersizing a reducer to save money can lead to unexpected downtime and loss of productivity.

2. Failure to Maintain:

-  Regular maintenance is crucial for the longevity of gear reducers.

Optimizing Gearbox Design for High-Speed Applications

Optimizing gearbox design for high-speed applications involves several key considerations:

-  Material Selection: Use of high-strength alloys and advanced materials to withstand extreme operating conditions[8].

-  Precision Manufacturing: Employing CNC machining and additive manufacturing to achieve tighter tolerances and complex geometries.

-  Finite Element Analysis (FEA): Using FEA to simulate and analyze stresses and strains on gear components.

-  Computational Fluid Dynamics (CFD): Utilizing CFD to optimize lubrication and cooling systems.

-  Condition Monitoring Systems: Implementing systems for periodic inspections and component replacements.

Spur Gear Design Innovations

Innovations in industrial spur gear design enhance functionality through advanced materials, precision manufacturing techniques, and design software. The use of high-strength alloys, composites, and polymers has allowed for the creation of lighter, more durable gears capable of withstanding extreme operating conditions. Precision manufacturing techniques like CNC machining and additive manufacturing enable the production of gears with tighter tolerances and more complex geometries.

Future Trends in Gearbox Technology

Several key trends are shaping the future of gearbox technology:

-  Digitalization: Smart gearboxes equipped with sensors and IoT connectivity to monitor and optimize performance in real-time[2][7].

-  Lightweight Materials: The use of lightweight materials and advanced manufacturing techniques is another crucial trend[2].

-  Sustainability: With increasing focus on sustainability, gearbox technology is evolving to become more energy-efficient[2][7].

-  Electrification: The shift towards electrification in automotive and industrial applications is driving significant advancements in gear systems[2][7].

-  Modular and Scalable Designs: Modularity and scalability are key trends, allowing manufacturers to customize and adapt gearboxes to specific applications. Modular designs enable faster assembly and easier maintenance[2].

The Evolution of Industrial Gearbox Technology

Industrial gearboxes have undergone significant advancements in design, materials, and efficiency[2]. The evolution has been driven by the need for more reliable, durable, and high-performance solutions. Manufacturers are turning to lightweight and high-strength materials such as carbon fiber, titanium, and composites to create gearboxes that are more durable and efficient[2][8].

Smart Gearboxes

Smart gearboxes represent a significant leap forward in gearbox technology[7]. These systems incorporate sensors and IoT (Internet of Things) connectivity to monitor and optimize performance in real-time[2][7].

Variable Speed Gearboxes

Variable speed gearboxes offer enhanced flexibility and control over traditional fixed-ratio gearboxes[7].

Additive Manufacturing

Additive manufacturing, commonly known as 3D printing, is making waves in the production of harmonic gear drive reducers[3]. This technique allows for intricate designs and complex geometries, optimizing the performance of gear teeth and components[3].

Lightweight Designs

In industries like aerospace and robotics, where weight is a critical factor, continuous efforts are made to reduce mass without compromising strength[3]. Lightweight designs are becoming increasingly crucial for achieving energy efficiency and enhancing the payload capacity of aerial and robotic systems[3][8].

Diversified Types

To get rid of the traditional single base mounting way, hollow shaft hanging type, floating support base, motor and reducer integrated connection, multi-azimuth mounting surface and other different types are being added to expand the use range[6].

Conclusion

Designing a gear reducer involves carefully considering mechanical principles, material properties, and application-specific requirements. Following the outlined steps ensures a gear reducer that meets performance, efficiency, and reliability needs. Successful design relies on thorough planning, precise calculations, and rigorous testing.

How To Design A Four Gear Speed Reducer_1

FAQ

1. What is a gear reducer?

A gear reducer, also known as a speed reducer or gearbox, is a mechanical device used to decrease the input speed of a motor while increasing its output torque. It is achieved through a series of gears that work together to modify the rotational speed and force.

2. What are the main types of gear reducers?

The main types of gear reducers include worm gear reducers, helical gear reducers, planetary gear reducers, and bevel gear reducers. Each type has its own unique characteristics and is suitable for different applications.

3. How do I choose the right gear reducer?

To choose the right gear reducer, consider the input horsepower and speed, the required output speed, and the mounting method. Also, consider the torque capacity, efficiency, size, noise level, backlash, and cost of different types of gear reducers.

4. What factors should I consider when designing a gear reducer?

Key factors to consider include the application requirements, gear type, gear ratio, material selection, safety factors, lubrication, and cooling. Additionally, consider the torque, speed, horsepower, reducer efficiency, service factor, and mounting position.

5. How important is maintenance for gear reducers?

Maintenance is crucial for the longevity and reliability of gear reducers. Regular maintenance includes checking and replacing lubricating oil, inspecting gears and bearings, and ensuring proper alignment.

Citations:

[1] https://ojs.imeti.org/index.php/PETI/article/view/2724/762

[2] https://en.qiangzhu.cn/news_detail/1775337434862395392.html

[3] https://www.piceamotiondrive.com/future-of-harmonic-gear-drive-reducers-advancements-and-trends.html

[4] https://www.diva-portal.org/smash/get/diva2:1346429/FULLTEXT02.pdf

[5] https://ntrs.nasa.gov/api/citations/19920020108/downloads/19920020108.pdf

[6] https://www.angmotor.com/news/development-and-process-of-reduction-gear-39222420.html

[7] https://www.millgears.com/blog/innovations-in-gearbox-manufacturing

[8] https://geartechnologyindia.com/gearbox-innovations-in-aerospace-applications/

[9] https://www.theseus.fi/bitstream/handle/10024/501486/Thesis%20final.pdf?sequence=2&isAllowed=y

[10] https://gearsolutions.com/features/an-advanced-approach-to-optimal-gear-design/

[11] https://onlinelibrary.wiley.com/doi/10.1155/2013/419043

[12] https://www.millgears.com/blog/future-trends-in-gearbox-technology

[13] https://www.michiganmech.com/blog/technical-innovations-and-applications-of-differential-gears/

[14] https://www.linkedin.com/pulse/case-study-2-turbine-unit-gear-design-manufacturing-thbof

[15] https://www.matec-conferences.org/articles/matecconf/pdf/2020/13/matecconf_pt2020_01005.pdf

[16] https://khkgears.net/new/gear_knowledge/Types_and_Mechanisms_of_Gear_Reducers.html

[17] https://www.geartechnology.com/industrial-gearbox-market-trends

[18] https://en.dgitreducer.com/info-detail/6-mechanical-engineering-innovations-that-could-change-the-industrial-game

[19] https://www.spiroidgearing.com/case-studies-white-paper-data-sheet/

[20] https://www.reddit.com/r/AskEngineers/comments/18py0e0/any_rules_of_thumb_for_gear_design_optimization/
