Hydraulic motors are integral components in various industrial and mechanical systems, converting hydraulic energy into mechanical power. Whether you're working with construction equipment, agricultural machinery, or industrial systems, understanding how to determine the horsepower (HP) of a hydraulic motor is essential for optimizing performance, ensuring efficiency, and preventing system failures. This article provides a comprehensive guide to calculating hydraulic motor horsepower, explaining the formula, the variables involved, and practical applications.
Hydraulic horsepower (HHP) is a measure of the energy transferred by a hydraulic system per unit of time. It serves as an indicator of how much work a hydraulic motor can perform under specific conditions. The ability to calculate HHP accurately is vital for selecting the right motor size, avoiding overloading, and ensuring that your hydraulic system operates at peak efficiency.
Hydraulic motors are widely used in industries such as construction, agriculture, manufacturing, and oil and gas. From powering excavators and cranes to running industrial presses and drilling rigs, these motors play a critical role in modern machinery.
The calculation of hydraulic horsepower relies on a simple yet effective formula:
HHP=(P×Q)/1714
Here's what each variable represents:
- HHP : Hydraulic Horsepower
- P : Pressure (measured in pounds per square inch or psi)
- Q : Flow Rate (measured in gallons per minute or GPM)
-1714: A constant used for unit conversion from psi and GPM to horsepower.
In real-world applications, no hydraulic system is 100% efficient due to energy losses caused by friction, heat generation, and fluid dynamics. To account for these losses, efficiency ( η ) must be included in the formula:
HHP=(P×Q)/(1714×η)
Where:
- η: Efficiency as a decimal (e.g., 85% efficiency is represented as 0.85).
This modified formula provides a more accurate representation of the actual power output of the hydraulic motor.
Let's calculate the hydraulic horsepower for a system with:
- Pressure ( P ) = 2000 psi
- Flow Rate ( Q ) = 25 GPM
- Efficiency (η) = 90% (0.90)
The formula is:
HHP=(P×Q)/(1714×η)
Substitute the given values into the formula:
HHP=(2000×25)/(1714×0.90)
1. Multiply pressure by flow rate:
2000×25=50,000
2. Multiply the constant by efficiency:
1714×0.90=1542.6
3. Divide the results:
HHP=50,000/1542.6=32.41
The hydraulic motor requires approximately 32.41 horsepower.
Several factors influence both the calculation and practical performance of hydraulic motors:
Pressure directly impacts how much force is exerted by the hydraulic fluid on the motor's components. Higher pressure increases horsepower but can also strain system components if they are not designed to handle it.
Flow rate determines how quickly fluid moves through the system. A higher flow rate increases power output but requires larger pumps or motors to maintain efficiency.

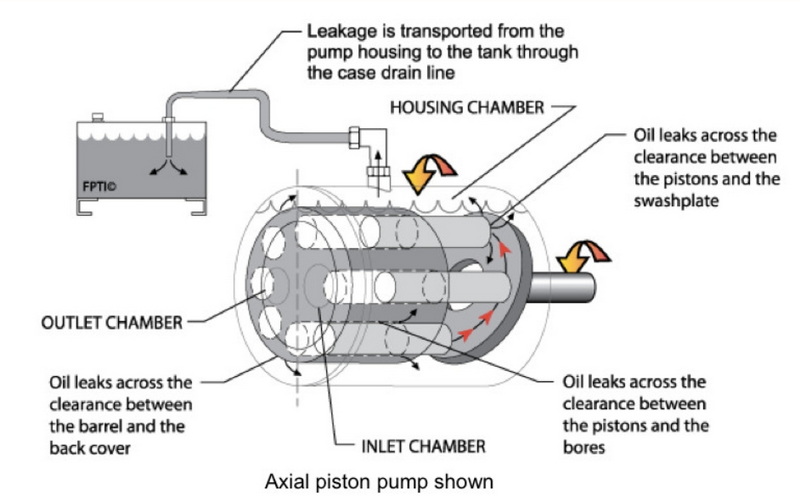

Efficiency accounts for energy losses due to friction within components, heat dissipation, and fluid dynamics. Systems with low efficiency may require more input power to achieve desired output.
The viscosity of hydraulic fluid affects its flow characteristics and overall system efficiency. Thicker fluids may cause more resistance, while thinner fluids may lead to leaks or reduced lubrication.
Temperature fluctuations can impact fluid viscosity and component performance. Overheating can reduce efficiency and damage seals or other parts.
Variable loads may require adjustments in pressure or flow rate to maintain consistent performance.
When determining hydraulic horsepower, it's easy to make errors that can lead to inaccurate results or system inefficiencies:
1. Ignoring Efficiency: Assuming a system operates at full efficiency can result in underestimating required power.
2. Using Incorrect Units: Ensure that pressure is measured in psi and flow rate in GPM.
3. Overlooking Temperature Effects: High temperatures can reduce fluid performance and skew calculations.
4. Failing to Consider Load Variability: Systems with fluctuating loads may require dynamic adjustments.
5. Neglecting Maintenance: Poorly maintained systems may have lower efficiency than expected.
Hydraulic horsepower calculations are essential across various industries:
Hydraulic systems power heavy machinery such as excavators, bulldozers, and cranes.
Hydraulic presses and injection molding machines rely on precise power calculations for optimal operation.
Tractors, harvesters, and irrigation systems use hydraulics for tasks ranging from plowing fields to lifting heavy loads.
Hydraulic motors are used in drilling rigs, pipeline systems, and offshore platforms where reliability is critical.
Hydraulic systems are integral to braking systems, steering mechanisms, and suspension components.
Accurate horsepower calculations ensure that these systems operate safely and efficiently under demanding conditions.
To maximize the performance and lifespan of your hydraulic motor:
1. Regular Maintenance: Inspect components regularly for wear and tear.
2. Use Quality Fluids: Select fluids with appropriate viscosity and additives for your application.
3. Monitor Temperature: Install temperature sensors to prevent overheating.
4. Check System Pressure: Avoid exceeding recommended pressure limits.
5. Upgrade Components: Invest in high-efficiency pumps or motors when possible.
Determining the horsepower of a hydraulic motor is a straightforward yet critical process that ensures your system operates efficiently while meeting its intended workload demands. By understanding the formula, accounting for efficiency losses, and considering factors like pressure and flow rate, you can optimize your hydraulic systems for various applications across industries.
Accurate calculations not only improve performance but also extend the lifespan of your equipment by preventing overloading or underutilization.
The formula is:
HHP=(P×Q)/1714
Where P is pressure (psi), Q is flow rate (GPM), and 1714 is a conversion constant.
Efficiency accounts for energy losses in the system due to friction or heat dissipation:
HHP=(P×Q)/(1714×η)
Lower efficiency reduces usable power output.
- Pressure ( P ): Pounds per square inch (psi)
- Flow Rate ( Q ): Gallons per minute (GPM)
- Horsepower ( HHP ): Standard mechanical horsepower
Yes! However, consider specific motor characteristics like displacement or load conditions when applying it.
Online calculators or software like Excel are excellent tools for automating these calculations while reducing errors.
