Determining shaft horsepower through a gear reducer is crucial in various mechanical engineering applications. Shaft horsepower (SHP) refers to the power transmitted by a rotating shaft, typically from an engine or motor to another component, such as a propeller or a driven machine. Gear reducers are essential in adjusting the torque and speed between the driving and driven equipment, optimizing performance and efficiency. This article explores the principles, calculations, and practical considerations involved in determining shaft horsepower in systems employing gear reducers. We will delve into the core concepts, formulas, factors, and best practices to accurately assess and optimize the performance of your geared systems, aiming to provide a comprehensive understanding for both novice and experienced engineers. Additionally, we'll cover advanced considerations like the impact of variable frequency drives (VFDs) and regenerative braking on shaft horsepower, as well as thermal considerations and service factors for reliable speed reducer selection. We will also touch upon the importance of understanding load characteristics, duty cycles, and the impact of specific applications.
Before diving into the specifics of shaft horsepower and gear reducers, it is important to understand the fundamental concepts of horsepower, torque, and revolutions per minute (RPM). These parameters are interconnected and play vital roles in power transmission systems. A solid grasp of these concepts is essential for engineers and technicians working with mechanical power transmission systems. Failing to understand these basics can lead to miscalculations and suboptimal system design.
Horsepower (HP) is a unit of measurement for power, representing the rate at which work is done. It was initially defined by James Watt to compare the output of steam engines to the power of horses. In essence, it quantifies how quickly work can be accomplished. Knowing the horsepower is key to understanding a system's capability to perform tasks within a given timeframe.
The formula to calculate horsepower is:
Horsepower = (Torque x RPM) / 5252
Where:
- Torque is measured in pound-feet (lb-ft)
- RPM is the rotational speed in revolutions per minute
Torque is a twisting force that causes rotation. It is the product of force and the distance from the axis of rotation. In simpler terms, it is a measure of how much force is needed to rotate an object. Understanding torque is vital as it determines the rotational force available for performing tasks, such as lifting heavy objects or turning a shaft against resistance.
Mathematically, torque (τ) is defined as:
τ = Force x Radius
Where:
- Force is the applied force
- Radius is the distance from the axis of rotation to the point where the force is applied
Revolutions Per Minute (RPM) measures how many complete rotations a rotating object makes in one minute. It is a critical factor in determining the power and speed of a rotating shaft. RPM indicates the speed at which the rotational motion occurs, directly affecting the horsepower and overall system performance. Higher RPM values generally lead to increased power output, but this must be balanced with torque considerations.
A gear reducer, also known as a speed reducer, is a mechanical device used to decrease the output speed and increase the torque. It is commonly used in power transmission systems to match the motor's speed and torque to the requirements of the driven equipment. By adjusting speed and torque, gear reducers enable efficient and effective operation of machinery. Without gear reducers, motors would often be unable to deliver the appropriate power characteristics needed for specific applications. Gear reducers effectively act as mechanical transformers for rotational power.

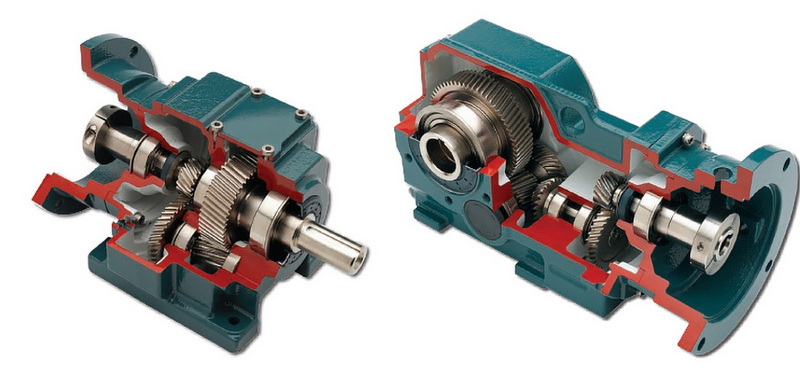

Several types of gear reducers are available, each with specific characteristics and applications:

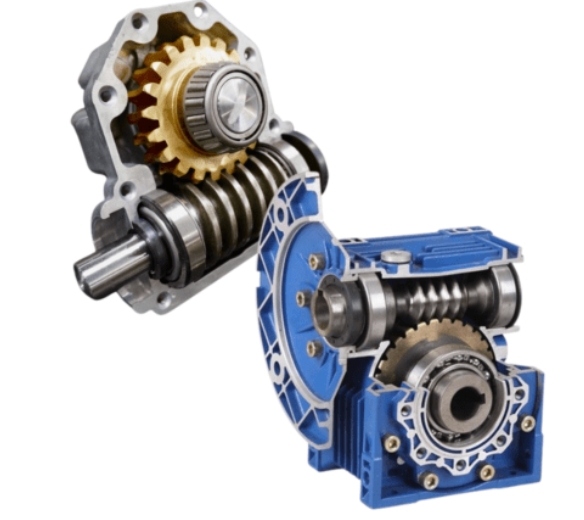

- Worm Gear Reducers: These reducers use a worm gear and a worm wheel to achieve high reduction ratios in a compact size. Worm gear reducers are suitable for applications requiring substantial speed reduction in confined spaces, such as conveyor systems or machine tools. They are known for their high gear ratios and self-locking capabilities. The sliding action between the worm and the wheel, however, can lead to lower efficiency compared to other types of reducers.
- Helical Gear Reducers: Helical gears have angled teeth, providing higher load capacity and quieter operation compared to spur gears. They are commonly used in applications that demand high load-bearing capacity and smooth, low-noise performance, like in automotive transmissions or industrial machinery. The angled teeth allow for gradual engagement, reducing noise and vibration. Single, double, and triple reduction helical gear units are available.
- Planetary Gear Reducers: These reducers use a central sun gear, several planet gears, and an outer ring gear to provide high torque and compact design. Planetary gear reducers are favored in situations requiring high torque density and a space-saving configuration, such as in robotic arms or wind turbines. Their coaxial design and load distribution make them exceptionally robust.
- Bevel Gear Reducers: Bevel gears are used to transmit power between shafts that are at an angle to each other. They are essential in scenarios where power transmission must occur at an angle, such as in automotive differentials, agricultural machinery, or construction equipment. Bevel gears can be straight, spiral, or hypoid, each offering different performance characteristics.
- Shaft Mounted Reducers: These reducers typically range from fractional to 750 hp, with speed-reduction ratios from about 5:1 to 25:1 and output speeds from 1 to over 400 rpm. These reducers are typically mounted directly on the driven shaft, simplifying installation and reducing the need for additional components. Their direct mounting design minimizes space requirements and improves system efficiency. These reducers are commonly used in material handling and conveying applications.
Gear reducers offer several advantages in power transmission systems:
- Torque Amplification: They increase the torque output, allowing smaller motors to drive larger loads. This enables the use of more compact and cost-effective motors while maintaining the required output force.
- Speed Reduction: They decrease the output speed to the desired level for the driven equipment. Matching the output speed to the load requirements enhances system control and precision, ensuring optimal performance.
- Efficiency Improvement: By matching the motor's speed and torque to the load requirements, they improve the overall efficiency of the system. This results in reduced energy consumption and lower operating costs.
- Compactness: Some gear reducer designs, like planetary gear reducers, offer high reduction ratios in a compact package. This makes them suitable for applications where space is limited, allowing for more flexible system design.
- Versatility: Gear reducers can be adapted to various applications, offering flexibility in system design and implementation. Their ability to modify speed and torque makes them useful across a wide range of industries.
- Protection of Driven Equipment: Gear reducers can act as a buffer, protecting driven equipment from sudden shocks and overloads, extending the lifespan of driven components.
- Improved Starting Performance: By increasing the available torque, gear reducers can improve the starting performance of machinery, especially under heavy loads.
Determining shaft horsepower through a gear reducer involves several steps, including calculating input power, considering gear reducer efficiency, and accounting for any additional losses in the system. Accurate SHP calculation is crucial for system design and performance evaluation. Neglecting these factors can lead to significant errors in system design and potential failures. A thorough understanding of these calculations enables informed decision-making when selecting and implementing gear reducers.
The input power to the gear reducer is typically the power supplied by the motor. It can be calculated using the formula:
HPinput = (Torqueinput x RPMinput) / 5252
Where:
- HPinput is the input horsepower
- Torqueinput is the input torque in lb-ft
- RPMinput is the input speed in revolutions per minute
Gear reducers are not 100% efficient; some power is lost due to friction and other factors. The efficiency of a gear reducer is the ratio of the output power to the input power:
Efficiency = HPoutput / HPinput
The output horsepower can then be calculated as:
HPoutput = HPinput x Efficiency
Gear reducer efficiency typically ranges from 85% to 98%, depending on the type of reducer, gear quality, and lubrication. Efficiencies for shaft mount reducers are typically around 98.5% per gear stage. For instance, a two-stage unit has an efficiency of about 97%. The efficiency rating is a crucial factor in determining the actual power delivered to the output shaft. Always consult the manufacturer's specifications for accurate efficiency ratings. Also, note that efficiency can vary with load and operating conditions. Hypoid gearing can have efficiencies greater than 90%, while worm gears can range from less than 40% to about 80%. Understanding this range of efficiencies is vital for selecting the right reducer for energy-conscious applications.
The gear ratio (GR) is the ratio of the input speed to the output speed:
GR = RPMinput / RPMoutput
The output speed can be calculated as:
RPMoutput = RPMinput / GR
The output torque can be calculated using the output horsepower and output speed:
Torqueoutput = (HPoutput x 5252) / RPMoutput
Consider a system with a 10 HP motor running at 1750 RPM connected to a gear reducer with a gear ratio of 5:1 and an efficiency of 95%.
1. Input Power:
The motor's input power is 10 HP.
2. Output Power:
HPoutput = 10 x 0.95 = 9.5 HP
3. Output Speed:
RPMoutput = 1750 / 5 = 350 RPM
4. Output Torque:
Torqueoutput = (9.5 x 5252) / 350 = 142.6 lb-ft
Therefore, the shaft horsepower after the gear reducer is 9.5 HP, with an output speed of 350 RPM and an output torque of 142.6 lb-ft. This calculation provides a clear understanding of how a gear reducer alters the power characteristics of a system. By understanding these transformations, engineers can effectively design and optimize power transmission systems.
Several factors can influence the accuracy and reliability of shaft horsepower calculations in systems with gear reducers:
- Load Conditions: The nature of the load (uniform, variable, shock) affects the service factor and required horsepower rating. Understanding load conditions is vital for selecting the appropriate gear reducer and preventing premature failures.
- Environmental Factors: Temperature, humidity, and other environmental conditions can affect gear reducer performance and efficiency. Extreme conditions may necessitate specialized gear reducers and lubricants to ensure reliable operation. High altitudes can also affect motor performance and should be considered.
- Maintenance Practices: Regular maintenance, including lubrication and inspection, is essential to maintain gear reducer efficiency and reliability. Consistent maintenance ensures optimal performance and extends the lifespan of the gear reducer, reducing downtime and maintenance costs.
- Gear Ratio: The speed reducer ratio equals the speed of the geared motor divided by the final output speed. Selecting the correct gear ratio is crucial for achieving the desired output speed and torque for the specific application.
- Service Factor: The selection of an appropriate shaft mount reducer depends on the horsepower of the driving motor, the number of hours it is operated per day, and the severity of the application. Applying the correct service factor helps in preventing premature wear and failure of the reducer. For example, a belt conveyor driven by a 5-hp motor operating 10 hours or more per day with a non-uniformly applied load requires a Class II reducer.
- Reducer Stages: The greater the speed reduction of a gear reducer, the more gear pairs are needed. Nominal speed ratios for most shaft mounted gear reducers are 5:1, 7:1, 9:1, 15:1, and 25:1. The number of stages influences the overall efficiency and complexity of the reducer.
- Lubrication Type: Different lubricants have varying viscosity, thermal stability, and load-carrying capabilities, which can impact the gear reducer's performance and efficiency. Choosing the correct lubricant is crucial for ensuring the longevity and efficient operation of the gear reducer. Synthetic lubricants often outperform mineral-based lubricants in demanding applications.
- Shaft Alignment: Proper shaft alignment is essential to prevent undue stress on the gears and bearings, which can reduce efficiency and lead to premature failure. Laser alignment techniques are often used for precise alignment.
- Vibration: Excessive vibration can indicate underlying problems such as misalignment, imbalance, or gear wear. Monitoring vibration levels can help identify and address these issues before they lead to catastrophic failures.
- Variable Frequency Drives (VFDs): When using VFDs, consider the impact of harmonic distortion on motor performance and gear reducer loading. VFDs can introduce harmonics that can cause overheating and reduce the lifespan of the reducer.
- Thermal Horsepower Rating: It's crucial to check both the mechanical and thermal horsepower ratings of the reducer, as the transmitted horsepower can exceed the unit's thermal horsepower rating, causing the lubricating oil to overheat and break down. The thermal rating indicates the reducer's ability to dissipate heat effectively.
- Duty Cycle: The duty cycle, which describes the proportion of time the reducer operates under load versus idle, has a significant effect on thermal management. Intermittent duty cycles can allow reducers to cool, while continuous duty cycles require careful attention to thermal capacity.
When determining shaft horsepower through a gear reducer, several practical considerations should be taken into account to ensure accurate and reliable results. Addressing these considerations can optimize system performance and reliability and prevent costly mistakes.
Choosing the right gear reducer for a specific application is crucial for optimal performance and longevity. Factors to consider include:
- Horsepower and Torque Requirements: Ensure the gear reducer is rated for the required horsepower and torque. The gear reducer must be capable of handling the expected load without exceeding its capacity, ensuring reliable and long-lasting performance.
- Gear Ratio: Select the appropriate gear ratio to achieve the desired output speed. The selected gear ratio should match the application's speed requirements for optimal performance and efficient power transmission.
- Efficiency: Choose a gear reducer with high efficiency to minimize power losses. High efficiency translates to lower energy consumption and operating costs, making the system more economical.
- Service Factor: Apply an appropriate service factor based on the load conditions. Correct service factor application safeguards against overloading and ensures longer operational life, reducing the risk of unexpected failures.
- Mounting and Space Requirements: Consider the available space and mounting options when selecting a gear reducer. The gear reducer should fit within the available space and allow for proper mounting to prevent vibrations and instability.
- Speed Reducer Load Capacity: Determine the actual input horsepower to drive the reducer. Multiply this horsepower or torque value by the appropriate service factor. This calculation ensures that the selected reducer is capable of handling the anticipated load.
- Operating Environment: The ambient temperature, humidity, and presence of contaminants in the environment can affect the selection and lifespan of the gear reducer.
- Manufacturer Reputation and Support: Choosing a reputable manufacturer with robust technical support can ensure access to reliable information and assistance when needed.
- Thermal Capacity: Ensure the gear reducer has sufficient thermal capacity to dissipate heat generated during operation, especially in high-duty cycle applications.
- Backlash: Consider the acceptable amount of backlash for the application. Excessive backlash can lead to positioning inaccuracies and increased wear.
- Overhung Load: Calculate the overhung load on the reducer input shaft due to the belt drive and compare it to the specifications of the chosen reducer. Excessive overhung load can lead to premature bearing failure.
- Altitude: Consider the effect of operating at high altitude, which affects air density and motor cooling.
In some applications, it may be necessary to directly measure shaft horsepower to verify calculations or monitor system performance. Several methods can be used to measure shaft horsepower:
- Torque Measurement: Measuring the torque on the shaft and the rotational speed allows for direct calculation of shaft horsepower. This method provides a real-time assessment of the power being transmitted.
- Strain Gauges: Strain gauges can be mounted on the shaft to measure the strain caused by torque, which can then be used to calculate horsepower. Strain gauges offer a precise method for measuring torque and, subsequently, horsepower.
- Shaft Horsepower Meters: These devices directly measure the transmitted horsepower by measuring the torsion of the rotating shaft. Shaft horsepower meters provide a direct and convenient means of measuring the actual power transmitted through the shaft.
- Dynamometers: Dynamometers can be used to measure the torque and speed of rotating machinery, allowing for accurate determination of shaft horsepower.
- Telemetry Systems: Telemetry systems can be used to remotely monitor torque, speed, and horsepower, providing real-time data for performance analysis.
Proper installation and alignment of the gear reducer are essential for optimal performance and longevity. Misalignment can cause excessive wear and reduced efficiency. Key considerations include:
- Shaft Alignment: Ensure the input and output shafts are properly aligned to minimize stress on the gears and bearings. Proper alignment reduces wear and tear and enhances overall system efficiency.
- Mounting Stability: Securely mount the gear reducer to a stable base to prevent vibration and movement. Stable mounting prevents vibrations that can lead to premature failure and ensures consistent performance.
- Lubrication: Follow the manufacturer's recommendations for lubrication to reduce friction and wear. Correct lubrication reduces friction, dissipates heat, and extends the lifespan of the gear reducer.
- Sealing: Proper sealing prevents contaminants from entering the gear reducer, which can degrade the lubricant and damage the gears and bearings.
- Baseplate Rigidity: Ensure the baseplate is sufficiently rigid to prevent distortion and maintain proper alignment under load.
- Proper Bolting: Use the correct size and grade of bolts for mounting the gear reducer and torque them to the manufacturer's specifications.
- Dowel Pins: Use dowel pins for precision alignment between the reducer and the mounting structure.
When determining shaft horsepower through a gear reducer, it is important to avoid common mistakes that can lead to inaccurate results:
- Ignoring Gear Reducer Efficiency: Failing to account for gear reducer efficiency can lead to overestimation of output power.
- Using Incorrect Service Factors: Applying an inappropriate service factor can result in undersizing or oversizing the gear reducer.
- Neglecting Load Conditions: Not considering the nature of the load can lead to inaccurate horsepower calculations.
- Poor Installation and Alignment: Improper installation and alignment can cause premature wear and failure of the gear reducer.
- Miscalculating Torque: Torque is calculated as T = (63,025 x HP) / N, where T is torque in lb-in, HP is required horsepower rating, and N is shaft speed in RPM.
- Overlooking Thermal Management: Failing to consider the thermal environment of the gear reducer can lead to overheating and reduced efficiency.
- Neglecting Backlash Considerations: Excessive backlash can cause impacts and vibration, leading to premature wear and inaccurate power transmission.
- Using Inaccurate Input Data: Ensure all input data, such as motor RPM and torque, are accurate to avoid calculation errors.
- Ignoring Dynamic Loads: Consider the effects of dynamic loads and vibrations on the gear reducer's performance and lifespan.
- Failing to Account for VFD Harmonics: When using VFDs, the harmonic distortion can affect motor torque and gear reducer loading.
- Neglecting Regenerative Braking Effects: In applications with regenerative braking, the gear reducer must be capable of handling the reversed torque and power flow.
- Ignoring the Thermal Rating: Not checking the thermal rating can cause the transmitted horsepower to exceed the unit's thermal horsepower rating, leading to overheating and breakdown of the lubricating oil.
- Omitting Overhung Load Calculations: Failing to consider and calculate overhung loads can lead to premature bearing failures.
- Neglecting Axial Loads: Axial loads can also affect the reducer's performance and life.
- Condition Monitoring Systems: These systems continuously monitor critical parameters such as temperature, vibration, and lubricant condition, enabling predictive maintenance and preventing costly breakdowns.
- Smart Gear Reducers: Integrated sensors and communication capabilities allow for remote monitoring and control, optimizing performance and improving overall system efficiency. These systems facilitate real-time data analysis and proactive maintenance, enhancing overall system reliability.
- Finite Element Analysis (FEA): FEA can be used to simulate gear reducer performance under various load conditions, optimizing gear design and predicting potential failure modes.
- Computational Fluid Dynamics (CFD): CFD can be used to analyze lubricant flow and heat transfer within the gear reducer, optimizing lubrication strategies and improving thermal management.
- 3D Printing: Additive manufacturing or 3D printing techniques are increasingly being used to create custom gear designs, enabling optimized performance for specific applications.
- Internet of Things (IoT): IoT-enabled gear reducers can transmit real-time data to cloud-based platforms, allowing for remote monitoring and predictive maintenance.
- Industrial Conveyor System: A case study examining the implementation of a helical gear reducer in a high-throughput conveyor system, highlighting the importance of proper service factor selection and maintenance practices.
- Wind Turbine Application: A case study analyzing the use of planetary gear reducers in wind turbines, focusing on the challenges of high torque and variable load conditions.
- Electric Vehicle Transmission: A case study analyzing the use of gear reducers in electric vehicle transmissions, focusing on efficiency, noise reduction, and regenerative braking.
- Mining Application: A study about a specific gear reducer model that can be used for bucket elevators, belt conveyors, agitators, and crushers for the mining industry.
Determining shaft horsepower through a gear reducer is a critical task in mechanical engineering that requires a thorough understanding of horsepower, torque, RPM, and gear reducer characteristics. By accurately calculating input power, accounting for gear reducer efficiency, and considering practical factors such as load conditions and maintenance practices, engineers can optimize the performance and reliability of power transmission systems. Proper selection, installation, and maintenance of gear reducers are essential to ensure accurate shaft horsepower calculations and achieve optimal system performance. Embracing best practices and advanced technologies can significantly enhance the accuracy and efficiency of SHP calculations, leading to improved system reliability and performance. Ultimately, a comprehensive approach ensures longevity and optimal operation. Furthermore, continuous monitoring and predictive maintenance strategies are essential for maximizing the lifespan and minimizing downtime. It's crucial to consider the thermal rating of the reducer to prevent overheating and breakdown of the lubricating oil. Lastly, paying attention to overhung and axial loads prevents bearing and gear failures.
To calculate shaft horsepower from motor current and voltage, you need to know the motor's efficiency and power factor. The formula is:
HP = (V x I x PF x Efficiency) / 746
Where:
- V = Voltage in volts
- I = Current in amperes
- PF = Power factor (usually found on the motor's nameplate)
- Efficiency = Motor efficiency (usually found on the motor's nameplate)
- 746 = Conversion factor from watts to horsepower
- Shaft Horsepower (SHP): Is the power delivered to a rotating shaft, such as a propeller shaft or turbine shaft. It is typically used for turboshaft and turboprop engines.
- Brake Horsepower (BHP): Is the power measured at the engine's output shaft or crankshaft, before any losses due to accessories like alternators, pumps, or gearboxes.
Temperature can significantly affect the efficiency of a gear reducer. Higher temperatures can reduce the viscosity of the lubricant, leading to increased friction and reduced efficiency. Extremely low temperatures can increase lubricant viscosity, also reducing efficiency. Therefore, maintaining the proper operating temperature is crucial for optimal performance.
Common causes of gear reducer failure include:
- Lubrication Issues: Insufficient or contaminated lubricant.
- Overloading: Exceeding the rated horsepower or torque.
- Misalignment: Improper alignment of input and output shafts.
- Environmental Factors: Exposure to harsh conditions like high temperatures, humidity, or corrosive substances.
- Wear and Tear: Normal wear and tear over time.
The frequency of maintenance on a gear reducer depends on the operating conditions and the manufacturer's recommendations. However, a general guideline includes:
- Regular Inspections: Check for leaks, unusual noises, and vibrations monthly.
- Lubrication: Follow the manufacturer's recommendations for lubricant type and change intervals (typically every 3-6 months).
- Alignment Checks: Verify shaft alignment annually.
- Detailed Inspections: Conduct a thorough inspection of gears, bearings, and seals every 2-3 years.
