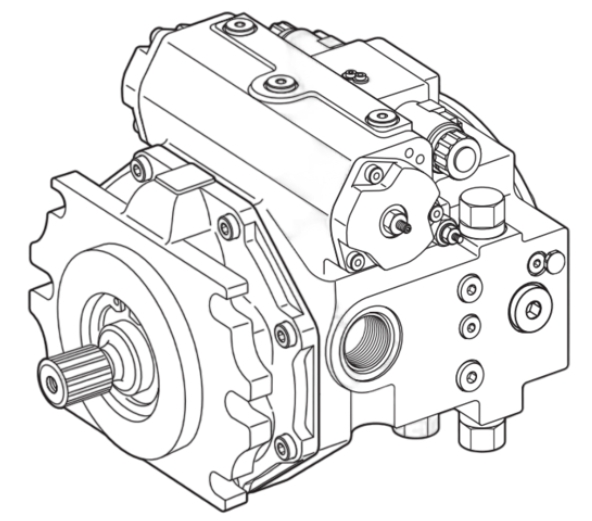

Disassembling a Rexroth hydraulic motor is a meticulous process that requires technical expertise, the right tools, and adherence to safety protocols. Whether you're performing routine maintenance or troubleshooting a malfunction, understanding how to disassemble the motor correctly can save time and prevent unnecessary damage. This guide provides a step-by-step walkthrough of the disassembly process, inspection tips, and reassembly advice. By the end of this article, you'll have all the knowledge needed to handle this task with confidence.
Rexroth hydraulic motors are renowned for their durability and efficiency in industrial applications such as construction equipment, manufacturing machinery, and agricultural tools. However, like any mechanical component, they are subject to wear and tear over time. Regular maintenance is essential to ensure optimal performance and longevity.
Disassembling a Rexroth hydraulic motor may seem daunting, but with the right approach, it becomes manageable even for those with moderate technical skills. This guide will help you break down the process into simple steps while offering practical tips for inspection and reassembly.
Before beginning the disassembly process, it's crucial to gather all necessary tools and prepare your workspace.
To disassemble a Rexroth hydraulic motor effectively, you'll need:
- Screwdrivers (flathead and Phillips)
- Wrenches (adjustable, spanner, and Allen keys)
- Snap ring pliers for removing retaining rings
- Slide hammer shaft puller for extracting the shaft
- Cleaning solvent to remove debris and oil residue
- Torque wrench for precise tightening during reassembly
- Marking tools (e.g., lacquer paint pen) for alignment marks
- A soft mallet or rubber hammer for gentle tapping
1. Wear Protective Gear: Always wear safety glasses and gloves to protect against oil splashes or sharp edges.
2. Disconnect the Motor: Ensure the motor is completely disconnected from the hydraulic system before starting.
3. Drain Hydraulic Fluid: Drain all fluid from the motor to prevent spills during disassembly.
4. Work in a Clean Environment: Contamination can damage hydraulic components; work on a clean bench in a dust-free area.
5. Handle Parts Carefully: Many internal components are precision-engineered; avoid dropping or scratching them.
Before you begin:
- Place the motor on a stable surface or secure it in a workbench vise.
- Use a paint marker to create alignment marks on the housing and other parts for easier reassembly.
- Gather all required tools within arm's reach.
Start by removing external parts:
1. Loosen all external bolts using an adjustable wrench or spanner.
2. Detach attached hoses or fittings carefully to avoid damaging threads.
3. Remove any mounting brackets or external covers that may obstruct access to internal components.
The front housing protects critical internal components:
1. Use snap ring pliers to remove retaining rings around the shaft seal.
2. Pry out the shaft seal plate gently using two flathead screwdrivers.
3. Cover the shaft seal with metallic tape or plastic wrap to prevent scratches during removal.
Once the external parts are removed:
1. Use a slide hammer shaft puller to extract the shaft from its housing.
2. Loosen all main bolts securing the housing with an Allen wrench or spanner.
3. Carefully separate the rotating group (including pistons, vanes, or gears) from the front housing.

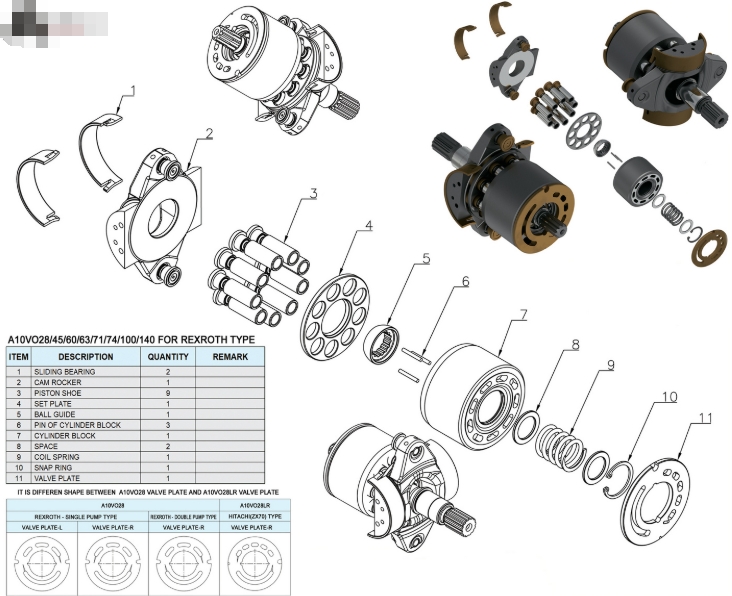

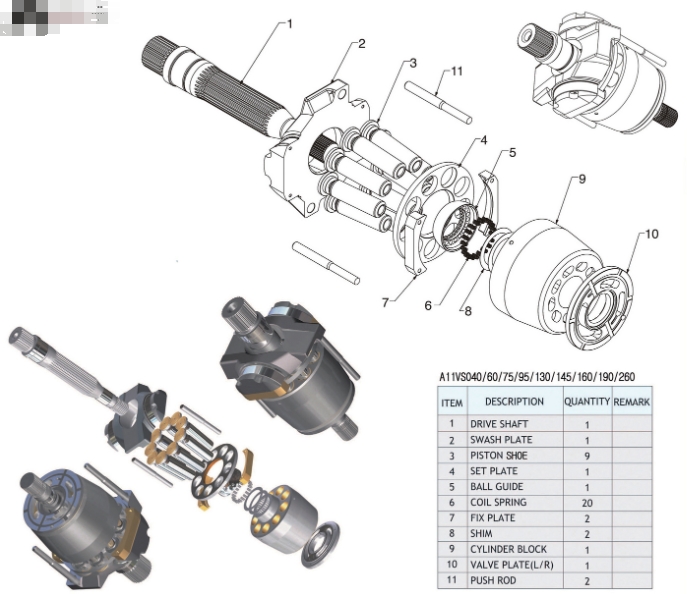

The rotating group contains several critical parts:
1. Remove dowel pins, O-rings, vanes, springs, and any other internal components systematically.
2. Keep track of small parts by organizing them in labeled containers.
3. Clean each component thoroughly using a cleaning solvent.
Disassembling your Rexroth hydraulic motor provides an excellent opportunity for inspection and maintenance.
1. Bearings: Check for pitting, scoring, or excessive play; replace if damaged.
2. Seals: Inspect seals for cracks, deformation, or wear; always replace seals during reassembly.
3. Rotating Group: Examine pistons or vanes for signs of wear such as flattening or erosion; replace if necessary.
4. Housing: Look for cracks or warping that could affect performance.
- Use lint-free cloths when cleaning components after rinsing them in solvent.
- Avoid abrasive materials that could scratch precision surfaces.
- Allow cleaned parts to air dry completely before reassembly.
Disassembling a hydraulic motor can be tricky if you're not careful. Here are some common mistakes to avoid:
1. Failing to mark alignment points before disassembly can make reassembly difficult.
2. Using excessive force when removing components may cause damage.
3. Neglecting cleanliness during disassembly can lead to contamination issues later on.
4. Reusing old seals instead of replacing them can result in leaks.
By taking your time and following these precautions, you'll avoid costly errors.
Reassembling your Rexroth hydraulic motor is just as important as disassembling it correctly.
1. Follow your alignment marks made during disassembly to ensure proper positioning of components.
2. Replace all worn-out parts such as seals, springs, and O-rings with new ones from an authorized supplier.
3. Tighten bolts evenly using a torque wrench according to manufacturer specifications.
4. Test the motor after reassembly by running it at low pressure before full operation.
Disassembling a Rexroth hydraulic motor requires attention to detail, proper tools, and adherence to safety protocols—but it's entirely manageable with preparation and patience! By following this guide step-by-step, you'll be able to perform maintenance or repairs effectively while ensuring your motor's longevity and performance.
Remember: Always inspect components thoroughly during disassembly and replace worn parts promptly during reassembly.
You'll need wrenches (adjustable/spanner), snap ring pliers, screwdrivers (flathead/Phillips), slide hammer shaft puller, cleaning solvent, torque wrench, and marking tools like paint pens.
Use alignment marks made with paint markers before disassembly as reference points when reassembling components.
Inspect bearings for wear/damage; check seals for cracks/deformation; examine rotating group parts like vanes/pistons; inspect housing for cracks/warping.
No! Always replace seals with new ones from authorized suppliers—they're critical for preventing leaks in hydraulic systems.
Wear protective gear (gloves/safety glasses), disconnect power sources/hydraulic lines beforehand; drain fluids fully before starting work; maintain cleanliness throughout!
