Understanding how an axial hydraulic motor works is essential for engineers, technicians, and enthusiasts involved in hydraulic systems. These motors are widely used in various industries due to their efficiency, compact design, and ability to handle high pressures. In this article, we will explore the working principles, components, applications, and maintenance of axial hydraulic motors. To enhance your understanding, we'll include diagrams and video references where possible.
Axial hydraulic motors are a type of rotary actuator that converts hydraulic energy into mechanical energy. These motors are commonly used in heavy machinery, industrial equipment, and even automotive systems due to their ability to generate high torque efficiently.
- High power-to-weight ratio.
- Compact and versatile design.
- Capable of operating under high-pressure conditions.
- Smooth and reliable performance.
Hydraulic motors like the axial design are integral to modern engineering because they can deliver consistent mechanical output even in demanding environments.

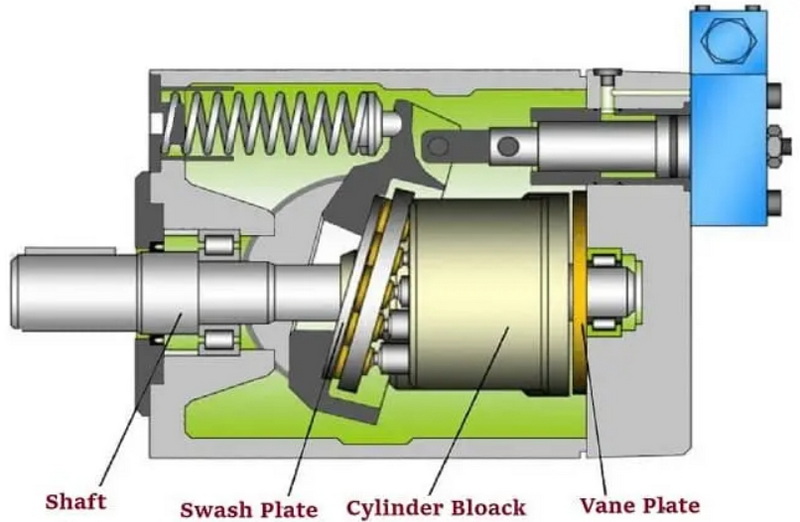

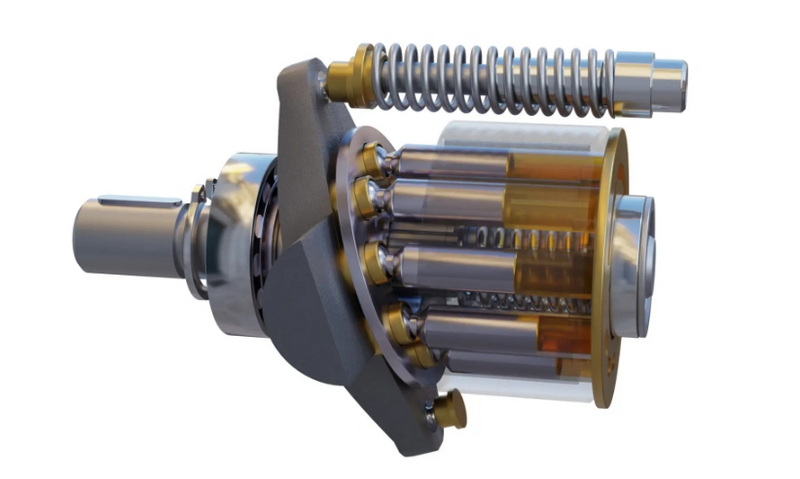

To understand how an axial hydraulic motor works, it's important to first familiarize yourself with its key components:
| Component | Description |
|---|---|
| Cylinder Block | Houses multiple pistons arranged axially in a circular pattern. |
| Pistons | Convert hydraulic pressure into mechanical motion by moving linearly. |
| Swash Plate | Facilitates the conversion of linear piston motion into rotary motion. |
| Output Shaft | Transfers rotational energy to the connected machinery or system. |
| Valve Plate | Controls the flow of hydraulic fluid into and out of the motor chambers. |
| Bearings and Seals | Ensure smooth rotation and prevent fluid leakage from the motor housing. |
1. Hydraulic Fluid Entry:
- Pressurized hydraulic fluid enters the cylinder block through the valve plate.
- The fluid exerts force on the pistons housed within the cylinder block.
2. Piston Movement:
- The pressurized fluid pushes the pistons outward in a reciprocating motion.
- This linear motion is directed against the swash plate.
3. Conversion to Rotary Motion:
- The swash plate is inclined at an angle, which causes the pistons' linear movement to be converted into rotational energy.
- This rotation drives the output shaft.
4. Fluid Exit:
- After transferring energy to the pistons, the hydraulic fluid exits through an outlet port.
- It then returns to the reservoir for recirculation.

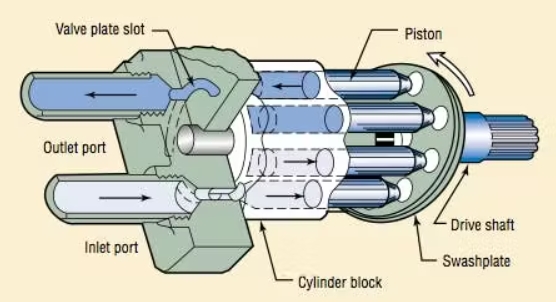

Below is a simplified diagram showing how an axial hydraulic motor operates:
Axial hydraulic motors can be classified into two main types based on their displacement:
- Provide a constant flow rate regardless of load or speed.
- Suitable for applications requiring consistent torque output.
- Commonly used in systems where speed control is not critical.
- Allow adjustment of flow rate by changing the swash plate angle.
- Offer greater flexibility in controlling speed and torque.
- Ideal for applications requiring variable output, such as construction equipment.
Axial hydraulic motors are versatile and find applications across numerous industries:
- Used in excavators, loaders, cranes, and other heavy machinery for high-torque operations.
- Enable precise control over movement and lifting tasks.
- Found in power steering systems for smooth turning.
- Used in hybrid vehicle transmissions for efficient energy conversion.
- Employed in molding machines, conveyor belts, and assembly lines for consistent performance.
- Provide reliable power for repetitive tasks.
- Used in winches, propulsion systems, and steering mechanisms due to their ability to withstand harsh environments.
- Applied in wind turbines and hydroelectric generators for efficient energy transfer.
1. High efficiency in converting hydraulic energy into mechanical power.
2. Compact size makes them suitable for space-constrained applications.
3. Capable of handling high pressures without compromising performance.
4. Smooth operation with minimal vibration or noise.
1. Initial cost can be higher compared to other motor types.
2. Requires regular maintenance to prevent wear and tear.
3. Sensitive to contamination; dirty fluid can damage internal components.
Proper maintenance is crucial for ensuring optimal performance and extending the lifespan of your axial hydraulic motor:
- Check seals and connections for any signs of leaks or damage.
- Inspect pistons and swash plates for wear or misalignment.
- Always use clean, high-quality hydraulic fluid recommended by the manufacturer.
- Replace fluid periodically to prevent contamination from dirt or debris.
- Clean or replace filters regularly to maintain efficient fluid flow.
- Clogged filters can reduce performance and cause overheating.
- Follow manufacturer-recommended service intervals for lubrication and part replacement.
- Address minor issues promptly to avoid costly repairs later.
Axial hydraulic motors are indispensable components in modern machinery due to their efficiency, reliability, and versatility across various industries. By understanding their working principles, core components, types, applications, and maintenance needs, users can maximize their performance while minimizing downtime.
Whether you're designing a new system or maintaining existing equipment, mastering how these motors work will give you a competitive edge in leveraging their full potential.
An axial hydraulic motor is a device that converts hydraulic energy into mechanical energy using pistons arranged axially within a cylinder block.
The swash plate converts the linear motion of pistons into rotary motion by using its inclined angle as a guide for piston movement.
Fixed displacement motors provide a constant flow rate regardless of load or speed, while variable displacement motors allow adjustable flow rates by changing the swash plate angle.
Common problems include fluid leaks around seals, piston wear due to friction or contamination, overheating caused by clogged filters, and improper alignment of internal components.
To extend its lifespan:
- Perform regular inspections for leaks or damage.
- Use clean hydraulic fluid free from contaminants.
- Replace worn-out parts promptly during scheduled maintenance intervals.
