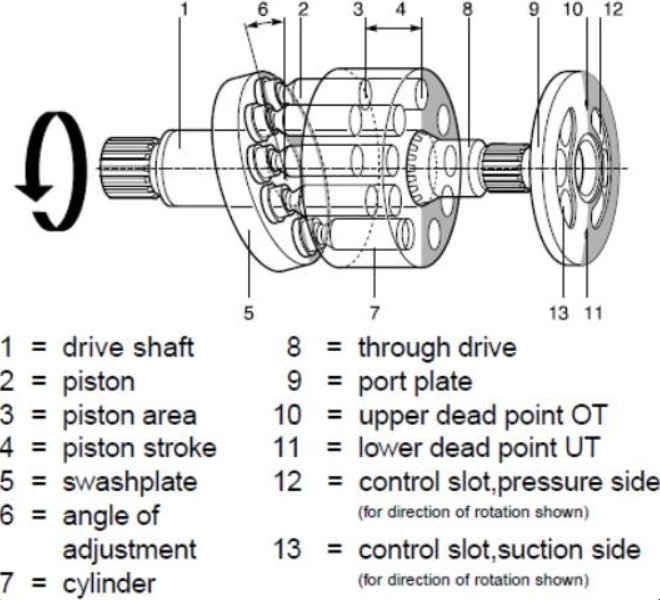

Field testing a hydraulic motor is a critical process to ensure its performance, reliability, and efficiency in real-world conditions. This comprehensive guide will walk you through the steps, tools, and techniques required to perform a field test on a hydraulic motor, including best practices and troubleshooting tips.

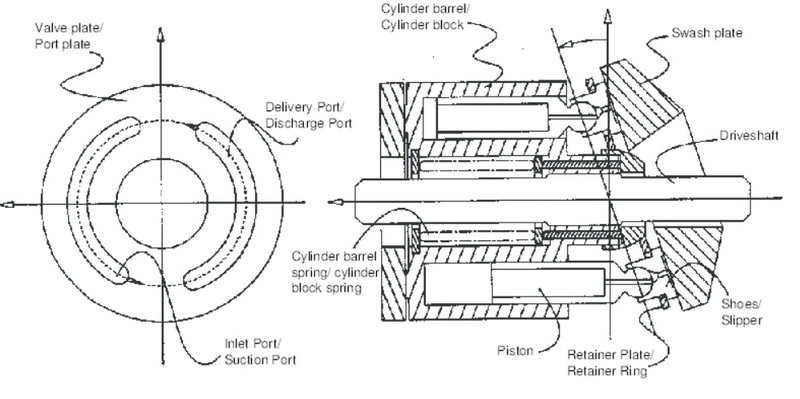

Hydraulic motors are essential components in many industrial and mobile applications, converting hydraulic energy into mechanical power. They are used in construction equipment, agricultural machinery, and industrial systems where high torque and precise control are required.
Field testing ensures that hydraulic motors operate as expected under actual working conditions. Unlike laboratory tests conducted in controlled environments, field tests account for real-world variables such as installation constraints, environmental factors, and fluctuating loads.
Field testing typically involves:
- Measuring torque, flow rate, pressure, and speed.
- Checking for leaks, vibrations, or abnormal noises.
- Verifying overall system efficiency.
- Ensuring compliance with manufacturer specifications.
By performing regular field tests, you can prevent costly downtime, extend the lifespan of your hydraulic motor, and maintain the safety of your equipment.
Before starting the test, gather the following tools and equipment:
| Tool/Equipment | Purpose |
|---|---|
| Hydraulic Test Stand | Simulates operating conditions. |
| Pressure Gauges | Measures inlet and outlet pressures. |
| Flow Meter | Monitors flow rates through the motor. |
| Torque Sensor | Measures output torque accurately. |
| Thermometer | Checks oil temperature during operation. |
| Pneumatic Leak Detector | Identifies leaks in the system. |
| Data Logger | Records performance metrics for analysis. |
| Infrared Thermometer | Measures surface temperature of components. |
| Vibration Analyzer | Detects abnormal vibrations or imbalances. |
Having the right tools ensures accurate measurements and helps identify potential issues quickly.

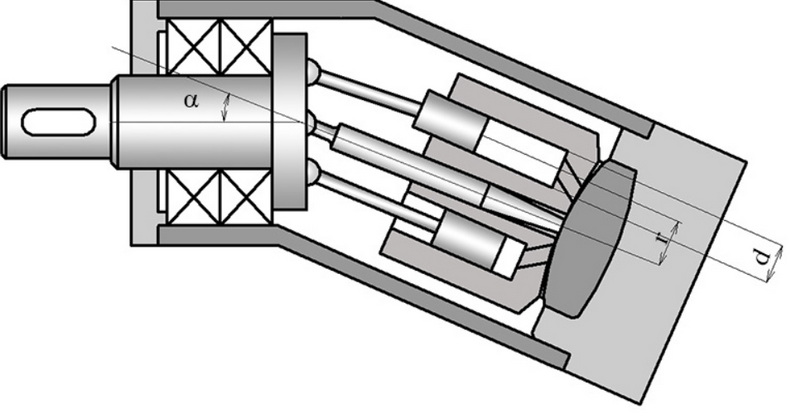

Begin by visually inspecting the hydraulic motor for any visible signs of damage or wear:
- Check for cracks or dents on the motor housing.
- Inspect seals, fittings, and hoses for leaks or deterioration.
- Rotate the shaft manually to detect jerky movements or excessive play, which may indicate internal damage.
- Tip: Use a flashlight to inspect hard-to-see areas and ensure no debris is obstructing the motor.
Proper setup is crucial for accurate testing:
1. Connect the hydraulic motor to a test stand or directly to the hydraulic system it will operate in.
2. Attach pressure gauges at both inlet and outlet ports to monitor pressure levels.
3. Install a flow meter to measure fluid flow through the motor.
4. Ensure all connections are tight and free from leaks.
- Safety Note: Always depressurize the system before making any connections or adjustments.
Perform initial tests to establish baseline readings:
1. Idle Test: Run the motor without load to measure its no-load speed, pressure, and flow rate.
2. Leak Test: Use a pneumatic leak detector or soapy water to check for leaks around seals, fittings, and hoses.
3. Monitor oil temperature using a thermometer to ensure it remains within acceptable limits during operation.
- Pro Tip: Record baseline data for comparison during load testing.
Load testing evaluates the motor's performance under operating conditions:
1. Gradually increase the load on the motor while monitoring key parameters:
- Torque Output: Verify that it meets manufacturer specifications.
- Pressure Differential: Ensure it remains within acceptable limits.
- Flow Rate: Check for consistency across different load levels.
2. Observe for any unusual noises or vibrations that may indicate internal issues.
- Use a torque sensor to measure output torque accurately during load testing.
If your hydraulic motor is bidirectional:
1. Reverse the flow direction by switching inlet and outlet ports (if applicable).
2. Repeat load testing steps to evaluate performance in reverse mode.
This step ensures that bidirectional motors perform equally well in both directions.
Use a data logger or manual recording method to capture all performance metrics:
- Torque
- Speed
- Pressure (inlet/outlet)
- Flow rate
- Temperature
Analyze trends over time to identify potential inefficiencies or failures before they escalate into major problems.
After completing all tests:
1. Inspect the motor for any new leaks or damage caused during testing.
2. Perform a final visual check of all connections and components.
3. Clean the motor and surrounding area to remove any debris or oil spills.
- Document all findings in a detailed report for future reference.
Understanding what metrics to monitor is critical for evaluating your hydraulic motor's performance:
1. Torque Output: Indicates how much mechanical force the motor generates under load.
2. Flow Rate: Reflects how efficiently hydraulic fluid moves through the system.
3. Pressure Differential: Helps identify blockages or restrictions in the system.
4. Speed (RPM): Ensures the motor operates at its rated speed under varying loads.
5. Temperature: Excessive heat can indicate inefficiencies or potential failures.
Monitoring these metrics allows you to identify problems early and maintain optimal performance.
- Possible Cause: Insufficient hydraulic pressure or worn internal components.
- Solution: Check pump pressure settings, inspect internal parts, and replace if necessary.
- Possible Cause: Blockages in hoses or air trapped in the system.
- Solution: Flush the system thoroughly and bleed air from lines.
- Possible Cause: Poor cooling system performance or excessive load on the motor.
- Solution: Inspect cooling systems (e.g., heat exchangers) and reduce load as needed.
- Possible Cause: Misaligned components or worn bearings/gears.
- Solution: Realign components and replace damaged parts promptly.
- Possible Cause: Damaged seals, fittings, or hoses.
- Solution: Replace faulty seals/fittings and tighten connections securely.
To ensure reliable results during field testing:
1. Use calibrated instruments for accurate measurements.
2. Perform tests under conditions that closely mimic actual operating environments.
3. Regularly maintain your test equipment to prevent inaccuracies caused by wear or contamination.
4. Keep detailed records of all test results for future reference and trend analysis.
5. Train personnel on proper testing procedures to avoid errors during setup or data collection.
Following these best practices will help you achieve consistent results while minimizing risks during field testing.
Field testing a hydraulic motor is essential for ensuring optimal performance in real-world applications. By following this guide, you can systematically evaluate your motor's functionality, identify potential issues early, and maintain efficiency over time.
Hydraulic motors are critical components in many systems; neglecting their maintenance can lead to costly downtime or even catastrophic failures. Regular field testing not only extends their lifespan but also ensures safety and reliability across various applications.
Field testing evaluates a hydraulic motor's performance under actual working conditions to ensure reliability, efficiency, and safety while identifying potential issues early on.
Key parameters include torque output, flow rate, pressure differential (inlet/outlet), speed (RPM), vibration levels, and temperature stability during operation.
Field tests should be performed annually as part of preventive maintenance schedules or whenever unusual performance issues are detected (e.g., noise/vibration).
Yes! Symptoms such as jerky shaft movement during manual rotation or abnormal vibrations/noises often indicate internal wear/damage requiring further inspection/replacement actions!
Essential tools include calibrated gauges (pressure/flow), torque sensors/loggers alongside advanced diagnostic aids like infrared thermometers/vibration analyzers!
