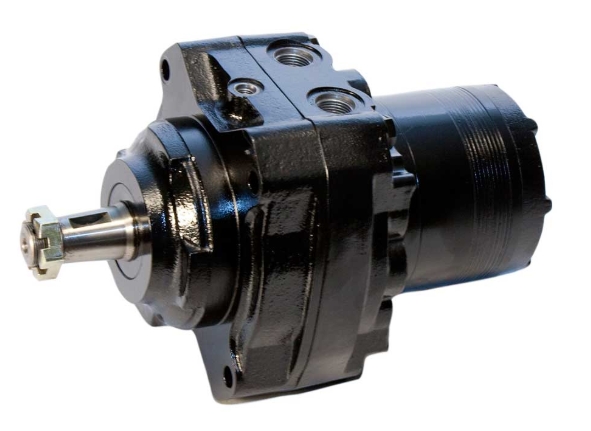

Hydraulic motors are essential components in numerous industrial applications, converting hydraulic energy into mechanical energy to drive various types of machinery. Determining the correct displacement for a hydraulic motor is crucial for optimizing system performance, efficiency, and reliability. This article provides a comprehensive guide on how to find hydraulic motor displacement, covering essential formulas, considerations, and practical examples.

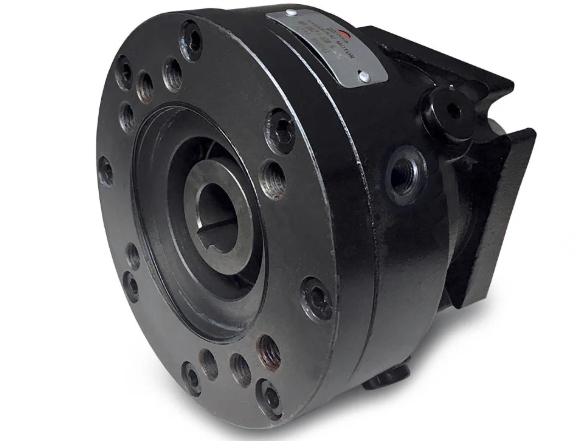

Hydraulic motor displacement refers to the volume of fluid required to rotate the motor's output shaft by one revolution. It is typically measured in cubic inches per revolution (in³/rev) or cubic centimeters per revolution (cc/rev). The displacement value is a critical parameter that influences the motor's speed, torque, and flow rate requirements.
Before calculating hydraulic motor displacement, it is essential to gather the necessary parameters. These parameters include:
1. Torque (T): The amount of rotational force the motor needs to generate, typically measured in Newton-meters (Nm) or inch-pounds (in-lbs).
2. Pressure (P): The operating pressure of the hydraulic system, measured in Pascals (Pa) or pounds per square inch (psi).
3. Motor Speed (N): The desired rotational speed of the motor's output shaft, measured in revolutions per minute (rpm).
The fundamental formula for determining hydraulic motor displacement is derived from the relationship between torque, pressure, and displacement:
T=(P×D)/2π
Where:
- T = Torque (in Nm)
- P = Pressure (in Pa)
- D = Displacement (in m³/rev)
To solve for displacement (D), the formula can be rearranged as follows:
D=(2π×T)/P
Alternatively, if torque is measured in inch-pounds and pressure in psi, the formula becomes:
D=T/P×(2×π)
Where:
- T = Torque (in inch-pounds)
- P = Pressure (in psi)
- D = Displacement (in cubic inches per revolution)
To calculate the required hydraulic motor displacement, follow these steps:
1. Determine the Required Torque: Identify the torque required for the application. This can be calculated based on the load and mechanical advantage of the system.
2. Determine the System Pressure: Determine the operating pressure of the hydraulic system. Ensure that the selected motor is compatible with this pressure.
3. Apply the Formula: Use the appropriate formula based on the units of torque and pressure to calculate the displacement.
4. Consider Motor Speed: Evaluate the motor speed requirements. Higher displacement motors generally provide higher torque at lower speeds, while lower displacement motors are better suited for higher speeds.
5. Check Manufacturer Specifications: Consult the manufacturer's specifications to ensure that the calculated displacement aligns with available motor options.
Let's consider an example where a hydraulic motor is required to produce a torque of 1,000 Nm at a system pressure of 200 bar (20,000,000 Pa). To calculate the required displacement:
1. Convert Pressure to Pascals: 200 bar = 20,000,000 Pa
2. Apply the Formula:
D=(2π×T)/P=(2π×1000)/20,000,000=3.1416×10−4 m3 rev
To convert this to cubic centimeters per revolution (cc/rev):
D=3.1416×10−4 m3 rev×1,000,000 cc m3=314.16 cc rev
Therefore, a hydraulic motor with a displacement of approximately 314.16 cc/rev is required for this application.
Several factors can influence the selection of hydraulic motor displacement:
- Load Requirements: The primary factor is the load requirement. Higher loads necessitate higher torque, which typically requires a larger displacement motor.
- Speed Requirements: The desired operating speed also plays a crucial role. Lower displacement motors are generally better suited for high-speed applications, while higher displacement motors are ideal for low-speed, high-torque applications.
- System Pressure: The hydraulic system's operating pressure must be compatible with the motor's specifications. Exceeding the maximum pressure can damage the motor.
- Efficiency: Motor efficiency can vary with displacement. It is essential to consider the motor's efficiency at the desired operating conditions to minimize energy losses.
- Size and Weight: In some applications, size and weight may be a concern. Smaller displacement motors are generally more compact and lighter.
When determining hydraulic motor displacement, avoid these common mistakes:
- Ignoring Units: Ensure that all parameters are in consistent units before applying the formula. Incorrect unit conversions can lead to significant errors.
- Overlooking System Losses: Account for any pressure losses in the hydraulic system due to friction, valves, and other components. These losses can affect performance.
- Neglecting Motor Efficiency: Always consider efficiency when calculating displacement; a lower efficiency motor may require larger displacement for desired performance.
- Failing to Consult Manufacturer Specifications: Always refer to manufacturer specifications for selected motors; these provide critical information about capabilities and limitations.
Accurate hydraulic motor displacement calculation is essential for several reasons:
- Optimal Performance: Selecting correct displacement ensures that the motor delivers required torque and speed for application.
- Energy Efficiency: Appropriately sized motors operate more efficiently, reducing energy consumption and operating costs.
- System Reliability: Using correct displacement prevents overloading motors, extending lifespan and minimizing failure risks.
- Cost Savings: Choosing right motors leads to cost savings by avoiding over- or under-sizing.
In some applications where load conditions vary significantly during operation—such as in mobile equipment—variable displacement motors may be used instead of fixed-displacement motors. These motors allow for adjustments in flow rate and torque output based on real-time demands without changing system pressure.
1. Efficiency Gains: By adjusting flow rates according to demand rather than maintaining constant flow rates regardless of need.
2. Improved Control: Enhanced control over speed and torque allows for smoother operation during dynamic loading conditions.
3. Reduced Heat Generation: Lower heat generation due to reduced energy waste can increase overall system reliability.
Variable displacement motors are commonly used in applications such as:
- Excavators
- Forklifts
- Agricultural machinery
- Mobile cranes
These applications benefit from improved efficiency and control provided by variable systems.
Determining correct displacement for a hydraulic motor is critical step in designing optimizing hydraulic systems effectively ensuring optimal performance efficiency reliability across various applications from industrial machinery construction equipment agricultural implements etc By understanding fundamental formulas considering key factors avoiding common mistakes engineers technicians can ensure selected motors deliver required performance while minimizing energy loss operational costs Always consult manufacturer specifications seek expert advice when necessary achieve best results possible.
Hydraulic motor displacement is volume fluid required rotate output shaft by one revolution; it's key parameter determining torque speed characteristics.
Hydraulic motor displacement typically measured cubic inches per revolution (in³/rev) or cubic centimeters per revolution (cc/rev).
Factors influencing selection include required torque desired speed system pressure efficiency size/weight constraints.
Formula calculating hydraulic motor displacement D=(2π×T)/P where T torque P pressure D displacement.
Accurate calculation important achieving optimal performance energy efficiency system reliability cost savings.
