Understanding how to calculate the torque of a hydraulic motor is crucial in various engineering applications, particularly in the fields of hydraulics and mechanical engineering. This article will guide you through the process of finding the torque of a hydraulic motor, including the necessary formulas, practical examples, and visual aids to enhance your understanding.

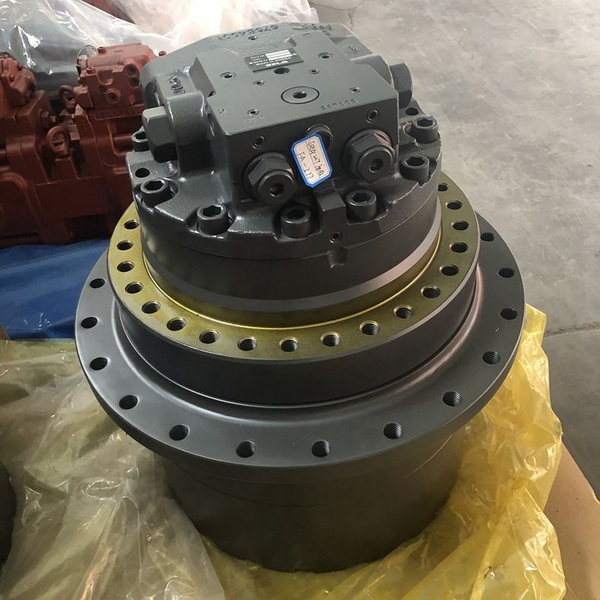

Hydraulic motors convert hydraulic energy into mechanical energy, providing rotational motion. The torque produced by these motors is influenced by several factors, including hydraulic pressure and motor displacement.
- Hydraulic Pressure (P): The force exerted by the hydraulic fluid, typically measured in pounds per square inch (psi) or bars.
- Displacement (d): The volume of fluid that the motor displaces per revolution, usually measured in cubic inches (in⊃3;) or liters.
- Torque (T): The rotational force produced by the motor, measured in pound-inches (lb-in) or Newton-meters (Nm).
To find the torque of a hydraulic motor, you can use the following formula:
Th=(P×d)/2π
Where:
- Th = Hydraulic Motor Torque (lb-in)
- P = Pressure (psi)
- d = Displacement (in⊃3;)
This formula illustrates that the torque is directly proportional to both the pressure and displacement.
1. Determine Pressure: Measure or obtain the hydraulic pressure in psi.
2. Determine Displacement: Identify the motor's displacement in cubic inches.
3. Apply the Formula: Substitute the values into the torque formula.
Example Problem #1:
- Pressure (P) = 2000 psi
- Displacement (d) = 1.5 in⊃3;
Using the formula:
Th=(2000×1.5)/2π≈477.46 lb-in
This means that at 2000 psi and a displacement of 1.5 in⊃3;, the hydraulic motor produces approximately 477.46 lb-in of torque.
For a more interactive learning experience, watch this video that explains how to calculate torque on a hydraulic motor:
Several factors can influence the accuracy of your torque calculations:
- Fluid Temperature: Changes in temperature can affect fluid viscosity and pressure readings. Higher temperatures may decrease viscosity, leading to lower pressure readings and potentially affecting torque output.
- Mechanical Efficiency: Not all hydraulic systems operate at 100% efficiency; consider losses due to friction and heat. Mechanical inefficiencies can reduce actual torque output compared to theoretical calculations.
- System Configuration: The arrangement of components can also impact performance. For example, bends in hoses or improper fittings can create resistance that affects fluid flow and pressure.
Hydraulic motors come with efficiency ratings that indicate how effectively they convert hydraulic energy into mechanical energy. These ratings are crucial for real-world applications where precision is necessary.
1. Volumetric Efficiency: This refers to how effectively a hydraulic motor uses fluid volume to produce work. It is calculated as:
Volumetric Efficiency=Actual Flow Rate/Theoretical Flow Rate×100%
2. Mechanical Efficiency: This measures how much of the input energy is converted into useful work versus lost energy due to friction and other factors.
3. Overall Efficiency: This combines both volumetric and mechanical efficiencies to give a comprehensive view of performance:
Overall Efficiency=Volumetric Efficiency×Mechanical Efficiency
Understanding these efficiencies can help you adjust your torque calculations for more accurate results.
Hydraulic motors are used across various industries due to their ability to provide high torque at low speeds. Here are some common applications:
- Construction Equipment: Hydraulic motors power excavators, bulldozers, and cranes, where high torque is essential for lifting heavy loads.
- Agricultural Machinery: Equipment like tractors and harvesters utilize hydraulic motors for various functions, including tilling and plowing.
- Industrial Automation: In factories, hydraulic motors drive conveyor belts and robotic arms, enabling efficient material handling.
When working with hydraulic motors, you may encounter several common issues that could affect performance:
- Check for leaks in hoses or fittings.
- Ensure that the hydraulic fluid is at the correct level and viscosity.
- Verify that pressure readings are accurate; faulty gauges can lead to incorrect calculations.
- Monitor fluid temperature; overheating may indicate excessive load or insufficient cooling.
- Inspect for blockages in cooling lines or filters.
- Listen for grinding or whining noises which may indicate mechanical wear or cavitation within the system.
- Regular maintenance checks can help identify issues before they escalate.
There are several types of hydraulic motors available in today's market, each designed for specific applications based on their characteristics:

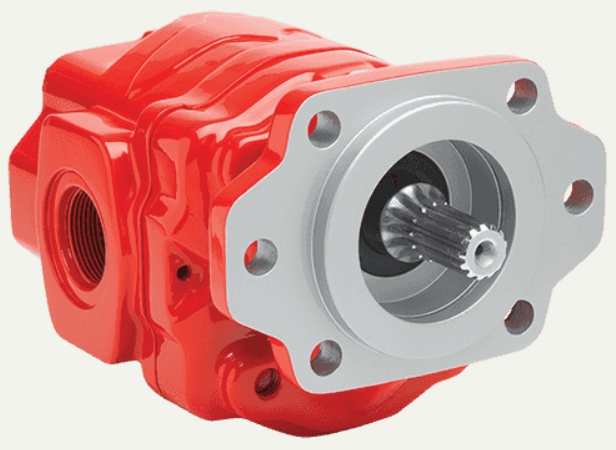

Gear motors use gears to convert fluid power into mechanical power efficiently. They are known for their simplicity and reliability but may not provide as high a torque output as other types under certain conditions.
Vane motors utilize sliding vanes within a rotor housed inside an eccentric chamber. They offer smooth operation with good starting torque but may require more maintenance than gear motors due to wear on vanes.
Piston motors employ pistons arranged around a central shaft; they provide high efficiency and excellent torque characteristics at varying speeds but tend to be more complex mechanically than gear or vane motors.

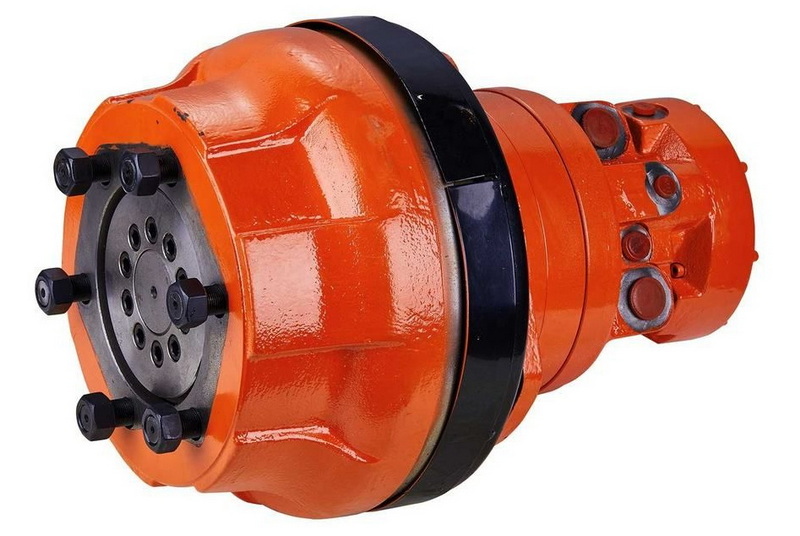

Radial piston motors feature pistons arranged radially around a central axis which allows them to produce high torques at low speeds efficiently while maintaining compact designs suitable for limited spaces.
When selecting a hydraulic motor for your application, consider factors such as:
- Torque Requirements: Determine how much torque you need under various operating conditions.
- Speed Range: Ensure that the motor can operate effectively within your desired speed range without compromising performance.
- Environmental Conditions: Assess whether your application will expose the motor to harsh environments (e.g., extreme temperatures or corrosive substances).
- Space Constraints: Choose a motor that fits within your spatial limitations while still meeting performance needs.
By carefully evaluating these factors alongside your specific application requirements, you can select an optimal hydraulic motor that will perform reliably over time.
Calculating the torque of a hydraulic motor involves understanding key parameters such as pressure and displacement. By applying the formula provided and considering various influencing factors like efficiency ratings and real-world applications, engineers can accurately determine motor performance for their specific applications.
Hydraulic motors play a vital role in many industries due to their ability to deliver high levels of torque efficiently. Understanding how to calculate their torque not only enhances operational efficiency but also aids in troubleshooting potential issues that may arise during usage.
Hydraulic torque is the rotational force produced by a hydraulic motor when pressurized fluid acts on its components.
Higher pressure increases torque output, assuming displacement remains constant.
Torque is typically measured in pound-inches (lb-in) or Newton-meters (Nm).
No, both pressure and displacement are required to calculate torque accurately.
Mechanical efficiency refers to the ratio of useful work output to total energy input, accounting for losses due to friction and heat.
