Hydraulic motors are essential components in many industrial and mobile applications, providing powerful rotational force for various machinery and equipment. Whether you're working on a construction site, in agriculture, or in manufacturing, knowing how to properly hook up a hydraulic motor is crucial for optimal performance and safety. This comprehensive guide will walk you through the process of connecting a hydraulic motor, covering everything from basic principles to advanced techniques.
Before diving into the connection process, it's important to understand what a hydraulic motor is and how it works. A hydraulic motor converts hydraulic energy into mechanical energy, using pressurized fluid to create rotational motion. These motors are known for their high power density, precise control, and ability to operate in harsh environments.

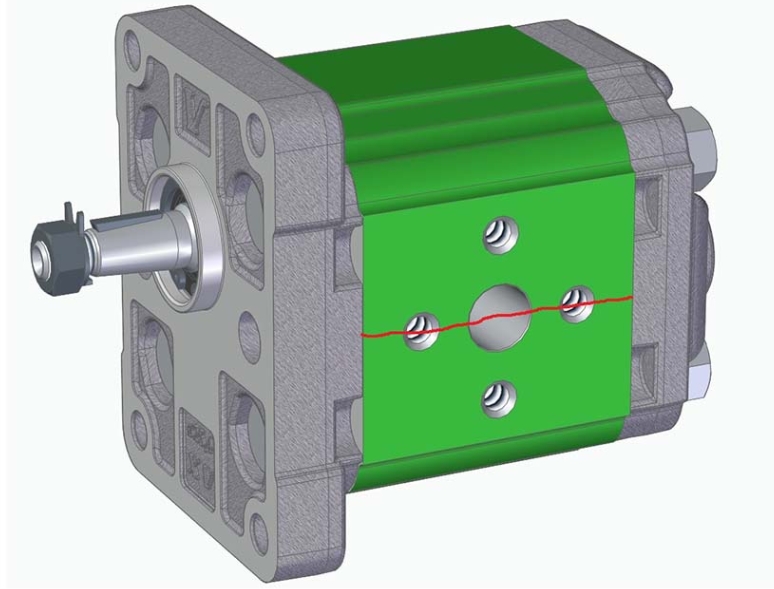

Hydraulic motors come in various types, including:
1. Gear motors
2. Vane motors
3. Piston motors (axial and radial)
4. Orbital motors
Each type has its own advantages and is suited for different applications. For this guide, we'll focus on the general principles that apply to most hydraulic motor setups.

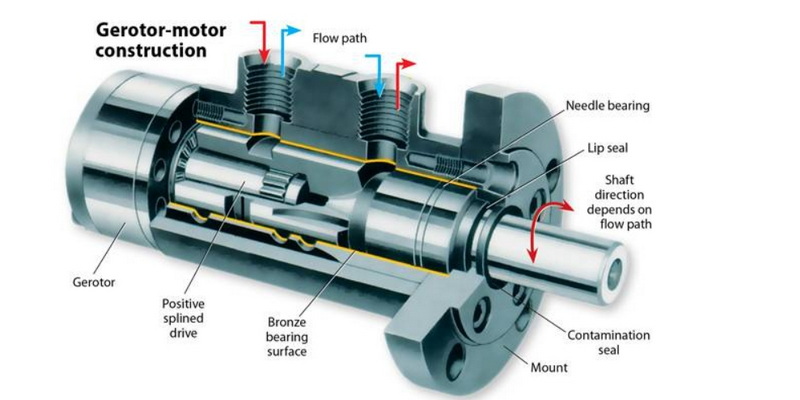

To better understand how to hook up a hydraulic motor, it's essential to grasp the basic principles of its operation:
1. Fluid Flow: Pressurized hydraulic fluid enters the motor, causing internal components to move.
2. Energy Conversion: The fluid's pressure energy is converted into mechanical energy.
3. Rotation: The movement of internal components results in the rotation of the motor shaft.
4. Fluid Exit: After transferring energy, the fluid exits the motor at a lower pressure.
Understanding these principles will help you make informed decisions during the hookup process and troubleshoot any issues that may arise.
Before you begin the process of hooking up your hydraulic motor, it's essential to gather all necessary tools and equipment. You'll typically need:
- Wrenches and sockets
- Hydraulic fittings and adapters
- Hydraulic hoses
- Thread sealant or Teflon tape
- Safety equipment (gloves, safety glasses)
Additionally, ensure you have the motor's specifications and any relevant system diagrams on hand. This information will be crucial for proper sizing and connection.
Safety should always be your top priority when working with hydraulic systems. Before starting the hookup process:
1. Ensure the system is depressurized
2. Wear appropriate personal protective equipment (PPE)
3. Clean the work area to prevent contamination
4. Review and follow all relevant safety procedures and regulations
The first step in hooking up a hydraulic motor is to securely mount it to the machine or equipment it will be powering. This typically involves:
- Identifying the correct mounting location
- Aligning the motor shaft with the driven component
- Securing the motor using appropriate bolts and fasteners
Ensure that the motor is mounted on a stable surface that can withstand the operational forces. Proper alignment is crucial to prevent premature wear and ensure efficient power transfer.
Proper alignment of the hydraulic motor with the driven component is critical for optimal performance and longevity. Consider these alignment techniques:
1. Laser Alignment: Use laser alignment tools for precise shaft alignment.
2. Dial Indicator Method: Employ dial indicators to check for parallel and angular misalignment.
3. Straight Edge and Feeler Gauge: A simple but effective method for smaller motors.
Whichever method you choose, take the time to ensure proper alignment, as it can significantly impact the motor's efficiency and lifespan.
Once the motor is mounted, you'll need to connect the hydraulic lines. This typically involves two main connections:
1. Pressure line (inlet)
2. Return line (outlet)
When connecting the lines:
- Use the correct size and type of fittings for your motor and system
- Apply thread sealant or Teflon tape to prevent leaks
- Tighten fittings to the manufacturer's specified torque
- Ensure hoses are not twisted or kinked
It's crucial to connect the lines correctly to avoid damaging the motor. The pressure line should be connected to the inlet port, which is typically marked "P" or "IN". The return line connects to the outlet port, usually marked "T" or "OUT".
Selecting the appropriate hoses and fittings is crucial for the proper functioning and longevity of your hydraulic system. Consider the following factors:
1. Pressure Rating: Ensure all components can handle the maximum system pressure.
2. Flow Capacity: Choose hoses and fittings that can accommodate the required flow rate.
3. Temperature Range: Select materials suitable for your operating environment.
4. Chemical Compatibility: Ensure compatibility with the hydraulic fluid being used.
5. Size and Configuration: Match the size and type to your motor's ports and system requirements.
Some hydraulic motors, particularly piston motors, require a case drain line. This line prevents pressure buildup within the motor casing, which can lead to seal failure.
To install a case drain:
1. Locate the case drain port on the motor (usually marked "D" or "DRAIN")
2. Connect a low-pressure hose to this port
3. Route the hose back to the hydraulic reservoir, ensuring it's above the fluid level
The case drain serves several critical functions:
1. Pressure Relief: It prevents excessive pressure buildup in the motor housing.
2. Lubrication: It allows for continuous lubrication of internal components.
3. Heat Dissipation: It helps remove heat generated during motor operation.
4. Contamination Removal: It can help flush out small particles that may enter the motor housing.
Failing to install a case drain when required can lead to premature seal failure, increased wear, and potential motor damage.
The control valve is essential for directing hydraulic fluid to and from the motor. Proper setup ensures smooth operation and control over the motor's speed and direction.
When setting up the control valve:
- Connect the pressure and tank lines to the appropriate ports
- Ensure the valve's flow capacity matches the motor's requirements
- Adjust any flow control or pressure relief settings as needed
There are several types of control valves commonly used with hydraulic motors:
1. Directional Control Valves: Control the direction of fluid flow.
2. Flow Control Valves: Regulate the speed of the motor by controlling fluid flow rate.
3. Pressure Control Valves: Manage system pressure to protect components and control force output.
4. Proportional Valves: Provide variable control over flow and pressure.
Choose the appropriate valve type based on your application requirements and desired level of control.

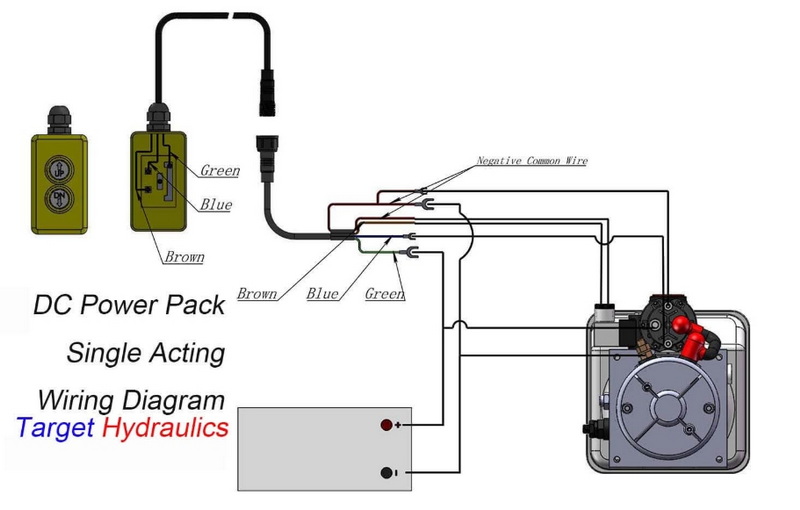

Some hydraulic motors may have electrical components, such as solenoid valves or sensors. These need to be properly connected to the machine's electrical system.
Follow the manufacturer's wiring diagram and use appropriate connectors and wire gauges. Ensure all electrical connections are secure and protected from the environment.
In hydraulic systems, electrical components are often exposed to harsh conditions. To protect these components:
1. Use weatherproof connectors and enclosures
2. Install strain relief on cables to prevent damage from vibration
3. Route wires away from heat sources and moving parts
4. Use appropriate sealing methods to prevent moisture ingress
5. Consider using protective conduits for added security
After completing the hookup process, it's crucial to test the system before putting it into full operation. Here's a basic testing procedure:
1. Check all connections for tightness and proper alignment
2. Fill the hydraulic system with the correct fluid type and amount
3. Start the hydraulic pump at low pressure
4. Slowly increase pressure while checking for leaks
5. Operate the motor through its full range of motion
6. Monitor temperature, pressure, and flow rates
If you encounter issues during testing, common problems and solutions include:
- Leaks: Tighten fittings or replace seals
- Low power: Check for proper pressure and flow
- Erratic operation: Look for air in the system or control valve issues
For more comprehensive testing and diagnostics, consider these advanced techniques:
1. Flow Testing: Use a flow meter to verify proper fluid flow through the motor.
2. Pressure Testing: Employ pressure gauges at various points to check for pressure drops or spikes.
3. Thermal Imaging: Use a thermal camera to identify hot spots that may indicate inefficiencies or problems.
4. Vibration Analysis: Utilize vibration sensors to detect potential misalignment or internal issues.
These methods can help you identify and address potential issues before they lead to system failure.
To ensure long-term reliability of your hydraulic motor setup, regular maintenance is essential. This includes:
- Checking and changing hydraulic fluid regularly
- Inspecting hoses and fittings for wear or damage
- Monitoring motor performance and addressing any changes promptly
- Keeping the motor and surrounding area clean
By following a consistent maintenance schedule, you can prevent many common issues and extend the life of your hydraulic motor.
Implementing predictive maintenance strategies can help you anticipate and prevent issues before they occur:
1. Oil Analysis: Regularly test hydraulic fluid to detect contamination or degradation.
2. Performance Monitoring: Track key performance indicators over time to identify trends.
3. Vibration Monitoring: Use sensors to detect changes in vibration patterns that may indicate wear or misalignment.
4. Thermal Monitoring: Employ temperature sensors to identify potential overheating issues.
By adopting these strategies, you can optimize your maintenance schedule and minimize downtime.
For more complex applications, you may need to consider additional factors when hooking up a hydraulic motor:
Understand the differences between closed-loop and open-loop hydraulic systems and how they affect motor hookup and operation.
In closed-loop systems:
- Fluid circulates between the pump and motor
- Offer precise control and high efficiency
- Require special considerations for fluid cooling and filtration
In open-loop systems:
- Fluid returns to a reservoir after passing through the motor
- Generally simpler and more cost-effective
- May require larger reservoirs and additional cooling
When hooking up multiple hydraulic motors, proper flow division and synchronization become critical considerations.
1. Flow Divider Valves: Mechanically divide flow between motors
2. Multiple Pumps: Use separate pumps for each motor
3. Proportional Valves: Electronically control flow to each motor
Ensure that your chosen method provides balanced operation and meets the requirements of your application.
In high-performance applications, managing system efficiency and heat generation is crucial for optimal operation and longevity.
1. Proper Sizing: Ensure motors and components are correctly sized for the application
2. System Design: Minimize pressure drops and optimize fluid flow paths
3. Control Strategies: Implement efficient control algorithms to reduce energy waste
1. Oil Coolers: Install heat exchangers to maintain proper fluid temperature
2. Reservoir Design: Ensure adequate reservoir size for proper heat dissipation
3. Fluid Selection: Choose hydraulic fluids with appropriate viscosity and thermal properties
By addressing these advanced considerations, you can create a more efficient and reliable hydraulic motor system.
Hooking up a hydraulic motor correctly is a critical skill for anyone working with hydraulic systems. By following the steps outlined in this guide and considering the specific requirements of your application, you can ensure a safe, efficient, and reliable hydraulic motor setup. Remember to always consult the manufacturer's instructions and seek professional assistance for complex or high-stakes installations.
The most common types of hydraulic motors are:
1. Gear motors
2. Vane motors
3. Piston motors (axial and radial)
4. Orbital motors
Each type has its own advantages and is suited for different applications based on factors such as power requirements, speed, and operating conditions.
To determine the correct size of hydraulic motor:
1. Calculate the required torque and speed for your application
2. Consider the available hydraulic pressure and flow rate
3. Factor in efficiency and duty cycle
4. Consult manufacturer specifications and performance curves
5. Consider any space or weight constraints in your system
It's often best to work with a hydraulic specialist to ensure proper sizing for your specific needs.
Signs that a hydraulic motor may need maintenance or replacement include:
1. Decreased performance or power output
2. Unusual noise or vibration during operation
3. Excessive heat generation
4. Visible leaks or seepage
5. Inconsistent or erratic operation
Regular inspections and performance monitoring can help catch issues early before they lead to catastrophic failure.
No, you should not use just any type of hydraulic fluid in your motor. The correct fluid depends on:
1. Motor manufacturer recommendations
2. Operating temperature range
3. System pressure requirements
4. Environmental conditions
5. Compatibility with seals and other system components
Using the wrong fluid can lead to poor performance, increased wear, and potential system failure. Always consult the motor and system specifications for the correct fluid type.
The frequency of hydraulic motor maintenance depends on several factors:
1. Operating conditions (e.g., temperature, environment)
2. Duty cycle and usage intensity
3. Type of hydraulic fluid used
4. Manufacturer recommendations
5. Historical performance and reliability data
As a general guideline, perform visual inspections daily, check fluid levels weekly, and conduct more thorough maintenance (including fluid analysis) every 500-1000 operating hours or as recommended by the manufacturer. However, adjust this schedule based on your specific application and observed motor performance.
