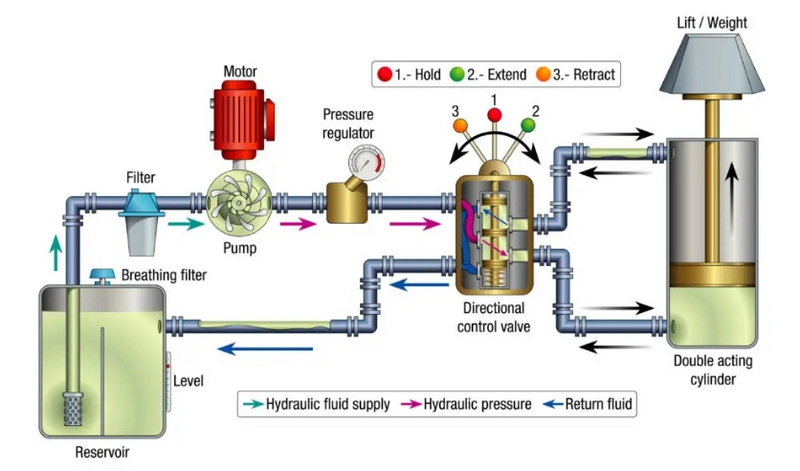

Hydraulic motors are essential components in many industrial and mobile applications, providing powerful and efficient rotational force. Properly hooking up a hydraulic motor is crucial for ensuring optimal performance, safety, and longevity of your hydraulic system. This comprehensive guide will walk you through the process of connecting a hydraulic motor, from preparation to testing, and provide valuable insights for troubleshooting and maintenance.
Before diving into the installation process, it's important to understand what a hydraulic motor is and how it functions. A hydraulic motor converts hydraulic energy into mechanical energy, using pressurized fluid to create rotational motion. These motors are widely used in various applications, including construction equipment, manufacturing machinery, and agricultural implements.
There are several types of hydraulic motors, each with its own characteristics and applications:
1. Gear Motors: Simple and cost-effective, suitable for low to medium pressure applications.
2. Vane Motors: Offer smooth operation and are ideal for medium pressure and speed requirements.
3. Piston Motors: Provide high efficiency and are capable of handling high pressures and speeds.
4. Orbit Motors: Compact and offer high torque at low speeds, commonly used in mobile equipment.
Understanding the type of motor you're working with is crucial for proper installation and operation.
Choosing the appropriate hydraulic motor for your application is crucial. Consider factors such as:
- Required torque and speed
- Operating pressure
- Flow rate
- Environmental conditions
- Mounting options
Consult with a hydraulic specialist or refer to manufacturer specifications to ensure you select the correct motor for your needs.
Before beginning the installation, gather all required tools and equipment:
- Wrenches and sockets
- Torque wrench
- Hydraulic fluid
- Fittings and hoses
- Mounting hardware
- Safety equipment (gloves, safety glasses)
- Pressure gauges
- Flow meter (if available)
Having all necessary tools on hand will streamline the installation process and help prevent delays.
Ensure the mounting surface is clean, flat, and sturdy. Remove any debris or old gasket material. A proper mounting surface is essential for preventing vibrations and misalignment.
- Use a straight edge to check for flatness
- Clean the surface with a suitable solvent
- Apply a thin layer of sealant if recommended by the manufacturer
Carefully position the motor on the mounting surface. Align it according to the manufacturer's specifications. Secure the motor using appropriate bolts and washers, tightening them to the recommended torque.
- Use a torque wrench to ensure proper bolt tension
- Apply thread-locking compound if specified
- Check for proper alignment with coupled equipment
Identify the inlet and outlet ports on the motor. Connect the pressure line to the inlet port and the return line to the outlet port. Use appropriate fittings and ensure all connections are tight to prevent leaks.
Important: Always use hoses and fittings rated for the system's maximum pressure.
- Use hydraulic thread sealant on NPT fittings
- Avoid over-tightening fittings, which can damage threads
- Label hoses for easy identification during maintenance
Some hydraulic motors require a case drain line to prevent pressure buildup inside the motor casing. If your motor needs one, connect it according to the manufacturer's instructions.
- Ensure the case drain line is routed to the reservoir below the fluid level
- Use a larger diameter hose for the case drain to minimize back pressure
- Install the case drain line at the highest point on the motor to prevent fluid trapping
Before starting the motor, prime the hydraulic system to remove air:
1. Fill the hydraulic reservoir with the appropriate fluid.
2. Manually rotate the motor shaft (if possible) to distribute fluid throughout the motor.
3. Bleed air from the system using bleed screws or by cycling the system at low pressure.
- Use a vacuum pump to assist in removing air from the system
- Cycle the system several times at low pressure to ensure complete air removal
- Check fluid levels after priming and top up if necessary
Verify that the motor shaft rotates in the correct direction when pressure is applied. If the rotation is incorrect, swap the inlet and outlet connections.
1. Apply low pressure to the system
2. Observe the shaft rotation
3. Compare with required direction for the application
4. Adjust connections if necessary
Start the system at low pressure and observe the motor's operation. Check for:
- Smooth rotation
- Absence of unusual noises
- No visible leaks
1. Set system pressure to 25% of operating pressure
2. Run the motor for 5-10 minutes
3. Monitor temperature, noise, and vibration
4. Check all connections for leaks
Slowly increase the system pressure to the operational level, monitoring the motor's performance and checking for any issues.
- Increase pressure in 25% increments
- Allow the system to stabilize at each increment
- Check for any changes in noise, vibration, or performance
During initial operation, monitor the motor and fluid temperature. Excessive heat can indicate problems with installation or system design.
- Use an infrared thermometer to check motor case temperature
- Monitor hydraulic fluid temperature in the reservoir
- Be aware of the normal operating temperature range for your system
Even with careful installation, issues may arise. Here are some common problems and their potential solutions:
1. Motor Not Turning:
- Check for proper fluid supply
- Verify correct pressure settings
- Inspect for mechanical obstructions
2. Excessive Noise:
- Look for air in the system
- Check for proper fluid levels
- Inspect for loose mountings or misalignment
3. Fluid Leaks:
- Tighten all connections
- Replace damaged seals or gaskets
- Verify proper torque on mounting bolts
4. Overheating:
- Ensure adequate fluid flow
- Check for system pressure relief valve settings
- Inspect for internal wear or damage
Hydraulic Troubleshooting
To ensure your hydraulic motor continues to operate efficiently:
1. Regularly inspect for leaks and tighten connections as needed.
2. Change hydraulic fluid and filters according to manufacturer recommendations.
3. Monitor fluid temperature and quality.
4. Keep the motor and surrounding area clean to prevent contamination.
5. Periodically check alignment and mounting integrity.
Implement a preventive maintenance schedule to maximize the life of your hydraulic motor:
- Daily: Visual inspection for leaks and abnormal noises
- Weekly: Check fluid levels and cleanliness
- Monthly: Inspect hoses and fittings for wear
- Quarterly: Analyze hydraulic fluid and replace filters
- Annually: Conduct a comprehensive system inspection and performance test
For more complex applications, you may need to integrate your hydraulic motor with electronic control systems. This can involve:
- Installing sensors for speed, pressure, or temperature monitoring
- Connecting to programmable logic controllers (PLCs)
- Implementing variable speed control systems
Hydraulic Control System
- Use shielded cables for sensor connections to reduce electromagnetic interference
- Implement proper grounding techniques for electronic components
- Calibrate sensors and control systems for accurate feedback and control
When installing hydraulic motors in challenging environments:
- Use appropriate seals and gaskets for extreme temperatures or corrosive conditions
- Consider protective covers or enclosures for outdoor installations
- Implement fluid heating or cooling systems for temperature-sensitive applications
- Install breathers with desiccant for humid environments
- Use biodegradable hydraulic fluids in environmentally sensitive areas
- Implement containment systems to prevent fluid spills
Always prioritize safety when working with hydraulic systems:
- Relieve system pressure before performing any maintenance
- Use appropriate personal protective equipment (PPE)
- Follow lockout/tagout procedures when servicing equipment
- Be aware of the potential for high-pressure fluid injection injuries
- Verify pressure gauges are functioning correctly
- Inspect hoses and fittings for signs of wear or damage before each use
- Ensure all guards and safety devices are in place and functioning
- Train personnel on proper operation and emergency procedures
Hooking up a hydraulic motor requires careful planning, proper execution, and attention to detail. By following the steps outlined in this guide, you can ensure a successful installation that maximizes performance and minimizes potential issues. Remember that proper maintenance and regular inspections are key to the longevity and efficiency of your hydraulic motor system.
Implementing best practices in installation, operation, and maintenance will not only extend the life of your hydraulic motor but also improve overall system efficiency and reduce downtime. Always consult manufacturer guidelines and seek professional assistance when dealing with complex hydraulic systems or troubleshooting persistent issues.
To determine the correct size of a hydraulic motor, consider the following factors:
- Required torque and speed
- Available hydraulic pressure and flow rate
- Duty cycle and operating conditions
- Space constraints and mounting options
Consult with a hydraulic specialist or use manufacturer sizing tools to ensure you select the appropriate motor for your specific needs.
No, you should use the hydraulic fluid specified by the motor manufacturer. Using the wrong type of fluid can lead to poor performance, increased wear, and potential damage to the motor. Factors to consider include:
- Viscosity grade
- Operating temperature range
- Additives for wear protection and oxidation resistance
- Compatibility with seals and other system components
Always refer to the manufacturer's recommendations for the appropriate fluid type and specifications.
Maintenance frequency depends on several factors, including:
- Operating conditions
- Duty cycle
- Environmental factors
- Manufacturer recommendations
As a general guideline:
- Perform visual inspections daily
- Check fluid levels and quality weekly
- Conduct thorough inspections and fluid analysis quarterly
- Replace seals and bearings as recommended by the manufacturer or based on condition monitoring
Regular maintenance is crucial for preventing unexpected downtime and extending the life of your hydraulic motor.
If you notice a leak in your hydraulic motor:
1. Identify the source of the leak
2. Relieve system pressure and clean the area around the leak
3. Inspect for damaged seals, loose fittings, or cracked components
4. Replace any damaged parts and tighten loose connections
5. If the leak persists, consult a hydraulic specialist or the motor manufacturer
Remember, even small leaks can lead to significant performance issues and potential safety hazards if left unaddressed.
In most cases, yes. The direction of rotation for a hydraulic motor can typically be changed by swapping the inlet and outlet port connections. However, some motors are designed for unidirectional operation and may not function properly or efficiently when reversed. Always consult the motor's specifications or manufacturer guidelines before attempting to change the rotation direction.
