Hydraulic motors are essential components in many industrial and mobile applications, converting hydraulic energy into mechanical power. Identifying these motors correctly is crucial for maintenance, troubleshooting, and replacement purposes. This comprehensive guide will walk you through the process of identifying hydraulic motors, their types, and key characteristics.
Hydraulic motors are rotary actuators that transform hydraulic energy into mechanical power. They work in tandem with hydraulic pumps to form a hydraulic system, where the pump generates fluid flow, and the motor uses that flow to produce mechanical rotation and torque.
There are three major types of hydraulic motors:
1. Gear motors
2. Piston motors
3. Vane motors
Each type has its unique characteristics and applications.
Gear motors are the simplest and most common type of hydraulic motor. They consist of two meshing gears inside a housing
Key features:
- Simple design
- Compact size
- Cost-effective
- Suitable for high-speed, low-torque applications
Piston motors are more complex but offer higher efficiency and power output. They come in two main varieties: axial piston and radial piston motors.
Key features:
- High efficiency
- Capable of high torque
- Suitable for both high-speed and low-speed applications
- More expensive than gear motors
Vane motors use a rotor with vanes that slide in and out as it rotates within an eccentric housing.
Key features:
- Smooth operation
- Good for medium-pressure applications
- Relatively compact design
Many hydraulic motors have product identification numbers stamped on their flanges. For example, Cross pumps and motors are stamped with six-digit stock numbers on the lip of the flange.
If the product ID is not visible or readable, you can measure the body or gear width to determine the displacement and model number.
The shape and design of the motor housing can provide clues about its type. Gear motors typically have a simple, cylindrical housing, while piston motors may have a more complex shape with visible cylinder arrangements.
The output shaft's design and size can indicate the motor's type and capacity. Larger shafts generally suggest higher torque capabilities.
Understanding the performance characteristics of hydraulic motors can help in their identification:
Different types of hydraulic motors have varying pressure ratings. For instance, gear motors typically operate at lower pressures compared to piston motors.
The flow rate required for optimal performance can indicate the motor's type and size. Larger motors generally require higher flow rates.
The operational speed range can be a distinguishing factor. Some motors are designed for high-speed applications, while others excel in low-speed, high-torque scenarios.
Specialized diagnostic tools can help identify hydraulic motors by measuring their performance parameters accurately.
Manufacturer catalogs often provide detailed specifications and diagrams that can aid in motor identification.
Observing the oil flow patterns through transparent sections or using flow meters can help identify the motor type and operational characteristics.
To better understand hydraulic motors and aid in their identification, watch this informative video:
This video explains the working principles of different hydraulic motor types, which can be invaluable for identification purposes.
Understanding where hydraulic motors are commonly used can also help in their identification:
1. Construction equipment (excavators, bulldozers)
2. Agricultural machinery (tractors, harvesters)
3. Industrial machinery (conveyor systems, mixers)

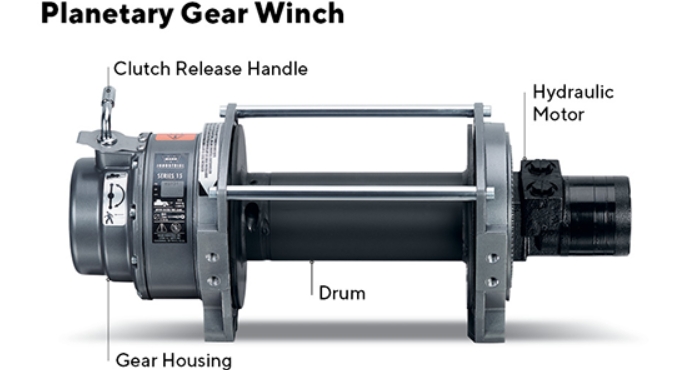

4. Marine applications (winches, propulsion systems)
5. Automotive (power steering, braking systems)
When identifying hydraulic motors, it's often in the context of troubleshooting. Here are some common issues and their potential causes:
- Check directional control settings
- Ensure proper fluid supply
- Verify correct drive motor rotation
- Inspect pump coupling for damage
- Air in the system
- Cavitation due to restricted inlet
- Worn or damaged components
- Low fluid level
- Contaminated hydraulic fluid
- Worn internal components
Proper maintenance is crucial for the longevity and performance of hydraulic motors. Regular checks should include:
1. Fluid level and quality inspection
2. Checking for leaks
3. Monitoring operating temperature
4. Inspecting seals and gaskets
5. Analyzing vibration levels
The field of hydraulic motors is continuously evolving. Some emerging trends include:
1. Integration of smart sensors for real-time monitoring
2. Development of more energy-efficient designs
3. Use of advanced materials for improved durability
4. Increased focus on environmentally friendly hydraulic fluids
Correctly identifying a hydraulic motor is crucial for several reasons:
1. Proper Replacement: When a motor needs replacement, accurate identification ensures that the correct model is ordered, saving time and money.
2. Optimal Performance: Understanding the specific type and characteristics of a motor helps in optimizing its performance within the hydraulic system.
3. Effective Troubleshooting: Knowing the motor type aids in diagnosing issues more quickly and accurately.
4. Maintenance Planning: Different motor types may have varying maintenance requirements, so proper identification helps in creating effective maintenance schedules.
Efficiency is a key factor in hydraulic motor performance and can be an identifying characteristic:
This refers to the ratio of actual fluid flow through the motor to the theoretical flow. Higher volumetric efficiency indicates less internal leakage.
This is the ratio of actual output torque to the theoretical torque. It reflects the motor's ability to convert hydraulic power into mechanical power.
The product of volumetric and mechanical efficiencies, overall efficiency gives a comprehensive view of the motor's performance.
As environmental concerns grow, identifying eco-friendly hydraulic motors becomes increasingly important:
1. Biodegradable Fluids: Some modern hydraulic motors are designed to work with biodegradable hydraulic fluids, reducing environmental impact in case of leaks.
2. Energy Recovery Systems: Certain advanced hydraulic motors incorporate energy recovery systems, improving overall system efficiency.
3. Noise Reduction: Identifying motors with lower noise emissions is crucial for applications in noise-sensitive areas.
Let's walk through a practical example of identifying an unknown hydraulic motor:
1. Visual Inspection: The motor has a cylindrical housing with no visible pistons, suggesting it might be a gear or vane motor.
2. Size and Weight: The motor is relatively small and lightweight, which is characteristic of gear motors.
3. Port Configuration: Two ports are visible, typical of a bi-directional motor.
4. Shaft Examination: The output shaft is keyed, indicating it's designed for direct drive applications.
5. Pressure Test: Using a hydraulic test bench, the motor shows optimal performance at medium pressures, further suggesting it's a gear motor.
6. Catalog Comparison: After comparing the physical characteristics and test results with manufacturer catalogs, we confirm it's a specific model of gear motor.
This process demonstrates how combining various identification methods can lead to accurate motor identification.
Identifying hydraulic motors requires a combination of visual inspection, performance analysis, and sometimes specialized tools. By understanding the different types of hydraulic motors, their key features, and common applications, you can more accurately identify and troubleshoot these crucial components. Remember that proper identification is essential for maintenance, repair, and replacement, ensuring the optimal performance of hydraulic systems across various industries.
The size of a hydraulic motor is typically determined by its displacement, which is the volume of fluid required to rotate the motor shaft one revolution. You can often find this information on the motor's nameplate or by measuring specific dimensions and consulting manufacturer catalogs.
While both devices work with hydraulic fluid, a hydraulic pump converts mechanical energy into fluid power by creating flow, whereas a hydraulic motor converts fluid power back into mechanical energy, producing rotational motion and torque.
Yes, most hydraulic motors can be reversed by changing the direction of fluid flow. However, some motors are designed for unidirectional operation only, so it's important to check the specifications before attempting to reverse the motor.
The lifespan of a hydraulic motor depends on various factors such as operating conditions, maintenance, and quality. With proper care and regular maintenance, a hydraulic motor can last for many years, often 10,000 hours or more of operation.
Several factors can cause a hydraulic motor to lose power, including internal leakage due to worn components, contaminated hydraulic fluid, insufficient supply pressure, or issues with the relief valve setting. Regular maintenance and proper troubleshooting can help identify and resolve these issues.
