Views: 222 Author: Ella Publish Time: 2025-02-19 Origin: Site
Content Menu
● Understanding Ross Hydraulic Motors
>> Key Features of Ross Hydraulic Motors
>> 1. Measure the Gerotor Gear Width
>> 3. Examine Physical Characteristics
>> 4. Consult the Manufacturer's Catalog
● Identifying Ross Motor Series
>> Comparing TB, TE, and TJ Series
>> Speed and Torque Relationship
>> Pressure and Flow Considerations
>> Efficiency and Power Output
● Maintenance and Troubleshooting
>> Preventive Maintenance Schedule
● Applications of Ross Hydraulic Motors
● Comparing Ross to Other Brands
>> 1. How do I determine the displacement of a Ross hydraulic motor?
>> 2. Can I replace a Ross hydraulic motor with a different brand?
>> 3. What should I do if I can't find the model number on my Ross hydraulic motor?
>> 4. How often should I service my Ross hydraulic motor?
>> 5. What are the signs that my Ross hydraulic motor needs replacement?

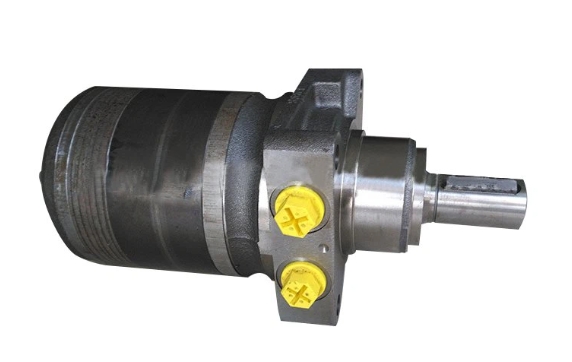

Identifying a Ross hydraulic motor can be crucial for maintenance, replacement, or troubleshooting purposes. This comprehensive guide will walk you through the process of identifying Ross hydraulic motors, their key features, and how to distinguish them from other brands.
Ross hydraulic motors are known for their reliability and performance in various industrial applications. These motors convert hydraulic energy into mechanical energy, providing the necessary power for many types of machinery.
1. High torque output at low speeds
2. Compact design
3. Bidirectional rotation capability
4. Efficient power transmission
5. Durable construction for long service life
6. Wide range of displacements available
One of the most reliable ways to identify a Ross hydraulic motor is by measuring the width of the gerotor gear. This method is particularly useful for Char-Lynn motors, which are now part of the Ross product line.
To measure the gerotor gear width:
1. Locate the gerotor gear just before the end cap of the motor.
2. Use a precise measuring tool to determine the width.
3. Compare the measurement to the following standard sizes:
- 1/4 inch
- 3/8 inch
- 1/2 inch
- 3/4 inch
- 7/8 inch
- 1 inch
- 1-1/4 inches
- 1-1/2 inches
- 2 inches
Ross hydraulic motors typically have a unique model number that provides valuable information about the motor's specifications. The model number is usually found on the motor's nameplate or engraved on the housing.
Breaking down the model number:
- TE: Series designation
- 0045: Displacement (in cubic inches per revolution)
- FP: Mounting flange type
- 130: Shaft type
- AAAA: Additional specifications
Understanding the model number can provide crucial information about the motor's capabilities and intended application.
Ross hydraulic motors have distinct physical features that can help in identification:
- Housing design: Ross motors often feature a cylindrical housing with distinctive cooling fins.
- Mounting flange pattern: The bolt pattern on the mounting flange can be a key identifier.
- Shaft type and size: Ross offers various shaft options, including keyed, splined, and tapered shafts.
- Port configurations: The arrangement and size of hydraulic ports can vary between models.
Ross provides detailed catalogs and specification sheets for their hydraulic motors. These resources can be invaluable when trying to identify a specific motor model.
Key information found in catalogs:
- Dimensional drawings
- Performance curves
- Technical specifications
- Cross-reference guides
Utilizing these catalogs can help you match the physical characteristics of your motor to the correct model and specifications.
Ross offers several series of hydraulic motors, each designed for specific applications and performance requirements.
The TB Torqmotor Series is known for its standard duty capabilities, typically ranging from 5 HP to 9 HP.
Characteristics:
- Roller stator design
- Two bronze bushings
- One needle thrust bearing
- Suitable for applications with moderate load requirements
The TE Torqmotor Series is designed for medium-duty applications, offering power ranges from 5 HP to 12 HP.
Features:
- Roller stator design
- Two needle bearings
- One needle thrust bearing
- Enhanced durability for more demanding applications
The TJ Torqmotor Series is engineered for heavy-duty applications, providing power outputs up to 20 HP.
Key features:
- Robust construction for high-stress environments
- Advanced sealing technology for improved reliability
- Optimized for high-pressure systems
| Feature | TB Series | TE Series | TJ Series |
|---|---|---|---|
| Power Range | 5-9 HP | 5-12 HP | Up to 20 HP |
| Bearings | Bronze bushings | Needle bearings | Heavy-duty bearings |
| Max Continuous PSI | 1800 | 2000 | 2500 |
| Typical Applications | Standard duty | Medium duty | Heavy duty |
Understanding the performance characteristics of Ross hydraulic motors is essential for proper identification and application.
Ross hydraulic motors are known for their ability to provide high torque at low speeds. This relationship is crucial for many industrial applications.
The performance of a Ross hydraulic motor is directly related to the hydraulic system's pressure and flow rate. Higher pressure generally results in increased torque output, while higher flow rates lead to increased motor speed.
Key points to remember:
- Operating pressure affects torque output
- Flow rate influences motor speed
- System efficiency is optimized when pressure and flow are balanced for the specific application
Ross hydraulic motors are designed to operate efficiently across a wide range of conditions. However, it's important to consider factors that can affect efficiency:
1. Operating temperature
2. Fluid viscosity
3. System contamination
4. Proper sizing for the application
By maintaining optimal operating conditions, you can ensure that your Ross hydraulic motor performs at its best, providing maximum power output and longevity.
Proper maintenance is crucial for the longevity and performance of Ross hydraulic motors. Here are some key maintenance tips:
1. Regular inspection of seals and bearings
2. Monitoring hydraulic fluid quality and level
3. Checking for unusual noise or vibration
4. Ensuring proper alignment and mounting
5. Adhering to recommended service intervals
When troubleshooting Ross hydraulic motors, consider the following common issues:
- Loss of power or speed
- Excessive heat generation
- Oil leakage
- Unusual noise during operation
Implementing a preventive maintenance schedule can help extend the life of your Ross hydraulic motor and prevent unexpected downtime. A typical schedule might include:
- Daily: Visual inspection for leaks and unusual noises
- Weekly: Check fluid levels and temperature
- Monthly: Inspect mounting bolts and connections
- Quarterly: Analyze hydraulic fluid for contamination
- Annually: Comprehensive inspection and component replacement as needed
Ross hydraulic motors find applications in various industries due to their versatility and robust performance:
1. Construction equipment: Powering winches, augers, and drive systems
2. Agricultural machinery: Operating harvesting equipment and irrigation systems
3. Material handling systems: Driving conveyor belts and sorting mechanisms
4. Marine applications: Powering winches, steering systems, and propulsion units
5. Industrial manufacturing: Operating presses, mixers, and processing equipment
The wide range of applications demonstrates the adaptability and reliability of Ross hydraulic motors across different sectors.
While Ross hydraulic motors have their unique features, it's important to understand how they compare to other brands in the market.
Char-Lynn motors, now part of the Eaton brand, share many similarities with Ross motors due to their common heritage. However, there may be differences in:
- Model numbering systems
- Specific performance characteristics
- Availability of replacement parts
When considering a replacement, it's essential to compare the exact specifications to ensure compatibility.
Parker hydraulic motors may offer different:
- Mounting options
- Displacement ranges
- Control features
Parker motors might be suitable alternatives in some applications, but careful consideration of performance parameters is necessary.
Danfoss hydraulic motors are known for their efficiency and advanced control options. When comparing to Ross motors, consider:
- Integration with electronic control systems
- Specific industry certifications
- Global support and service network
Always consult the manufacturer's specifications when comparing different brands to ensure compatibility and performance requirements are met.
Identifying a Ross hydraulic motor requires a combination of physical examination, measurement, and reference to manufacturer documentation. By understanding the key features, model numbering system, and performance characteristics, you can accurately identify and select the appropriate Ross hydraulic motor for your application.
Remember that proper identification is crucial for maintenance, replacement, and system optimization. When in doubt, always consult with a hydraulic systems expert or contact Ross directly for assistance.
The displacement of a Ross hydraulic motor is typically indicated in the model number. For example, in the model number TE0045FP130AAAA, "0045" represents a displacement of 4.5 cubic inches per revolution. Alternatively, you can consult the motor's specification sheet or catalog for this information.
While it's possible to replace a Ross hydraulic motor with a different brand, it's crucial to ensure that the replacement motor has compatible mounting dimensions, shaft type, displacement, and performance characteristics. Always consult with a hydraulic systems expert before making such a substitution.
If the model number is not visible or has worn off, you can identify the motor by measuring its physical dimensions, including the mounting flange pattern, shaft size, and port configurations. Compare these measurements to Ross catalog specifications or contact Ross customer support for assistance.
The service interval for a Ross hydraulic motor depends on its application, operating conditions, and usage frequency. Generally, it's recommended to perform a visual inspection and basic maintenance checks every 500 operating hours or annually, whichever comes first. Consult your motor's manual for specific maintenance schedules.
Signs that your Ross hydraulic motor may need replacement include:
- Significant loss of power or speed
- Excessive oil leakage
- Unusual noise or vibration during operation
- Inability to maintain pressure
- Visible damage to the housing or shaft
If you notice any of these signs, have the motor inspected by a qualified technician to determine if repair or replacement is necessary.
