Hydraulic motors are essential components in various industrial applications, providing the necessary torque and speed to drive machinery. Understanding how to measure the speed of a hydraulic motor is crucial for ensuring optimal performance and efficiency. This article will guide you through the methods of determining hydraulic motor speed, the factors affecting it, and practical applications.
Hydraulic motors convert hydraulic energy into mechanical energy through the movement of fluid. They are commonly used in construction equipment, manufacturing machinery, and automotive applications. The speed of a hydraulic motor is influenced by several factors, including:
- Fluid Flow Rate: The volume of hydraulic fluid supplied to the motor directly affects its speed.
- Motor Design: Different types of hydraulic motors (gear, vane, piston) have varying speed characteristics.
- Load Conditions: The load on the motor can affect its operational speed.
Before diving deeper into measuring speed, it's essential to understand the different types of hydraulic motors available:
Gear motors utilize gears to convert hydraulic pressure into rotational motion. They are known for their simplicity and reliability, making them suitable for high-torque applications.
Advantages:
- High torque at low speeds
- Simple design and maintenance
Disadvantages:
- Limited speed range
- Less efficient at higher speeds
Vane motors use sliding vanes within a rotor to create motion. They are versatile and can operate efficiently across a range of speeds.
Advantages:
- Good efficiency across various speeds
- Smooth operation
Disadvantages:
- More complex than gear motors
- Sensitive to fluid contamination

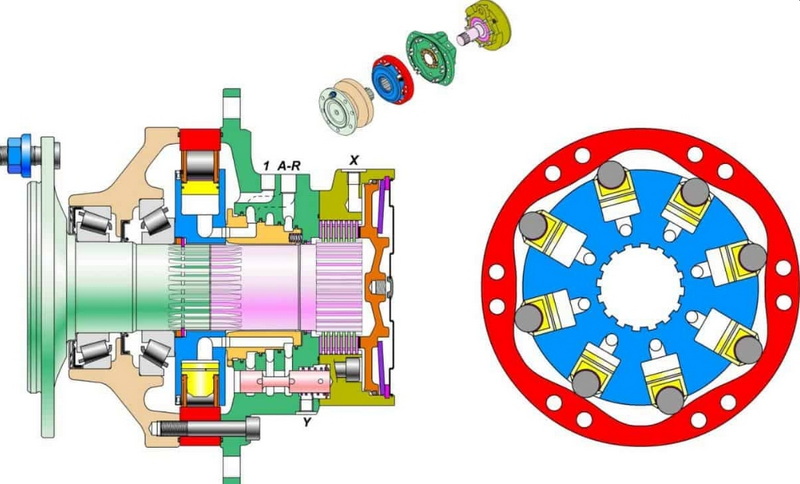

Piston motors use pistons driven by hydraulic pressure to produce rotational motion. They are capable of high speeds and high torque.
Advantages:
- High efficiency
- Capable of handling high pressures
Disadvantages:
- More expensive
- Requires precise control systems
There are various methods to measure the speed of a hydraulic motor. The choice of method depends on the application requirements and available tools.
Optical sensors use light beams to detect the rotational speed of a motor's shaft. A reflective tape is applied to the shaft, and as it rotates, the sensor counts the number of reflections per unit time.
Advantages:
- High accuracy
- Non-contact measurement
Disadvantages:
- Sensitive to dirt and debris
- Requires a clear line of sight
To set up an optical sensor, follow these steps:
1. Clean the motor shaft thoroughly.
2. Apply reflective tape in a pattern that allows for easy detection.
3. Position the optical sensor at an appropriate distance from the shaft.
4. Connect the sensor to a data acquisition system for monitoring.
Tachometers are devices specifically designed to measure rotational speed. They can be either mechanical or electronic.
- Mechanical Tachometers: Use gears and springs to provide speed readings.
- Electronic Tachometers: Utilize sensors that convert rotational motion into electrical signals.
Advantages:
- Simple to use
- Provides real-time readings
Disadvantages:
- Mechanical versions may wear out over time
- Electronic versions may require calibration
To install a tachometer:
1. Identify a suitable mounting location on or near the motor.
2. Ensure proper alignment with the rotating shaft.
3. Connect power supply and output signals as per manufacturer instructions.
4. Calibrate according to specifications for accurate readings.
This method involves measuring pressure fluctuations within the hydraulic system. The frequency of pressure pulses can be correlated with motor speed.
Process:
- Install pressure sensors at strategic points in the hydraulic circuit.
- Analyze the frequency of pressure signals to determine speed.
Advantages:
- Can be integrated into existing systems
- Useful for diagnosing system performance
Disadvantages:
- Requires complex signal processing
- May not provide direct speed readings
1. Install pressure sensors at inlet and outlet ports of the motor.
2. Connect sensors to a data logger or monitoring system.
3. Analyze pressure data using software capable of signal processing.
The flow rate through the hydraulic motor can also be used to estimate its speed. This method requires knowledge of the motor's displacement (the volume of fluid it displaces per revolution).
The formula is:
Speed RPM =(Flow Rate L min ×1000)/Displacement cm³ rev
Where:
- Flow Rate is measured in liters per minute (L/min)
- Displacement is in cubic centimeters per revolution (cm³/rev)
For example, if a hydraulic motor has a displacement of 100 cm³/rev and receives a flow rate of 40 L/min:
Speed RPM =(40×1000)/100=400 RPM
Several factors can influence the operational speed of a hydraulic motor:
- Viscosity and temperature can affect flow rates and, consequently, motor speed.
- Higher viscosity fluids can lead to increased resistance and reduced speeds.
- Higher system pressures can lead to increased speeds but only up to the motor's design limits.
- Operating beyond these limits may cause damage or failure.
- Increased load typically results in decreased speed due to higher torque requirements.
- Understanding load profiles is crucial for effective motor control.
- Efficiency losses due to friction or heat can reduce effective speed.
- Regular maintenance can help mitigate these losses by ensuring smooth operation.
- Advanced control systems (like variable displacement pumps) allow for real-time adjustments based on load conditions, optimizing speed performance.
Understanding how to measure and control hydraulic motor speed is vital for various applications:
In construction machinery such as excavators or bulldozers, precise control over hydraulic motors ensures that operators can perform tasks like digging or lifting with accuracy and efficiency.
In manufacturing settings, maintaining consistent operational speeds is crucial for productivity and product quality. For example, conveyor systems rely on hydraulic motors for smooth operation.
In automotive applications such as power steering or braking systems, precise control over hydraulic motor speeds is critical for safety and performance.
Even with proper measurement techniques in place, issues may arise that affect performance:
If a hydraulic motor runs slower than expected or stalls:
- Check fluid levels and ensure there are no leaks.
- Inspect filters for clogs that could restrict flow.
Unusual noise or vibration may indicate mechanical issues:
- Inspect bearings and shafts for wear.
- Ensure proper alignment with connected components.
Overheating can lead to failure:
- Monitor fluid temperature; ensure it remains within recommended limits.
- Check for proper cooling mechanisms in place.
Measuring the speed of a hydraulic motor is essential for maintaining optimal performance across various applications. By using methods such as optical sensors, tachometers, pressure pulse measurement, and flow rate calculations, operators can effectively monitor and adjust motor speeds as needed. Understanding the factors that influence these speeds will further enhance operational efficiency and reliability in hydraulic systems.
A hydraulic motor converts hydraulic energy into mechanical energy, providing motion for various applications.
You can calculate it using flow rate and displacement with the formula:
Speed RPM =(Flow Rate L min ×1000)/Displacement cm³ rev
Factors include fluid properties, system pressure, load conditions, and motor efficiency.
While optical sensors are highly accurate, they may not be suitable for environments with dust or debris that could obstruct their function.
Regular calibration of sensors and cleaning optical devices are essential for maintaining measurement accuracy.
