Hydraulic systems are essential in various industrial applications, providing efficient power transmission through the use of pressurized fluids. Among the critical components of these systems are hydraulic pumps and motors, which work together to convert mechanical energy into hydraulic energy and vice versa. This article will guide you through the process of creating a hydraulic pump and motor system, including detailed explanations, and videos to enhance understanding.
A hydraulic pump is a mechanical device that converts mechanical energy into hydraulic energy by moving fluid through the system. The primary function of the pump is to generate flow and pressure within the hydraulic circuit.
1. Gear Pumps: These are simple and reliable pumps that use gears to move fluid. They are commonly used in low-pressure applications.
2. Vane Pumps: These pumps use vanes that slide in and out of a rotor to create fluid movement. They are suitable for medium-pressure applications.
3. Piston Pumps: These pumps utilize pistons driven by a crankshaft to create high pressure. They are ideal for high-pressure applications.

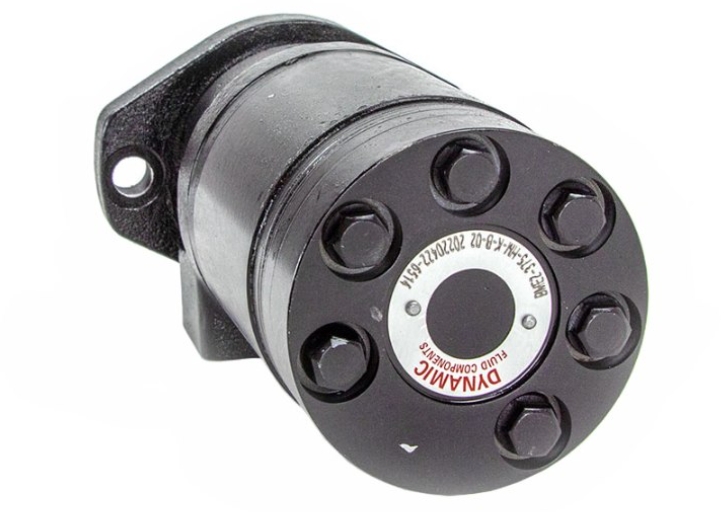

A hydraulic motor operates on the principle of converting hydraulic energy back into mechanical energy. It uses pressurized fluid to create rotational motion, which can be utilized to perform work.
1. Gear Motors: Similar to gear pumps, these motors use gears to convert hydraulic energy into rotational motion.
2. Vane Motors: These motors operate on the same principle as vane pumps but in reverse, using vanes to create rotation.
3. Piston Motors: Piston motors use pistons to achieve high torque and power output, making them suitable for heavy-duty applications.
- Hydraulic Pump: Generates flow and pressure.
- Hydraulic Motor: Converts hydraulic energy back to mechanical energy.
- Fluid Reservoir: Stores hydraulic fluid.
- Control Valves: Regulate the flow and direction of fluid.
- Pipes and Hoses: Transport fluid between components.
- Filters: Remove contaminants from the hydraulic fluid.
- Pressure Relief Valve: Protects the system from excessive pressure.
To build a basic hydraulic pump and motor system, you will need:
- Hydraulic pump (gear or piston type)
- Hydraulic motor
- Fluid reservoir
- Control valves
- Hydraulic fluid (typically oil)
- Hoses and fittings
- Pressure gauge
- Filters
- Pressure relief valve
1. Connect the Pump to the Reservoir:
- Use hoses to connect the inlet of the hydraulic pump to the fluid reservoir.
- Ensure all connections are secure to prevent leaks.
2. Attach the Pump to the Motor:
- Connect the outlet of the pump to the inlet of the hydraulic motor.
- Use appropriate fittings to ensure a tight seal.
3. Install Control Valves:
- Position control valves between the pump and motor to manage flow direction.
- These valves allow for controlling speed and torque output from the motor.
4. Connect Pressure Relief Valve:
- Install a pressure relief valve in line with the pump outlet to prevent excessive pressure buildup that could damage components.
5. Install Filters:
- Place filters in line with hoses leading from the reservoir to remove any contaminants from the hydraulic fluid before it enters the pump.
6. Connect Pressure Gauge:
- Install a pressure gauge on the line leading from the pump to monitor system performance.
Fill the reservoir with suitable hydraulic fluid, ensuring it meets manufacturer specifications for viscosity and temperature range. It's crucial to select a fluid that provides good lubrication and heat dissipation.
1. Power Up:
- Start your hydraulic pump using an electric motor or manual drive.
2. Monitor Pressure:
- Observe the pressure gauge for proper readings as the system fills with fluid.
3. Check for Leaks:
- Inspect all connections for leaks during operation.
4. Adjust Control Valves:
- Experiment with control valves to achieve desired motor speed and torque.
5. Run Load Tests:
- Attach a load to your hydraulic motor and run tests at various speeds and pressures to ensure everything operates smoothly.
How Does a Hydraulic Motor Work?
If your system is not generating adequate pressure:
- Check for leaks in hoses or fittings.
- Ensure that the reservoir has sufficient fluid.
- Verify that control valves are functioning correctly.
Unusual noise may indicate:
- Cavitation in the pump due to low fluid levels.
- Air trapped in the system; bleed air from hoses if necessary.
If components are overheating:
- Ensure proper fluid levels and quality.
- Check for blockages in hoses or filters.
If your system is operating inconsistently:
- Inspect control valves for proper function.
- Check for air in lines; bleed air as necessary.
If your system responds slowly:
- Ensure that all hoses are correctly sized; undersized hoses can restrict flow.
- Check for any obstructions or kinks in hoses that could impede flow.
Regular maintenance is essential for ensuring your hydraulic system operates efficiently over time:
1. Fluid Checks:
- Regularly check fluid levels and top off as needed with compatible hydraulic oil.
2. Change Filters:
- Replace filters according to manufacturer recommendations or when they become clogged.
3. Inspect Hoses and Fittings:
- Routinely inspect hoses for wear, cracks, or leaks; replace any damaged components immediately.
4. Monitor Performance Metrics:
- Keep an eye on pressure readings; significant changes may indicate underlying issues that need addressing.
5. Clean Reservoirs Regularly:
- Periodically clean out reservoirs to remove sediment or contaminants that can affect performance.
Building a hydraulic pump and motor system requires careful planning, assembly, and testing. By following this guide, you can create an effective system that meets your operational needs while ensuring safety and efficiency. Understanding each component's role in this system is crucial for troubleshooting and optimizing performance over time.
A well-maintained hydraulic system can provide years of reliable service across various applications, from industrial machinery to automotive systems, making it an invaluable addition to any workshop or factory environment.
There are several types of hydraulic pumps including gear pumps, vane pumps, and piston pumps. Each type has its own advantages depending on application requirements.
A hydraulic motor converts hydraulic energy into mechanical energy using pressurized fluid, while an electric motor converts electrical energy into mechanical energy using electromagnetic fields.
Inspect all connections for loose fittings or damaged hoses. Replace any faulty components as needed to prevent further leaks.
No, it is essential to use hydraulic fluid that meets specific viscosity and temperature requirements as outlined by equipment manufacturers.
Regular maintenance should be performed according to manufacturer recommendations, typically every few months or after significant operational hours, including checking fluid levels and changing filters.
