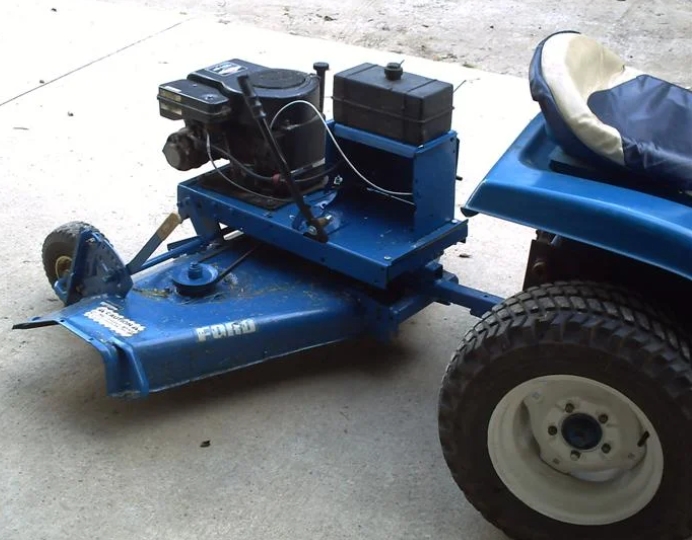

Creating a pull mower powered by a hydraulic motor is an exciting DIY project that combines mechanical engineering with practical gardening needs. This guide will walk you through the entire process, from gathering materials to assembling your mower, ensuring you have a functional and efficient tool for maintaining your lawn.
Pull mowers offer a fantastic alternative to traditional gas-powered mowers, reducing noise and emissions while providing an efficient lawn care solution. By leveraging a hydraulic motor, you can achieve powerful cutting performance with the efficiency of hydraulic systems. This project is designed for individuals with basic mechanical skills and a passion for DIY projects, aiming to provide a robust, customized mowing solution. The satisfaction of building your own equipment is a huge bonus, making lawn care a more engaging and rewarding experience.
To build your pull mower, you will need a variety of materials, each serving a crucial role in the overall functionality and durability of the mower.
- Hydraulic motor: The heart of your pull mower, chosen based on your desired power output and torque.
- Mower deck: You can repurpose an old mower deck, offering cost savings and sustainability, or construct one from scratch for a tailored fit and enhanced durability.
- Frame material: Steel or aluminum tubing, providing the structural integrity of the mower. Steel is stronger but heavier, while aluminum is lighter but potentially less durable for heavy-duty tasks.
- Wheels: Durable wheels suitable for outdoor terrain, ensuring smooth maneuverability and stability on various lawn surfaces.
- Hydraulic hoses: To connect the motor to the hydraulic pump, rated for the appropriate pressure and temperature.
- Hydraulic fluid reservoir: A tank to hold the hydraulic fluid, complete with appropriate filtration.
- Hydraulic pump: A compatible pump for your motor, delivering the necessary fluid flow and pressure.
- Hydraulic control valve: To regulate the speed and direction of the hydraulic motor.
- Mounting brackets and bolts: For securely fastening components to the frame.
- Blades: Mower blades that fit your mower deck.
- Safety guards: To protect the user from moving parts.
- Paint: To protect your mower from rust.
- Tools: Wrenches, drills, saws, and welding equipment (if necessary).

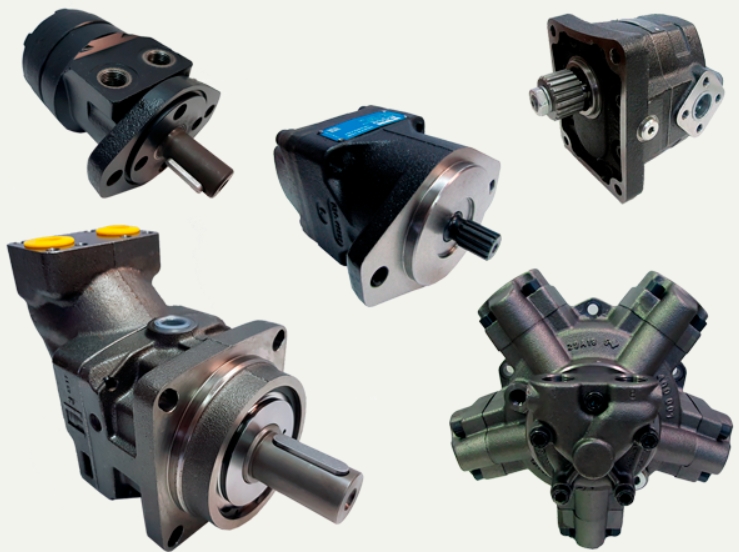

Hydraulic motors convert hydraulic energy into mechanical energy, providing high torque and efficiency ideal for applications requiring substantial power in a compact form. A solid understanding of how these motors operate is essential for optimizing your mower's performance and ensuring its reliability.
- Rotary vane motors: Commonly used for their simplicity, compact size, and reliable performance, suitable for lighter-duty applications.
- Gear motors: Ideal for applications requiring high torque at low speeds. They are durable and cost-effective.
- Piston motors: These offer the highest efficiency and are capable of handling high pressures. They are more complex and expensive but provide superior performance for heavy-duty tasks.
Consider factors like:
- Torque requirements: Based on the cutting resistance and terrain conditions.
- Speed requirements: Determine the blade speed needed for optimal cutting.
- Pressure rating: Ensuring compatibility with the hydraulic pump.
- Size and weight: To fit within your mower's design constraints.
Before starting construction, it's crucial to design your mower layout meticulously. This involves considering the practical aspects of usage, storage, and maintenance.
1. Size: Determine the width of the mower deck based on the size of your mowing area. A wider deck covers more ground but may be harder to maneuver in tight spaces.
2. Weight distribution: Ensuring even weight distribution is essential for stability and ease of pulling.
3. Accessibility: Design the mower for easy access to the hydraulic components to facilitate maintenance and repairs.
4. Adjustability: Consider making the cutting height adjustable to accommodate different grass types and personal preferences.
- Frame dimensions: 48" x 36" – A common size that balances maneuverability and cutting width.
- Wheel size: 12" diameter – Provides good ground clearance and smooth rolling.
- Mower deck height: Adjustable from 2" to 4" – Allows for cutting grass at different lengths.
- Hitch design: Develop a strong and adjustable hitch for easy connection to your towing vehicle.
- Blade guards: To prevent accidental contact with the blades.
- Emergency shut-off: An easily accessible switch to quickly stop the hydraulic motor in case of emergencies.
- Warning labels: Clearly marked labels to remind users of safety precautions.

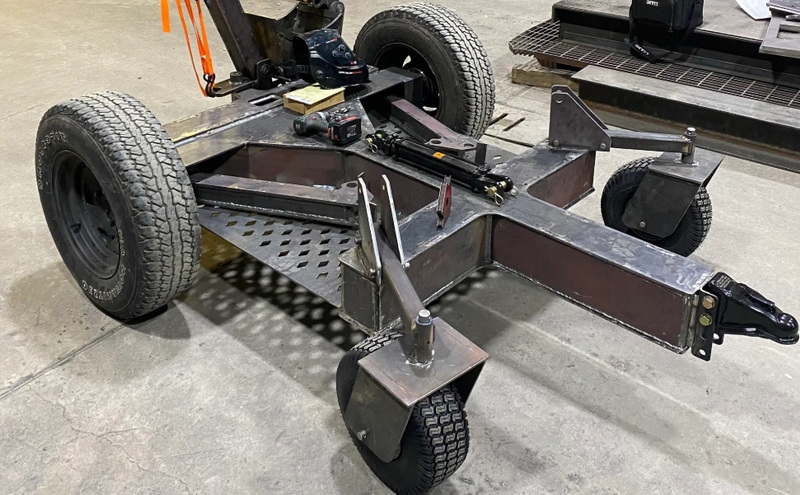

The frame is the foundation of your pull mower. It must be robust enough to withstand the stresses of operation.
1. Cut the frame material to size according to your detailed design plan. Use accurate measurements to ensure that all parts fit together correctly.
2. Weld or bolt together the frame sections to create a sturdy structure. Welding provides a stronger, more permanent connection, while bolting allows for easier disassembly and adjustments.
3. Attach mounting brackets for securing the mower deck and hydraulic motor. Ensure that these brackets are securely attached to the frame.
4. Reinforce stress points: Add extra support to areas that are likely to experience high stress, such as the hitch connection and motor mount.
Mounting the hydraulic motor correctly is vital for optimal performance and longevity:
1. Position the motor on the frame where it can be easily connected to the pump and mower deck.
2. Secure it using bolts or brackets, ensuring it is stable and aligned properly. Misalignment can cause excessive wear on the motor and mower blades.
3. Connect the motor shaft: The motor shaft needs to be connected to the mower blades in a way that allows the blades to spin freely and efficiently.
4. Provide adequate ventilation: Hydraulic motors can generate heat during operation, so ensure that there is adequate airflow around the motor to prevent overheating.
The hydraulic system consists of several components that must be connected correctly to ensure reliable operation:
1. Connect hoses from the hydraulic pump to the motor. Use high-pressure hydraulic hoses that are rated for the pump's output pressure.
2. Ensure all connections are tight to prevent leaks, which can reduce the system's efficiency and potentially damage the motor.
3. Install any necessary valves to control flow direction and speed. These valves allow you to adjust the motor speed and cutting performance.
4. Include a pressure relief valve: This valve protects the system from overpressure, which can damage the pump or motor.
5. Add a hydraulic fluid filter: To keep the fluid clean and prevent contamination.
- Use the correct type of hydraulic fluid recommended by the motor manufacturer.
- Fill the reservoir to the appropriate level, ensuring that the pump is primed before starting the system.
Once assembled, it's time to test your pull mower thoroughly:
1. Check all connections and ensure there are no leaks in the hydraulic system.
2. Start the hydraulic pump and observe if the motor runs smoothly and the blades spin freely.
3. Make adjustments as necessary to improve performance or stability. This may involve adjusting the motor speed, blade height, or hitch position.
4. Test on different terrains: Ensure that the mower performs well on both smooth and uneven surfaces.
5. Monitor motor temperature: Check the motor temperature after a period of operation to ensure it is not overheating.
Safety should be a top priority when building and using your hydraulic pull mower.
1. Wear safety glasses and gloves when working with tools and hydraulic components.
2. Ensure all guards and shields are in place before operating the mower.
3. Keep bystanders and pets away from the mower during operation.
4. Never attempt to repair or adjust the mower while it is running.
5. Store the mower in a safe location when not in use.
6. Regularly inspect the hydraulic system for leaks or damage.
7. Use appropriate personal protective equipment (PPE) at all times.
Even with careful construction, you may encounter some issues. Here are some common problems and how to address them:
1. Motor not running: Check the hydraulic fluid level, pump operation, and electrical connections.
2. Motor running slowly: Adjust the flow control valve, check for obstructions in the hydraulic lines, or ensure that the pump is delivering adequate pressure.
3. Leaks in the hydraulic system: Tighten connections, replace damaged hoses, or repair faulty fittings.
4. Blades not cutting properly: Sharpen or replace the blades, adjust the cutting height, or increase the motor speed.
5. Overheating: Ensure adequate ventilation, reduce the load on the motor, or check for restrictions in the hydraulic system.
Once your basic pull mower is functioning well, consider these enhancements:
1. Electric start: Add an electric starter to the hydraulic pump for easier starting.
2. Remote control: Implement a remote control system to operate the mower from a distance.
3. Mulching capability: Modify the mower deck to mulch grass clippings instead of discharging them.
4. Collection system: Add a collection bag or container to gather grass clippings.
5. Lighting: Install lights for use in low-light conditions.
Building a pull mower with a hydraulic motor is an achievable and rewarding project that enhances your gardening capabilities while providing valuable hands-on experience in mechanical assembly and hydraulics. By following this comprehensive guide, you can create a customized tool that meets your specific mowing needs, reduces emissions, and provides an efficient lawn care solution. Enjoy the satisfaction of using equipment you built yourself and the benefits of a well-maintained lawn.
Answer: Choose a rotary vane or gear motor for simplicity and reliability in lawn mowing applications. Rotary vane motors are compact and reliable, making them suitable for lighter-duty tasks, while gear motors offer high torque at low speeds, ideal for tougher cutting conditions.
Answer: Regularly check for leaks in hoses, ensure fluid levels are adequate, and clean any debris from moving parts. Also, periodically inspect the blades for sharpness and balance, and lubricate any moving parts as needed. Regularly replacing the hydraulic fluid and filter will extend the life of your system.
Answer: Yes, repurposing an old mower deck can save costs and provide a robust cutting surface. Ensure the deck is in good condition, free from rust and cracks, and modify it as needed to fit your new hydraulic system. Clean and paint the deck to prolong its life.
Answer: Always wear protective gear when working with tools, and ensure all components are securely fastened before operation. Never operate the mower without the safety guards in place, and keep bystanders at a safe distance. Before performing any maintenance, disconnect the hydraulic system and allow any pressure to dissipate.
Answer: Costs can vary widely based on materials used, but expect to spend between $500-$1200 depending on component quality. Factors that affect the cost include the type of hydraulic motor, the quality of the hydraulic pump and hoses, the materials used for the frame, and any additional features or enhancements you choose to add. Sourcing used parts can help reduce costs.
