Measuring a hydraulic motor involves several key steps to ensure you select the right size and type for your specific application. Hydraulic motors convert hydraulic energy (pressure and flow) into mechanical energy (torque and speed). Correctly measuring and understanding the dimensions and specifications of a hydraulic motor is crucial for proper installation, performance, and replacement. This article provides a comprehensive guide on how to measure a hydraulic motor, covering essential parameters, techniques, and considerations.

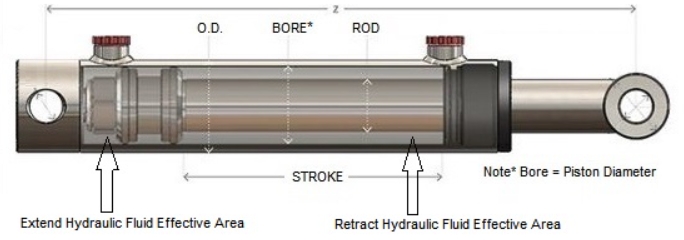

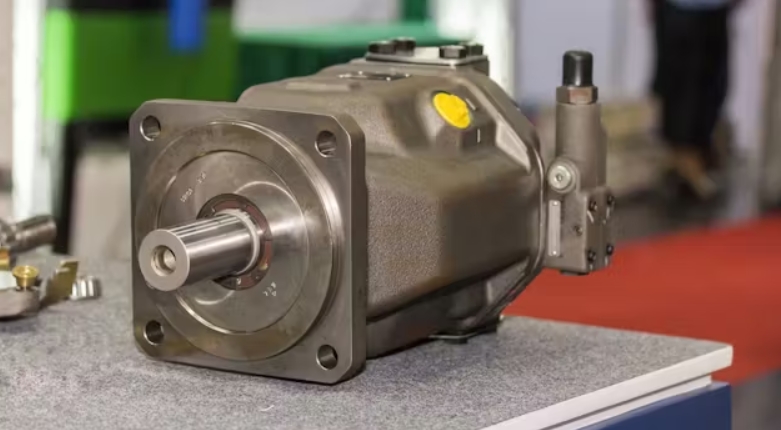

Before diving into the measurement process, it's important to understand the basics of hydraulic motors. Hydraulic motors are used in a wide range of applications, including construction equipment, agricultural machinery, and industrial machinery. They come in various types, each with its own characteristics and applications:

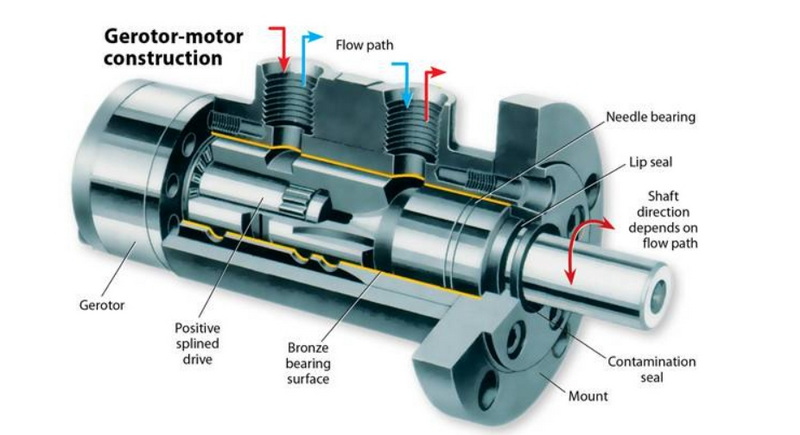

- Gear Motors: These are simple and robust, suitable for low to medium pressure applications. They operate using two gears that mesh together, converting hydraulic energy into rotational motion.
- Vane Motors: These offer good efficiency and are suitable for medium pressure applications. Vane motors operate using sliding vanes that move in a circular motion within a rotor.
- Piston Motors: These are highly efficient and capable of operating at high pressures. They are more complex and expensive than gear or vane motors. Piston motors use reciprocating pistons to convert hydraulic pressure into rotational motion.
When measuring a hydraulic motor, several parameters are critical:
- Displacement: The amount of fluid required to turn the motor one revolution, typically measured in cubic inches per revolution (in³/rev) or cubic centimeters per revolution (cm³/rev).
- Pressure Rating: The maximum pressure the motor can withstand without failure.
- Torque Output: The amount of rotational force the motor can generate, typically measured in Newton-meters (Nm) or pound-feet (lb-ft).
- Speed Range: The range of speeds (RPM) at which the motor can operate effectively.
- Mounting Interface: The physical interface used to mount the motor to the machinery.
- Porting: The size and type of hydraulic ports (threaded or flanged).
To accurately measure a hydraulic motor, you will need the following tools and equipment:
- Calipers: For measuring diameters and lengths precisely.
- Flexible Ruler/Measuring Tape: Useful for measuring curved surfaces and circumferences.
- Rulers and Straightedges: For measuring lengths and ensuring straight lines.
- Torque Wrench: For measuring breakaway or starting torque.
- Tachometer: For measuring the rotational speed (RPM) of the motor.
- Pressure Gauge: For measuring hydraulic pressure.
- Flow Meter: For measuring the flow rate of hydraulic fluid.
- Dynamometer: For measuring torque and power output under load.
- Camera/Smartphone: For taking pictures and recording measurements.
- Notebook and Pen: For recording measurements and observations.
Follow these steps to accurately measure a hydraulic motor:
Why: Knowing the motor type and model number can provide you with manufacturer specifications and dimensions, making the measurement process easier.
How:
1. Locate the Nameplate: Look for a nameplate or label on the motor body. This plate usually contains the manufacturer's name, model number, serial number, and other important specifications.
2. Record Information: Write down all the information from the nameplate. This will be helpful for referencing manufacturer data sheets.
Why: Physical dimensions are critical for ensuring that the replacement motor fits properly in the application.
How:
1. Overall Length:
- Use a ruler or measuring tape to measure the total length of the motor from one end to the other.
- Ensure that the measurement is taken along the central axis of the motor.
2. Diameter:
- Use calipers to measure the diameter of the motor housing.
- Take multiple measurements at different points to ensure accuracy.
3. Shaft Diameter and Length:
- Measure the diameter of the motor shaft using calipers.
- Measure the length of the shaft from the motor body to its end.
4. Mounting Flange Dimensions:
- Flange Diameter: Measure the diameter of the mounting flange.
- Bolt Hole Circle Diameter (BCD): Measure the diameter of the circle on which mounting bolt holes are located.
- Bolt Hole Diameter: Measure the diameter of mounting bolt holes.
- Flange Thickness: Measure thickness of mounting flange.
5. Port Sizes and Types:
- Identify type of hydraulic ports (e.g., NPT, SAE, BSPP).
- Measure port sizes using calipers or a thread gauge.
Why: Understanding performance parameters helps in selecting a motor that meets application torque and speed requirements.
How:
1. Displacement:
- Refer to manufacturer specifications if available.
- If not available, estimate displacement based on motor type and size.
2. Pressure Rating:
- Check manufacturer specifications on nameplate or data sheet.
- Ensure that motor's pressure rating meets or exceeds system's operating pressure.
3. Torque Output:
- Breakaway Torque: Use a torque wrench to measure torque required to start rotating under load.
- Running Torque: Use a dynamometer to measure torque output at different speeds and pressures.
4. Speed Range:
- Use a tachometer to measure rotational speed (RPM) at different flow rates.
- Record minimum and maximum speeds at which motor operates efficiently.
Why: Testing hydraulic performance ensures that motor meets required specifications under operational conditions.
How:
1. Setup:
- Connect hydraulic motor to a hydraulic power unit with adjustable flow and pressure settings.
- Install pressure gauges and flow meters in hydraulic lines to monitor input conditions.
- Connect tachometer to motor shaft to measure RPM.
2. Procedure:
- Start hydraulic power unit; gradually increase flow and pressure to motor.
- Record pressure, flow rate, RPM at various operating points.
- Use dynamometer to measure torque output at each operating point.
- Compare measured values with manufacturer's specifications to assess performance.
3. Calculations:
- Calculate Hydraulic Horsepower using formula:
Hydraulic HP=(Torque lb ft ×RPM)/5252
4. Example Calculation:
Suppose you have a hydraulic motor that produces of torque at an RPM of 2000:
Hydraulic HP=(100×2000)/5252≈38HP
This calculation provides insight into how much power is being utilized by your system.
Why: Visual inspections can reveal potential issues that may affect performance.
How:
1. Check for Leaks: Look for any signs of hydraulic fluid leakage around housing, shaft seals, port connections; this could indicate wear or damage that needs addressing immediately as leaks can lead to significant performance drops over time if not managed properly!
2. Inspect Shaft Condition: Check for signs of damage such as bending or corrosion; ensure it is free from debris which could cause further wear during operation; if any damage is found it should be addressed before proceeding with use as it may lead to failure during operation causing downtime or safety hazards in extreme cases!
3. Examine Housing Integrity: Inspect housing for cracks or dents which could compromise structural integrity; any signs should prompt immediate evaluation by qualified personnel who can assess whether repair/replacement is necessary based on severity level observed during inspection process!
4. Assess Port Threads: Ensure port threads are clean & undamaged; this is crucial as damaged threads can lead not only to leaks but also difficulty connecting hoses leading potentially unsafe situations during operation!
Selecting right size hydraulic motor involves several calculations based on application requirements; here's how you can determine appropriate size:
Why: Torque is rotational force needed for work.
How:
1. Calculate Load Torque: Determine torque required by load; this can be calculated based on force required & radius where force applied; for instance with winch:
Torque=Force×Radius
If you have a load requiring an upward force of being lifted via a drum with radius 1 ft:
Torque=5000×1=5000 lb ft
2. Account for Efficiency: Consider mechanical efficiency; add additional torque compensating losses from gearboxes/bearings/etc., generally adding around10-15% more depending on complexity involved!
Why: Speed indicates rate work performed.
How:
1. Calculate Required RPM: Determine required rotational speed (RPM) driven component; if winch needs lift speed 10 ft min
, calculate RPM based on drum diameter using formula:
RPM=(Lift Speed)/(π×D)
WhereD is drum diameter in feet!
If drum diameter is2 ft:
RPM=10/(π×2)=10/6.283≈1.59 RPM
2. Adjust for Gear Ratios: If there are gearboxes/chain drives in system adjust based on ratios involved ensuring final output matches desired target!
Why: Displacement indicates volume fluid needed per revolution.
How:
1. Use Torque Equation: Use following equation calculate required displacement:
Vm=(20×π×T)/ΔP
Where:
Vm= Hydraulic motor displacement cc/rev
T= Required output torque Nm
ΔP= Available hydraulic oil pressure bar
Suppose required torqueT = 50 Nm, available pressure ΔP =150 bar:
Vm=(20×3.142×50)/150=20.94cc/rev
This calculation provides theoretical displacement needed; always consider mechanical inefficiencies when selecting actual part!
Why: Selecting right ensures meets application needs effectively!
How:
1 Consider Inefficiencies : Account mechanical inefficiencies; motors aren't100%
efficient so actual displacement needed will slightly higher than theoretical value calculated earlier!
2 Choose Motor : Select one with displacement close calculated value; often better choose slightly higher displacement ensuring meets torque requirements varying conditions encountered during operation!
When measuring hydraulic motors avoid these common mistakes:
- Incorrect Units : Ensure all measurements correct units(e.g., inches,millimeters,Nm,lbs-ft).
- Inaccurate Measurements : Use precise measuring tools/techniques minimize errors!
- Ignoring Temperature : Hydraulic fluid viscosity changes temperature affecting performance! Take measurements normal operating temperatures!
- Neglecting Pressure Drop : Account pressure drop lines/components affecting motors' performance!
- Overlooking System Efficiency : Consider overall efficiency including pumps,valves,hose when selecting motors!
Scenario : A winch with20-inch
diameter drum needs lift15,000 lb
load speed3 ft/sec.
HP=(15,000lbs×180ft/min)/33,000=81.8HP
Calculate drum RPM based required speed & diameter!
Determine required hydraulic motor torque & speed based winch specifications & gear ratios involved!
Scenario : A drilling machine requires specific HP & speed specifications from drill manufacturer!
Adjust HP/speed back input shaft drilling machine accounting frictional losses/speed changes!
Choose hydraulic that meets adjusted HP/speed requirements ensuring optimal performance throughout drilling process!
Regular maintenance is crucial for ensuring longevity efficiency your hydraulic motors! Here are some essential maintenance tips:
- Fluid Cleanliness : Keep hydraulic fluid clean free contaminants! Use filters remove particles prevent wear!
- Leak Checks : Regularly inspect leaks repair promptly prevent fluid loss system inefficiency!
- Pressure Monitoring : Monitor system pressure ensure stays within specified range!
- Temperature Control : Maintain hydraulic fluid temperature within recommended range prevent overheating viscosity changes!
- Shaft Alignment : Ensure proper alignment between motor shaft driven component prevent excessive wear vibration!
Measuring a hydraulic motor accurately is essential selecting right one your application ensuring optimal performance! By following steps outlined this guide effectively measure physical dimensions ,performance parameters ,and hydraulic characteristics motors! Remember use appropriate tools ,avoid common mistakes ,and consider specific requirements your application ! Regular maintenance monitoring help prolong life your hydraulic motors maintain efficiency over time!
Answer : Hydraulic motor displacement refers volume fluid required rotate shaft by one revolution! Typically measured cubic inches per revolution(in³/rev) cubic centimeters per revolution(cm³/rev).
Answer : The torque output can measured using dynamometer applying load onto shaft measuring generated under varying speeds/pressures alternatively breakaway torque may be measured using torque wrench!
Answer : To accurately measure you will need calipers,flextape,ruler,tachometer,dynamometer among others ensure precise readings taken throughout process!
Answer : Required displacement calculated using formulaVm=(20×π×T)/ΔP
where ΔPrepresents cc/rev,T represents Nm, ΔP represents bar available pressure !
Answer : Common mistakes include incorrect units,inaccurate measurements ignoring temperature effects neglecting pressure drop overlooking system efficiency! Always double-check measurements use precise tools minimize errors!
