Powering a chainsaw with a hydraulic motor is an innovative and efficient alternative to traditional gas or electric chainsaws. Hydraulic chainsaws leverage the power of pressurized hydraulic fluid to deliver high torque and cutting power, making them ideal for heavy-duty applications such as forestry, construction, and tree maintenance. This article provides a comprehensive guide on how to power a chainsaw with a hydraulic motor, including the components involved, step-by-step assembly, operational tips, and safety considerations.

Introduction to Hydraulic Chainsaws

Hydraulic chainsaws differ significantly from conventional gas-powered or battery-operated chainsaws. Instead of relying on internal combustion or electric motors, these saws use hydraulic motors powered by pressurized fluid from a hydraulic pump. This setup provides continuous torque and power, enabling the chainsaw to cut through tough materials with ease.

Hydraulic chainsaws are commonly used in professional settings, such as by arborists, forestry workers, and utility companies, because of their durability, power, and safety features. They can be mounted on machinery like tractors or skid steers or used as handheld tools connected to a hydraulic power source.

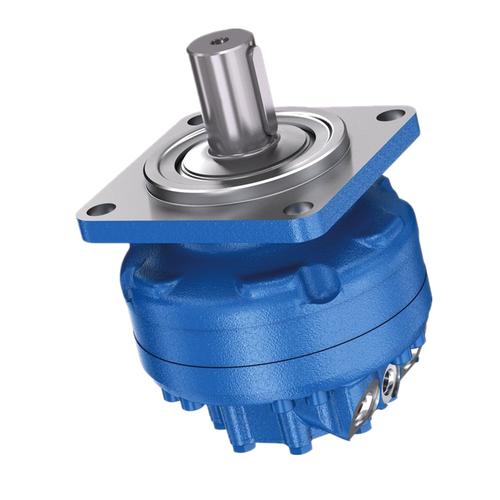

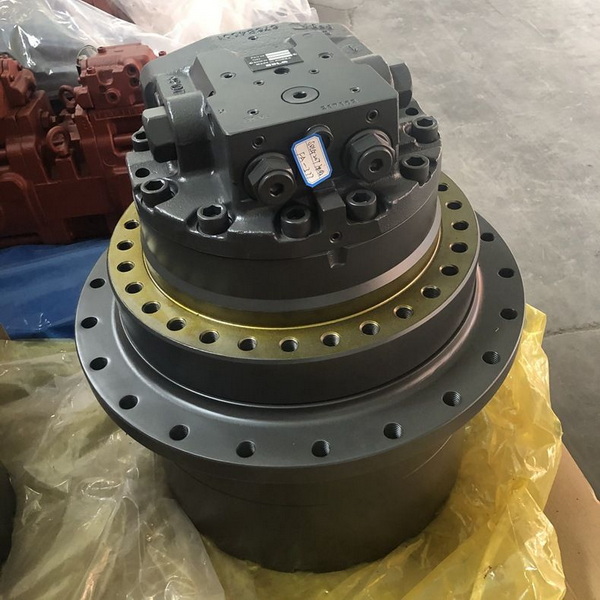

Understanding Hydraulic Motors

A hydraulic motor is a mechanical actuator that converts fluid power into mechanical energy. It operates by pressurized hydraulic fluid pushing on internal components such as gears, vanes, or pistons, causing the motor's output shaft to rotate. This rotation is then transferred to the chainsaw's sprocket, driving the chain around the guide bar.

- How it works: The hydraulic pump generates high-pressure fluid flow, which travels through high-pressure hoses to the hydraulic motor. The motor converts this fluid power into rotational torque, spinning the chainsaw chain at high force but typically lower RPM than gas chainsaws, resulting in powerful cutting performance[3][7].

- Control: The speed of the hydraulic motor-and thus the chainsaw chain-is controlled by regulating the flow and pressure of the hydraulic fluid supplied by the pump.

Components Needed to Power a Chainsaw with a Hydraulic Motor

To set up a hydraulic motor to run a chainsaw, you will need the following components:

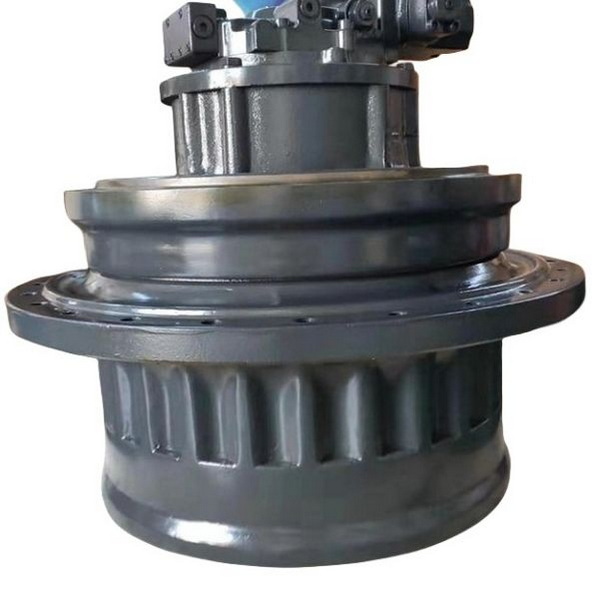

- Hydraulic Motor: A motor suitable for chainsaw applications, often a fixed displacement motor designed for high torque at low RPM. Motors like the Parker F11/F12 series are examples used in hydraulic saw applications[6].

- Hydraulic Pump: This pump supplies pressurized fluid to the motor. It can be driven by an engine, electric motor, or tractor PTO. The pump must be capable of delivering the required flow rate and pressure (e.g., 4-9 gallons per minute at 1500-2000 psi)[4][9].

- Chainsaw Bar and Chain: A chainsaw bar compatible with the hydraulic motor sprocket. Bars typically range from 12 to 24 inches depending on the application[5][12].

- Mounting Plate and Brackets: Custom or pre-made mounting hardware to attach the hydraulic motor to the chainsaw bar and frame securely[5].

- High-Pressure Hydraulic Hoses and Couplers: Rated for the system's maximum pressure, these hoses connect the pump to the motor[2][8].

- Hydraulic Fluid Reservoir: Holds and cools the hydraulic fluid circulating through the system.

- Control Valve: To regulate hydraulic flow and motor speed safely.

- Automatic Chain Oiler: Hydraulic chainsaws often include an automatic oiler to lubricate the chain during operation[4][11].

Step-by-Step Guide to Powering a Chainsaw with a Hydraulic Motor

1. Select a Suitable Hydraulic Motor

Choose a hydraulic motor designed for saw applications, capable of delivering sufficient torque at a manageable RPM (typically around 3000-5000 RPM). The motor should match the hydraulic pump's flow and pressure ratings to ensure optimal performance[6][7].

2. Prepare the Chainsaw Bar and Chain

Select a chainsaw bar length appropriate for your cutting needs (12-24 inches is common). Ensure the chain pitch and sprocket on the hydraulic motor are compatible. You may need to adapt or replace the sprocket to fit the motor shaft[5][12].

3. Fabricate or Acquire a Mounting Plate

Create a sturdy mounting plate to attach the hydraulic motor to the chainsaw bar. This plate must align the motor shaft with the sprocket and securely hold the assembly during operation[5].

4. Connect Hydraulic Hoses

Attach high-pressure hoses from the hydraulic pump to the motor inlet and return ports. Use couplers rated for the system's pressure and check flow direction to avoid motor damage[2][9].

5. Install Hydraulic Pump and Reservoir

Set up the hydraulic pump powered by your chosen source (engine, electric motor, tractor PTO). Connect the pump to the fluid reservoir and ensure the system is filled with the correct hydraulic fluid.

6. Integrate Control Valve and Safety Features

Install a control valve to regulate flow to the motor, allowing you to start, stop, and vary the chainsaw speed safely. Include pressure relief valves to protect the system from overpressure[9][13].

7. Test the System

Before cutting, test the hydraulic system for leaks, proper pressure, and flow. Check that the chainsaw chain rotates smoothly and that the automatic oiler functions correctly[10].

8. Operate the Chainsaw

Use the control valve to power the hydraulic motor, which spins the chainsaw chain. Adjust flow as needed for cutting speed and torque. Always follow safety protocols when operating the saw[7][11].

Advantages of Using a Hydraulic Motor to Run Chainsaw

- High Power-to-Weight Ratio: Hydraulic chainsaws can deliver 8-10 horsepower with less weight than gas-powered saws, enhancing maneuverability[4].

- Continuous Torque: Hydraulic motors provide steady torque at lower RPMs, improving cutting efficiency and reducing chain wear[7].

- Safety: Reduced kickback risk and precise control make hydraulic chainsaws safer to operate[7][11].

- Low Maintenance: Fewer moving parts and absence of combustion reduce maintenance needs and increase tool longevity[7].

- Versatility: Hydraulic chainsaws can be mounted on various machinery or used handheld with appropriate power packs[1][7].

- Environmental Benefits: No emissions or fuel combustion, quieter operation, and less vibration[7].

Maintenance and Safety Tips

- Inspect Hoses and Couplings: Check for cracks, leaks, or wear before each use to prevent hydraulic fluid injection injuries[8][10].

- Maintain Hydraulic Fluid: Keep fluid clean and at proper levels; replace or filter regularly to avoid contamination damage[7].

- Chain Tension: Adjust chain tension properly to avoid chain derailment or damage[10].

- Use Protective Gear: Operators should wear gloves, eye protection, and hearing protection.

- Follow Manufacturer Guidelines: Adhere to all operational and safety instructions specific to your hydraulic motor and chainsaw model[2][4].

Conclusion

Powering a chainsaw with a hydraulic motor is a powerful and efficient method suited for professional and heavy-duty cutting tasks. By understanding the hydraulic system components, selecting the right motor and pump, and carefully assembling the setup, you can achieve superior cutting power with enhanced safety and lower maintenance compared to traditional chainsaws. Hydraulic chainsaws offer versatility, environmental benefits, and continuous torque, making them an excellent choice for forestry, landscaping, and industrial applications.

FAQ

1. What type of hydraulic motor is best to run a chainsaw?

A fixed displacement hydraulic motor designed for saw applications, capable of delivering high torque at low to moderate RPM (around 3000-5000 RPM), is best suited to run a chainsaw effectively[6][7].

2. Can I use a regular chainsaw bar and chain with a hydraulic motor?

Yes, but the sprocket on the hydraulic motor must match the chain pitch and bar size. Sometimes modifications or custom mounting plates are needed to ensure proper alignment and fit[5][12].

3. What hydraulic flow and pressure are required to power a hydraulic chainsaw?

Typical hydraulic chainsaws require flow rates between 4-9 gallons per minute (15-34 liters per minute) and pressures around 1500-2000 psi (105-140 bar) for optimal performance[4][9].

4. How do I control the speed of a hydraulic chainsaw?

Speed is controlled by regulating the hydraulic fluid flow to the motor using a control valve. Increasing flow increases motor speed and chain rotation, while decreasing flow slows it down[7].

5. What are the safety precautions when using a hydraulic chainsaw?

Always inspect hoses for damage, wear protective gear, avoid contact with high-pressure fluid, maintain proper chain tension, and follow manufacturer safety guidelines to prevent injuries[8][10].
