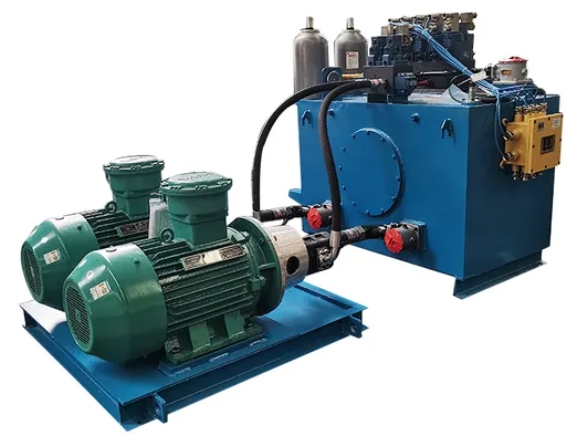

Hydraulic motors play a crucial role in various industries by converting hydraulic energy into mechanical energy. This article will explore how to power a hydraulic motor, covering the essential components, calculations, and practical applications.
Hydraulic motors are devices that convert hydraulic energy, typically supplied by a hydraulic pump, into mechanical energy. They are integral to hydraulic systems, allowing for the operation of machinery such as conveyors, elevators, and various types of equipment used in construction and manufacturing.
1. Gear Motors: Known for their performance under high pressure, gear motors utilize gears to create motion. They are commonly used in applications requiring high torque and low speed.
2. Vane Motors: These motors feature rotating vanes that slide in and out of slots as the rotor turns. Vane motors provide smooth operation and are often used in applications where precise control is necessary.
3. Piston Motors: Ideal for high torque and speed applications, piston motors use pistons that move back and forth within cylinders. They are highly efficient and can handle higher pressures compared to other types.
Each type has unique characteristics that make it suitable for specific applications.
To power a hydraulic motor effectively, several components must work together:

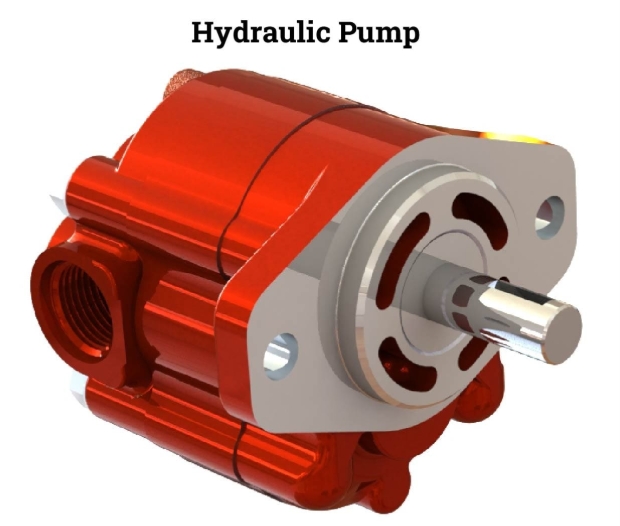

- Hydraulic Pump: Converts mechanical energy into hydraulic energy. It can be gear-driven, vane-driven, or piston-driven.
- Hydraulic Fluid: Transmits power through the system and also serves as a lubricant for moving parts. Common fluids include mineral oil-based fluids and biodegradable fluids.
- Control Valves: Regulate flow and pressure to the motor. These can be manual or automatic valves that control the direction of fluid flow.
- Reservoir: Stores hydraulic fluid when not in use. It also allows for the expansion of fluid as it heats up during operation.
- Actuators: Convert hydraulic energy back into mechanical energy. This includes not only hydraulic motors but also cylinders that perform linear motion.
Hydraulic motors operate based on Pascal's Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. When hydraulic fluid is forced into the motor under pressure, it acts on gears, vanes, or pistons within the motor, causing them to rotate or move. This rotational movement generates mechanical energy that powers various machinery.
Hydraulic fluid is a critical component of any hydraulic system. It not only transmits power but also lubricates components and helps dissipate heat generated during operation. The choice of hydraulic fluid can impact the efficiency and lifespan of the system. Common types include:
- Mineral Oil-Based Fluids: Widely used due to their availability and performance characteristics.
- Water-Based Fluids: Less flammable but may have lower lubrication properties.
- Biodegradable Fluids: Gaining popularity in environmentally sensitive applications.
The theoretical hydraulic power can be calculated using the formula:
Hydraulic Power kW =(Pressure Bar ×Flow l min)/600
This calculation helps determine the power requirements for your hydraulic motor based on the pressure and flow rate of the hydraulic fluid.
For instance, if you have a system operating at 150 Bar with a flow rate of 50 l/min:
Hydraulic Power=(150×50)/600=12.5 kW
This means your hydraulic motor needs to provide at least 12.5 kW to perform efficiently under these conditions.

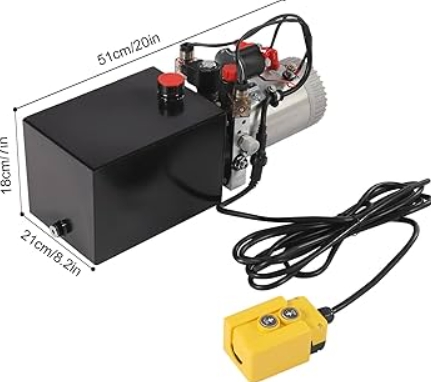

1. Select the Right Pump: Choose a pump that matches the required pressure and flow rate for your application. Ensure compatibility with your hydraulic motor specifications.
2. Connect Components: Ensure all components (pump, reservoir, valves, and motor) are correctly connected with appropriate hoses and fittings to prevent leaks.
3. Fill with Hydraulic Fluid: Use the recommended type of hydraulic fluid to fill the reservoir according to manufacturer specifications.
4. Prime the System: Remove air from the system by running the pump without load until fluid circulates smoothly throughout all components.
5. Adjust Control Valves: Set control valves to manage flow and pressure according to operational needs; this ensures smooth operation and prevents damage to components.
6. Start the System: Engage the pump to begin fluid flow to the hydraulic motor while monitoring system parameters closely.
7. Monitor Performance: Regularly check for leaks and ensure that pressure and flow rates remain within specified limits for optimal performance.
8. Implement Safety Measures: Always incorporate safety measures such as pressure relief valves and emergency shut-off switches to protect both operators and equipment from potential hazards.
Hydraulic motors are widely used in various sectors:
- Construction Equipment: Powering excavators, loaders, cranes, and other machinery that require high torque for heavy lifting tasks.
- Manufacturing Machinery: Driving conveyors and assembly lines where precise control over speed is essential.
- Agricultural Equipment: Operating tractors, harvesters, and other machinery that require reliable power sources for field operations.
- Automotive Industry: Used in assembly lines for tasks such as welding or painting vehicles where consistent power delivery is crucial.
- Marine Applications: Hydraulic motors are employed in winches, steering systems, and other marine equipment requiring reliable power transmission.
1. High Power Density: They provide substantial power output relative to their size, making them ideal for compact designs where space is limited.
2. Robustness: Suitable for harsh environments with exposure to dust and moisture; they can operate effectively under extreme conditions.
3. Smooth Operation: Capable of providing precise control over speed and torque; this is particularly advantageous in applications requiring delicate movements.
4. Versatility: Can be utilized in various industries due to their adaptability; they can handle different loads efficiently.
5. Energy Efficiency: When properly maintained, hydraulic motors can operate at high efficiency levels compared to electric motors in certain applications.
6. Cost-Effectiveness Over Time: While initial investments may be higher than electric systems, their durability often leads to lower long-term operational costs due to reduced maintenance needs.
While hydraulic motors offer numerous advantages, there are challenges associated with their use:
1. Maintenance Requirements: Regular maintenance is crucial to prevent leaks and ensure optimal performance; neglecting this can lead to costly repairs.
2. Fluid Contamination: Contaminated hydraulic fluid can damage components; implementing filtration systems is essential.
3. Temperature Control: Excessive heat can degrade hydraulic fluid; proper cooling systems must be integrated into designs.
4. Initial Cost Investment: The upfront cost for high-quality hydraulic systems can be significant; however, their long-term benefits often justify this expense.
5. Complexity of Systems: Designing an efficient hydraulic system requires careful planning regarding component selection and layout; improper design can lead to inefficiencies or failures.
When operating hydraulic motors, issues may arise that require troubleshooting:
- Possible Causes: Insufficient pressure from the pump or blocked lines.
- Solutions: Check pump performance; inspect hoses for blockages or leaks.
- Possible Causes: Excessive load or inadequate cooling.
- Solutions: Reduce load; ensure cooling systems are functioning properly.
- Possible Causes: Cavitation or air trapped in the system.
- Solutions: Bleed air from lines; check fluid levels.
- Possible Causes: Worn seals or damaged hoses.
- Solutions: Inspect seals regularly; replace damaged hoses immediately.
- Possible Causes: Contaminated fluid or malfunctioning control valves.
- Solutions: Change fluid regularly; test valves for proper operation.
Powering a hydraulic motor involves understanding its components, selecting appropriate equipment, performing necessary calculations, addressing potential challenges effectively, and troubleshooting common issues when they arise. By following these steps, you can efficiently harness hydraulic power for various applications across multiple industries while ensuring safety and longevity in your operations.
A hydraulic motor is a device that converts hydraulic energy into mechanical energy using pressurized fluid.
Select a pump based on your application's required pressure capacity and flow rate specifications.
The main types include gear motors, vane motors, and piston motors, each suited for different applications.
Use the formula Hydraulic Power kW =(Pressure Bar ×Flow l min)/600to determine your system's power needs.
They are commonly used in construction equipment, manufacturing machinery, agricultural equipment, automotive industries, and marine applications.
