Maintaining your convertible's top mechanism is crucial for ensuring smooth operation and longevity. One of the most important aspects of this maintenance is keeping the hydraulic fluid at the proper level in the convertible top motor. This article will guide you through the process of adding hydraulic fluid to your convertible top motor, providing detailed steps, tips, and important considerations.
Before we dive into the process of adding hydraulic fluid, it's essential to understand the basic components of your convertible top system:

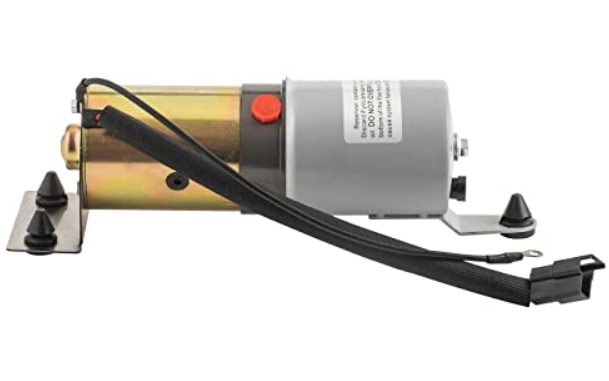

1. Convertible Top Motor: This is the heart of the system, responsible for powering the hydraulic cylinders.
2. Hydraulic Cylinders: These extend and retract to raise and lower the top.
3. Hydraulic Lines: These carry the fluid from the motor to the cylinders.
4. Hydraulic Fluid: Typically Automatic Transmission Fluid (ATF), this is the lifeblood of the system.
5. Sensors and Switches: These components monitor the top's position and control its movement.
6. Latches and Locks: These secure the top in both open and closed positions.
Understanding how these components work together can help you better maintain your convertible top and diagnose potential issues.
Before adding fluid, it's important to recognize the signs that your system might be low:
- The top moves slowly or unevenly
- Strange noises when operating the top
- The top fails to fully open or close
- Visible fluid leaks around the cylinders or lines
- The top stops midway through operation
- Warning lights on the dashboard related to the convertible top
If you notice any of these signs, it's time to check and potentially add hydraulic fluid. Regular inspections can help you catch these issues early, preventing more serious problems down the line.
To add hydraulic fluid to your convertible top motor, you'll need:
- Automatic Transmission Fluid (ATF) or the specific fluid recommended by your vehicle manufacturer
- Funnel or syringe with a thin nozzle
- Clean rags or paper towels
- Flathead screwdriver
- Owner's manual (for reference)
- Flashlight (for better visibility in tight spaces)
- Disposable gloves (to keep your hands clean)
Having all these tools ready before you start will make the process smoother and more efficient.

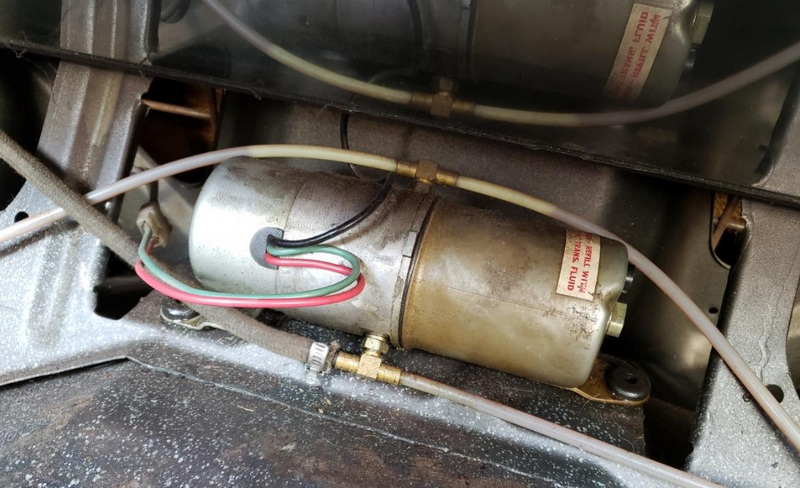

The convertible top motor is typically located in the trunk, often behind the rear seats or in a corner of the trunk. Consult your owner's manual for the exact location in your vehicle model. In some cases, you may need to remove a panel or carpet to access the motor.
Clear the area around the motor to give yourself easy access. Remove any items from the trunk that might obstruct your work. Place a rag or towel under the motor to catch any spills. Good preparation can prevent messy cleanup later.

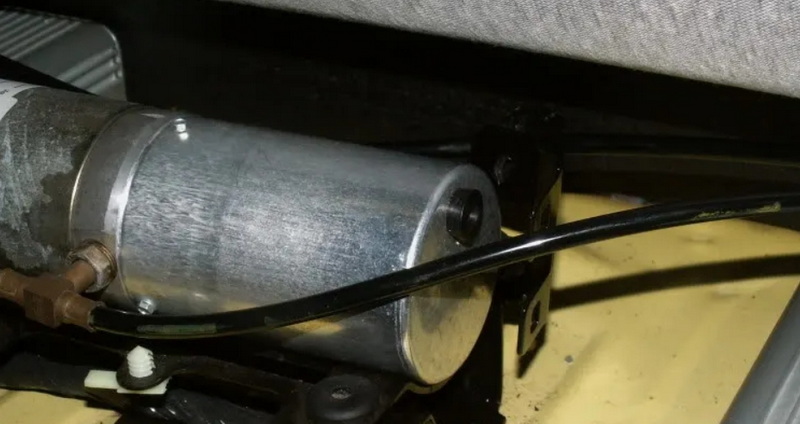

Look for a small plug or cap on the motor. This is usually located on the top or side of the motor unit. It may be labeled or have a hydraulic symbol nearby. Some models might have the fill port in a less obvious location, so refer to your manual if you're having trouble finding it.
Using a flathead screwdriver, carefully remove the fill plug. Be gentle to avoid damaging the threads. If the plug is tight, you might need to use a bit of force, but be careful not to strip the plug.
With the plug removed, you should be able to see the current fluid level. If it's below the bottom of the fill hole, you'll need to add fluid. Some motors have a dipstick attached to the fill plug, which can give you a more accurate reading of the fluid level.
Using a funnel or syringe, slowly add ATF into the fill port. Add small amounts at a time to avoid overfilling. The fluid should be added until it's just below the bottom of the fill hole when the top is in the raised position.
While adding fluid, have an assistant operate the top through its full range of motion (up and down). This helps distribute the fluid throughout the system and remove any air pockets. Pay attention to the sound and speed of the motor during operation.
After operating the top, check the fluid level once more. The correct level should be just below the bottom of the fill hole when the top is in the raised position. If necessary, add more fluid or remove excess with a clean syringe.
Once you've achieved the correct fluid level, clean any spills and replace the fill plug. Tighten it securely, but be careful not to over-tighten. A good rule of thumb is to tighten it until it's snug, then give it an additional quarter turn.
Operate the top several times to ensure smooth operation and check for any leaks around the motor or hydraulic lines. Listen for any unusual noises and observe the speed and smoothness of the top's movement.
- Always use the type of hydraulic fluid specified in your owner's manual. Most systems use ATF, but some may require specific formulations.
- Avoid overfilling. Too much fluid can cause damage to seals and result in leaks.
- If you're consistently losing fluid, there may be a leak in the system that needs to be addressed by a professional.
- Regular maintenance, including fluid checks, can prevent many convertible top issues.
- Keep the convertible top clean and free from debris to prevent damage to the mechanism.
- In colder climates, operate your convertible top regularly during winter to prevent seals from freezing.
While adding hydraulic fluid is a task many car owners can handle, there are times when it's best to seek professional assistance:
- If you're uncomfortable performing the task yourself
- If you've added fluid but the top still isn't operating correctly
- If you notice significant fluid loss or leaks
- If there are unusual noises or movements when operating the top
- If you see error messages related to the convertible top on your vehicle's display
- If the top is misaligned or doesn't seal properly when closed
Remember, the convertible top system is complex and can be expensive to repair if damaged. When in doubt, consult a professional. A certified mechanic will have the tools and expertise to diagnose and fix more complex issues with your convertible top system.
Regular maintenance of your convertible top system goes beyond just checking and adding hydraulic fluid. Here are some additional maintenance tasks to keep your convertible top in top shape:
1. Clean and lubricate the top's seals and weatherstripping regularly to prevent drying and cracking.
2. Inspect the top's fabric or vinyl for tears or wear, and repair any damage promptly.
3. Check the alignment of the top when closed to ensure a proper seal.
4. Keep the drains in the top's storage area clear to prevent water accumulation.
5. If your vehicle has a hardtop convertible, ensure all moving parts are clean and lubricated.
By incorporating these tasks into your regular vehicle maintenance routine, you can extend the life of your convertible top and avoid costly repairs.
When working with hydraulic fluid, it's important to be mindful of environmental concerns:
- Never dispose of used hydraulic fluid in regular trash or pour it down drains. It's harmful to the environment and illegal in many areas.
- Collect any spilled fluid and dispose of it properly at a recycling center or automotive store that accepts used fluids.
- If you're replacing a large amount of fluid, consider having it done at a professional shop that has proper disposal facilities.
Being environmentally responsible not only complies with regulations but also helps protect our ecosystems.
Adding hydraulic fluid to your convertible top motor is a straightforward maintenance task that can help ensure the smooth operation of your convertible top. By following these steps and regularly checking your fluid levels, you can prevent many common convertible top issues and enjoy open-air driving for years to come.
Regular maintenance, including fluid checks and top operation, is key to keeping your convertible in top shape. Always refer to your owner's manual for specific instructions related to your vehicle model, and don't hesitate to seek professional help if you encounter any issues you're not comfortable addressing yourself.
Remember, a well-maintained convertible top not only enhances your driving experience but also protects your vehicle's interior and maintains its value. With proper care and attention, your convertible can provide you with countless enjoyable drives under the open sky.
It's recommended to check the fluid level at least twice a year, typically at the beginning and end of the convertible season. However, if you notice any issues with the top's operation, check the fluid level immediately.
No, you should only use the type of fluid specified in your vehicle's owner's manual. Most systems use Automatic Transmission Fluid (ATF), but some may require specific formulations. Using the wrong type of fluid can damage the system.
If you notice a leak, it's best to have the system inspected by a professional as soon as possible. Continuing to operate the top with a leak can lead to more severe damage and potentially costly repairs.
Yes, it's normal for the hydraulic fluid to thicken in cold weather, which can cause the top to move more slowly. However, if the top is significantly slower or struggles to open or close, it may indicate a need for fluid or other maintenance.
While it's possible to add fluid with the top down, it's generally recommended to add fluid with the top in the raised position. This ensures the fluid is distributed correctly throughout the system and makes it easier to check the proper fluid level.
