Orbital hydraulic motors are essential components in various machinery applications, including agricultural, construction, and landscaping equipment. Their compact design and ability to generate high torque at low speeds make them a preferred choice for many engineers and operators. This article provides a comprehensive guide on how to assemble an orbital hydraulic motor, detailing each step with illustrations and videos where applicable.

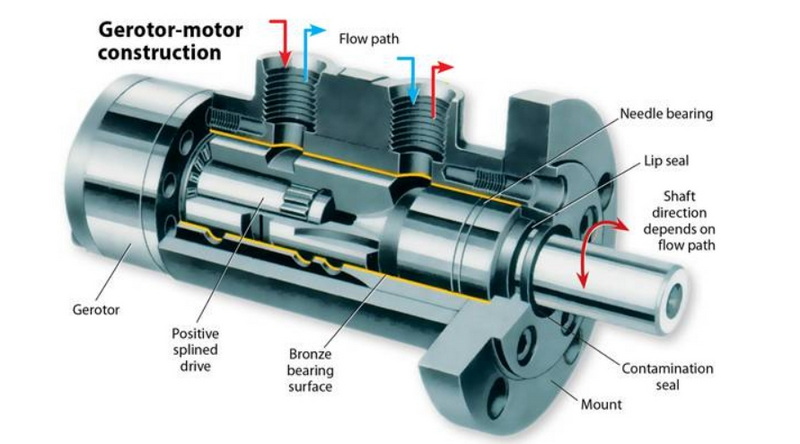

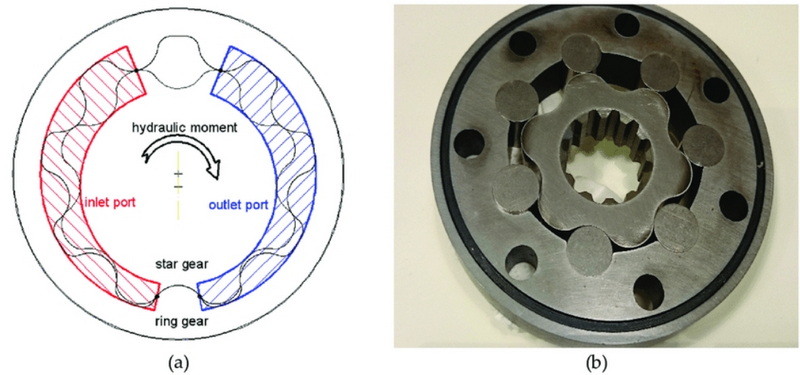

An orbital hydraulic motor is a type of hydraulic motor that converts hydraulic energy into mechanical energy through rotation. It utilizes a gerotor design, where a rotor with lobes rolls inside an outer stator gear, creating a rotation that can be harnessed for various applications. This design allows for high torque output while maintaining a compact size, making it ideal for applications where space is limited.
- Rotor: The rotating part that engages with the hydraulic fluid.
- Stator: The stationary outer part that houses the rotor.
- Shaft: Connects to the output and transfers the rotational energy.
- O-rings: Seals that prevent fluid leaks.
- Bearings: Support the rotor and ensure smooth operation.
- End Plates: Seal the ends of the motor housing and provide structural integrity.
- Ports: Inlet and outlet connections for hydraulic fluid.
Before starting the assembly process, ensure you have the following tools:
- Socket set
- Torque wrench
- Lubrication oil
- Grease
- Mandrels for seals
- Pliers
- Plastic hammer
- Clean cloths for wiping components
- Safety goggles and gloves for protection
1. Inspect all parts: Ensure all components are clean and free from damage. Look for any signs of wear or corrosion that could affect performance.
2. Lubricate parts: Apply hydraulic oil to all moving parts and grease to rubber components like O-rings. This lubrication is crucial as it reduces friction during operation.
1. Place the shaft seal on the mandrel and insert it into the motor housing.
2. Ensure the seal is seated correctly to prevent leaks. A properly installed shaft seal is critical for maintaining pressure within the motor.
1. Mount the bearing races into the housing. Ensure they fit snugly without excessive force.
2. Insert axial needle bearings and hold them in place with grease. This will help keep them in position during further assembly.
1. Carefully insert the rotor shaft through the housing, ensuring it aligns with the bearings.
2. Cover any grooves with an installation sleeve to avoid damage during insertion.
1. Place new O-rings in their respective grooves, ensuring they are not twisted or pinched.
2. Install the balance plate over the O-ring, ensuring it is properly aligned to maintain balance during operation.
1. Position the disc valve on top of the rotor shaft so that it engages correctly with both rotor and stator.
2. Align any marks as necessary to ensure proper function; misalignment can lead to inefficient operation or failure.
1. Place the gearwheel set onto the cardan shaft.
2. Turn it until it engages correctly, aligning screw holes for fastening securely.
1. Tighten all screws using a torque wrench according to specifications (typically between 7.5 - 9.5 N-m). This ensures all components are held firmly together without being over-tightened.
2. Ensure all seals are properly seated to prevent leaks; this includes checking O-rings around ports.
1. Inspect all connections and fittings one last time before connecting hydraulic lines.
2. Ensure that there are no loose parts or visible leaks before proceeding to connect hydraulic lines.
Once assembled, it's crucial to test the motor:
1. Fill with Hydraulic Oil: Before connecting hoses, fill the motor case with oil through its designated ports until full.
2. Connect Hydraulic Lines: Attach hoses securely, ensuring there are no kinks or restrictions that could impede flow.
3. Start-Up Procedure: Follow manufacturer instructions for starting up the motor, monitoring for any unusual noises or vibrations during initial operation.
If you encounter issues during testing, consider these common problems:
- Noise or Vibration: This may indicate misalignment or insufficient lubrication.
- Low Output Pressure: Check for blockages in hoses or fittings; ensure all seals are intact.
- Overheating: Ensure proper oil levels and check for any signs of internal friction due to improper assembly.
To prolong the life of your orbital hydraulic motor, adhere to these maintenance practices:
1. Regular Inspections: Check seals, bearings, and oil levels regularly to catch any issues early.
2. Change Oil Periodically: Follow manufacturer recommendations on oil change intervals based on usage conditions.
3. Monitor Performance: Keep an eye on operational efficiency; any sudden changes could indicate underlying problems.
Assembling an orbital hydraulic motor requires attention to detail and adherence to proper procedures to ensure optimal performance and longevity of the motor. By following these steps carefully, operators can successfully assemble these motors for use in various applications such as excavators, tractors, and other machinery requiring reliable torque generation.
Understanding how each component interacts within an orbital hydraulic motor not only aids in assembly but also enhances troubleshooting skills when issues arise during operation.
Common issues include fluctuations in output speed, low power, and oil leaks due to worn O-rings or improper assembly.
Regular inspections should be conducted every few months, with more thorough checks annually or after significant usage.
It is recommended to use hydraulic oil specified by the manufacturer to ensure optimal performance and longevity.
Inspect all seals and O-rings for wear or damage; replace any faulty components immediately.
Yes, lubricating parts helps prevent wear during operation and ensures smooth assembly.
