Rebuilding a 90 Series hydraulic wheel motor is a complex but rewarding task that can restore functionality and extend the life of your equipment. This guide will walk you through the process step-by-step, providing detailed instructions, images, and videos to help you successfully complete the rebuild.
The 90 Series hydraulic wheel motor is widely used in various applications, including agricultural machinery, construction equipment, and industrial vehicles. It operates using hydraulic fluid to create motion and power. Understanding its components and functionality is crucial before attempting a rebuild.

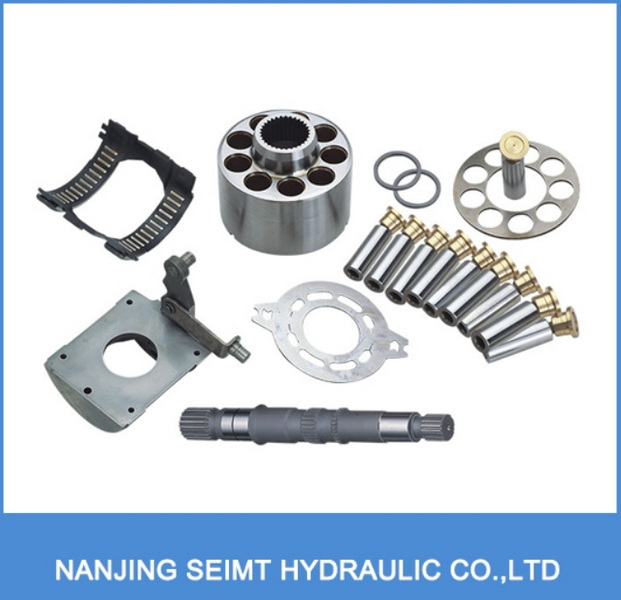

- Cylinder Block: Houses the pistons and is essential for converting hydraulic pressure into mechanical motion.
- Pistons: Reciprocate within the cylinder block to create movement.
- Swashplate: Adjusts the angle of the pistons to control displacement and speed.
- Seals: Prevent fluid leakage and maintain pressure within the motor.
- Bearings: Support rotating parts and reduce friction.
Regular maintenance of hydraulic systems, including wheel motors, is crucial for ensuring optimal performance. Neglecting maintenance can lead to premature wear, reduced efficiency, and costly repairs. By understanding how to rebuild your hydraulic wheel motor, you can save money on replacements and keep your machinery running smoothly.
Before starting the rebuild, gather the following tools and materials:
- Socket set
- Torque wrench
- Screwdrivers (flathead and Phillips)
- Pliers
- Hydraulic press
- Cleaning supplies (solvent, rags)
- Micrometer or caliper (for measuring parts)
- Inspection mirror (for hard-to-reach areas)
- Snap ring pliers (if applicable)
- Rebuild kit (includes seals, O-rings, and gaskets)
- Hydraulic oil
- Lubricating grease
- Replacement bearings (if necessary)
- Thread sealant (for threaded connections)
1. Safety First: Ensure you are wearing appropriate safety gear, including gloves and goggles.
2. Workspace Setup: Organize your workspace with sufficient lighting and a clean area to work on the motor.
3. Documentation: Refer to service manuals for specific instructions related to your model. The Danfoss Series 90 service manual is an excellent resource.
1. Remove the Motor: Disconnect the hydraulic lines and remove the motor from its mounting.
2. Drain Fluid: Ensure all hydraulic fluid is drained from the motor.
3. Disassemble Components:
- Remove any external covers or shields.
- Carefully take off the end cover using a socket set.
- Extract the cylinder block by removing bolts securing it to the housing.
During disassembly, take care not to damage any components. Use labeled containers to keep track of bolts and small parts. This organization will save time during reassembly.
1. Use a solvent to clean all parts thoroughly. Pay special attention to sealing surfaces.
2. Inspect components for wear or damage. Replace any worn parts as necessary.
3. Use a micrometer or caliper to measure critical components like pistons and bearings for wear beyond acceptable limits.
Cleaning is an essential step in rebuilding any hydraulic component. Residue from old oil or debris can cause failures if not adequately removed.
1. Remove old seals and O-rings from their grooves using a flathead screwdriver.
2. Lightly coat new seals with hydraulic oil before installation to ensure a proper seal.
3. Install new seals in reverse order of removal, ensuring they are seated correctly in their grooves.
Proper installation of seals is critical for preventing leaks. Take your time during this step to ensure everything fits snugly without pinching or twisting.
1. Reinstall the cylinder block, ensuring all components are aligned correctly.
2. Replace the end cover, tightening bolts in a crisscross pattern to ensure even pressure.
3. Reconnect hydraulic lines securely, ensuring that all connections are tight but not over-torqued.
During reassembly, refer back to your documentation frequently to ensure that each part is placed correctly according to specifications.
1. Fill the motor with fresh hydraulic oil according to manufacturer specifications.
2. Reattach the motor to its mounting position securely.
3. Start the system and check for leaks or unusual noises during operation.
4. Test functionality by engaging the motor under load conditions; observe its performance carefully.
Testing should be done cautiously; monitor for any signs of malfunction such as overheating or vibrations that could indicate misalignment or internal issues.
While rebuilding your hydraulic wheel motor, you may encounter several common issues:
Some components may be stuck due to corrosion or debris buildup. Using penetrating oil can help loosen stubborn parts without damaging them.
Ensure that all parts are aligned properly during reassembly; misalignment can lead to premature failure of seals or bearings.
Failing to clean components thoroughly can lead to contamination in your hydraulic system, which may cause significant damage over time.
To prolong the life of your hydraulic wheel motor after rebuilding it, consider implementing these preventive maintenance tips:
Conduct regular inspections every few hundred hours of operation or at least once per season if used intermittently. Look for signs of wear such as leaks or unusual noises during operation.
Change hydraulic fluid regularly according to manufacturer recommendations. Contaminated fluid can lead to wear on internal components.
Keep an eye on operating temperatures; excessive heat can indicate problems within the hydraulic system that need addressing immediately.
Keep your work environment clean when working on hydraulic systems; dirt and debris can easily enter components during disassembly or reassembly processes.
When undertaking such projects as rebuilding a hydraulic wheel motor like those found in Series 90 models by Danfoss or similar manufacturers, consider these additional factors that could influence both performance outcomes post-repair as well as overall longevity:
Hydraulic fluids play an essential role in system performance; they not only transmit power but also lubricate moving parts while helping dissipate heat generated during operation:
1. Viscosity: Ensure you select fluids with appropriate viscosity ratings based on manufacturer specifications—too thick may hinder performance while too thin could lead to inadequate lubrication.
2. Additives: Look for fluids containing anti-wear additives which help protect metal surfaces against wear during operation; anti-corrosive agents are also beneficial in preventing rust formation inside motors particularly when exposed moisture levels fluctuate significantly over time.
3. Fluid Change Frequency: Regularly changing out old fluids prevents contamination build-up—consider implementing scheduled changes based on usage patterns rather than waiting until issues arise before addressing them!
Different applications place varying demands on hydraulic motors—understanding these requirements helps ensure optimal component selection during rebuilds:
1. Assess expected load capacities before beginning work—this includes evaluating both static loads (weight-bearing) as well dynamic loads experienced during operation cycles.
2 Consider environmental factors—extreme temperatures might necessitate specialized lubricants designed specifically withstand high/low thermal conditions while maintaining performance integrity across diverse environments where machinery operates regularly!
By keeping these considerations in mind throughout each stage—from initial assessment through final testing—you'll enhance not only immediate outcomes following repairs but also contribute positively towards long-term reliability across all equipment utilizing similar systems!
Rebuilding a 90 Series hydraulic wheel motor requires attention to detail and adherence to safety protocols. By following this guide, you can successfully restore your motor's functionality, saving time and money on replacements while enhancing your mechanical skills along the way. Regular maintenance will ensure longevity and optimal performance of your equipment while minimizing downtime due to unexpected failures.
You will need a socket set, torque wrench, screwdrivers (flathead and Phillips), pliers, a hydraulic press, cleaning supplies (solvent, rags), micrometer or caliper for measurements, inspection mirror for hard-to-reach areas, and snap ring pliers if applicable.
It depends on usage; however, regular inspection every few hundred hours of operation is recommended along with preventive maintenance checks every season or after heavy use.
Yes, if you have mechanical skills and follow detailed instructions carefully; however, consulting with professionals for complex issues is advisable if you're uncertain about any steps.
Common signs include reduced performance (like slow response times), unusual noises (grinding or knocking), leaks around seals or joints, or erratic operation under load conditions.
Replacement parts can be sourced from authorized dealers or online retailers specializing in hydraulic components; always ensure compatibility with your specific model before purchasing.
