Refilling hydraulic fluid in an outboard boat motor is a crucial maintenance task to ensure smooth operation of the trim and tilt systems, as well as hydraulic steering. This process involves several steps and requires attention to detail to avoid introducing air into the system, which can lead to performance issues. Below, we will guide you through the process with detailed instructions and visual aids.
Outboard motors use hydraulic systems for various functions, including steering and trim/tilt operations. These systems rely on hydraulic fluid to transmit pressure and facilitate movement. Over time, the fluid level may decrease due to leakage or usage, necessitating a refill.

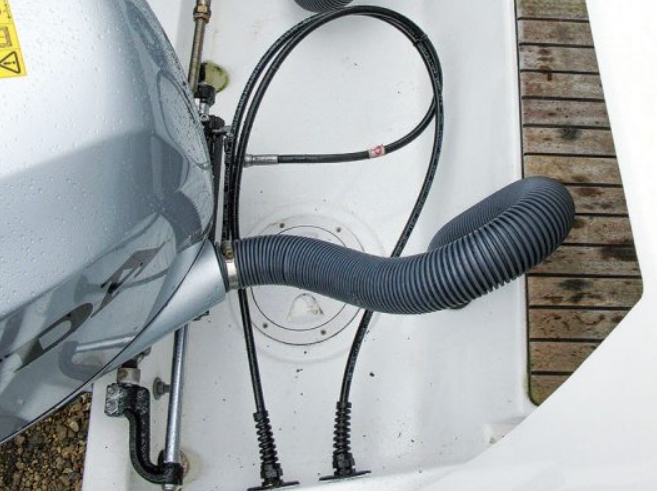

Hydraulic steering systems are common in larger outboard motors, providing easier steering by using hydraulic pressure to assist the steering mechanism. These systems consist of a helm pump, hoses, and a steering cylinder attached to the motor. The helm pump is typically located at the steering console and is connected to the steering wheel. When you turn the wheel, it creates pressure that is transmitted through the hoses to the steering cylinder, which then moves the motor to steer the boat.

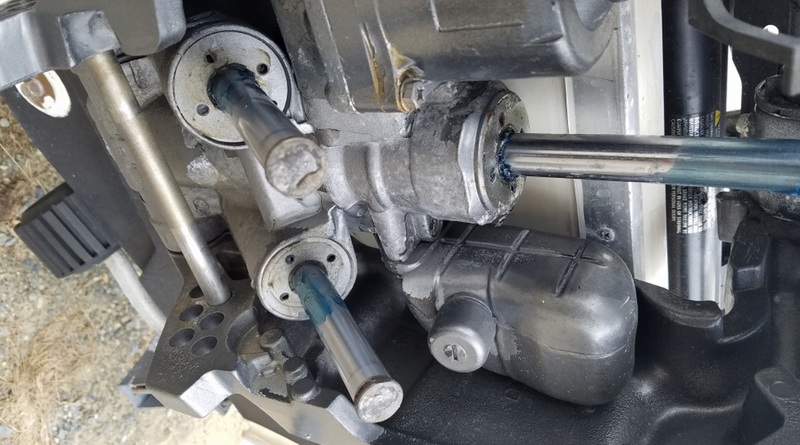

The trim and tilt system allows you to adjust the angle of the outboard motor for optimal performance and safety. It uses hydraulic cylinders to move the motor up or down. Adjusting the trim helps improve fuel efficiency and stability by optimizing the motor's angle relative to the water. The tilt function is essential for raising the motor when navigating shallow waters or during maintenance.
Refilling hydraulic fluid involves several key steps to ensure the system operates efficiently and effectively.
- Hydraulic Fluid: Use the recommended type and amount of hydraulic fluid for your system. Typically, this is a specialized hydraulic oil designed for marine applications. It's crucial to choose a fluid that meets the specifications outlined in your owner's manual to ensure compatibility and performance.
- Filler Kit: A filler kit may include a filler tube and bottle cap adapter. This kit helps you fill the system without spilling fluid.
- Screwdriver or Wrench: Depending on the type of filler plug or screw used on your system, you may need a screwdriver or wrench to remove it.
Identify the filler port on your hydraulic system. For steering systems, this is usually located on the helm pump. For trim and tilt systems, it's often near the reservoir or pump. Make sure you have access to the filler port without having to remove any major components.
Use a screwdriver or wrench to remove the filler plug. Be prepared to catch any spills. If the plug is stuck, apply gentle force but avoid stripping the threads.

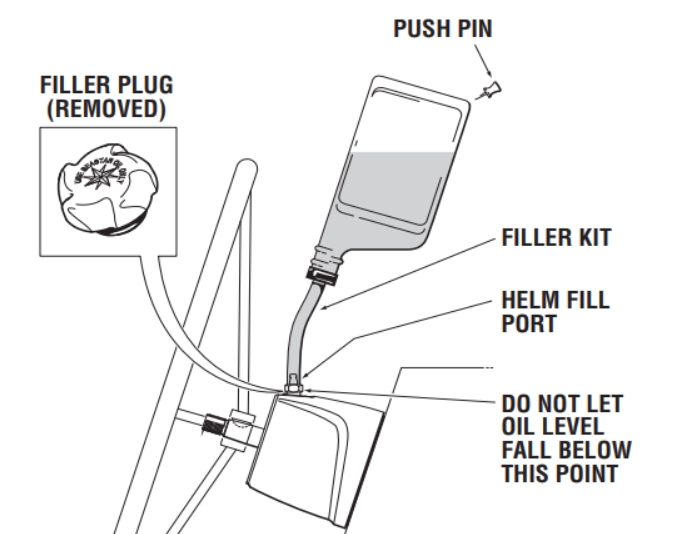

Insert the filler tube into the filler port and attach the oil bottle. Make sure the oil level is visible in the filler tube at all times to prevent air from entering the system. Fill the system slowly to avoid creating air pockets.
If air has entered the system, you may need to bleed it. This involves opening bleed valves or screws while operating the system to expel air. For steering systems, turn the wheel back and forth several times. For trim and tilt systems, raise and lower the motor repeatedly.
- Air in the System: Causes spongy or unresponsive steering. Solution: Bleed the system.
- Leaks: Check hoses and connections for signs of leakage. Solution: Replace damaged parts.
- Incorrect Fluid Level: Ensure the fluid level is always visible in the filler tube. Solution: Top off as needed.
Regular maintenance is key to extending the life of your hydraulic systems. Here are some tips:
- Regular Inspections: Check the system for leaks and wear regularly. Inspect hoses for cracks or damage and replace them if necessary.
- Fluid Checks: Monitor the fluid level frequently and top it off as needed. Use a fluid that meets the manufacturer's specifications.
- System Bleeding: If you notice any signs of air in the system, bleed it promptly to prevent damage.
Sometimes, issues arise despite regular maintenance. Here's how to troubleshoot common problems:
- Spongy Steering: This is often due to air in the system. Bleed the steering system by turning the wheel back and forth while the engine is off.
- Trim and Tilt Issues: If the motor doesn't move smoothly, check for air in the system or low fluid levels.
Refilling hydraulic fluid in an outboard boat motor is a straightforward process when done correctly. It's essential to follow the manufacturer's instructions and ensure the system is properly bled to maintain optimal performance and prevent damage. Regular maintenance and inspections will help extend the life of your hydraulic systems and ensure safe, efficient operation.
Use a hydraulic fluid specifically designed for marine applications. This type of fluid is formulated to withstand the marine environment and provide optimal performance.
Check the hydraulic fluid level regularly, ideally before each use, to ensure it remains at the recommended level. This helps prevent air from entering the system and reduces the risk of performance issues.
Signs of air in the system include spongy or unresponsive steering, and erratic movement of the trim and tilt. If you notice these symptoms, you need to bleed the system.
No, it's crucial to use the recommended type of hydraulic fluid. Using a different type can lead to compatibility issues, affecting system performance and longevity.
Regularly inspect hoses and connections for signs of wear or damage. Replace any damaged parts promptly to prevent leaks and maintain system integrity.
