Removing the head of a hydraulic motor, such as the White Drive Products motor, requires careful planning and execution to ensure safety and prevent damage to the motor or surrounding components. This article will guide you through the process, highlighting key steps and providing visual aids where possible.

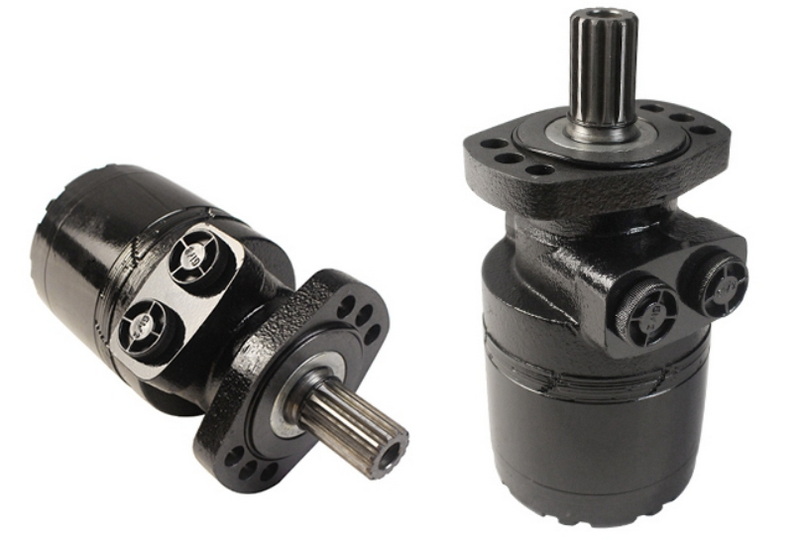

Hydraulic motors are crucial components in hydraulic systems, converting hydraulic energy into mechanical energy. They are widely used in various applications, including construction equipment, agricultural machinery, and industrial machinery. The White Drive Products motor is a popular choice due to its reliability and efficiency.
Proper removal of the hydraulic motor head is essential for maintenance, repair, or replacement. Incorrect procedures can lead to damage, leakage, or even personal injury. It is crucial to follow established guidelines and safety protocols.
Before starting the removal process, ensure you have the necessary tools and a clean workspace.
- Socket wrench or ratchet set
- Pliers or wrench for hose fittings
- Safety gloves and goggles
- Cleaning materials (rags, solvent)
- New seals or gaskets (if replacing)
1. Clean the Area: Ensure the workspace is free from debris and hydraulic fluid spills.
2. Secure the Motor: If possible, secure the motor to prevent movement during disassembly.
3. Reference Manual: Have the motor's manual or technical documentation nearby for specific instructions.
- Step 1: Use a wrench to loosen the hydraulic hose fittings. Be prepared for potential fluid leakage.
- Step 2: Once loose, carefully remove the hoses and immediately plug them with caps or plugs to prevent contamination.
- Step 3: Use a socket wrench to remove the bolts attaching the motor to its mounting bracket. Ensure the motor does not fall during this process.

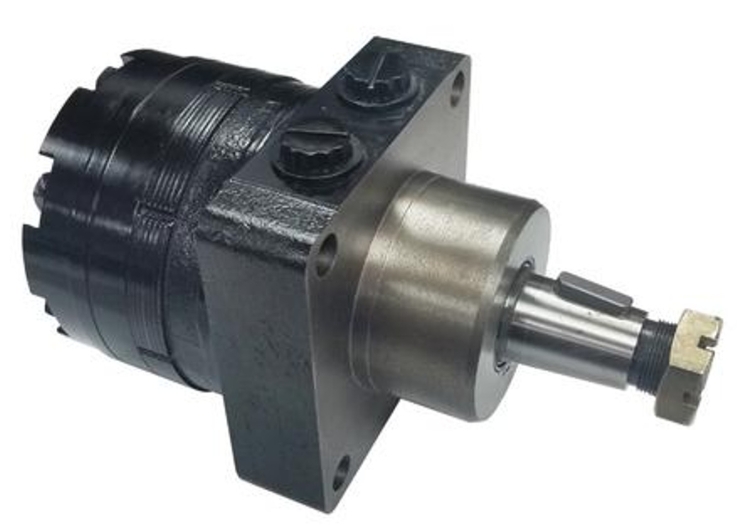

Illustration: The mounting bolts are typically located on the flange of the motor. Ensure they are fully removed before proceeding.
- Step 4: If your motor has electrical connections (e.g., for sensors), carefully disconnect these. Note the color coding for correct reconnection later.
- Step 5: With all connections removed, carefully lift the motor head off its base. This may require some force due to stuck parts or seals.
Tip: Apply penetrating oil if the head is stuck.
- Step 6: Clean all components with a solvent to remove dirt and old hydraulic fluid. Inspect for wear or damage.
During the inspection phase, pay close attention to the condition of seals, gaskets, and moving parts. Any worn-out components should be replaced to ensure optimal performance and prevent future leaks.
- Worn Seals: Replace with new ones to prevent leaks.
- Damaged Gaskets: Inspect and replace if necessary.
- Corrosion: Clean or replace parts if corrosion is found.
After completing repairs or replacements, reassemble the motor in reverse order of disassembly. Ensure all seals are new and properly seated to prevent leaks.
- Apply a thin layer of hydraulic oil to moving parts.
- Tighten bolts securely but avoid over-tightening.
- Once reassembled, test the motor under low pressure to check for leaks or unusual noises.
- Gradually increase pressure while monitoring performance.
- Always wear protective gear (gloves, goggles).
- Ensure the workspace is well-ventilated.
- Be prepared for fluid spills.
During reassembly or testing, you may encounter issues such as leaks or poor performance. Here are some troubleshooting tips:
- Check all connections and seals for proper seating.
- Apply additional sealant if necessary.
- Check fluid levels and ensure proper pressure.
- Inspect for blockages in hoses or valves.
Removing the head of a hydraulic motor requires attention to detail and adherence to safety protocols. By following these steps and using the right tools, you can ensure a successful removal and reassembly process. Always refer to the manufacturer's instructions for specific models like the White Drive Products motor.
Always wear protective gear such as gloves and goggles. Ensure the workspace is clean and well-ventilated to prevent accidents.
Use plugs or caps to seal hoses immediately after disconnecting them. This prevents contamination and reduces the risk of fluid spills.
A socket wrench or ratchet set, pliers or wrench for hose fittings, and safety gear are essential. Cleaning materials and new seals may also be needed.
It is generally recommended to replace seals and gaskets with new ones during reassembly to ensure a leak-free system.
Test the motor under low pressure to check for leaks or unusual noises. Ensure all bolts are securely tightened but not over-tightened.
