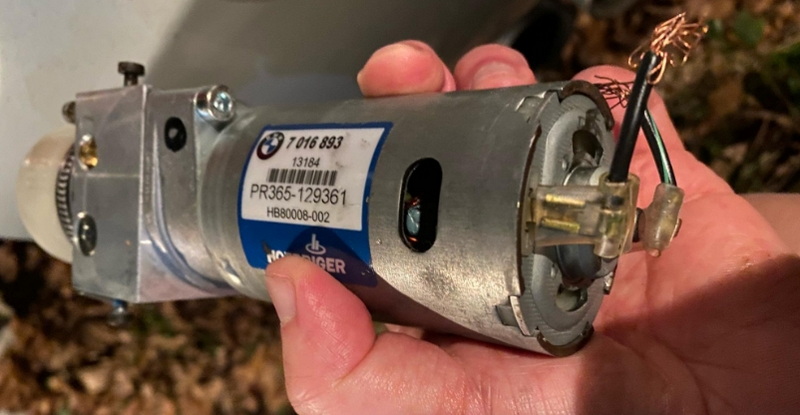

Replacing the hydraulic motor for a BMW Z4 convertible top can be a challenging task, but with the right guidance, it's achievable. This article will walk you through the process step by step, including tips and tricks to make the job easier. We'll also cover common issues you might encounter and how to troubleshoot them.
The BMW Z4 convertible top is a complex system that relies on hydraulic motors to operate. These motors control the movement of the roof, ensuring it opens and closes smoothly. Over time, these motors can fail due to wear and tear, corrosion, or hydraulic fluid leaks. When this happens, replacing the motor is often the best solution.
Before starting, ensure you have the following tools and materials:
- New hydraulic motor: Compatible with your BMW Z4 model.
- Socket set: Including a 4mm and 4 hex socket.
- WD-40 or lubricant: For loosening corroded parts.
- Hydraulic fluid: To refill the system after replacement.
- Paper towels or rags: For cleaning spills and wiping down surfaces.
- Cable ties: For securing cables and lines.
- Torque wrench: For tightening bolts to the correct specification.
- Safety glasses: To protect your eyes from debris or fluid splashes.
1. Park on a level surface: Ensure the car is stable and secure.
2. Engage the parking brake: Prevent any movement during the process.
3. Disconnect the battery: Safety precaution to avoid electrical shocks.
4. Cover the interior: Use a drop cloth or plastic sheet to protect the interior from dust and debris.

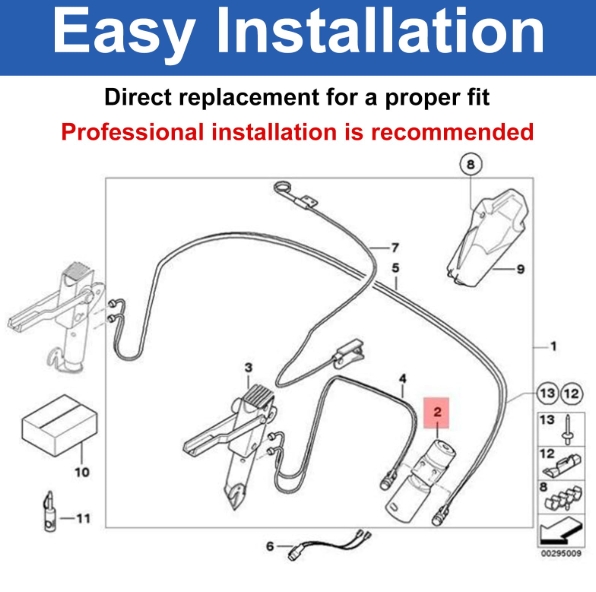

1. Remove the rear shelf: This will give you access to the motor area. You may need to remove screws or clips depending on your model.
2. Disconnect hydraulic lines: Use a wrench to loosen the fittings, then pull the lines off the motor. Be careful not to spill hydraulic fluid.
3. Remove cable ties: These hold the motor casing to the roof section. You may need to use a screwdriver or pliers to release them.
4. Label electrical connections: Before disconnecting, mark the wires (e.g., green on the right, blue on the left) to ensure correct reconnection.
1. Disconnect electrical connections: Carefully pull the connectors off the motor.
2. Loosen the motor bolts: Use a 4mm socket for the smaller bolts and a 4 hex socket for the larger one.
3. Pull out the motor: Gently maneuver it out of its housing. Be prepared for any remaining hydraulic fluid.
1. Clean the housing: Use paper towels or rags to soak up any hydraulic fluid and debris.
2. Apply lubricant: Spray WD-40 on any corroded parts to prevent sticking.
3. Inspect for damage: Check the housing and surrounding components for any signs of wear or corrosion.
1. Mount the new motor: Align it properly and secure it with the bolts. Use a torque wrench to tighten to the correct specification.
2. Reconnect electrical connections: Match the wires to their correct positions based on your labels.
3. Reattach hydraulic lines: Tighten the fittings securely to prevent leaks.
1. Check the fluid level: Cycle the top up and down several times to ensure the level is adequate.
2. Add fluid if necessary: Use the appropriate hydraulic fluid for your system. Refer to your owner's manual for specifications.
3. Test the system: Open and close the convertible top several times to ensure smooth operation and check for leaks.

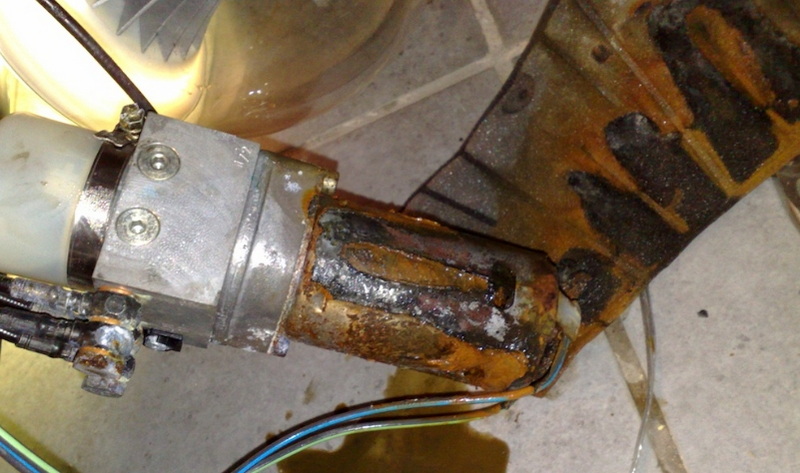

- Rust and Corrosion: Use WD-40 to loosen corroded parts. Replace any severely rusted components.
- Hydraulic Fluid Leaks: Inspect all connections and tighten any loose fittings.
- Motor Not Working: Check electrical connections and ensure the system is properly filled with hydraulic fluid.
- Slow Operation: Check for blockages in the hydraulic lines or low fluid levels.
- Consult a Repair Manual: For specific instructions tailored to your model year and trim.
- Join a Forum: Websites like Bimmerforums or Z4-Forum can provide valuable insights from experienced owners.
- Take Photos: Document each step to help with reassembly.
- Wear protective gear: Safety glasses and gloves can protect you from injury.
- Work in a well-ventilated area: Avoid inhaling hydraulic fluid fumes or other chemicals.
- Avoid over-tightening: Use a torque wrench to prevent damaging bolts or threads.
Replacing the hydraulic motor for your BMW Z4 convertible top requires patience and attention to detail. By following these steps and tips, you can successfully complete the job without professional assistance. Remember to handle hydraulic fluid with care and ensure all connections are secure to prevent future issues.
You will need a socket set (including 4mm and 4 hex sockets), WD-40 or lubricant, hydraulic fluid, paper towels or rags, cable ties, a torque wrench, and safety glasses.
Remove the rear shelf and disconnect the hydraulic lines. Then, release the cable ties holding the motor casing to the roof section.
Use WD-40 to loosen corroded parts. If the rust is severe, consider replacing any affected components.
Cycle the convertible top up and down several times to check the fluid level. Add fluid if necessary, ensuring it's the correct type for your system.
Check electrical connections and ensure the system is properly filled with hydraulic fluid. If issues persist, consult a professional mechanic.
