Replacing the hydraulic motor coupler on a Case 40XT skid steer is an essential maintenance task that ensures the smooth operation of your machine. This comprehensive guide will walk you through the process step-by-step, providing valuable insights and tips to make the replacement as efficient as possible.
The hydraulic motor coupler is a crucial component in your Case 40XT skid steer, connecting the hydraulic pump to the drive motor. Over time, these couplers can wear out or become damaged, leading to decreased performance and potential equipment failure.
The hydraulic motor coupler plays a vital role in transmitting power from the hydraulic pump to the drive motor. It acts as a link between these two components, allowing for efficient transfer of hydraulic fluid and pressure. This transfer of power is what enables your skid steer to move and operate various attachments.
There are several types of hydraulic motor couplers used in skid steers, including:
1. Splined couplers
2. Keyed couplers
3. Flexible couplers

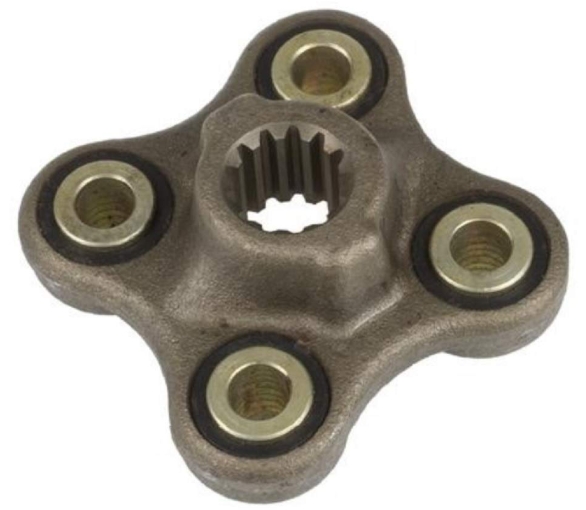

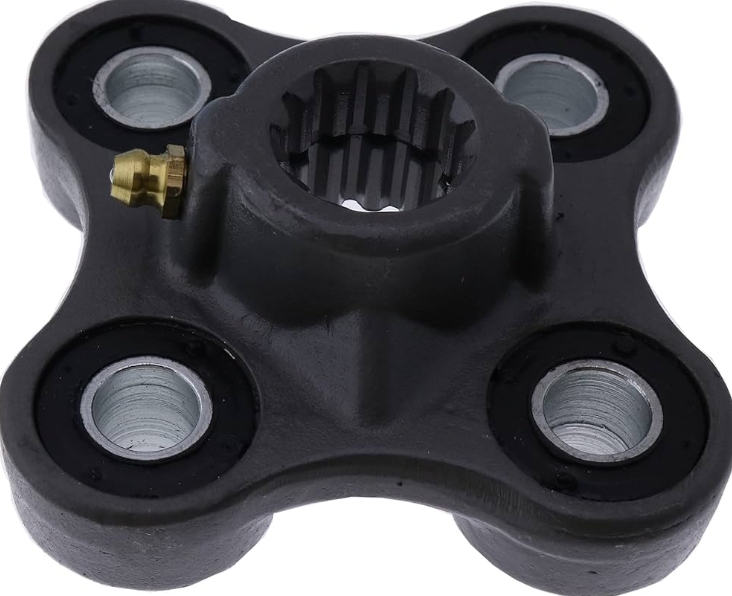

The Case 40XT typically uses a splined coupler, which provides a secure connection and efficient power transfer.
Before diving into the replacement process, it's important to recognize the signs of a failing coupler:
1. Unusual noises during operation
2. Decreased power or performance
3. Visible leaks around the hydraulic pump area
4. Intermittent loss of hydraulic pressure
5. Vibrations or shuddering during operation
6. Difficulty in engaging or disengaging hydraulic functions
If you notice any of these symptoms, it's time to consider replacing your hydraulic motor coupler.
To replace the hydraulic motor coupler on your Case 40XT skid steer, you'll need the following tools and materials:
- Socket set and wrenches
- Hydraulic fluid
- New hydraulic motor coupler (specific to Case 40XT)
- Clean rags
- Safety glasses and gloves
- Jack stands or blocks (for safety)
- Torque wrench
- Penetrating oil
- Hydraulic line plugs
- Shop manual for Case 40XT
Before beginning the replacement process, ensure your skid steer is on a level surface and the engine is turned off. Engage the parking brake and lower any attachments to the ground for stability. It's also a good idea to disconnect the battery to prevent any accidental starts during the procedure.
The hydraulic motor coupler is typically located near the hydraulic pump, which is usually found at the rear of the machine. Consult your Case 40XT manual for the exact location if you're unsure. In some cases, you may need to remove protective covers or other components to access the coupler.
It's crucial to relieve any residual hydraulic pressure before attempting to remove the coupler. To do this:
1. Turn the ignition key to the "ON" position without starting the engine.
2. Move the hydraulic control levers in all directions several times.
3. Turn the key back to the "OFF" position.
This process helps prevent injury and makes the removal of hydraulic lines easier.
Place a drain pan under the hydraulic system to catch any fluid that may spill during the replacement process. Locate the drain plug on the hydraulic reservoir and carefully remove it, allowing the fluid to drain. This step is important to prevent excessive spillage and contamination during the coupler replacement.
Carefully disconnect the hydraulic lines connected to the coupler. Use clean rags to catch any drips and prevent contamination. It's a good practice to label each line as you remove it to ensure correct reassembly later. Remove any bolts or fasteners securing the coupler in place, then gently remove the old coupler.
If the coupler is stuck, you may need to use penetrating oil and allow it to sit for a while before attempting removal again. Be patient and avoid using excessive force, as this could damage other components.
While the coupler is removed, take the opportunity to inspect related components such as:
- Hydraulic pump shaft
- Seals and O-rings
- Mounting surfaces
- Hydraulic lines for wear or damage
Replace any worn or damaged parts as necessary to ensure optimal performance of your new coupler.
Take your new Case 40XT hydraulic motor coupler and carefully align it with the mounting points. Before installation, compare the new coupler with the old one to ensure it's an exact match. Apply a thin layer of clean hydraulic fluid to the splines or mating surfaces to aid installation and prevent dry starting.
Secure the new coupler in place using the appropriate bolts or fasteners, ensuring they are tightened to the manufacturer's specifications. Use a torque wrench to achieve the correct torque, as over-tightening can damage the coupler or mounting points.
Reattach the hydraulic lines to the new coupler, making sure all connections are secure and properly sealed. Use new O-rings or seals if the old ones show any signs of wear. Tighten all fittings to the specified torque, being careful not to over-tighten and damage the threads or fittings.
Add fresh hydraulic fluid to the system as per the manufacturer's recommendations. Be sure to use the correct type and grade of fluid for your Case 40XT. Fill the reservoir to the proper level, typically between the "Full" and "Add" marks on the dipstick or sight glass.
To remove any air from the hydraulic system:
1. Start the engine and let it run at idle.
2. Slowly operate all hydraulic functions, extending and retracting cylinders multiple times.
3. Check for any leaks or unusual noises.
4. Continue this process until all functions operate smoothly without any jerky movements or unusual sounds.
Once the system is bled, test all hydraulic functions to ensure proper operation. Pay close attention to the performance and listen for any unusual sounds. Operate the skid steer through its full range of motions, including:
- Raising and lowering the boom
- Tilting the bucket
- Driving forward and reverse
- Operating any attachments
If everything functions correctly, you've successfully replaced the hydraulic motor coupler.
To extend the life of your new hydraulic motor coupler and maintain optimal performance of your Case 40XT skid steer:
1. Regularly inspect hydraulic components for signs of wear or damage.
2. Keep the hydraulic system clean and free from contamination.
3. Use high-quality hydraulic fluid and change it according to the manufacturer's schedule.
4. Address any leaks or performance issues promptly.
5. Avoid overloading the machine beyond its rated capacity.
6. Ensure proper warm-up of the hydraulic system before operation, especially in cold weather.
7. Keep the skid steer's cooling system in good condition to prevent overheating of hydraulic components.
When replacing the hydraulic motor coupler, you may encounter some challenges. Here are a few common issues and their solutions:
1. Stubborn Couplers: If the old coupler is difficult to remove, try using a penetrating oil and allowing it to sit for a few hours before attempting removal again. In extreme cases, you may need to use a puller designed for coupler removal.
2. Alignment Issues: Take your time when aligning the new coupler. Improper alignment can lead to premature wear and potential damage. Use alignment marks or tools if necessary to ensure perfect fitment.
3. Contamination: Be vigilant about keeping dirt and debris out of the hydraulic system during the replacement process. Use clean rags and cover open ports when not actively working on them. Consider working in a clean, enclosed area if possible.
4. Air in the System: If you're having trouble bleeding the system, try elevating the front of the skid steer slightly to help trapped air move towards the reservoir. You may also need to cycle the hydraulic functions multiple times to fully purge the air.
5. Leaks After Installation: If you notice leaks after installing the new coupler, double-check all connections and fittings. Ensure that all O-rings and seals are properly seated and not damaged. Sometimes, a slight adjustment of the coupler position can resolve minor leaks.
While replacing the hydraulic motor coupler on your Case 40XT skid steer can be a DIY project for experienced operators, it's important to recognize when professional help is needed. If you're unsure about any step in the process or encounter unexpected difficulties, don't hesitate to consult a certified technician.
Professional technicians have the experience, specialized tools, and diagnostic equipment to handle complex issues that may arise during the replacement process. They can also ensure that the replacement is done correctly, minimizing the risk of future problems and potentially extending the life of your skid steer.
When replacing hydraulic components, it's crucial to dispose of old fluids and parts responsibly. Used hydraulic fluid is considered hazardous waste and should be taken to a certified recycling center or disposal facility. Many auto parts stores also accept used oil and hydraulic fluid for recycling.
Additionally, clean up any spills immediately to prevent environmental contamination and safety hazards. Keep absorbent materials on hand for quick cleanup of any accidental spills during the replacement process.
Replacing the hydraulic motor coupler on your Case 40XT skid steer is a crucial maintenance task that can significantly improve the performance and longevity of your machine. By following this comprehensive guide, you can successfully complete the replacement process and ensure your skid steer continues to operate at peak efficiency.
Remember to always prioritize safety, use the correct tools and parts, and maintain cleanliness throughout the procedure. With proper care and maintenance, your Case 40XT skid steer will continue to be a reliable workhorse for years to come.
Regular maintenance, including timely replacement of components like the hydraulic motor coupler, not only keeps your machine running smoothly but also helps prevent costly breakdowns and extends the overall lifespan of your equipment. By taking a proactive approach to maintenance, you can maximize the return on your investment in your Case 40XT skid steer.
The frequency of replacement depends on usage and operating conditions. Generally, inspect the coupler during regular maintenance intervals and replace it if signs of wear or damage are present. Some operators find they need to replace the coupler every 2-3 years with heavy use.
It's crucial to use a hydraulic motor coupler specifically designed for the Case 40XT skid steer. Using an incompatible coupler can lead to poor performance, damage to other components, and potential safety hazards.
Continuing to operate with a worn coupler can result in decreased hydraulic efficiency, increased fuel consumption, potential damage to other hydraulic components, and even sudden equipment failure. This can lead to costly repairs and downtime.
For an experienced operator or mechanic, the replacement process usually takes 2-4 hours. However, this can vary depending on the individual's experience level and any complications that may arise during the procedure.
Yes, bleeding the hydraulic system is a crucial step after replacing the coupler. This process removes air from the system, ensuring proper function and preventing damage to hydraulic components. Skipping this step can lead to erratic operation and potential equipment failure.
