Replacing the hydraulic power unit motor in your Lippert RV leveling system is a crucial maintenance task that ensures your RV remains stable and level during your travels. This comprehensive guide will walk you through the process of replacing the power unit motor, providing detailed steps, helpful tips, and important considerations to keep in mind.

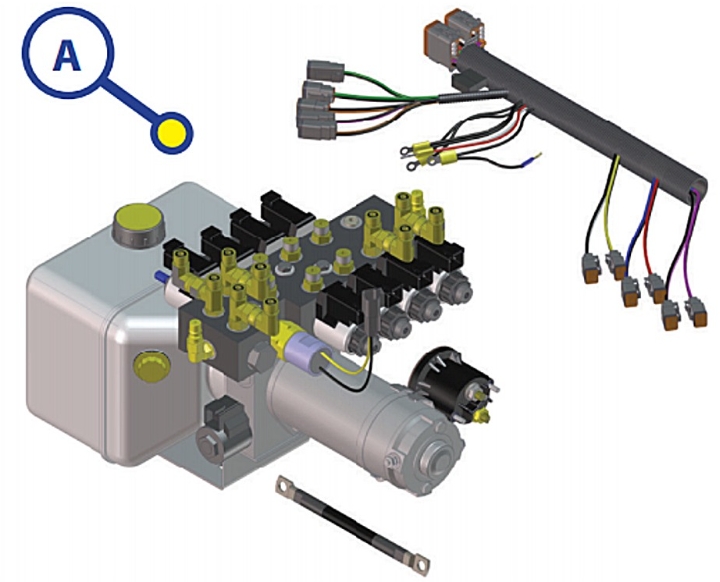

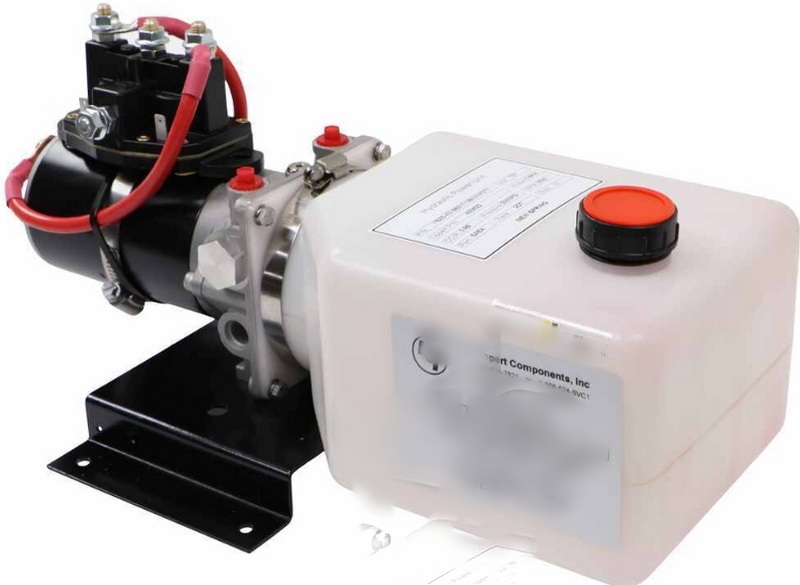

Before diving into the replacement process, it's essential to understand the components of the Lippert hydraulic power unit. The power unit consists of several key parts, including:
- 12V DC Motor
- Hydraulic pump
- Reservoir

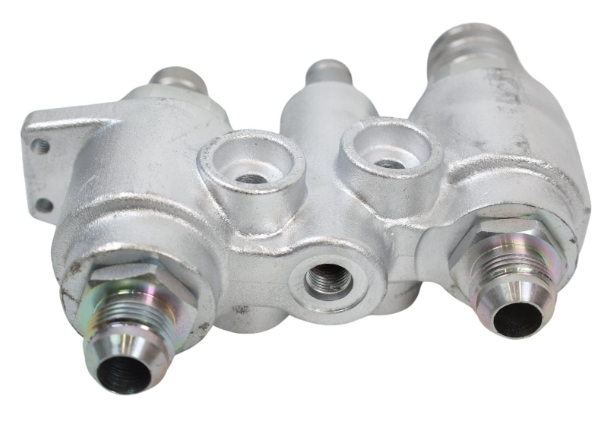

- Valve block
- Pressure switch
- Solenoid
The motor is responsible for driving the hydraulic pump, which in turn powers the leveling jacks. Over time, the motor may wear out or malfunction, necessitating a replacement.
To replace the Lippert hydraulic power unit motor, you'll need the following tools and materials:
- Electric drill
- Socket adapter bit
- 9/32-inch socket
- Ratchet
- Adjustable wrench
- Flathead screwdriver
- Replacement motor (ensure it's compatible with your Lippert system)
- Safety glasses
- Work gloves
- Multimeter (for testing)
- Hydraulic fluid (if needed)
- Clean rags
Having all these tools ready before you start will make the process smoother and more efficient.
Before beginning any work on your RV's electrical or hydraulic systems, it's crucial to prioritize safety:
1. Wear safety glasses and work gloves throughout the process.
2. Ensure the RV is parked on a level surface with the parking brake engaged.
3. Disconnect all power sources, including shore power and batteries.
4. Place warning signs or cones around your work area if in a campground or shared space.
5. Have a fire extinguisher nearby as a precaution.
Before beginning the replacement process, ensure your RV is parked on a level surface and the engine is turned off. Disconnect the RV from any power sources and engage the parking brake.
The hydraulic power unit is typically located in a compartment on the exterior of your RV. Consult your RV's manual if you're unsure of its exact location. Some common locations include:
- Under the RV near the front or rear axle
- In a side compartment
- In a dedicated bay for leveling system components
For safety reasons, disconnect the RV's battery before working on the electrical components. This typically involves removing the negative terminal first, followed by the positive terminal.
Carefully remove the wires connected to the motor. These wires come from the solenoid. Use a flathead screwdriver if necessary to loosen any connections. It's a good idea to take a photo or label the wires before disconnecting them to ensure proper reconnection later.
Locate the hose clamp on the motor and loosen it using an appropriate tool. This clamp secures the motor to the hydraulic pump.
Using your electric drill with the socket adapter bit and 9/32-inch socket, remove the mounting bolts that secure the motor to the pump. There are typically four bolts, but this may vary depending on your specific model.
Carefully pull the old motor away from the pump. As you do this, slide off the hose clamp. Be prepared for some hydraulic fluid to drip out, so have a rag ready to catch any spills.
Take your new replacement motor and slide the hose clamp onto it. Ensure that the new motor is an exact match for your Lippert system. Check the voltage, amperage, and physical dimensions to confirm compatibility.
Insert the new motor into the pump. Ensure it's properly aligned before proceeding. The shaft of the motor should fit snugly into the pump coupling.
Reinstall the mounting bolts to secure the new motor to the pump. Use your electric drill to tighten them, but be careful not to over-tighten. A good rule of thumb is to tighten until snug, then give an additional quarter turn.
Reconnect the wires from the solenoid to the new motor. Ensure the connections are secure and match the configuration of the old motor. Double-check your earlier photo or labels if you're unsure.
Once everything is properly installed and secured, reconnect the RV's battery. Remember to connect the positive terminal first, followed by the negative.
Turn on your RV's electrical system and test the leveling jacks to ensure the new motor is functioning correctly. Listen for any unusual noises and observe the operation of the jacks.
After installing the new motor, perform these additional checks:
1. Check for leaks: Inspect the area around the motor and pump for any hydraulic fluid leaks.
2. Verify fluid level: Check the hydraulic fluid reservoir and top up if necessary.
3. Test all functions: Extend and retract all jacks individually and then perform an auto-level cycle if your system has this feature.
4. Monitor performance: Over the next few uses, pay close attention to the leveling system's performance to ensure everything is working smoothly.
- Always refer to your RV's manual and the Lippert system documentation for specific instructions related to your model.
- If you're unsure about any step in the process, it's best to consult a professional RV technician.
- Regularly maintain and inspect your leveling system to prevent unexpected breakdowns.
- Keep a log of maintenance activities, including the date of motor replacement, for future reference.
If you encounter issues during or after the replacement process, consider the following troubleshooting steps:
1. Check all electrical connections to ensure they're secure and correctly placed.
2. Verify that the hydraulic fluid level in the reservoir is adequate.
3. Inspect the hoses for any signs of damage or leaks.
4. Test the system's voltage to ensure it's receiving proper power.
5. Listen for unusual noises that might indicate misalignment or internal damage.
If problems persist after these checks, it may be necessary to consult a professional or contact Lippert Components for technical support.
To prolong the life of your new motor and the entire hydraulic system:
1. Regularly clean the power unit and surrounding area to prevent debris accumulation.
2. Check and top up hydraulic fluid as needed, using the type recommended by Lippert.
3. Inspect wires and connections for signs of wear or corrosion.
4. Operate the leveling system periodically, even when not in use, to keep components lubricated.
5. Protect the power unit from extreme weather conditions when possible.
6. Follow a regular maintenance schedule as outlined in your RV and Lippert system manuals.
When replacing your Lippert hydraulic power unit motor, it's important to consider environmental responsibilities:
1. Properly dispose of the old motor at a recycling center that accepts electronic waste.
2. Collect and dispose of any spilled hydraulic fluid according to local regulations.
3. Consider using biodegradable hydraulic fluid if compatible with your system.
Replacing the Lippert hydraulic power unit motor is a manageable task for many RV owners with basic mechanical skills. By following this guide and taking necessary precautions, you can successfully replace the motor and ensure your RV's leveling system continues to function properly. Remember, regular maintenance and prompt attention to any issues can significantly extend the life of your RV's components and enhance your overall travel experience.
Regular inspections and timely replacements not only keep your RV level and stable but also contribute to a safer and more enjoyable camping experience. With proper care and attention, your Lippert hydraulic system will provide reliable service for years to come.
The lifespan of the motor can vary depending on usage and maintenance. Generally, with proper care, the motor can last several years. Replace it when you notice decreased performance or if it fails to operate.
No, it's crucial to use a motor specifically designed for your Lippert system. Using an incompatible motor can lead to system failures and potential damage to other components.
Common signs include unusual noises during operation, slow or uneven leveling, failure to operate, or visible damage to the motor casing.
In most cases, bleeding the system isn't necessary after a motor replacement. However, if you notice air in the lines or uneven operation, consult your manual for bleeding procedures.
While it's possible, it's strongly recommended to perform the replacement on a level surface for safety reasons and to ensure proper alignment during installation.
