Hydraulic motors are essential components in many industrial and mobile applications, providing powerful and efficient rotational force. However, there are situations where it's necessary to restrict or control the speed of these motors for safety, precision, or energy efficiency reasons. This article will explore various methods to restrict hydraulic motors, their advantages, and potential applications.

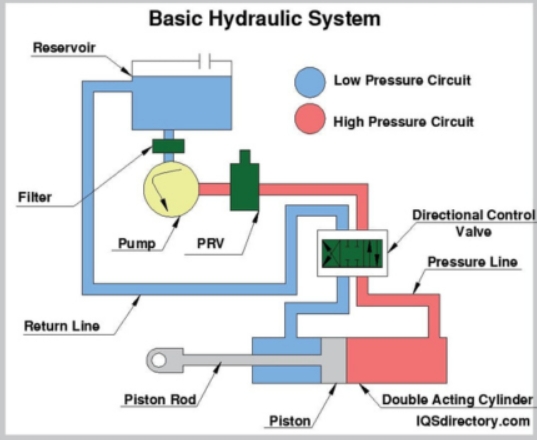

Before delving into restriction methods, it's crucial to understand how hydraulic motors work. Hydraulic motors convert hydraulic pressure and flow into mechanical rotation. They operate on the principle of fluid displacement, where pressurized fluid enters the motor, causing internal components to rotate, which in turn drives an output shaft.

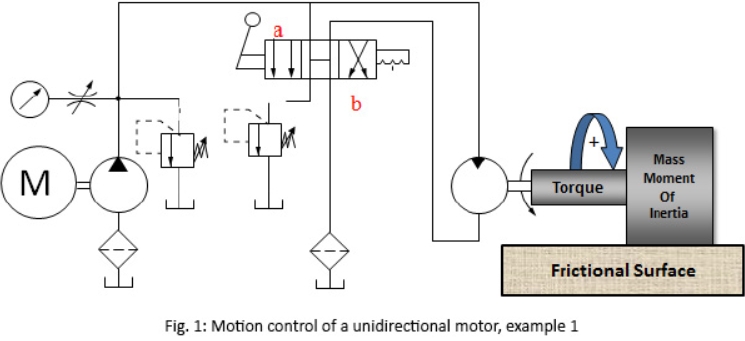

One of the most common methods to restrict a hydraulic motor's speed is through flow control. By limiting the amount of fluid entering the motor, we can directly control its rotational speed.
This method involves restricting the flow of hydraulic fluid as it enters the motor. It's the most common approach and can be implemented in several ways:
- Flow Control Valves: These valves can be installed directly at the motor's inlet ports or along the supply lines.
- Proportional Valves: These electronically controlled valves allow for precise and variable flow control.
While less common, meter-out flow control restricts the fluid exiting the motor. This method can be useful in certain applications but requires caution to avoid pressure intensification.
Controlling the pressure in the hydraulic system can indirectly restrict the motor's speed and torque output.
- Pressure Relief Valves: These valves limit the maximum pressure in the system, indirectly affecting motor speed.
- Pressure Reducing Valves: These valves can be used to lower the pressure supplied to the motor, reducing its torque and speed.
Some hydraulic motors have adjustable displacement, allowing for speed control by changing the motor's volumetric displacement.
Modern hydraulic systems often incorporate electronic control units (ECUs) that can precisely manage motor speed through various sensors and actuators.
1. Improved Safety: Controlling motor speed can prevent dangerous overspeeding in various applications.
2. Energy Efficiency: Restricting motor speed to only what's necessary can significantly reduce energy consumption.
3. Precision Control: Many industrial processes require precise speed control for optimal performance.
4. Extended Equipment Life: Preventing excessive speeds can reduce wear and tear on hydraulic components.
In manufacturing settings, restricted hydraulic motors are used in:
- Conveyor Systems: By controlling the speed of conveyor belts, manufacturers can optimize production flow and reduce energy consumption.
- Packaging Equipment: Precise speed control ensures that products are handled gently and efficiently.
- Robotic Arms: Hydraulic motors in robotic arms require precise speed control for delicate operations.
Hydraulic motor restriction is crucial in:
- Construction Machinery (Excavators, Bulldozers): Speed control helps in precise digging and lifting operations.
- Agricultural Equipment (Tractors, Harvesters): Restricting motor speed can improve fuel efficiency and reduce wear on machinery.
- Forestry Machines: Controlled speed ensures safe and efficient logging operations.
Ships and offshore platforms use restricted hydraulic motors for:
- Winches and Cranes: Precise speed control is essential for safe lifting operations.
- Propulsion Systems: Speed control can improve fuel efficiency and maneuverability.
- Stabilization Equipment: Hydraulic motors help stabilize vessels in rough seas.
Restricting flow can lead to increased heat generation in the hydraulic system. Proper cooling mechanisms should be in place to prevent overheating.
While restriction can improve overall efficiency by reducing unnecessary power consumption, excessive restriction can lead to energy losses through heat generation.
The method of restriction should be chosen based on the load characteristics. For example, meter-out flow control might be more suitable for overrunning loads.
Care must be taken to ensure that restricting the motor doesn't lead to excessive pressure buildup in the system, which could damage components or create safety hazards.
1. Analyze System Requirements: Determine the specific needs for motor restriction in your application.
2. Select Appropriate Method: Choose the restriction method that best suits your system's requirements.
3. Size Components Correctly: Ensure that flow control valves, pressure control valves, or other components are properly sized for your system.
4. Install and Calibrate: Properly install the chosen restriction devices and calibrate them for optimal performance.
5. Monitor and Maintain: Regularly check the system's performance and maintain the restriction devices to ensure long-term reliability.
A manufacturing plant needed to control the speed of a conveyor belt driven by a hydraulic motor. They implemented a meter-in flow control valve with electronic control. This allowed them to:
- Adjust Conveyor Speed Based on Production Demands: The plant could optimize production flow by adjusting the conveyor speed in real-time.
- Improve Energy Efficiency During Low-Production Periods: By reducing the motor speed during periods of low demand, the plant significantly reduced energy consumption.
- Enhance Safety by Preventing Belt Overspeeding: The controlled speed ensured that the conveyor belt operated within safe limits, reducing the risk of accidents.
The result was a 15% reduction in energy consumption and improved product quality due to more precise speed control.
As technology advances, we can expect to see:
1. Increased Integration of IoT: Smart sensors and connectivity will allow for more precise and adaptive motor control.
2. AI-driven Control Systems: Machine learning algorithms could optimize motor restriction based on historical data and current conditions.
3. Improved Energy Recovery: Systems that can capture and reuse energy from restricted motor flow will become more prevalent.
IoT technology allows for real-time monitoring and control of hydraulic systems. This can include remote monitoring of motor speed, pressure, and temperature, enabling quick adjustments to optimize performance.
AI can analyze system data to predict optimal motor speeds under various conditions, ensuring maximum efficiency and safety. Machine learning algorithms can also adapt to changes in system conditions over time.
Energy recovery systems can capture excess energy generated by restricted hydraulic motors and convert it back into useful work, further improving system efficiency.
Restricting hydraulic motors is a crucial aspect of many hydraulic systems, offering benefits in safety, efficiency, and precision. By understanding the various methods available and their applications, engineers and technicians can choose the most appropriate restriction technique for their specific needs. As technology continues to evolve, we can expect even more sophisticated and efficient methods of hydraulic motor restriction to emerge, further enhancing the capabilities of hydraulic systems across various industries.
The most common method to restrict a hydraulic motor is through meter-in flow control, which limits the rate of fluid entering the motor's work ports.
Yes, restricting a hydraulic motor to operate at only the necessary speed can significantly reduce energy consumption, leading to improved overall system efficiency.
While restriction can be beneficial, improper implementation can lead to issues such as excessive heat generation, pressure buildup, or reduced system efficiency. It's crucial to design the restriction method carefully and consider the entire hydraulic system.
Electronic control systems allow for more precise and adaptive motor speed management. They can integrate various sensors and actuators to adjust motor restriction based on real-time conditions and requirements.
Most hydraulic motors can be restricted, but the specific method may vary depending on the motor type and application. Some motors, like variable displacement motors, have built-in restriction capabilities, while others may require external flow or pressure control devices.
