Selecting the right AC motor for a hydraulic pump is crucial for ensuring efficient operation, reliability, and cost-effectiveness of the hydraulic system. This process involves understanding the requirements of the hydraulic pump, the characteristics of AC motors, and how they interact within the system. In this article, we will delve into the key considerations and steps for selecting an appropriate AC motor for a hydraulic pump.

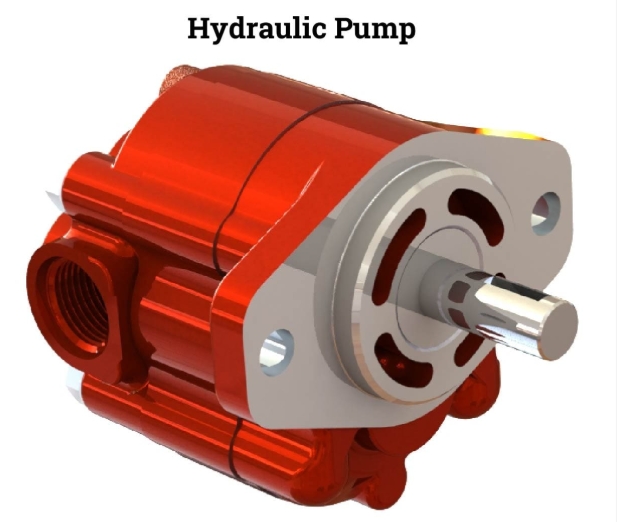

Hydraulic pumps are essential components in hydraulic systems, converting mechanical energy into hydraulic energy. They are typically driven by electric motors, which can be AC (alternating current) or DC (direct current) motors. AC motors are commonly used due to their reliability, efficiency, and widespread availability.

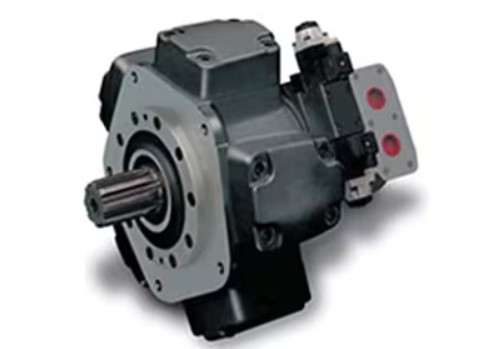

Hydraulic pumps work by creating a flow of fluid under pressure. The type of pump (e.g., gear, vane, piston) and its specifications (e.g., flow rate, pressure) determine the motor requirements. For instance, a high-pressure pump requires a motor capable of delivering sufficient power to maintain that pressure.

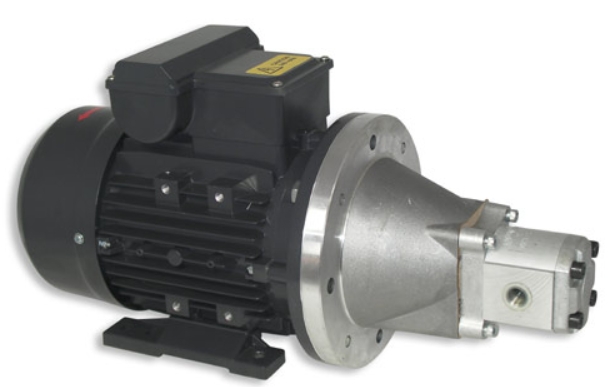

AC motors are versatile and can operate at various speeds and power levels. They are generally more efficient and cost-effective than DC motors for high-power applications. The selection of an AC motor involves considering factors such as horsepower, speed, efficiency, and power factor.
When selecting an AC motor for a hydraulic pump, several factors must be considered to ensure compatibility and optimal performance.
The power required by the hydraulic pump is a critical factor. This is typically measured in horsepower (hp) and is determined by the pump's flow rate and pressure. The motor must be capable of delivering this power without overheating or reducing its lifespan.
Formula for Calculating Power:
Power (hp) = [Flow Rate (gpm) × Pressure (psi)] / (1714 × Efficiency)
For example, if a pump requires 10 gpm at 1000 psi with an efficiency of 90%, the power needed would be:
Power=(10×1000)/(1714×0.9)≈6.5 hp
The speed of the motor must match the operational speed of the pump. Most hydraulic pumps operate within a specific RPM range (e.g., 1800 RPM for many standard applications).
Higher efficiency motors reduce energy consumption and heat generation, improving overall system reliability. The power factor, which affects the motor's current draw, should also be considered to minimize electrical costs and system strain.
The motor's operating environment can impact its performance and lifespan. Factors such as temperature, humidity, and exposure to contaminants must be considered when selecting a motor.
Ensure that the motor complies with relevant industry standards and certifications (e.g., NEMA, IEC) for safety and performance.
1. Flow Rate and Pressure: Calculate the required flow rate and pressure of the hydraulic pump.
2. Power Calculation: Use the formula mentioned earlier to calculate the required horsepower.
1. Standard vs. High-Efficiency Motors: Decide between standard and high-efficiency motors based on cost and energy savings.
2. Single-Phase vs. Three-Phase: Select a motor type based on the available power supply.
1. Match Pump Speed: Ensure the motor speed matches the pump's operational speed.
2. Adjustments: Consider using gearboxes or speed reducers if necessary.
1. Temperature Range: Ensure the motor can operate within the expected temperature range.
2. Protection Level: Choose a motor with appropriate protection (e.g., IP rating) for the environment.
1. Industry Standards: Verify compliance with relevant standards (e.g., UL, CE).
2. Energy Efficiency: Consider motors with high efficiency ratings for cost savings.
- Undersizing: Using a motor that is too small can lead to overheating and reduced lifespan.
- Oversizing: While a larger motor provides a safety margin, it can increase costs and energy consumption unnecessarily.
In modern hydraulic systems, motor control systems play a crucial role in optimizing performance. These systems can include variable frequency drives (VFDs) that allow for speed adjustment, improving efficiency and reducing wear on the pump and motor.
Many regions have regulations promoting the use of energy-efficient motors. Compliance with these regulations can lead to cost savings and environmental benefits.
Consider the ease of maintenance and repair when selecting a motor. Easy access to parts and service can reduce downtime and operational costs.
In an industrial setting, a hydraulic press requires a high-pressure pump to operate effectively. A three-phase AC motor with high efficiency is chosen to ensure reliable operation and minimize energy costs.
For mobile equipment like excavators, the motor must be compact and efficient while still meeting the pump's power requirements. A high-efficiency motor with a suitable power-to-weight ratio is selected.
In agricultural settings, hydraulic pumps are used in machinery such as irrigation systems and tractors. Here, motors are often selected based on durability and resistance to environmental factors like dust and moisture.
As technology advances, there is an increasing focus on smart motors and integrated systems that can optimize performance in real-time. These systems often include sensors and software to monitor and adjust motor operation based on changing conditions.
VFDs allow for the adjustment of motor speed, which can significantly improve efficiency and reduce wear on the pump and motor. They are particularly useful in applications where the load varies, as they can optimize energy consumption based on demand.
Smart motors integrate advanced sensors and control systems to monitor and adjust performance in real-time. These motors can optimize energy use, predict maintenance needs, and enhance overall system reliability.
EMDs are systems that control and manage the operation of electric motors. They can include features like soft starting, which reduces stress on the motor during startup, and advanced diagnostics for predictive maintenance.
By incorporating these advanced technologies and considerations, the selection of an AC motor for a hydraulic pump can be optimized to meet specific application needs while ensuring efficiency and reliability.
Selecting the right AC motor for a hydraulic pump involves careful consideration of the pump's requirements, motor characteristics, and environmental factors. By following these guidelines, you can ensure efficient operation, reliability, and cost-effectiveness of your hydraulic system.
The most important factor is ensuring the motor can deliver the required power (horsepower) to meet the pump's flow rate and pressure demands.
Use the formula: Power (hp) = [Flow Rate (gpm) × Pressure (psi)] / (1714 × Efficiency).
High-efficiency motors reduce energy consumption, lower operating costs, and minimize heat generation, improving system reliability.
Generally, three-phase motors are preferred for high-power applications due to their higher power capacity and efficiency. However, single-phase motors can be used for smaller pumps.
Environmental factors such as temperature, humidity, and exposure to contaminants can impact motor performance and lifespan. Choose motors with appropriate protection ratings (e.g., IP) for harsh environments.
