Selecting the right electric motor for a hydraulic pump is crucial for ensuring efficient and reliable operation of hydraulic systems. Hydraulic systems are widely used in various industries, including construction, manufacturing, and automotive, due to their ability to provide high power-to-weight ratios and precise control over mechanical movements. In this article, we will explore the key considerations and steps involved in selecting an appropriate electric motor for a hydraulic pump.
Hydraulic systems consist of several key components: the hydraulic pump, motor, valves, and reservoir. The pump converts mechanical energy into hydraulic energy, which is then transmitted to the motor to perform work. The motor, in turn, converts this hydraulic energy back into mechanical energy.

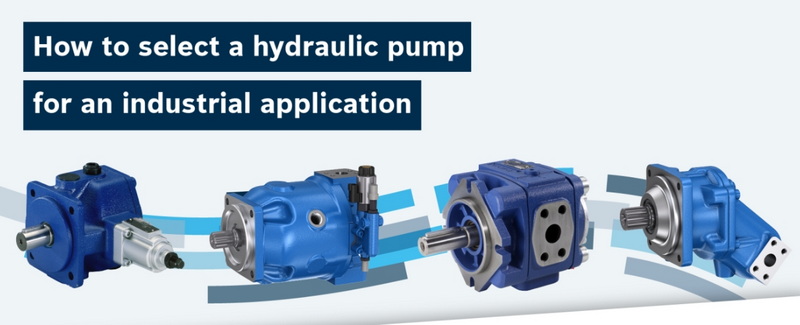

A hydraulic pump is a device that converts mechanical energy into hydraulic energy. It generates high pressure by pushing fluid into the system, which is then directed through valves to control the direction of flow and pressure. The most common types of hydraulic pumps include gear, vane, and piston pumps.
Gear pumps are simple and cost-effective, making them suitable for low-pressure applications. They consist of two interlocking gears that rotate to create suction and discharge. Gear pumps are often used in small machinery and equipment due to their compact size and ease of maintenance.
Vane pumps offer higher efficiency and are used in applications requiring medium pressure. They use a rotor with vanes to create suction and discharge. Vane pumps are known for their smooth operation and are commonly found in machinery that requires consistent flow rates.
Piston pumps are the most efficient and are used in high-pressure applications. They use pistons in a cylinder block to create suction and discharge. Piston pumps are ideal for heavy-duty applications such as construction equipment and large industrial machinery.
Hydraulic motors convert hydraulic energy back into mechanical energy. They are categorized into low-speed high-torque (LSHT) and high-speed low-torque (HSLT) types.
LSHT motors are ideal for applications requiring high torque at low speeds, such as in heavy construction equipment. These motors provide the necessary power to move heavy loads slowly and precisely.
HSLT motors are used in applications requiring high speed with lower torque, such as in hydraulic power units for machinery. They are suitable for tasks that need quick movement but do not require immense force.
When selecting an electric motor for a hydraulic pump, several factors must be considered:
1. Power Requirements: The motor must provide sufficient power to drive the pump at the required flow rate and pressure. The power requirement can be calculated using the formula:
hp=QP/(1714×EM)
where Q is the flow rate in gallons per minute (gpm), P is the pressure in pounds per square inch (psi), and EM is the mechanical efficiency of the pump.
2. Torque and Speed: Ensure the motor's torque and speed match the pump's requirements. Most hydraulic pumps require a motor with a compatible output shaft to ensure efficient energy transfer.
3. Motor Type: Common motor types include induction motors, brushless DC (BLDC) motors, and servo motors. Induction motors are widely used due to their reliability and cost-effectiveness, while BLDC motors offer higher efficiency and precision control.
4. Environmental Considerations: Depending on the application environment, motors may need to be designed for high temperatures, moisture resistance, or explosion-proofing. For example, in hazardous environments like chemical plants, explosion-proof motors are essential for safety.
5. Energy Efficiency: Selecting a motor with high efficiency can reduce energy costs and minimize environmental impact. Energy-efficient motors also tend to have longer lifespans and require less maintenance.
For a hydraulic pump requiring 13 HP at 2500 PSI and 12 GPM, you would need an electric motor capable of delivering slightly more than 13 HP to account for inefficiencies. A 15 HP motor would be a suitable choice, ensuring the system operates efficiently under varying loads.

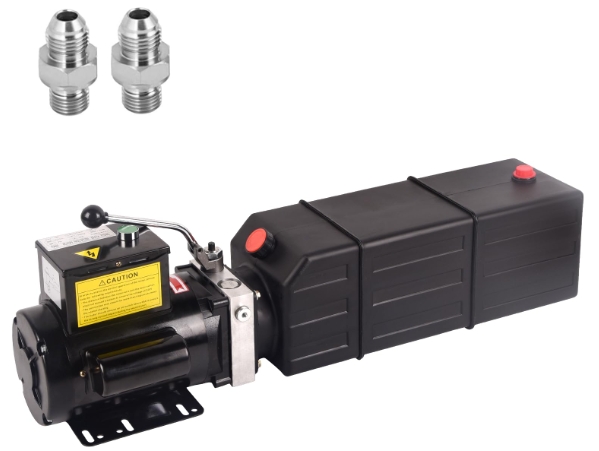

A hydraulic power unit (HPU) typically includes the electric motor, hydraulic pump, reservoir, valves, and sometimes a gearbox. HPUs are designed to simplify the setup and operation of hydraulic systems by integrating these components into a single unit.
- Simplified Setup: HPUs come pre-assembled, reducing the complexity of setting up a hydraulic system.
- Efficient Operation: By matching the motor and pump, HPUs ensure optimal performance and energy efficiency.
- Space Savings: Integrated units are more compact, making them ideal for applications where space is limited.
One common challenge is ensuring the motor's power output matches the hydraulic pump's requirements. Incorrect sizing can lead to inefficiencies, overheating, or system failure.
- Consult Experts: Seek advice from hydraulic system specialists to ensure accurate sizing and selection.
- Use Calculation Tools: Utilize software or calculators to determine the exact power requirements based on system specifications.
- Consider Future Upgrades: Select motors with some reserve capacity to accommodate potential future increases in system demands.
Recent advancements in hydraulic systems include the integration of smart technologies and automation. These advancements allow for real-time monitoring, improved efficiency, and enhanced reliability.
Smart hydraulic systems incorporate sensors and control systems to optimize performance. These systems can automatically adjust pressure and flow rates based on real-time feedback, reducing energy consumption and improving safety.
Automation technologies enable hydraulic systems to operate autonomously, reducing manual intervention and increasing productivity. Automated systems can also detect potential issues before they become major problems, reducing downtime and maintenance costs.
Regular maintenance is crucial for extending the lifespan of hydraulic systems and ensuring optimal performance. Common maintenance tasks include checking fluid levels, inspecting for leaks, and replacing worn components.
- Low Pressure: Check for leaks, clogged filters, or insufficient fluid levels.
- Overheating: Inspect for blockages in cooling systems or excessive load on the motor.
- Noise or Vibration: Check for misaligned components or worn-out parts.
Implementing a preventive maintenance schedule can significantly reduce the likelihood of system failures. This includes regular inspections, fluid analysis, and timely replacement of parts.
Several industries have successfully implemented hydraulic systems with well-selected motors, leading to improved efficiency and productivity.
In the construction industry, hydraulic systems are used extensively in heavy machinery like excavators and cranes. Proper motor selection ensures these machines operate efficiently under heavy loads, reducing downtime and increasing project completion rates.
In manufacturing, hydraulic systems are used for precision tasks such as assembly and material handling. High-efficiency motors help maintain consistent performance and reduce energy costs, contributing to overall production efficiency.
Selecting the right electric motor for a hydraulic pump is critical for achieving efficient and reliable operation of hydraulic systems. By understanding the key factors involved in motor selection and considering the specific requirements of your hydraulic pump, you can ensure optimal performance and longevity of your system.
The formula to calculate horsepower (hp) for a hydraulic pump is:
hp=QP/(1714×EM)
where Q is the flow rate in gpm, P is the pressure in psi, and EM is the mechanical efficiency of the pump.
Ensure the motor's power output matches the pump's requirements by calculating the horsepower needed based on the pump's flow rate and pressure. Also, verify that the motor's torque and speed are compatible with the pump's specifications.
Commonly used motors include induction motors, brushless DC (BLDC) motors, and servo motors. Induction motors are popular due to their reliability and cost-effectiveness.
HPUs offer simplified setup, efficient operation, and space savings by integrating the motor, pump, and other components into a single unit.
Selecting a motor with high efficiency and ensuring proper sizing can reduce energy consumption. Regular maintenance and monitoring of system performance also help maintain efficiency over time.
