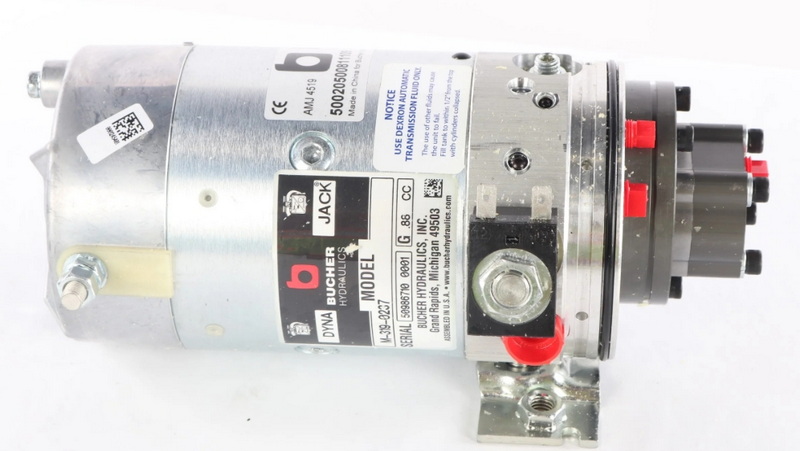

Hydraulic systems are the backbone of many industrial applications, providing the power and precision needed for various tasks. At the heart of these systems lie two crucial components: the hydraulic motor and pump. Proper sizing of these elements is essential for optimal performance, efficiency, and longevity of the entire hydraulic system. This comprehensive guide will walk you through the process of sizing hydraulic motors and pumps, providing valuable insights and practical tips to ensure your system operates at its best.
Before diving into the sizing process, it's crucial to understand the basic functions of hydraulic motors and pumps.

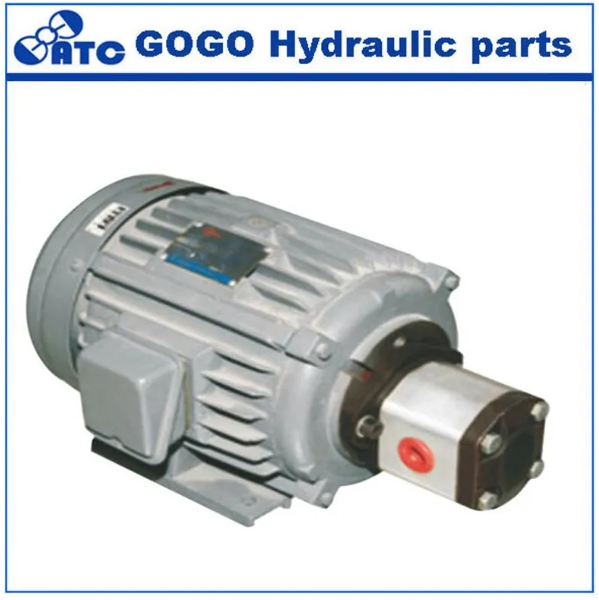

Hydraulic pumps are the primary source of power in a hydraulic system. They convert mechanical energy from a prime mover (usually an electric motor or internal combustion engine) into hydraulic energy in the form of fluid flow and pressure.
Hydraulic pumps come in various types, each with its own characteristics:
1. Gear Pumps: Simple and cost-effective, suitable for low to medium pressure applications.
2. Vane Pumps: Offer good efficiency and smooth operation, ideal for medium pressure systems.
3. Piston Pumps: Provide high efficiency and can handle high pressures, making them suitable for demanding applications.
Hydraulic motors convert hydraulic energy back into mechanical energy, typically in the form of rotational motion. They use the pressure and flow of hydraulic fluid to generate torque and rotation.
Like pumps, hydraulic motors also come in various types:
1. Gear Motors: Simple and robust, suitable for low to medium torque applications.
2. Vane Motors: Offer smooth operation and good efficiency, ideal for medium torque needs.
3. Piston Motors: Provide high efficiency and can handle high torque requirements, making them suitable for heavy-duty applications.
When sizing hydraulic motors and pumps, several key factors come into play:
1. System Requirements: Understand the specific needs of your application, including required flow rate, pressure, and power output.
2. Operating Conditions: Consider factors such as temperature, fluid viscosity, and duty cycle.
3. Efficiency: Account for the efficiency of both the motor and pump to ensure optimal performance.
4. Safety Margins: Always include a safety factor to accommodate unexpected loads or system changes.
5. Space Constraints: Consider the physical size limitations of your installation environment.
6. Environmental Factors: Take into account the operating environment, including potential exposure to dust, moisture, or corrosive substances.
7. Maintenance Requirements: Consider the ease of maintenance and accessibility for servicing when selecting components.

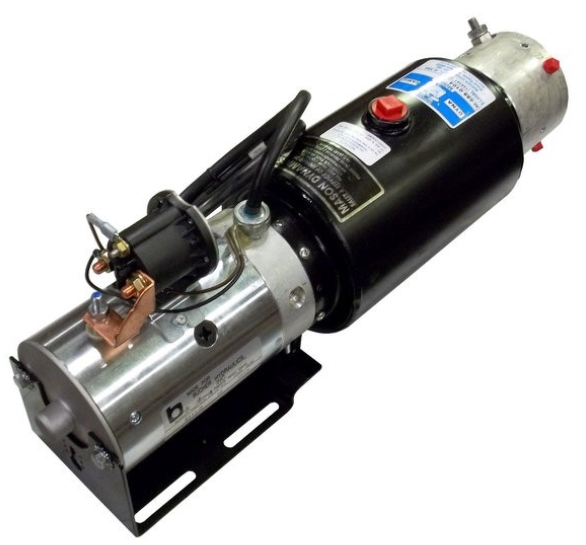

The process of sizing a hydraulic pump involves several steps:
The flow rate is the volume of fluid that needs to be moved through the system per unit of time. It's typically measured in gallons per minute (GPM) or liters per minute (LPM).
To calculate the required flow rate:
Q = V * n / 231
Where:
- Q = Flow rate (GPM)
- V = Displacement per revolution (cubic inches)
- n = Pump speed (RPM)
- 231 = Conversion factor (cubic inches per gallon)
The system pressure is determined by the load requirements of your application. It's typically measured in pounds per square inch (PSI) or bar.
To calculate the required pressure:
P = F / A
Where:
- P = Pressure (PSI)
- F = Force (lbs)
- A = Area (square inches)
The power required to drive the pump is a function of flow rate and pressure.
To calculate the required power:
HP = (Q * P) / (1714 * η)
Where:
- HP = Horsepower
- Q = Flow rate (GPM)
- P = Pressure (PSI)
- η = Pump efficiency (typically 0.8 to 0.9)
- 1714 = Conversion factor
Based on the calculated flow rate, pressure, and power requirements, select a pump that meets or exceeds these specifications. Consider factors such as pump type (gear, vane, piston), efficiency, and durability for your specific application.
When selecting a pump, it's important to consider the following additional factors:
- Volumetric Efficiency: This measures the pump's ability to maintain flow rate under pressure. Higher volumetric efficiency means less internal leakage and better overall performance.
- Mechanical Efficiency: This reflects the pump's ability to convert input power into hydraulic power. Higher mechanical efficiency results in less energy loss and heat generation.
- Noise Level: Some applications may require quieter operation. In such cases, consider pumps designed for low noise emission.
- Lifespan and Reliability: Research the expected lifespan and reliability of different pump models. This information can often be obtained from manufacturer data or industry reviews.
Sizing a hydraulic motor follows a similar process to pump sizing, but with some key differences:
Calculate the torque needed for your application:
T = F * r
Where:
- T = Torque (lb-ft)
- F = Force (lbs)
- r = Radius (ft)
Determine the rotational speed needed for your application, typically in RPM.
Use the torque and speed to calculate the required power:
HP = (T * n) / 5252
Where:
- HP = Horsepower
- T = Torque (lb-ft)
- n = Speed (RPM)
- 5252 = Conversion factor
Calculate the motor displacement needed:
D = (231 * Q) / n
Where:
- D = Displacement (cubic inches per revolution)
- Q = Flow rate (GPM)
- n = Speed (RPM)
- 231 = Conversion factor
Choose a hydraulic motor that meets or exceeds the calculated torque, speed, power, and displacement requirements. Consider factors such as motor type (gear, vane, piston), efficiency, and durability for your specific application.
When selecting a hydraulic motor, also consider these additional factors:
- Starting Torque: Ensure the motor can provide sufficient torque to overcome initial loads and inertia.
- Speed Range: Verify that the motor can operate efficiently across the required speed range for your application.
- Pressure Ratings: Check that the motor can handle both the continuous and peak pressures expected in your system.
- Mounting Options: Consider the available mounting configurations and ensure compatibility with your system design.
When sizing hydraulic motors and pumps, keep these practical considerations in mind:
1. Oversizing: While it may seem prudent to oversize components for safety, excessive oversizing can lead to inefficiency and increased costs.
2. System Losses: Account for pressure drops in valves, fittings, and lines when calculating system requirements.
3. Fluid Properties: Consider the viscosity and temperature range of your hydraulic fluid, as these can affect system performance.
4. Duty Cycle: Factor in the expected duty cycle of your application to ensure components can handle continuous or intermittent operation.
5. Future Expansion: If possible, allow for some additional capacity to accommodate future system expansion or modifications.
6. Energy Efficiency: Consider using variable displacement pumps or motors for applications with varying load requirements to improve overall system efficiency.
7. Control Systems: Evaluate the compatibility of the selected components with your control system, including any electronic interfaces or sensors.
8. Cost of Ownership: Look beyond the initial purchase price and consider factors such as energy consumption, maintenance requirements, and expected lifespan when making your selection.
Let's consider a practical example of sizing a hydraulic motor and pump for a material handling equipment:
Application Requirements:
- Lift a 5,000 lb load
- Lift speed of 20 feet per minute
- Operating pressure of 2,500 PSI
Step 1: Calculate Flow Rate
Cylinder area = (5,000 lbs) / (2,500 PSI) = 2 square inches
Cylinder diameter = √(4 * 2 / π) ≈ 1.6 inches
Flow rate = (π * 1.62 * 20) / (4 * 231) ≈ 1.73 GPM
Step 2: Calculate Power
HP = (1.73 * 2,500) / (1714 * 0.85) ≈ 3 HP
Step 3: Select Pump
Based on the calculations, we would select a pump with:
- Flow rate ≥ 1.73 GPM
- Pressure rating ≥ 2,500 PSI
- Power requirement ≈ 3 HP
Step 4: Size Hydraulic Motor
Assuming we need to power a winch with a 6-inch drum radius:
Torque = (5,000 lbs * 0.5 ft) = 2,500 lb-ft
Speed = (20 ft/min) / (2π * 0.5 ft) ≈ 6.37 RPM
Motor displacement = (231 * 1.73) / 6.37 ≈ 62.7 cubic inches/rev
We would then select a low-speed, high-torque hydraulic motor meeting these specifications.
As hydraulic systems become more complex and demanding, additional factors may need to be considered in the sizing process:
In high-performance or continuous-duty applications, heat generation can become a significant issue. When sizing pumps and motors for such systems, consider:
- Heat Generation: Calculate the expected heat generation based on system efficiency and duty cycle.
- Cooling Requirements: Determine if additional cooling systems (e.g., oil coolers) are necessary to maintain optimal fluid temperature.
- Temperature Monitoring: Consider incorporating temperature sensors and controls to prevent overheating.
The cleanliness of hydraulic fluid is crucial for system longevity and performance. When sizing components, consider:
- Filtration Requirements: Determine the appropriate level of filtration based on the cleanliness requirements of the selected pump and motor.
- Bypass Filtration: Consider incorporating bypass filtration systems for critical applications or those with high contamination risks.
- Fluid Monitoring: Evaluate the need for fluid condition monitoring systems to ensure optimal fluid quality.
For applications with rapid changes in load or speed, consider the dynamic response of the system:
- Acceleration and Deceleration: Ensure the selected components can handle the required rates of acceleration and deceleration.
- Pressure Spikes: Account for potential pressure spikes during rapid load changes and select components with appropriate pressure ratings.
- Accumulator Sizing: Consider incorporating accumulators to smooth out pressure fluctuations and improve system response.
As you size hydraulic motors and pumps, it's worth considering some of the emerging technologies that may influence your choices:
These hybrid systems combine the power density of hydraulics with the precision control of electric motors. When sizing for applications that require high force and precise positioning, consider:
- Power Requirements: Evaluate the balance between hydraulic and electric power sources.
- Control Integration: Ensure compatibility with advanced control systems and feedback mechanisms.
Digital hydraulic systems use arrays of on/off valves to provide more precise and efficient control. When sizing pumps and motors for digital hydraulic systems, consider:
- Flow Resolution: Determine the required flow resolution and select components that can provide the necessary granularity.
- Response Time: Ensure the selected components can handle the rapid switching required in digital hydraulic systems.
The integration of Internet of Things (IoT) technology in hydraulic systems allows for real-time monitoring and predictive maintenance. When sizing components, consider:
- Sensor Integration: Evaluate the need for integrated sensors for pressure, temperature, and flow monitoring.
- Data Communication: Ensure compatibility with IoT platforms and data analysis systems.
Proper sizing of hydraulic motors and pumps is crucial for the efficient and reliable operation of hydraulic systems. By carefully considering system requirements, operating conditions, and component specifications, you can select the optimal components for your application. Remember to account for factors such as efficiency, safety margins, and potential future expansion when making your selections.
While the calculations and considerations may seem complex, the process becomes more manageable with practice and experience. Always consult with hydraulic system experts or component manufacturers when in doubt, as they can provide valuable insights and recommendations based on your specific application needs.
By following the guidelines outlined in this article and staying informed about the latest developments in hydraulic technology, you'll be well-equipped to size hydraulic motors and pumps effectively, ensuring the success and longevity of your hydraulic systems.
A hydraulic pump converts mechanical energy into hydraulic energy by pressurizing fluid, while a hydraulic motor does the opposite, converting hydraulic energy back into mechanical energy. Pumps typically create flow and pressure, while motors use that flow and pressure to generate torque and rotation.
Efficiency is typically provided by the manufacturer in the form of volumetric and mechanical efficiency. Overall efficiency is the product of these two. For pumps, efficiency is usually between 80-90%, while motors can range from 70-95% depending on the type and operating conditions.
While the basic principles are similar, different types of pumps and motors (e.g., gear, vane, piston) may have specific considerations. Always refer to manufacturer guidelines and consult with experts when sizing specialized components.
It's good practice to reassess your hydraulic system sizing whenever there are significant changes in your application requirements, such as increased loads or speeds. Additionally, a periodic review (e.g., annually) can help identify potential inefficiencies or areas for improvement.
Undersizing can lead to inadequate performance, overheating, and premature component failure. Oversizing, while less immediately problematic, can result in unnecessary costs, reduced efficiency, and potential issues with control precision. Proper sizing ensures optimal performance, efficiency, and longevity of the hydraulic system.
