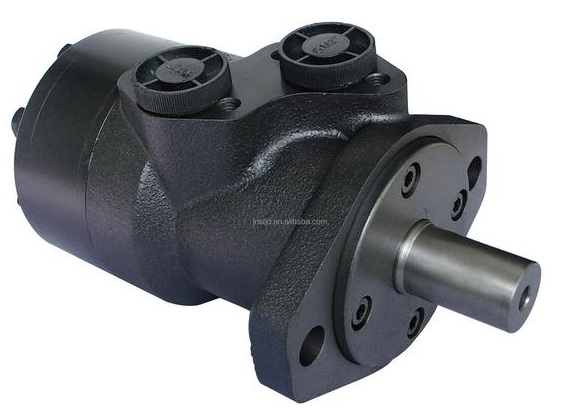

Hydraulic motors are essential components in many industrial and mobile applications, providing powerful and efficient rotational force. However, there are situations where controlling and reducing the speed of these motors is crucial for optimal performance, safety, and precision. In this comprehensive guide, we'll explore various methods and techniques to slow down hydraulic motors effectively.

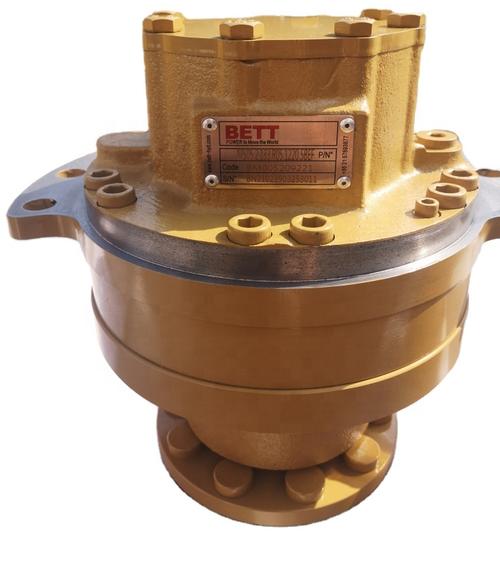

Before delving into the specific methods of slowing down hydraulic motors, it's important to understand the basic principles of hydraulic motor speed control. The speed of a hydraulic motor is primarily determined by the flow rate of hydraulic fluid entering the motor. By manipulating this flow rate, we can effectively control the motor's speed.
Several factors influence the speed of a hydraulic motor:
1. Flow rate of hydraulic fluid
2. Displacement of the motor
3. System pressure
4. Load on the motor
5. Efficiency of the motor
Proper speed control of hydraulic motors is crucial for several reasons:
1. Safety: Controlling motor speed helps prevent accidents and equipment damage.
2. Precision: Many applications require precise speed control for accurate operations.
3. Energy Efficiency: Optimal speed control can significantly reduce energy consumption.
4. Equipment Longevity: Proper speed management can extend the life of hydraulic components.
5. Process Optimization: Adjustable speeds allow for fine-tuning of industrial processes.
Now, let's explore the various techniques and components used to reduce the speed of hydraulic motors.
Flow control valves are one of the most common and effective methods for controlling hydraulic motor speed. These valves regulate the amount of fluid flowing into the motor, directly affecting its rotational speed.
- Needle Valves: Simple and cost-effective, but care must be taken to avoid pressure intensification.
- Pressure-Compensated Flow Control Valves: Maintain consistent flow regardless of pressure variations.
- Temperature-Compensated Flow Control Valves: Adjust for changes in fluid viscosity due to temperature fluctuations.
- Meter-In Flow Control: Restricts flow entering the motor, the most common method.
- Meter-Out Flow Control: Limits fluid exiting the motor, but can lead to pressure intensification in certain situations.
Using a variable displacement pump in conjunction with the hydraulic motor allows for precise speed control by adjusting the pump's output flow rate.
Benefits of using variable displacement pumps:
- Energy-efficient
- Smooth speed control
- Reduced heat generation
For applications requiring high responsiveness and precise control, proportional or servo valves can be employed. These valves use electronic control signals to adjust the spool position, providing accurate and dynamic speed regulation.
In some cases, combining a hydraulic motor with a pump can create a closed-loop system that offers excellent speed control and energy efficiency.
Modern hydraulic systems often incorporate electronic control systems to manage motor speed. These systems can:
- Monitor system parameters in real-time
- Adjust flow rates automatically
- Implement complex control algorithms for optimal performance
When designing a hydraulic circuit to control motor speed, several configurations can be employed:
This method places the flow control valve in series between the pump and the motor, eliminating the effect of pump slippage and providing a wider range of adjustable speed.
A combination of bypass and series methods, this circuit uses a special three-port flow control valve to regulate motor speed.
In this configuration, excess flow is diverted back to the tank, allowing for speed control without affecting system pressure.
When implementing speed control for hydraulic motors, keep the following factors in mind:
1. System Efficiency: Choose methods that minimize energy loss and heat generation.
2. Load Characteristics: Consider the varying loads the motor may encounter during operation.
3. Response Time: Select components that provide the necessary speed of response for your application.
4. Environmental Factors: Account for temperature changes and their effect on fluid viscosity.
5. Maintenance Requirements: Opt for solutions that are reliable and easy to maintain.
Before implementing any speed control method, it's crucial to perform a thorough analysis of the hydraulic system:
1. Load Profile: Understand the range of loads the motor will experience.
2. Speed Range: Determine the required speed range for the application.
3. Duty Cycle: Consider how often and for how long the motor will operate at different speeds.
4. System Pressure: Ensure the chosen method is compatible with the system's pressure requirements.
For applications requiring extremely precise speed control, consider these advanced techniques:
Implementing feedback sensors and closed-loop control algorithms can provide highly accurate speed regulation.
1. Speed sensor (e.g., encoder or tachometer)
2. Controller (PLC or dedicated motion controller)
3. Actuator (e.g., proportional valve or variable displacement pump)
4. Feedback loop

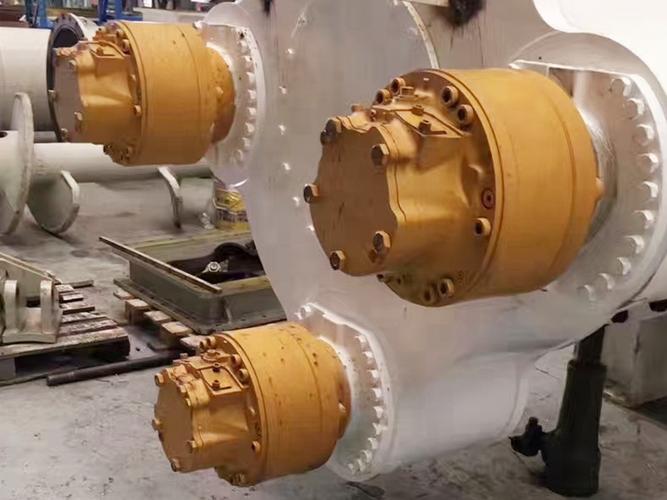

In systems with multiple hydraulic motors, synchronizing their speeds can be crucial. This can be achieved through:
- Electronic synchronization
- Mechanical synchronization (e.g., flow dividers)
- Hydraulic synchronization circuits
Load-sensing technology adjusts the system pressure and flow based on the actual load, optimizing efficiency and control.
Combining electric and hydraulic technologies can provide precise speed control with the benefits of both systems.
To illustrate the practical application of these methods, let's examine a few case studies:
1. Construction Equipment: A hydraulic excavator using proportional valves and electronic control to achieve precise bucket movements.
2. Industrial Manufacturing: A hydraulic press utilizing a variable displacement pump for energy-efficient speed control during different stages of operation.
3. Mobile Hydraulics: A forestry machine employing load-sensing technology to optimize motor speed across various functions.
4. Renewable Energy: A wind turbine pitch control system using closed-loop hydraulic motor speed control for blade angle adjustment.
5. Marine Applications: A ship's steering system utilizing electro-hydraulic actuation for precise rudder control in varying sea conditions.
Even with proper implementation, issues can arise in hydraulic motor speed control systems. Here are some common problems and their potential solutions:
1. Inconsistent Speed: Check for air in the system, worn components, or inadequate pressure compensation.
2. Slow Response: Evaluate the control system, valve response times, and hydraulic line sizing.
3. Overheating: Ensure proper cooling and consider the efficiency of the chosen speed control method.
4. Pressure Spikes: Implement proper pressure relief and consider using cushioned valves.
To ensure long-term reliability and performance of hydraulic motor speed control systems:
1. Regularly inspect and clean hydraulic components
2. Monitor fluid quality and replace as needed
3. Check for leaks and address them promptly
4. Calibrate sensors and control systems periodically
5. Train operators on proper use and maintenance procedures
As technology advances, we can expect to see:
- Increased integration of IoT and data analytics for predictive maintenance and optimization
- Development of more energy-efficient control methods
- Greater use of electro-hydraulic systems for improved precision and responsiveness
- Implementation of artificial intelligence for adaptive speed control
- Advancements in smart fluid technology for enhanced performance
Slowing down a hydraulic motor is a critical aspect of many hydraulic systems, impacting efficiency, precision, and overall performance. By understanding the various methods available – from simple flow control valves to advanced electronic control systems – engineers and technicians can select the most appropriate solution for their specific application.
Remember that effective speed control is not just about reducing speed, but about achieving the right speed for the task at hand. Whether you're working with construction equipment, industrial machinery, or mobile hydraulics, the principles and techniques discussed in this article will help you optimize your hydraulic motor's performance.
As the field of hydraulics continues to evolve, staying informed about new technologies and best practices will be crucial for maintaining competitive edge and ensuring the longevity and efficiency of hydraulic systems.
The most common method to control hydraulic motor speed is using flow control valves, particularly meter-in flow control. This involves limiting the rate of flow entering the motor's work ports, which directly affects its rotational speed.
While needle valves can be used to control hydraulic motor speed, they should be used with caution. Needle valves restrict flow in both directions, which can be suitable for low-speed applications with gravity down. However, they lack the reverse flow check valve found in proper flow control valves, which can lead to issues in certain applications.
Using a variable displacement pump for hydraulic motor speed control offers several advantages:
- Energy efficiency, as the pump only produces the required flow
- Smooth and continuous speed adjustment
- Reduced heat generation in the hydraulic system
- Ability to control multiple motors from a single pump
Load can significantly impact hydraulic motor speed control. As the load increases, it creates back pressure in the system, which can reduce the effective flow rate to the motor, potentially slowing it down. This is why pressure-compensated flow control valves or load-sensing systems are often used to maintain consistent speed regardless of load variations.
Meter-in flow control restricts the flow of hydraulic fluid entering the motor, while meter-out flow control limits the fluid exiting the motor. Meter-in is generally preferred as it's safer and more efficient. Meter-out can potentially cause pressure intensification, especially when controlling double-acting cylinders, and should be used with caution.
