Hydraulic motors are essential components in many industrial and mobile applications, providing powerful and efficient rotational force. However, controlling and stopping these motors effectively is crucial for safety, precision, and equipment longevity. This comprehensive guide will explore various methods and techniques to stop hydraulic motors from rotating, ensuring optimal performance and safety in your hydraulic systems.
Before delving into stopping methods, it's important to understand how hydraulic motors work. Hydraulic motors convert hydraulic energy into mechanical energy, using pressurized fluid to generate rotational motion. They are widely used in construction equipment, manufacturing machinery, and various industrial applications due to their high power density and reliability.
Hydraulic motors come in various types, including:

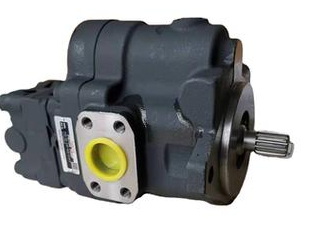

1. Gear motors
2. Vane motors

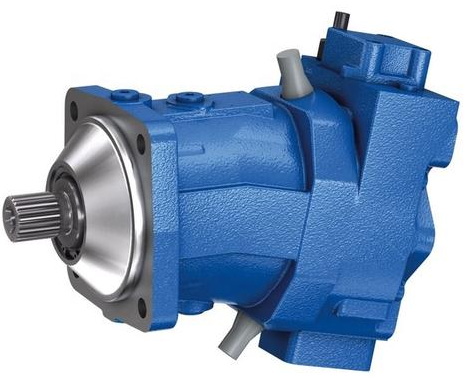

3. Piston motors (axial and radial)

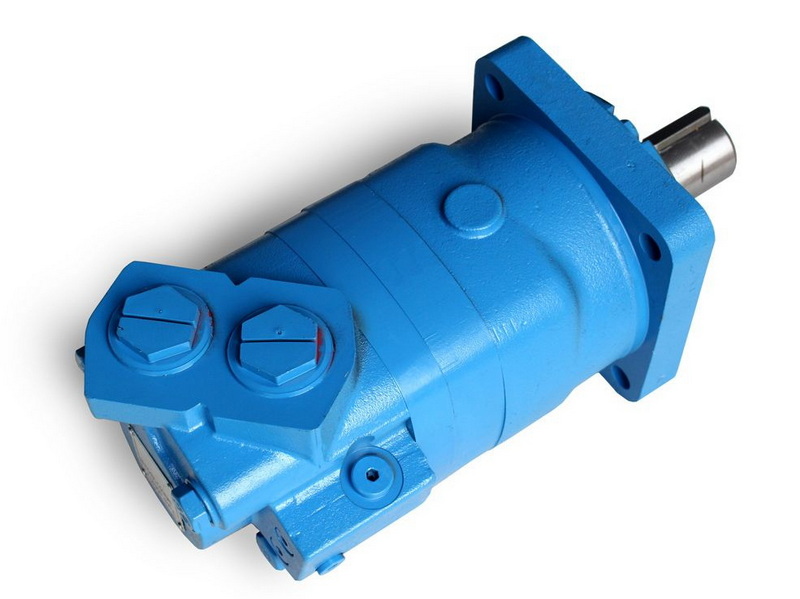

4. Orbit motors
Each type has its own characteristics and is suited for different applications. Understanding the specific type of motor in your system is crucial for implementing the most effective stopping method.
Hydraulic motors operate on the principle of fluid displacement. As pressurized fluid enters the motor, it acts on internal components (such as gears, vanes, or pistons) to create rotational motion. The speed and torque of the motor are determined by factors such as fluid pressure, flow rate, and motor displacement.
Stopping a hydraulic motor isn't always as simple as cutting off the fluid supply. Several factors can complicate the process:
1. Inertia: The momentum of the motor and connected load can cause continued rotation even after fluid flow stops.
2. Back pressure: Sudden stops can create damaging pressure spikes in the system.
3. Load-induced motion: In some applications, external forces may continue to drive the motor.
4. Precision requirements: Some applications need precise stopping positions.
5. System complexity: More complex hydraulic systems may require coordinated stopping of multiple components.
6. Environmental factors: Temperature, contamination, and other environmental conditions can affect stopping performance.
Inertia plays a significant role in the stopping process of hydraulic motors, especially in high-speed or high-mass applications. The rotational energy stored in the motor and connected load must be dissipated to achieve a complete stop. Failure to account for inertia can result in overshooting the desired stop position or causing excessive wear on system components.
The most basic method to stop a hydraulic motor is by using control valves. By closing the inlet and outlet valves simultaneously, you can effectively halt the flow of hydraulic fluid, causing the motor to stop.
Advantages:
- Simple and cost-effective
- Suitable for many applications
- Quick response time
Disadvantages:
- May not provide precise stopping
- Can cause abrupt stops, potentially damaging the system
- Limited control over deceleration rate
Advanced Valve Control Techniques:
- Proportional valves: These allow for more gradual flow control, enabling smoother stops.
- Servo valves: Offer high-precision control for applications requiring exact stopping positions.
- Multi-stage valving: Combines different valve types for optimized stopping performance.
Brake valves are specialized hydraulic components designed to provide controlled stopping of hydraulic motors. They work by gradually restricting fluid flow, allowing for smoother deceleration.
Types of Brake Valves:
- Counterbalance valves
- Motion control valves
- Load-holding valves
- Pilot-operated check valves
Advantages:
- Smooth, controlled stopping
- Can hold loads in position
- Prevent motor from freewheeling
- Adjustable deceleration rates
Disadvantages:
- More complex than simple valve control
- May require additional system components
- Potential for increased system cost
Application Considerations:
When selecting a brake valve, consider factors such as:
- System pressure
- Flow rate
- Load characteristics
- Required stopping time
- Environmental conditions
Mechanical brakes provide a physical means of stopping the motor shaft. These can be spring-applied, hydraulically released brakes or electrically actuated systems.
Advantages:
- Positive stopping action
- Can hold position even without hydraulic pressure
- Suitable for emergency stops
- Independent of hydraulic system pressure
Disadvantages:
- Adds complexity to the system
- Requires maintenance
- May introduce additional heat into the system
- Potential for wear over time
Types of Mechanical Brakes:
1. Disc brakes
2. Drum brakes
3. Caliper brakes
4. Multiple disc brakes
Each type has its own strengths and is suited for different applications. For example, multiple disc brakes are often used in high-torque applications, while caliper brakes might be preferred for their compact design.
In some applications, regenerative braking can be employed. This method uses the motor as a pump during deceleration, converting kinetic energy back into hydraulic energy.
Advantages:
- Energy-efficient
- Provides smooth deceleration
- Can recover energy for reuse
- Reduces wear on mechanical components
Disadvantages:
- Requires more complex control systems
- Not suitable for all applications
- May require energy storage solutions
Implementing Regenerative Braking:
To implement regenerative braking effectively:
1. Assess the potential energy recovery in your application
2. Design the hydraulic circuit to accommodate reversed flow
3. Implement control systems to manage the regenerative process
4. Consider energy storage options (accumulators, batteries, etc.)
5. Ensure system components can handle bidirectional operation
Advanced electronic control systems can provide precise stopping control for hydraulic motors. These systems can integrate multiple stopping methods and adjust parameters in real-time.
Advantages:
- High precision
- Adaptable to changing conditions
- Can optimize stopping for efficiency and wear reduction
- Enables data logging and analysis for system improvement
Disadvantages:
- More expensive
- Requires specialized knowledge to implement and maintain
- Potential for software-related issues
Key Components of Electronic Control Systems:
1. Sensors (pressure, flow, position, temperature)
2. Programmable Logic Controllers (PLCs) or dedicated hydraulic controllers
3. Actuators (proportional valves, servo valves)
4. Human-Machine Interface (HMI) for operator control
5. Communication networks (for integration with other systems)
To implement an effective stopping strategy for your hydraulic motor, consider the following steps:
1. Analyze Your Application: Understand the specific requirements of your system, including stopping precision, frequency of stops, and load characteristics.
2. Choose the Appropriate Method: Based on your analysis, select the stopping method or combination of methods that best suits your needs.
3. Design the System: Incorporate the chosen stopping method into your hydraulic system design, ensuring compatibility with existing components.
4. Test and Optimize: Conduct thorough testing to ensure the stopping method performs as expected. Adjust parameters as necessary for optimal performance.
5. Implement Safety Measures: Ensure that emergency stop procedures are in place and that the stopping method doesn't introduce new safety risks.
6. Maintain the System: Regular maintenance of all components, including those related to motor stopping, is crucial for long-term reliability.
7. Train Personnel: Provide comprehensive training to operators and maintenance staff on the proper use and maintenance of the stopping system.
8. Monitor and Improve: Continuously monitor system performance and gather data to identify opportunities for improvement.
When implementing a stopping strategy, it's crucial to consider how the chosen method will integrate with the overall hydraulic system. This includes:
- Compatibility with existing components
- Impact on system pressure and flow
- Integration with control systems
- Effects on system efficiency and performance
In a hydraulic excavator, precise control of the boom and arm movements is crucial. Engineers implemented a combination of brake valves and electronic control to achieve smooth stops and hold positions under load.
Result: Improved operator control and reduced wear on hydraulic components.
A large hydraulic press required rapid stopping for emergency situations. A high-performance mechanical brake system was installed, capable of stopping the press within milliseconds.
Result: Enhanced safety and reduced risk of material damage during emergency stops.
In a wind turbine pitch control system, regenerative braking was implemented to control blade rotation. This method allowed for energy recovery during blade adjustments.
Result: Improved energy efficiency and smoother pitch control operations.
1. Gradual Deceleration: Whenever possible, implement gradual stopping to reduce stress on the system and improve component longevity.
2. Monitor System Pressure: Use pressure sensors to monitor system pressure during stopping to prevent damaging pressure spikes.
3. Consider Load Characteristics: Tailor your stopping method to the specific load characteristics of your application.
4. Implement Redundancy: For critical applications, consider implementing redundant stopping methods for added safety.
5. Regular Maintenance: Conduct regular inspections and maintenance on all components involved in motor stopping to ensure reliable performance.
6. Training: Ensure that operators and maintenance personnel are properly trained in the operation and maintenance of the stopping systems.
7. Documentation: Maintain detailed documentation of system design, operating procedures, and maintenance schedules.
8. Periodic Review: Regularly review and update stopping strategies to incorporate new technologies and best practices.
Implementing predictive maintenance techniques can significantly improve the reliability and performance of hydraulic motor stopping systems. This may include:
- Vibration analysis to detect early signs of mechanical wear
- Oil analysis to monitor fluid condition and contamination levels
- Thermal imaging to identify potential hotspots or areas of excessive friction
- Data analytics to predict component failure based on historical performance
As hydraulic systems continue to evolve, new technologies are emerging that could revolutionize how we stop hydraulic motors:
1. Smart Fluid Technology: Magnetorheological fluids that can change viscosity in response to magnetic fields, potentially allowing for more precise stopping control.
2. AI-Driven Control Systems: Artificial intelligence algorithms that can predict optimal stopping parameters based on real-time system data.
3. Energy Recovery Systems: Advanced regenerative braking systems that can store and reuse a higher percentage of recovered energy.
4. Nano-engineered Materials: New materials for brake components that offer improved performance and longevity.
5. Wireless Control Systems: Remote monitoring and control capabilities for hydraulic systems, allowing for more responsive stopping in distributed systems.
6. Hybrid Hydraulic-Electric Systems: Combining hydraulic and electric technologies for optimized performance and energy efficiency.
7. Advanced Sensor Technologies: Next-generation sensors providing more accurate and comprehensive system data for improved control.
As these technologies mature, we can expect to see:
- More precise and efficient stopping methods
- Increased integration of stopping systems with overall machine control
- Greater emphasis on energy recovery and sustainability
- Enhanced safety features through predictive algorithms and real-time monitoring
Effectively stopping hydraulic motors is a critical aspect of hydraulic system design and operation. By understanding the various methods available and carefully considering the specific requirements of your application, you can implement a stopping strategy that enhances safety, improves performance, and extends the life of your hydraulic components.
Remember that the best stopping method may often be a combination of techniques, tailored to your specific needs. Regular maintenance, ongoing training, and staying abreast of emerging technologies will ensure that your hydraulic systems continue to operate at peak efficiency and safety.
As hydraulic technology continues to advance, the methods for stopping hydraulic motors will likely become even more sophisticated and efficient. By staying informed about these developments and continuously evaluating your system's performance, you can ensure that your hydraulic applications remain at the forefront of safety and efficiency.
The most common method to stop a hydraulic motor is through valve control, typically using directional control valves to cut off the flow of hydraulic fluid to the motor. This method is simple and effective for many applications, but may not provide the smoothest or most precise stopping action.
A brake valve in a hydraulic system works by gradually restricting the flow of hydraulic fluid as it leaves the motor. This creates back pressure that slows the motor down in a controlled manner. Brake valves can be adjusted to provide different rates of deceleration and can also hold loads in position when the system is not in motion.
Regenerative braking is not suitable for all hydraulic motor applications. It works best in systems where there is significant kinetic energy to recover, such as in large, high-speed, or heavily loaded applications. It also requires a hydraulic system design that can accommodate the reversed flow of hydraulic fluid and store or utilize the recovered energy.
Electronic control systems offer several advantages for stopping hydraulic motors:
- Precise control over stopping parameters
- Ability to adapt to changing conditions in real-time
- Integration with other system controls for optimized performance
- Data logging and analysis capabilities for system improvement
- Potential for remote monitoring and control
The maintenance frequency for hydraulic motor braking systems depends on factors such as usage intensity, operating conditions, and the specific type of system. Generally, visual inspections should be performed daily, with more thorough inspections and maintenance carried out weekly or monthly. Complete system overhauls may be necessary annually or bi-annually, depending on the application. Always follow manufacturer recommendations for maintenance schedules.
