How To Take Apart Dafnoss Hydraulic Motor?

Content Menu

Introduction to Danfoss Hydraulic Motors

Safety Precautions

Disassembly Steps

>> 1. Prepare the Motor:

>> 2. Remove End Cover:

>> 3. Remove Gearwheel Set:

>> 4. Remove Cardan Shaft:

>> 5. Remove Distributor Plate:

>> 6. Remove Shaft Seal and Bearing:

Cleaning and Inspection

Assembly

Troubleshooting Common Issues

Maintenance Tips

Advanced Diagnostic Techniques

Additional Tips for Handling Components

Importance of Proper Storage

Training and Resources

Conclusion

Frequently Asked Questions

>> 1. What Safety Precautions Should I Take When Disassembling a Hydraulic Motor?

>> 2. How Do I Remove the End Cover of a Danfoss Hydraulic Motor?

>> 3. What Tools Are Needed for Disassembling a Danfoss Hydraulic Motor?

>> 4. How Should I Clean the Components After Disassembly?

>> 5. What Lubrication Is Required for Reassembly?

Disassembling a Danfoss hydraulic motor is a complex process that requires careful attention to detail and adherence to safety protocols. This article will guide you through the steps involved in taking apart a Danfoss hydraulic motor, highlighting key components and procedures.

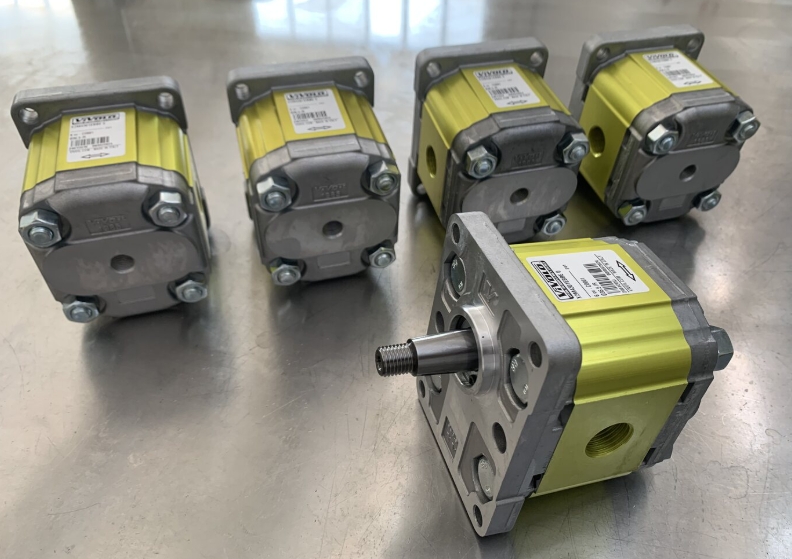

How To Take Apart Dafnoss Hydraulic Motor

Introduction to Danfoss Hydraulic Motors

Danfoss hydraulic motors are widely used in various industrial applications due to their reliability and efficiency. These motors convert hydraulic energy into mechanical energy, making them essential components in systems requiring high torque and low speed. Understanding how to disassemble and repair these motors is crucial for maintaining equipment and ensuring operational efficiency.

Safety Precautions

Before starting the disassembly process, it is essential to take necessary safety precautions:

- Ensure the System is Depressurized: Always ensure that the hydraulic system is fully depressurized to avoid accidents. This involves closing all valves and allowing the system to drain completely.

- Use Proper Tools: Use the correct tools for each step to prevent damage to components. Incorrect tools can lead to stripped threads or damaged parts.

- Wear Protective Gear: Wear protective gloves and safety glasses to protect yourself from potential hazards such as flying debris or hydraulic fluid spills.

Disassembly Steps

The disassembly process involves several key steps:

1. Prepare the Motor:

- Place the motor in a holding tool with the output shaft facing downwards. This will help stabilize the motor during disassembly.

- Ensure all safety precautions are in place. Double-check that the system is depressurized and you have the correct tools.

2. Remove End Cover:

- Use a socket wrench to loosen the bolts holding the end cover. The size of the socket may vary depending on the motor model (e.g., 13 mm or 16 mm).

- Carefully lift the end cover off. Be aware of any check valves or other components that might fall out. It is advisable to have a container ready to catch any small parts.

3. Remove Gearwheel Set:

- Hold your fingers under the gearwheel set to prevent it from falling.

- Gently pull the gearwheel set out of the motor housing. Be cautious not to damage any of the gears or shafts.

4. Remove Cardan Shaft:

- Carefully pull the cardan shaft out of the motor housing.

- Ensure all splines are clear of obstructions. If the shaft is stuck, do not force it, as this could damage the motor.

5. Remove Distributor Plate:

- Gently pull the distributor plate out of the motor housing.

- Be aware of any O-rings or other components that might need to be removed. These parts are often small and can be easily lost.

6. Remove Shaft Seal and Bearing:

- Use a hydraulic press or appropriate tools to remove the shaft seal and bearing race.

- Ensure all parts are handled carefully to avoid damage. The bearing race can be particularly fragile.

Cleaning and Inspection

After disassembly, it is crucial to clean and inspect all components:

- Cleaning: Use low aromatic kerosene to clean all parts thoroughly. This will help remove any dirt or debris that may have accumulated during operation.

- Inspection: Check each component for wear or damage and replace as necessary. Pay particular attention to moving parts and seals, as these are prone to wear.

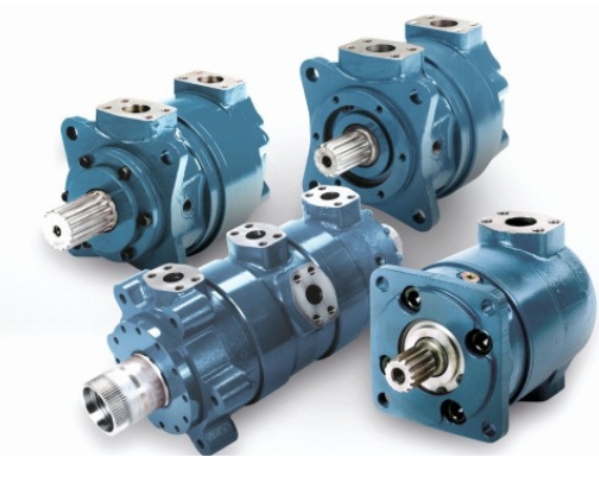

Take Apart Dafnoss Hydraulic Motor_3

Assembly

Before reassembling the motor, ensure all parts are properly lubricated:

- Lubrication: Use hydraulic oil to lubricate moving parts and vaseline for rubber components. This will help reduce friction and ensure smooth operation.

- Reassembly: Follow the reverse steps of disassembly, ensuring all components are correctly aligned and secured. Tighten bolts in a star pattern to avoid uneven pressure.

Troubleshooting Common Issues

During disassembly or reassembly, you may encounter common issues such as stuck parts or damaged components. Here are some tips for troubleshooting:

- Stuck Parts: If a part is stuck, do not force it. Instead, apply penetrating oil and let it sit for a few hours before attempting to remove it again.

- Damaged Components: Inspect all components carefully during disassembly. If any parts are damaged, replace them before reassembling the motor.

Maintenance Tips

Regular maintenance can extend the lifespan of your Danfoss hydraulic motor:

- Regular Inspection: Regularly inspect the motor for signs of wear or damage.

- Fluid Quality: Ensure the hydraulic fluid is clean and of the correct viscosity to prevent premature wear.

- Operating Conditions: Monitor operating conditions such as temperature and pressure to ensure they are within recommended ranges.

Advanced Diagnostic Techniques

For more complex issues, advanced diagnostic techniques may be necessary:

- Pressure Testing: Use pressure testing equipment to identify leaks or blockages in the hydraulic system.

- Vibration Analysis: Perform vibration analysis to detect imbalances or misalignments in the motor.

Additional Tips for Handling Components

When handling components during disassembly, it's crucial to be gentle to avoid damage. Here are some additional tips:

- Use Soft Cloth: Wrap components in a soft cloth to prevent scratching.

- Label Parts: Label each part as you remove it to ensure correct reassembly.

- Store Small Parts Safely: Use a small parts container to store screws, O-rings, and other small components.

Importance of Proper Storage

After disassembly, proper storage of components is essential to prevent damage and contamination:

- Clean Environment: Store components in a clean, dry environment away from direct sunlight.

- Protective Wrapping: Wrap components in protective wrapping to prevent dust accumulation.

Training and Resources

For those new to hydraulic motor maintenance, it's important to seek training and resources:

- Manufacturer Guides: Refer to the manufacturer's guide for specific instructions and diagrams.

- Workshops and Courses: Attend workshops or courses to gain hands-on experience with hydraulic systems.

By incorporating these additional tips and emphasizing the importance of proper handling and storage, you can ensure that your Danfoss hydraulic motor remains in optimal condition.

Conclusion

Disassembling a Danfoss hydraulic motor requires careful attention to detail and adherence to safety protocols. By following these steps and ensuring proper cleaning and lubrication, you can effectively maintain and repair these motors, extending their lifespan and ensuring optimal performance.

Take Apart Dafnoss Hydraulic Motor_1

Frequently Asked Questions

1. What Safety Precautions Should I Take When Disassembling a Hydraulic Motor?

When disassembling a hydraulic motor, ensure the system is fully depressurized, use proper tools, and wear protective gear to avoid accidents.

2. How Do I Remove the End Cover of a Danfoss Hydraulic Motor?

To remove the end cover, use a socket wrench to loosen the bolts (typically 13 mm or 16 mm), then carefully lift the cover off while being mindful of any check valves.

3. What Tools Are Needed for Disassembling a Danfoss Hydraulic Motor?

You will need a socket wrench, holding tool, and possibly a hydraulic press for removing the shaft seal and bearing race.

4. How Should I Clean the Components After Disassembly?

Clean all components with low aromatic kerosene and inspect them for wear or damage.

5. What Lubrication Is Required for Reassembly?

Before reassembling, lubricate all moving parts with hydraulic oil and grease rubber components with vaseline.
