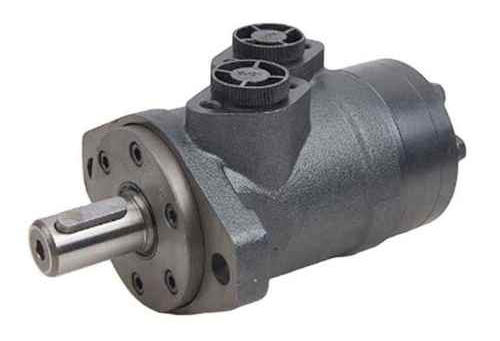

Taking apart a hydraulic motor, such as the White Parker model, requires careful attention to detail and adherence to specific procedures to avoid damaging components. This guide will walk you through the disassembly process, highlighting key steps and precautions. Please ensure you have the appropriate tools and a clean workspace before starting.
Hydraulic motors are crucial components in hydraulic systems, converting fluid pressure into mechanical energy. They are widely used in industrial applications due to their high torque output and reliability. However, like any mechanical device, they require periodic maintenance and repair.
Before disassembling the motor, it's essential to understand its main components:
- Shaft and Seals: The shaft is the central rotating part, while seals prevent fluid leakage.
- Gear Housing: Contains the gears that transmit torque.
- Thrust Plates: Absorb axial forces generated by the motor.
- Bearing Assembly: Supports the shaft and reduces friction.
Regular maintenance is vital to extend the lifespan of hydraulic motors. This includes checking for wear on moving parts, ensuring proper fluid pressure, and replacing worn-out seals. Neglecting maintenance can lead to premature failure, resulting in costly repairs and downtime.
Ensure your workspace is clean and well-lit. Lay down a protective cloth or mat to prevent damage to components. It's also advisable to have a parts diagram handy to reference during the process.
Clamp the motor in a vise with the drive shaft pointing down. This stabilizes the motor during disassembly and prevents any accidental rotation.
Remove all bolts and washers from the assembly. Be careful not to strip any threads. Use a socket wrench or ratchet set for this step.
Gently pull off the rear port end cover. If it's stuck, use a rubber mallet to tap it loose. Avoid using excessive force, which can damage the cover or surrounding surfaces.
Carefully remove the thrust plate by hand. Do not pry, as this can damage the plate or surrounding surfaces. If necessary, use a slight twisting motion to dislodge it.
Remove the gears from the gear housing. Keep them together as they are a matched set. This ensures proper alignment and performance during reassembly.
Remove the second thrust plate from the shaft end cover surface. This step requires patience, as the plate may be tightly seated.
Inspect all components for wear or damage. Clean them thoroughly before reassembly to prevent contamination and ensure smooth operation.
Reassembly is essentially the reverse of disassembly. Ensure all components are properly aligned and secured. After reassembly, test the motor to ensure it operates smoothly and without leaks.
- Use New Seals: Always replace seals during reassembly to prevent leaks.
- Align Components Carefully: Use scribe lines to ensure proper alignment of castings.
- Tighten Bolts Evenly: Avoid over-tightening, which can damage threads.
During disassembly or reassembly, you may encounter common issues such as stuck parts or misaligned components. Here are some troubleshooting tips:
- Stuck Parts: Apply penetrating oil and let it sit for a few hours before attempting to remove.
- Misaligned Components: Check for any debris or dirt that might be causing misalignment. Clean the area thoroughly before reassembling.
For more complex issues, consider the following:
- Leakage: Inspect seals and gaskets for damage. Replace them if necessary.
- Noise or Vibration: Check for loose bolts or misaligned gears. Adjust or replace as needed.
Safety is paramount when working with hydraulic systems. Always wear protective gear, including gloves and safety glasses. Ensure the workspace is clear of obstacles and use proper lifting techniques to avoid injury.
When handling hydraulic fluids, be mindful of environmental impact. Dispose of used fluids responsibly and follow local regulations regarding waste disposal.
Disassembling a White Parker hydraulic motor requires patience and attention to detail. By following these steps and taking necessary precautions, you can ensure a successful repair and extend the life of your motor. Remember, proper maintenance is key to preventing premature wear and ensuring optimal performance.
- Snap-ring pliers
- Socket wrench or ratchet set
- Rubber mallet
- Vise
- Clean rags
Use extreme caution when prying apart castings. Avoid using excessive force, which can cause misalignment and damage parts. Always use a rubber mallet instead of a metal hammer.
Always replace seals during reassembly to prevent leaks. Handle seals carefully to avoid stretching or damaging them.
Scribe lines across each casting before disassembly to ensure proper alignment during reassembly.
- Wear protective gloves and safety glasses.
- Ensure the workspace is clear of obstacles.
- Use proper lifting techniques to avoid injury.
