Gerotor hydraulic motors are widely used in various industrial applications due to their compact design and high efficiency. Timing these motors correctly is crucial for optimal performance and longevity. In this article, we will delve into the basics of gerotor hydraulic motors, their operation, and provide a step-by-step guide on how to time them properly. We will also include relevant images and videos to enhance understanding.

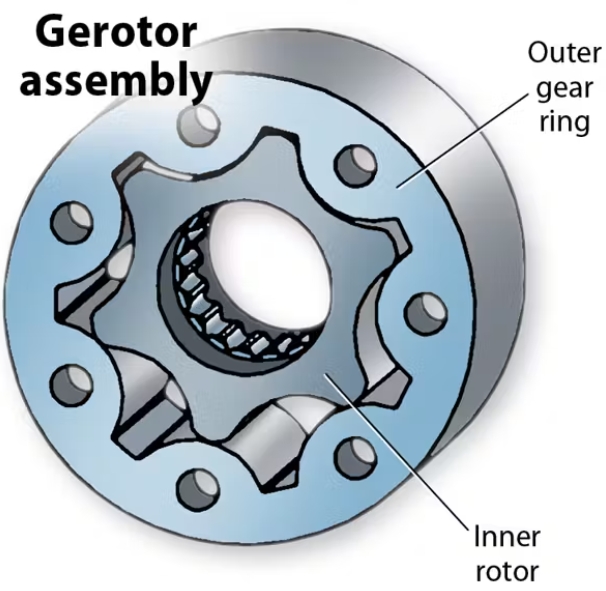

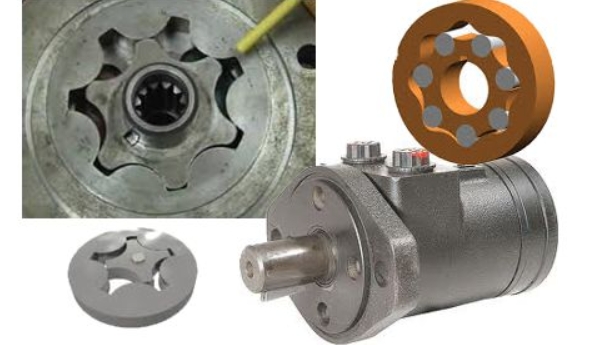

Gerotor hydraulic motors are a type of internal gear motor, characterized by their gear-within-a-gear design. Unlike traditional internal gear motors, where the outer rotor is the driver, gerotor motors are driven by the inner pumping element. This design creates an offset between the inner and outer gears, which is essential for the pumping action.
- Inner Driver Element: This is the smaller gear that drives the motor.
- Outer Driven Element: This is the larger gear with one more tooth than the inner element, creating the necessary offset for the pumping action.
- Cavities: As the gears rotate, cavities are formed between the teeth, which expand on the inlet side and contract on the outlet side, facilitating fluid flow.
The operation of a gerotor hydraulic motor involves the following steps:
1. Fluid Inlet: Fluid enters the motor through the inlet port and fills the expanding cavities between the teeth of the gears.
2. Rotation and Contraction: As the gears rotate, these cavities carry the fluid around the motor. On the outlet side, the cavities contract, forcing the fluid out of the motor.
3. Outlet: The fluid is expelled through the outlet port into the hydraulic system.
Timing a gerotor hydraulic motor involves ensuring that the gears are properly aligned to maintain the correct offset and prevent premature wear or damage. Here's a step-by-step guide:
1. Disassemble the Motor: Carefully disassemble the motor to access the gears. Ensure all safety precautions are taken to avoid injury.
2. Align the Gears: Use a timing tool or a specialized jig to align the inner and outer gears. The inner gear should have one fewer tooth than the outer gear, creating the necessary offset.
3. Secure the Gears: Once aligned, secure the gears in place using the appropriate fasteners. Ensure they are tightened according to the manufacturer's specifications.
4. Reassemble the Motor: Reassemble the motor in the reverse order of disassembly. Make sure all components are properly seated and secured.
5. Test the Motor: After reassembly, test the motor under load to ensure it operates smoothly and efficiently.
Regular maintenance is crucial for extending the lifespan of a gerotor hydraulic motor. Common issues include:
- Leakage: Check for signs of fluid leakage around seals and gaskets.
- Noise: Excessive noise can indicate misaligned gears or worn components.
- Low Performance: Reduced efficiency may be due to clogged filters or improper timing.
In addition to basic maintenance, advanced techniques can further enhance performance:
- Filter Cleaning: Regularly clean or replace hydraulic filters to prevent clogging and maintain fluid flow.
- Gear Inspection: Periodically inspect the gears for wear and replace them if necessary.
- System Pressure Checks: Monitor system pressure to ensure it is within the recommended range for the motor.
Gerotor motors are versatile and can be used in a variety of applications:
- Construction Equipment: They are often used in excavators and cranes due to their high torque output.
- Agricultural Machinery: Gerotor motors are used in tractors and harvesters for their reliability and efficiency.
- Industrial Automation: They are used in manufacturing lines for precise control over machinery.
When designing a hydraulic system with gerotor motors, consider the following factors:
- System Pressure: Ensure that the system pressure matches the motor's specifications.
- Fluid Type: Use the recommended hydraulic fluid to maintain efficiency and prevent corrosion.
- Cooling Systems: Implement a cooling system if the motor will operate under high loads or in hot environments.
Always follow safety guidelines when working with hydraulic systems:
- Protective Gear: Wear protective gear such as gloves and safety glasses.
- Pressure Relief Valves: Ensure that pressure relief valves are installed to prevent over-pressurization.
- Electrical Safety: Follow electrical safety protocols when connecting or disconnecting electrical components.
For further learning, consider consulting the following resources:
- Manufacturer's Manual: Always refer to the manufacturer's manual for specific instructions on timing and maintenance.
- Hydraulic System Design Guides: These guides provide detailed information on designing efficient hydraulic systems.
- Online Forums: Engage with professionals on online forums to discuss common issues and best practices.
As technology advances, gerotor motors are expected to become even more efficient and reliable. Future developments may include:
- Material Innovations: New materials could improve durability and reduce weight.
- Digital Controls: Integration of digital controls could enhance precision and monitoring capabilities.
- Sustainability: Efforts to reduce environmental impact through more efficient designs and eco-friendly materials.
Timing a gerotor hydraulic motor requires careful attention to detail to ensure optimal performance and longevity. By following the steps outlined above and maintaining regular maintenance schedules, you can maximize the efficiency of your hydraulic system.
Gerotor pumps differ from traditional internal gear pumps in that they do not use a crescent to create the gear offset. Instead, the inner gear drives the outer gear, which has one more tooth, creating the necessary offset for the pumping action.
A properly timed gerotor motor will operate smoothly with minimal noise and vibration. If the motor is misaligned, it may produce excessive noise or show signs of premature wear.
Common issues include fluid leakage, excessive noise due to misaligned gears, and reduced performance due to clogged filters or improper timing.
Yes, gerotor motors are suitable for low-speed applications. They are known for their high torque output at low speeds, making them ideal for applications requiring slow but powerful operation.
Regular maintenance should be performed every few months, depending on usage. This includes checking for leaks, cleaning filters, and ensuring proper alignment of the gears.
