Hydraulic systems are widely used in various industries, including construction, manufacturing, and robotics, due to their ability to efficiently transfer energy and perform heavy-duty tasks. At the heart of these systems are hydraulic pumps and motors, which work together to convert mechanical energy into hydraulic energy and vice versa. This article will guide you through the process of connecting and turning on a hydraulic pump to a motor, including troubleshooting tips and common applications.
Hydraulic pumps and motors are crucial components of hydraulic systems. A hydraulic pump converts mechanical energy into hydraulic energy by pressurizing fluid, which is then transmitted through the system to perform work. On the other hand, a hydraulic motor converts this hydraulic energy back into mechanical energy to drive machinery or equipment.
A hydraulic pump is designed to overcome pressure from loads. It differs from a regular pump by providing variable flow rates and pressures depending on the system's requirements. Common types of hydraulic pumps include gear, vane, and piston pumps. Each type has its own advantages and is suited for different applications based on factors like efficiency, noise level, and cost.

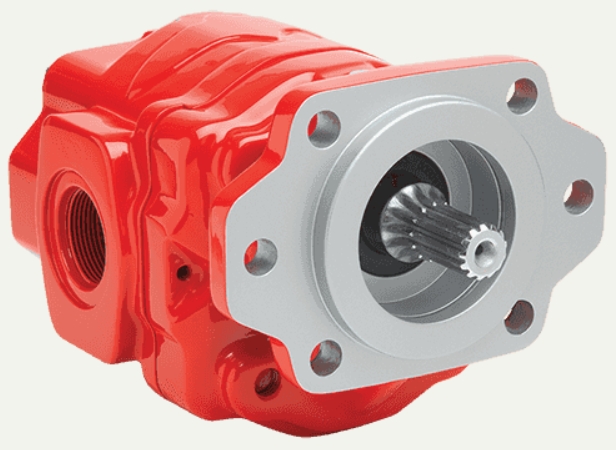

- Gear Pumps: These are simple and cost-effective, making them suitable for low-pressure applications.
- Vane Pumps: Known for their high efficiency and smooth operation, vane pumps are often used in systems requiring precise control.

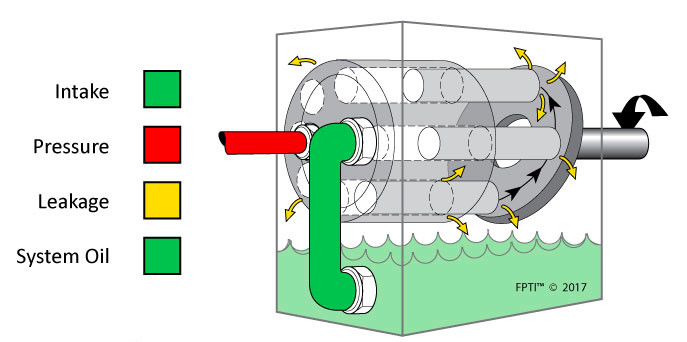

- Piston Pumps: These offer high pressure and flow rates, making them ideal for heavy-duty applications.

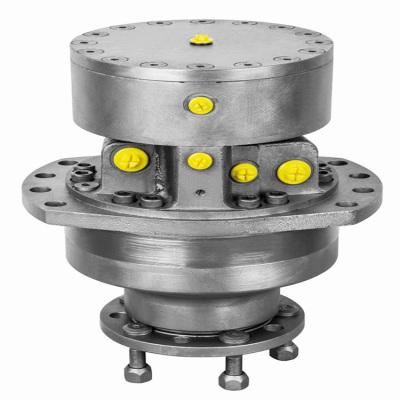

Hydraulic motors are categorized into low-speed high-torque (LSHT) and high-speed low-torque (HSLT) types. They convert hydraulic energy into mechanical energy, enabling the system to perform tasks such as lifting heavy loads or powering machinery. The choice of motor depends on the specific requirements of the application, including speed and torque.
To connect a hydraulic pump to a motor, you typically need a few key components:
- Motor: This is the prime mover that drives the pump.
- Pump: This converts the mechanical energy from the motor into hydraulic energy.
- Coupling or Mounting Bracket: This connects the pump to the motor.
- Hydraulic Lines: These carry the pressurized fluid to the motor or other actuators.
1. Mount the Pump: Ensure the pump is properly mounted to the motor using a coupling or a direct drive setup. Some pumps are designed to slide over the motor shaft, eliminating the need for a bracket.
2. Connect Hydraulic Lines: Attach the hydraulic lines to the pump's inlet and outlet ports. Ensure they are securely connected to prevent leaks.
3. Power the Motor: Connect the motor to a power source. For electric motors, this involves wiring the motor to a suitable electrical supply.
4. Test the System: Turn on the motor and check that the pump is operating correctly. Monitor for any leaks or unusual noises.
Troubleshooting is essential to maintain the efficiency and longevity of hydraulic systems. Here are some common issues and their solutions:
- Cause: Air in the system or blocked intake.
- Solution: Bleed the air from the system and check the intake pipe for blockages.
- Cause: Incorrect fluid viscosity or leaks in the system.
- Solution: Check the fluid viscosity and inspect the system for leaks.
- Cause: Misaligned pump or motor, or worn-out components.
- Solution: Align the pump and motor properly and replace worn-out parts.
- Cause: Insufficient cooling or excessive load.
- Solution: Ensure adequate cooling and adjust the load to prevent overheating.
Hydraulic systems are used in a wide range of applications:
- Construction Equipment: Excavators, cranes, and bulldozers rely on hydraulic systems for their operation.
- Industrial Machinery: Presses, lifts, and conveyor systems often use hydraulic power.
- Robotics: Hydraulic systems are used in robotic arms for manufacturing and assembly tasks.
- Agricultural Machinery: Tractors and harvesters use hydraulic systems for various functions.
Hydraulic systems offer several advantages over other types of power transmission systems:
- High Power-to-Weight Ratio: Hydraulic systems can provide significant power relative to their size.
- Precise Control: Hydraulic systems allow for precise control over speed and position.
- Flexibility: Hydraulic systems can be easily adapted to different applications.
Regular maintenance is crucial for extending the lifespan of hydraulic systems and ensuring safety:
- Fluid Checks: Regularly inspect the hydraulic fluid for contamination and viscosity changes.
- Component Inspection: Check for signs of wear on components like seals and hoses.
- Safety Precautions: Always disconnect power sources before maintenance, wear protective gear, and ensure the system is properly vented.
When working with hydraulic systems, it's essential to use appropriate safety equipment:
- Protective Clothing: Wear gloves, safety glasses, and a hard hat.
- Pressure Gauges: Use pressure gauges to monitor system pressure.
- Emergency Shut-Off: Ensure there is an easily accessible emergency shut-off valve.
Modern hydraulic systems often incorporate advanced technologies to enhance efficiency and performance:
- Proportional Valves: These allow for precise control over flow rates and pressures.
- Servo Valves: Used in high-precision applications, servo valves provide precise control over hydraulic motors.
- Hydraulic Accumulators: These store energy in the form of pressurized fluid, allowing for smoother operation and reduced energy consumption.
Improving energy efficiency in hydraulic systems can be achieved through several methods:
- Optimizing Pump Size: Ensure the pump is correctly sized for the application to avoid unnecessary energy consumption.
- Using Energy-Recovery Systems: Implement systems that recover energy from the hydraulic circuit and reuse it.
- Regular Maintenance: Maintain the system to prevent leaks and ensure optimal performance.
Hydraulic systems can have environmental impacts, particularly if there are fluid leaks or spills. It's important to use environmentally friendly fluids and ensure that systems are designed with spill containment in mind.
The future of hydraulic technology involves advancements in materials, control systems, and energy efficiency. Innovations such as more efficient pumps and motors, as well as advanced control systems, will continue to enhance the performance and sustainability of hydraulic systems.
Connecting a hydraulic pump to a motor requires careful consideration of the components involved and the system's overall design. By following the steps outlined above and troubleshooting common issues, you can ensure efficient operation of your hydraulic system. Whether in construction, manufacturing, or robotics, hydraulic pumps and motors play a vital role in converting energy and performing heavy-duty tasks.
Choosing the right hydraulic pump involves considering factors such as the required flow rate, pressure, and type of fluid used in your system. It's also important to select a pump compatible with your motor's power output.
Hydraulic motors come in several types, including gear, vane, and piston motors. Each type has its own advantages and is suited for different applications based on speed and torque requirements.
If a hydraulic pump is not producing pressure, check for issues such as incorrect fluid viscosity, air in the system, or blockages in the intake or outlet lines. Also, ensure the pump is properly primed and aligned with the motor.
Hydraulic pumps can be used in high-temperature environments, but it's crucial to ensure the fluid used is suitable for those temperatures. High temperatures can affect fluid viscosity and system performance.
When working with hydraulic systems, always disconnect power sources before maintenance, wear protective gear, and ensure the system is properly vented to prevent fluid spills or explosions.
