Hydraulic rotary actuators are crucial components in various mechanical systems, often used to convert hydraulic energy into rotational motion. However, the question of whether a hydraulic rotary actuator is part of a motor requires a deeper understanding of both hydraulic systems and motor mechanics. In this article, we will explore the role of hydraulic rotary actuators, their design, applications, and how they relate to motors.
Hydraulic rotary actuators are devices that use hydraulic pressure to generate rotational motion. They are commonly used in applications where high torque and precise control are required, such as in construction machinery, industrial automation, and robotics.

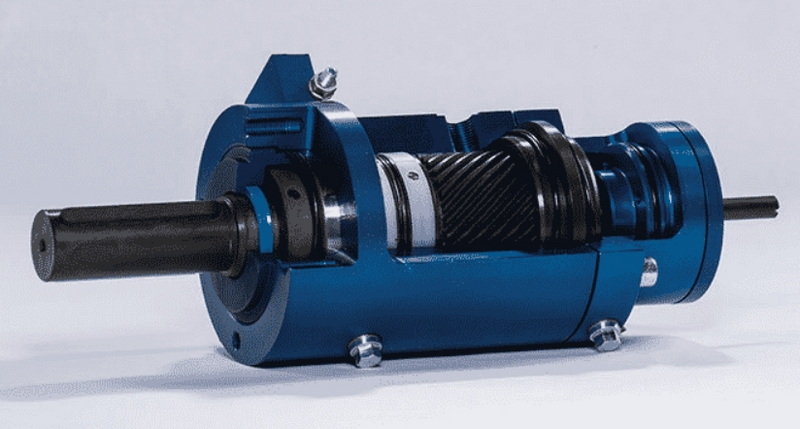

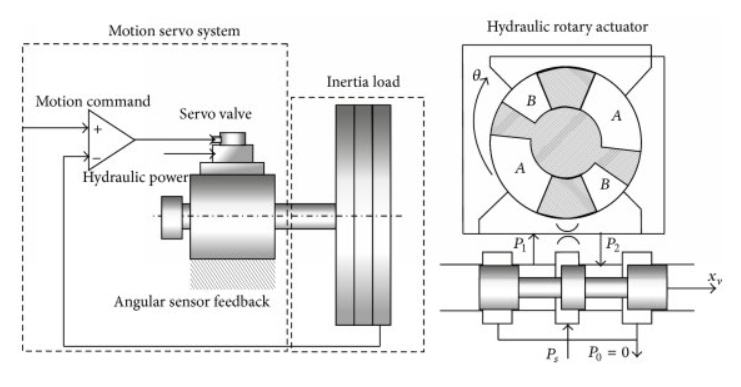

A typical hydraulic rotary actuator consists of a housing, a rotor, and a stator. The rotor is connected to an output shaft, which rotates when hydraulic fluid is pumped into the actuator under pressure. The design can vary, with common types including gerotor motors and helical gear motors.
Gerotor Motors:
Gerotor motors use a rotor and stator design where the rotor has one more tooth than the stator. This design allows for efficient conversion of hydraulic pressure into rotational motion. The fluid pressure acts on the rotor, causing it to rotate the output shaft.
Helical Gear Motors:
Helical gear motors convert linear motion into rotational motion using helical gears. They are known for their high efficiency and smooth operation.
1. Housing: The outer shell that contains all internal components and provides structural integrity.
2. Rotor: The rotating component that converts hydraulic energy into mechanical energy.
3. Stator: The stationary part that houses the rotor and directs fluid flow.
4. Seals: Essential for preventing fluid leakage and maintaining pressure within the actuator.
5. Ports: Openings for hydraulic fluid entry and exit, allowing for controlled movement.
Hydraulic motors are also positive-displacement devices that convert hydraulic energy into rotational motion. They are similar to hydraulic rotary actuators in that both convert fluid pressure into rotation. However, the term "rotary actuator" often refers to devices with limited rotation (less than 360 degrees), while hydraulic motors can rotate continuously.
- Range of Motion: Rotary actuators typically provide limited rotation (often less than 360 degrees), while hydraulic motors allow continuous rotation.
- Applications: Rotary actuators are used in applications requiring precise positioning (e.g., valve control), whereas hydraulic motors are used in applications needing continuous movement (e.g., driving wheels).
- Torque Output: Hydraulic motors generally produce higher torque outputs compared to rotary actuators due to their design.
Hydraulic rotary actuators are versatile and are used in a wide range of applications:
In construction machinery such as excavators and cranes, hydraulic rotary actuators provide precise control over movements like digging or lifting heavy loads. Their ability to generate high torque makes them ideal for these demanding tasks.
In manufacturing lines, they provide controlled motion for tasks like assembly and material handling. For instance, they can be used to rotate parts on an assembly line or control robotic arms that handle materials.
Hydraulic actuators are used in robotic arms for tasks requiring high force and precision. They enable robots to perform complex operations like welding or assembling components with great accuracy.
In aerospace engineering, hydraulic rotary actuators are used in flight control systems to manage surfaces like flaps and rudders effectively.
They play a critical role in marine vessels for steering systems and controlling various onboard equipment.
Companies like WEITAI specialize in producing high-quality hydraulic rotary actuators, emphasizing precision and reliability through advanced manufacturing processes. Quality control measures include rigorous testing under various conditions to ensure durability and performance.
Quality assurance is vital in manufacturing hydraulic rotary actuators due to their applications in critical systems where failure is not an option. Manufacturers implement strict quality control protocols at every stage of production—from material selection to final assembly—to ensure that each actuator meets industry standards.
Modern manufacturing techniques such as CNC machining and 3D printing are being adopted to improve precision and reduce production time. These methods allow for complex geometries and customized designs that enhance performance and efficiency.
Proper maintenance is essential for ensuring the longevity and performance of hydraulic rotary actuators:
1. Regular Inspections: Frequent checks for leaks or signs of wear can prevent potential failures.
2. Fluid Quality: Using high-quality hydraulic fluids helps maintain optimal performance.
3. Seal Maintenance: Regularly inspecting seals can prevent leaks and maintain pressure within the system.
4. Temperature Monitoring: Keeping an eye on operating temperatures is crucial as overheating can lead to premature failure.
5. Lubrication: Ensuring that moving parts are properly lubricated reduces friction and wear.
Common issues with hydraulic rotary actuators include fluid leaks, reduced performance, and overheating. Troubleshooting involves identifying the root cause of the problem and taking corrective action, such as replacing seals or adjusting fluid flow rates.
As technology advances, several trends are emerging in the field of hydraulic rotary actuators:
With the rise of Industry 4.0, there is a growing trend towards automation in manufacturing processes, leading to increased demand for advanced hydraulic actuators that can integrate with smart systems.
Manufacturers are focusing on designing more efficient actuators that consume less energy while delivering higher performance levels.
There is a trend towards miniaturizing hydraulic components without sacrificing performance, enabling their use in smaller machines or confined spaces.
The development of advanced materials can lead to lighter yet stronger actuators, improving overall machine efficiency while reducing weight.
Efforts are being made to develop more environmentally friendly hydraulic systems, including the use of bio-based hydraulic fluids and reducing waste in manufacturing processes.
The integration of hydraulic rotary actuators with IoT technology allows for real-time monitoring and predictive maintenance, enhancing operational efficiency and reducing downtime.
Several companies have successfully integrated hydraulic rotary actuators into their systems, achieving significant improvements in efficiency and productivity. For example, in the automotive industry, these actuators are used in assembly lines to automate tasks like wheel alignment and chassis rotation, resulting in faster production cycles and reduced labor costs.
In conclusion, while hydraulic rotary actuators and hydraulic motors both convert hydraulic energy into rotational motion, they serve different purposes and are designed for different applications. Hydraulic rotary actuators are not typically considered part of a motor but rather as a distinct type of actuator used for specific tasks requiring controlled rotation. Understanding their design, operation, applications, and maintenance is essential for anyone working with or utilizing these powerful devices in various industries.
Hydraulic rotary actuators convert hydraulic pressure into rotational motion, providing high torque and precise control for various mechanical applications.
Gerotor motors operate by using a rotor with one more tooth than the stator. Hydraulic fluid pressure acts on the rotor, causing it to rotate the output shaft.
Hydraulic rotary actuators are used in construction machinery, industrial automation, robotics, aerospace applications, and marine systems for tasks requiring high torque and precision.
Helical gear motors convert linear motion into rotational motion using helical gears, offering high efficiency and smooth operation; whereas gerotor motors use a rotor-stator design for efficient conversion of hydraulic pressure.
Hydraulic rotary actuators typically provide limited rotation (less than 360 degrees), while hydraulic motors can rotate continuously, making them suitable for different applications.
