A gear reducer, also known as a gearbox or speed reducer, is a mechanical device designed to reduce the speed of an input rotation while increasing the torque output. This is achieved by using a set of gears with different sizes, where a smaller gear (the drive gear) engages with a larger gear (the driven gear). The gear reduction ratio is determined by the number of teeth on each gear, and it plays a crucial role in various industrial and vehicle applications.
Gear reducers are essential components in machinery that operate at high speeds, as they convert the high-speed, low-torque output from a motor or engine into a low-speed, high-torque output that is more suitable for the driven application. This adjustment in speed and torque enables machinery to operate efficiently and effectively.
The operation of a gear reducer involves a simple yet effective mechanism. It consists of a set of interlocking gears mounted on shafts. The smaller drive gear rotates multiple times to turn the larger driven gear once, resulting in a reduction of speed and an increase in torque. The gear ratio, calculated by comparing the number of teeth on the drive and driven gears, determines the extent of speed reduction and torque increase.
For example, if a drive gear has 10 teeth and the driven gear has 40 teeth, the gear ratio is 1:4. This means for every rotation of the drive gear, the driven gear rotates only 0.25 times, reducing the output speed by 75% while multiplying the torque by four times.
There are several types of gear reducers, each designed for specific applications and offering unique advantages.
These reducers use a combination of spur and helical gears to reduce rotational speed. The input and output shafts are parallel, allowing for a wide range of gear reduction ratios by combining gears in multiple stages. This makes them versatile for various applications.
Worm gear reducers combine a worm gear with a worm wheel. The input gear rotates perpendicular to the output gear, allowing for high reduction ratios in a single stage. Worm gears are quieter than planetary gears but generate more heat due to the sliding motion involved.
Bevel gear reducers use hypoid gears to reduce speed. The output axis is rotated 90 degrees relative to the input, making them suitable for applications requiring a change in rotational direction. Bevel gears are durable and exhibit high duty factors.

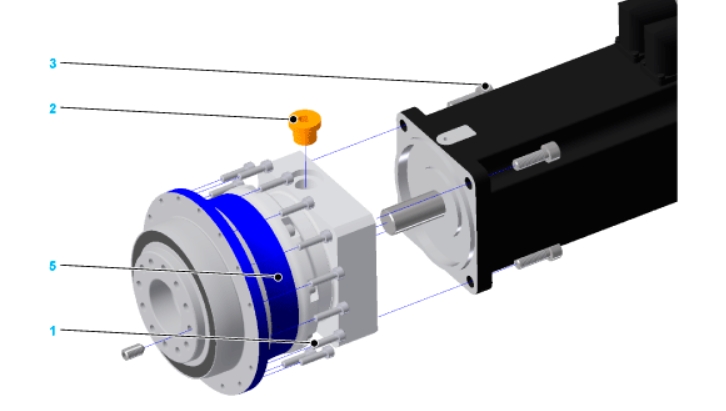

Planetary gear reducers consist of a central sun gear surrounded by multiple planet gears that rotate around it. This design provides high efficiency, low clearance, and a high torque-to-weight ratio, making them ideal for applications requiring high accelerations and slow speed with high torque, such as machining centers and mobile machinery for agricultural work[7].
Planetary gear reducers are increasingly used in various fields due to their high efficiency and compact structure. For instance, they are applied in wind turbines, coating machines, and mixers, where stable and efficient transmission is crucial[1]. The modular design of planetary gear reducers allows for multi-stage cascading, meeting diverse speed ratio requirements and contributing to their widespread adoption in modern industry[1].
Gear reducers are crucial in various industries, including automotive, manufacturing, and renewable energy systems. They are used in conveyor systems, packaging machinery, and robotics to adjust the speed and torque of motors to match the requirements of the driven load.
In vehicles, gear reducers adjust the high-speed rotation of the engine to produce a lower-speed motion that allows tires to harness and utilize power effectively and safely.
In manufacturing, gear reducers are essential for machinery that operates at high speeds, ensuring optimal efficiency by reducing the speed to suit the driven application.
The primary benefits of using gear reducers include:
- Increased Torque: Gear reducers increase the torque output, making them suitable for applications requiring significant force.
- Speed Adjustment: They allow for the adjustment of rotational speed to match the requirements of the driven load.
- Efficiency: Gear reducers improve the efficiency of machinery by optimizing speed and torque.
- Compact Design: Many gear reducers are designed to be compact, making them ideal for applications where space is limited.
- Extended Motor Life: By operating motors at lower speeds, gear reducers can reduce wear and tear, extending the motor's lifespan.

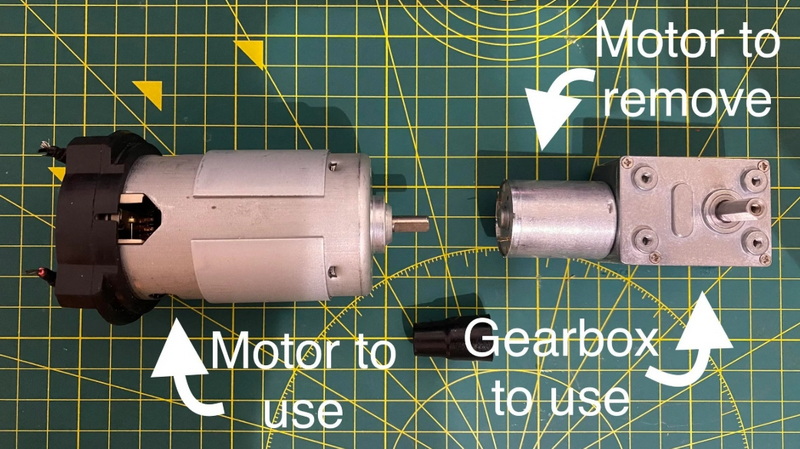

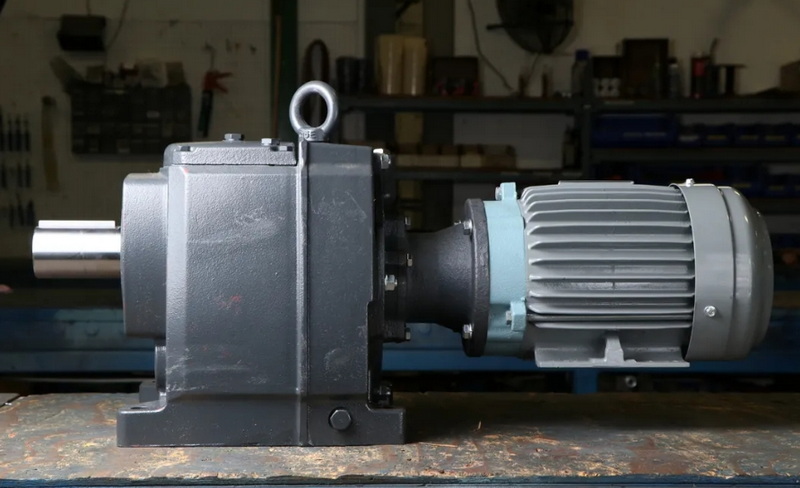

A gear motor is a combination of an electric motor and a gear reducer, providing a convenient all-in-one solution for applications requiring speed and torque adjustment. Gear motors simplify design and implementation by eliminating the need to separately source and integrate motors and gearboxes.
When designing or selecting a gear reducer, several factors must be considered:
- Torque and Speed Requirements: Understanding the torque and rotational speed needed for the application is crucial.
- Gear Ratio: The gear ratio must be appropriate to achieve the desired speed reduction and torque increase.
- Type of Gear Reducer: The choice between parallel shaft, worm, bevel, or other types depends on the specific application requirements.
Regular maintenance is essential to ensure the longevity and efficiency of gear reducers. This includes:
- Lubrication: Regular lubrication to prevent wear and tear.
- Inspections: Periodic inspections to identify potential issues early.
- Troubleshooting: Addressing any problems promptly to prevent downtime.
Companies like SGR focus on customizing gear reducers for specific applications, such as reverse rotation or direction changes. They emphasize precision, stability, and extended lifespan through advanced materials and design techniques[1].
In recent years, advancements in materials and manufacturing techniques have led to more efficient and compact gear reducers. For instance, the use of advanced composite materials and alloys in harmonic gear drives enhances durability without compromising performance[2]. Additive manufacturing (3D printing) is also transforming the production of gear reducers by allowing for intricate designs and rapid prototyping[2][5].
The future of gear reducers is closely tied to advancements in industrial automation, robotics, and sustainability. Key trends include:
- Increased Efficiency: Manufacturers are focusing on high-efficiency gearboxes to reduce energy loss[4].
- Compact and Lightweight Designs: Miniaturization is a key trend, especially in medical devices and automation[4].
- Smart and Connected Gear Motors: The integration of IoT and predictive maintenance sensors allows for real-time monitoring and reduced downtime[4][5].
The industry is witnessing significant advancements in gear reducer technology, driven by demands for efficiency, sustainability, and customization.
Modular designs are becoming increasingly popular, allowing for faster assembly and easier maintenance. This trend enables manufacturers to offer tailored solutions that meet specific application requirements[6].
The integration of IoT technology into gear systems is transforming the industry by enabling real-time monitoring and predictive maintenance. This integration reduces downtime and extends the lifespan of gear systems[5].
Additive manufacturing (3D printing) is revolutionizing the production of gear reducers by allowing for complex geometries and rapid prototyping. This technology enhances design flexibility and reduces production costs[2][5].
There is a growing emphasis on sustainability, with manufacturers focusing on eco-friendly materials and production methods. This shift aligns with global efforts towards environmentally conscious practices[2][4].
Gear reducers are vital components in mechanical systems, providing the necessary speed and torque adjustments to ensure efficient operation. Understanding the types, applications, and benefits of gear reducers is essential for engineers and technicians working in various industries. By selecting the right gear reducer and maintaining it properly, machinery can operate at optimal levels, enhancing productivity and reducing downtime.
A gear reducer's primary function is to decrease the rotational speed of an input while increasing the torque output, making it suitable for applications requiring high force at lower speeds.
Gear reducers achieve speed reduction by using a set of gears where a smaller drive gear rotates multiple times to turn a larger driven gear once, resulting in a decrease in speed and an increase in torque.
Common types of gear reducers include parallel shaft, worm gear, bevel gear, and planetary gear reducers, each designed for specific applications and offering unique advantages.
The benefits of using gear reducers include increased torque, adjustable speed, improved efficiency, compact design, and extended motor life, making them suitable for a wide range of industrial applications.
Yes, gear reducers can be repaired. Common maintenance tasks include lubrication, inspections, and troubleshooting. Repairs may involve replacing worn components or the entire gearbox if necessary.
