Hydraulic motor mounts, also known as hydraulic engine mounts, are sophisticated components designed to secure an engine to a vehicle's frame while providing superior vibration isolation and noise reduction. These advanced mounts have revolutionized the automotive industry by offering enhanced comfort and performance compared to traditional rubber mounts. In this comprehensive article, we will explore the intricacies of hydraulic motor mounts, their functionality, advantages, and applications in modern vehicles.
Hydraulic motor mounts typically consist of three main components:
1. Metal casing
2. Rubber insulator
3. Hydraulic fluid-filled chamber
The metal casing provides structural support, while the rubber insulator helps dampen vibrations. The hydraulic fluid-filled chamber is the key element that sets these mounts apart from conventional rubber mounts[1][2].

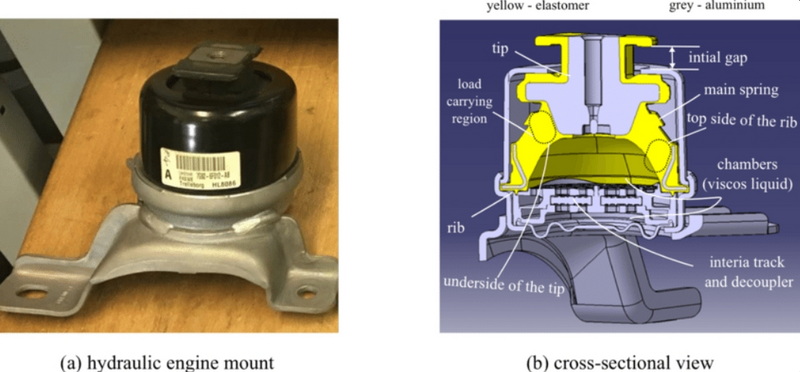

Hydraulic Motor Mount Structure
The primary function of hydraulic motor mounts is to isolate engine vibrations from the chassis, thereby reducing noise and vibration felt inside the vehicle. The fluid within these mounts moves in response to engine movement, which helps in absorbing and dampening vibrations more effectively than solid mounts[2].
Some hydraulic mounts are designed to adapt their stiffness based on driving conditions. This adaptive nature provides a balance between comfort and handling:
- Softer during low-speed operations for improved comfort
- Firmer during high-speed or aggressive driving for better handling[2]
Hydraulic motor mounts offer several advantages over traditional rubber mounts:
1. Superior vibration isolation
2. Better noise reduction
3. Improved ride comfort
4. Enhanced engine performance
5. Adaptability to various driving conditions
These benefits make hydraulic motor mounts an attractive option for manufacturers seeking to improve vehicle comfort and performance[1][3].
Hydraulic motor mounts are commonly used in:
- Luxury vehicles
- High-performance cars
- Vehicles with powerful engines
- Cars designed for enhanced comfort
Many automotive manufacturers, including Toyota, have incorporated hydraulic motor mount technology into their vehicles to provide a smoother, quieter ride for their customers[6].

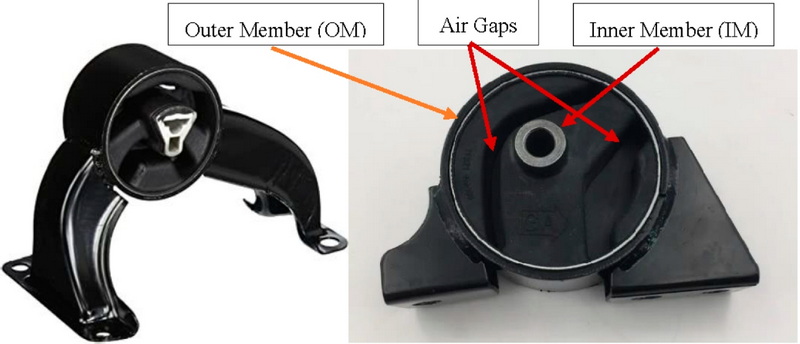

Toyota Hydraulic Motor Mount
To better understand the advantages of hydraulic motor mounts, let's compare them to traditional solid rubber mounts:
| Feature | Hydraulic Motor Mounts | Solid Rubber Motor Mounts |
|---|---|---|
| Vibration Dampening | Superior | Good |
| Noise Reduction | Excellent | Moderate |
| Adaptability | Can be tuned for various conditions | Fixed performance |
| Cost | Higher | Lower |
| Durability | Moderate | High |
| Maintenance | May require occasional fluid replacement | Minimal maintenance |
While hydraulic motor mounts offer superior performance in many aspects, they do come at a higher cost and may require more maintenance than solid rubber mounts[5].
There are several variations of hydraulic motor mounts, each designed to meet specific requirements:
1. Standard Hydraulic Mounts: These contain a simple fluid-filled chamber and provide basic vibration isolation.
2. Hydraulic Mounts with Inertia Track: These mounts include a narrow passage (inertia track) that allows fluid to move between chambers, providing additional damping at specific frequencies.
3. Hydraulic Mounts with Decoupler: These mounts feature a floating disc (decoupler) that allows for different damping characteristics at various vibration amplitudes.
4. Hydraulic Mounts with Bell Plate (Plunger): These mounts use a bell-shaped plate to control fluid movement, offering enhanced performance in certain conditions[9].
Hydraulic motor mounts work on the principle of fluid dynamics to provide optimal vibration isolation. The fluid inside the mount moves in response to engine vibrations, creating a damping effect that reduces the transmission of these vibrations to the vehicle's frame.
One of the key advantages of hydraulic motor mounts is their ability to provide frequency-dependent performance. This means they can be:
- Stiff and highly damped in the low-frequency range to prevent engine movement due to shock excitation (e.g., during acceleration or braking)
- Soft and lightly damped in the high-frequency range to isolate engine vibrations effectively[5]
This frequency-dependent behavior allows hydraulic mounts to offer superior performance across a wide range of operating conditions.
Hydraulic Mount Frequency Response
Proper installation and maintenance of hydraulic motor mounts are crucial for their optimal performance and longevity.
When installing hydraulic motor mounts:
1. Ensure correct orientation of the mount (pay attention to any markings indicating top/bottom)
2. Tighten all bolts to the manufacturer's specified torque
3. Check for proper clearance around the mount to allow for engine movement
While hydraulic motor mounts generally require less maintenance than other engine components, it's important to:
1. Regularly inspect mounts for signs of wear or fluid leakage
2. Replace mounts if significant deterioration or leakage is observed
3. Follow the vehicle manufacturer's recommended maintenance schedule
As automotive technology continues to advance, so do hydraulic motor mounts. Some recent innovations include:
1. Electronically Controlled Mounts: These mounts use sensors and electronic controls to adjust their damping characteristics in real-time, providing optimal performance across all driving conditions.
2. Magnetorheological Fluid Mounts: These advanced mounts use a special fluid that changes viscosity when exposed to a magnetic field, allowing for rapid and precise adjustments to mount stiffness.
3. Hybrid Mounts: Combining hydraulic technology with other damping methods, such as air springs, to provide enhanced performance and adaptability.
As the automotive industry moves towards more environmentally friendly practices, the impact of hydraulic motor mounts on the environment is also being considered. Some areas of focus include:
1. Recyclability: Developing mounts with components that are easier to recycle at the end of their life cycle.
2. Eco-friendly Fluids: Research into biodegradable hydraulic fluids that maintain performance while reducing environmental impact.
3. Energy Efficiency: Designing mounts that contribute to overall vehicle energy efficiency by optimizing engine performance and reducing vibration-related energy losses.
The future of hydraulic motor mounts looks promising, with several trends emerging:
1. Integration with Vehicle Dynamics Systems: Hydraulic mounts may be integrated with other vehicle systems to provide a more holistic approach to ride comfort and handling.
2. Advanced Materials: The use of new, lighter, and more durable materials in mount construction to improve performance and longevity.
3. Smart Mounts: Development of mounts with built-in sensors that can provide real-time data on engine behavior and mount performance.
4. Adaptation for Electric Vehicles: As the automotive industry shifts towards electrification, hydraulic mount technology is being adapted to address the unique vibration characteristics of electric motors.
To illustrate the real-world benefits of hydraulic motor mounts, let's look at a few case studies:
A high-end luxury sedan manufacturer implemented hydraulic motor mounts in their flagship model. The result was a 30% reduction in cabin noise and a significant improvement in ride comfort, particularly at highway speeds.
A sports car manufacturer used adaptive hydraulic motor mounts in their latest model. This allowed the car to provide a comfortable ride during normal driving conditions while still offering the firm, responsive feel expected of a high-performance vehicle during aggressive driving.
A commercial truck manufacturer incorporated hydraulic motor mounts into their long-haul trucks. Drivers reported reduced fatigue on long trips due to decreased vibration, leading to improved safety and driver satisfaction.
Hydraulic motor mounts represent a significant advancement in automotive engineering, offering superior vibration isolation and noise reduction compared to traditional rubber mounts. Their ability to adapt to various driving conditions and provide frequency-dependent performance makes them an invaluable component in modern vehicles, particularly in luxury and high-performance applications.
As automotive technology continues to evolve, we can expect to see further innovations in hydraulic motor mount design, including more advanced electronic control systems, integration with other vehicle dynamics systems, and adaptations for electric and hybrid vehicles. These developments will continue to enhance vehicle comfort, performance, and efficiency, contributing to an overall improved driving experience.
While hydraulic motor mounts may come at a higher cost than traditional rubber mounts, their benefits in terms of ride quality, noise reduction, and vehicle performance often justify the investment. As manufacturing techniques improve and economies of scale come into play, we may see these advanced mounts become more common across a wider range of vehicles, bringing their benefits to a broader audience of drivers and passengers.
Hydraulic motor mounts generally last between 5 to 7 years or 60,000 to 100,000 miles, depending on driving conditions and vehicle usage. However, they may need replacement sooner if signs of wear or leakage are observed.
While it's technically possible to replace hydraulic mounts with rubber mounts, it's not recommended. Doing so may negatively impact your vehicle's performance, comfort, and potentially its safety. Always use the type of mount specified by your vehicle's manufacturer.
Signs that your hydraulic motor mounts may need replacement include:
- Excessive engine movement
- Increased vibration felt in the cabin
- Unusual noises from the engine bay
- Visible fluid leakage from the mounts
Yes, hydraulic motor mounts are generally more expensive than conventional rubber mounts due to their more complex design and superior performance. However, the improved comfort and potential long-term benefits to engine health often justify the higher cost.
In most cases, hydraulic motor mounts need to be replaced when they fail. Repairing these complex components is usually not practical or cost-effective. It's best to replace them with new units to ensure optimal performance and safety.
