Gear reducers are essential components in many industrial applications, providing the necessary torque and speed conversion to power machinery effectively. Among the various types of gear reducers available, the ironman gear reducer stands out for its robustness, reliability, and efficiency. This article explores the key benefits of using an ironman gear reducer, its features, applications, and maintenance.
A gear reducer, also known as a speed reducer, is a mechanical device used to increase torque and decrease the speed of an input shaft. It is typically placed between a motor and the machinery it powers. Gear reducers are crucial in applications where the motor's optimal speed is higher than the required operating speed of the equipment[7].
There are several types of gear reducers, each designed for specific applications:
- Worm Gear Reducers: These reducers use a worm gear and a worm wheel to transmit power at right angles. They are known for their high gear ratios and compact design[1].
- Helical Gear Reducers: Helical gears have angled teeth, allowing for smoother and quieter operation compared to spur gears. They are efficient and suitable for high-speed applications[2].
- Bevel Gear Reducers: Bevel gears are used to transmit power between shafts that intersect. They are commonly used in applications requiring changes in direction[2].
- Planetary Gear Reducers: These reducers use a central sun gear, planet gears, and a ring gear to achieve high torque density and efficiency. They are often used in robotics and aerospace applications.

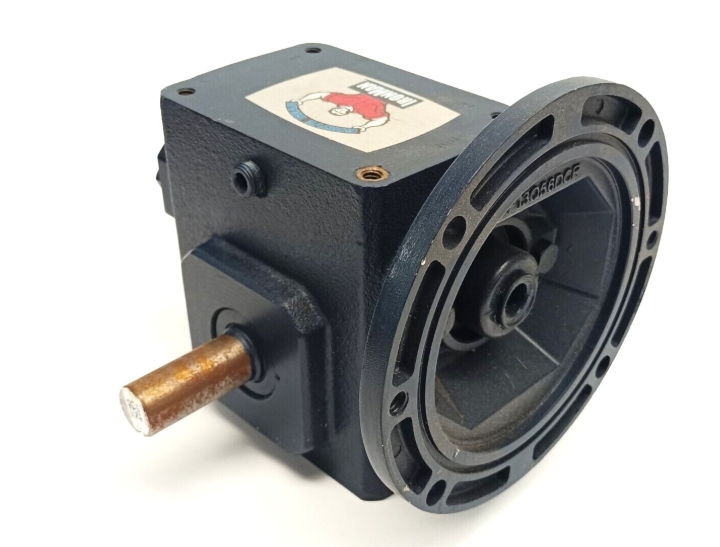

The ironman gear reducer is designed to be a premium worm reducer, known for its durability and reliability. It is built to withstand harsh environmental conditions, shock loading, and frequent reversing, making it suitable for demanding industrial applications[1][3].
Ironman gear reducers are constructed with fine-grained, one-piece cast iron housings, ensuring rigidity and alignment of internal components[10]. This robust construction provides superior resistance to environmental contaminants, high heat dissipation, and noise reduction[10].
Designed to be a heavy-duty workhorse, the ironman gear reducer is equipped with features that optimize longevity and reliability. Oversized high-speed bearings are positively retained for frequent reversing and start/stop cycles, ensuring consistent performance[1]. Viton double-lip seals and super micro finished seal surfaces on input and output shafts further enhance reliability by preventing leaks and protecting against contamination[3][12].
The ironman gear reducer delivers superior performance in demanding conditions. Tapered roller bearings on the output shaft provide high overhung and thrust load capacities, making it suitable for applications with heavy loads[1][10]. The bronze worm gear, chill cast from high-quality bronze, maximizes strength, lubricity, and extends the lifespan of the reducer[1].
Ironman gear reducers offer ultimate application flexibility with all-angle mounting provisions and a wide selection of accessory bases and flanges[1][3][12]. Mounting dimensions are interchangeable with most industry-standard reducers, simplifying installation and replacement[1][9][10].
The Grove Gear IronMan E Series, a type of ironman gear reducer, is designed for high efficiency. By utilizing modified helical-bevel technology, the E Series operates at 90% efficiency and can provide up to 60% higher torque than typical worm gear reducers[2].
Maintaining the ironman gear reducer is straightforward. O-rings on all bearing covers eliminate the need for gaskets and sealants, preventing leaks and simplifying maintenance[1][10]. The units are factory-filled with premium synthetic PAG lube as standard, ensuring optimal lubrication and reducing the need for frequent oil changes[12].
The one-piece cast iron housing provides exceptional rigidity and alignment, protecting internal components from damage and ensuring long-term reliability[6][10].
Oversized high-speed bearings are positively retained to withstand frequent reversing and start/stop cycles, ensuring consistent performance and extended lifespan[1][3].
Tapered roller bearings on the output shaft provide high overhung and thrust load capacities, making the ironman gear reducer suitable for heavy-duty applications[1][10].
The bronze worm gear is chill cast from high-quality bronze, offering maximum strength, lubricity, and superior life. This ensures efficient power transmission and reduces wear[1].
Viton double-lip seals and super micro finished seal surfaces on input and output shafts provide superior protection against leaks and contamination, enhancing reliability and reducing maintenance[3][12].
All-angle mounting provisions allow for flexible installation in various orientations, accommodating different application requirements[1][3][12].
Mounting dimensions are interchangeable with most industry-standard reducers, simplifying installation and replacement processes[1][9][10].
Ironman gear reducers are compatible with a wide range of accessories, allowing for customization and adaptation to specific application needs[1][3].
Ironman gear reducers are used in a wide variety of applications across various industries due to their robust design and reliable performance[3][12]:
In material handling systems such as conveyors, ironman gear reducers provide the necessary torque and speed control for efficient and reliable operation[3][12].
Packaging machinery relies on gear reducers for precise control of speed and torque. Ironman gear reducers ensure smooth and consistent performance in packaging processes[3][12].
Textile machines require robust and reliable gear reducers to handle continuous duty cycles and frequent reversing. Ironman gear reducers are well-suited for these demanding conditions[3][12].
In the food and beverage industry, gear reducers must withstand harsh environments and frequent washdowns. Ironman gear reducers with Viton seals and O-rings provide the necessary protection against contamination and corrosion.
Automation systems utilize gear reducers for precise control of motion and positioning. Ironman gear reducers deliver the reliability and accuracy required for automated processes.
Ironman gear reducers are suitable for a wide range of general industrial applications requiring slow speed and high torque. Their robust construction and reliable performance make them a versatile choice for various machinery and equipment[3][12].
Regular maintenance is essential to ensure the long-term performance and reliability of ironman gear reducers. The following maintenance tasks should be performed:
- Check Oil Level: Frequently check the oil level of the reducer and add proper lubrication through the filler plug until it comes out of the oil level plug[11].
- Use Proper Lubricant: Use only Mobil Glygoyle 460 (H1 Food Grade Lube) or the lubricant recommended by the manufacturer. Do not mix different oils in the reducer[7].
- Change Oil: Change the oil when performing maintenance that requires gearbox disassembly or if the reducer is operated in a severe environment. Lubricant should be changed more often if the gear reducer is used in a humid, wet, or caustic environment[7].
- Inspect Vent Plug: Inspect the vent plug often to ensure it is clean and operating properly[11].
- Check for Leaks: Regularly check for oil leaks around seals and covers. Replace seals as needed to prevent contamination and maintain proper lubrication[11].
- Monitor Performance: Monitor the reducer's performance for any unusual noise, vibration, or heat. These could indicate underlying issues that need to be addressed.
- Mounting Bolts: Routinely check the mounting bolts to ensure that the unit is firmly anchored for proper operation[7].
- Cleanliness: Keep the reducer clean to prevent the buildup of contaminants that can cause overheating and premature wear.
- Seal Replacement: Replace worn seals by removing the old seal without damaging the shaft surface or the seal bore. Clean the seal bore of sealant and install the new seal[7][11].
The ironman gear reducer offers numerous benefits, including robust construction, high reliability, superior performance, application flexibility, and ease of maintenance. Its one-piece cast iron housing, oversized bearings, bronze worm gear, and Viton seals ensure long-lasting performance in demanding industrial applications. Regular maintenance, including proper lubrication and inspection, is essential to maximize the lifespan and reliability of the ironman gear reducer.
By understanding the key benefits and features of the ironman gear reducer, engineers and maintenance professionals can make informed decisions to optimize their machinery's performance and ensure reliable operation.
An ironman gear reducer is a heavy-duty worm gear reducer designed for demanding industrial applications. It is known for its robust construction, high reliability, and superior performance in harsh environments[1][3].
The main features include a one-piece cast iron housing, oversized high-speed bearings, tapered roller bearings on the output shaft, a bronze worm gear, Viton seals, all-angle mounting provisions, and interchangeable mounting dimensions[1][10].
The Grove Gear IronMan E Series, for example, utilizes modified helical-bevel technology to operate at 90% efficiency, providing up to 60% higher torque than typical worm gear reducers[2].
Ironman gear reducers are commonly used in material handling, packaging machinery, textile machines, food and beverage, automation, and general industrial applications[3][12].
Maintenance includes regular checks of oil level, use of proper lubricant, changing oil when necessary, inspection of the vent plug, checking for leaks, and ensuring mounting bolts are secure[7][11].
