Hydraulic systems are widely used in various industrial applications due to their ability to efficiently transmit power and motion. The speed of hydraulic cylinders and motors is crucial for the performance and efficiency of these systems. Understanding the factors that determine the speed of hydraulic cylinders and motors is essential for optimizing system design and operation.
Hydraulic systems rely on the principle of fluid pressure to generate motion. The basic components include a pump, valves, actuators (such as cylinders and motors), and hydraulic fluid. The pump creates pressure, which is then directed to the actuators through valves. The actuators convert this pressure into mechanical motion.
Hydraulic cylinders are used to generate linear motion. They consist of a piston moving within a cylinder, driven by hydraulic fluid pressure. The speed of a hydraulic cylinder is determined by the flow rate of the fluid and the size of the cylinder.

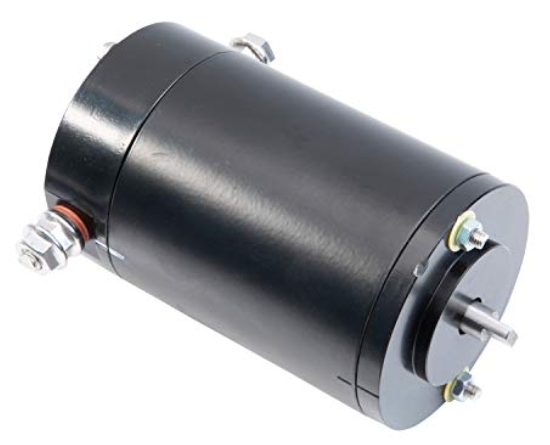

Hydraulic motors convert fluid pressure into rotational motion. They are used in applications requiring continuous rotation, such as in machinery and vehicles. The speed of a hydraulic motor is influenced by several factors, including flow rate, motor displacement, system pressure, and mechanical efficiency.
The flow rate of hydraulic fluid directly affects the speed of both cylinders and motors. A higher flow rate results in faster movement or rotation, while a lower flow rate slows it down. Flow rate is typically controlled by the hydraulic pump and valves in the system.
For hydraulic motors, displacement refers to the volume of fluid required to turn the motor's output shaft by one revolution. Motors with higher displacement require more fluid to achieve the same speed, resulting in lower RPMs at a given flow rate. Conversely, motors with lower displacement can achieve higher speeds with the same flow rate.
| Displacement | Speed at Given Flow Rate |
|---|---|
| High | Lower |
| Low | Higher |
System pressure impacts the motor's ability to overcome load resistance. Higher pressure allows the motor to generate more torque, which can influence speed under load. However, excessive pressure can lead to inefficiencies or damage.
Mechanical efficiency accounts for energy losses due to friction, internal leakage, and other factors. A motor with higher efficiency will convert more hydraulic energy into mechanical motion, resulting in better speed performance.
The load on the motor directly impacts its speed. Heavy loads require more torque, which can reduce speed if the motor's displacement or system pressure is insufficient.
Hydraulic fluid viscosity changes with temperature, affecting flow resistance and motor performance. Higher viscosity at lower temperatures can reduce flow rates and, consequently, motor speeds.
| emperature | Viscosity | Motor Speed |
|---|---|---|
| Low | High | Reduced |
| High | Low | Increased |
To calculate the extension speed of a hydraulic cylinder, you need to know the piston area and the fluid flow rate. The formula for extension velocity is VE=(231×Q)/Ap, where VE is the extension velocity, Q is the fluid flow in gallons per minute (GPM), and Ap is the piston area.
Example Calculation:
Given a piston diameter of 3 inches and a fluid flow of 10 GPM:
- Piston Area Ap=π×(3/2)2=7.065in2
- Extension Velocity VE=(231×10)/7.065≈327.5in/min
The speed of a hydraulic motor can be calculated using the formula:
Motor RPM=(231×Q)/Displacement
where Q is the flow rate in GPM and displacement is in cubic inches per revolution.
When designing hydraulic systems, it's crucial to balance the factors influencing speed to achieve optimal performance. Here are some considerations:

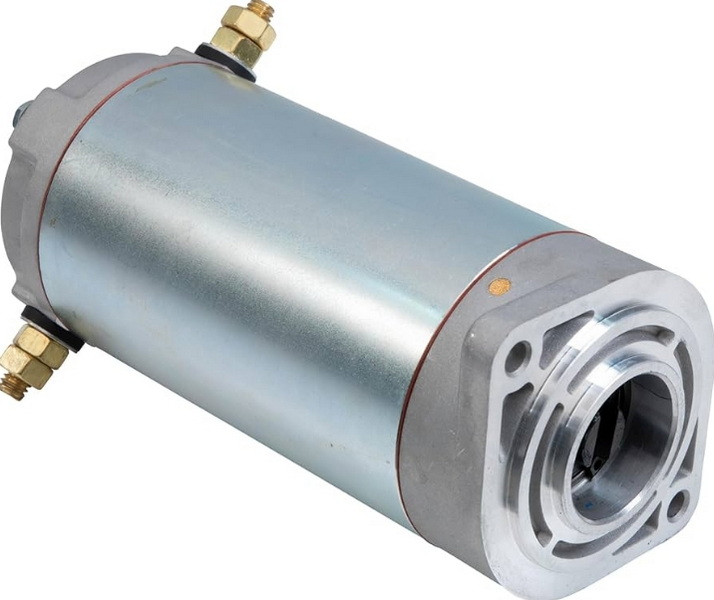

Choosing the right pump is essential for controlling flow rate. Pumps can be fixed or variable displacement, with variable displacement pumps offering more flexibility in adjusting flow rates.

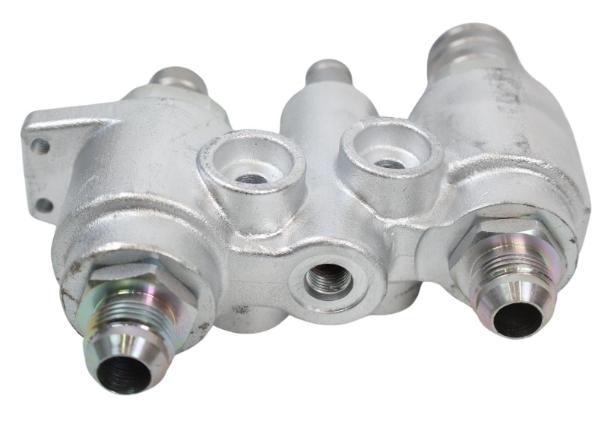

Valves control the direction and flow rate of hydraulic fluid. Proper valve configuration ensures efficient fluid distribution and minimizes pressure drops. For example, using a closed center valve can maintain system pressure and ensure consistent power delivery, while an open center valve allows fluid to return to the reservoir, reducing energy consumption when not in use.
Selecting a motor with appropriate displacement for the application ensures that it can handle the required load and achieve desired speeds.
The type of hydraulic fluid used affects viscosity and system performance. Choosing a fluid with optimal viscosity for the operating temperature range is important.
Regular maintenance, such as checking for leaks and ensuring proper fluid levels, is vital for maintaining system efficiency and speed.
Inconsistent speed can be due to fluctuating flow rates or changes in load. Implementing a flow control valve or adjusting the pump's output can stabilize the flow rate.
Overheating often results from excessive pressure or friction. Reducing system pressure or improving cooling systems can mitigate this issue.
Noise and vibration can indicate misalignment or worn components. Regular inspections and adjustments can help resolve these issues.
The speed of hydraulic cylinders and motors is influenced by several key factors, including flow rate, motor displacement, system pressure, mechanical efficiency, load characteristics, and fluid viscosity and temperature. Understanding these factors is crucial for optimizing system performance and ensuring efficient operation. By controlling these variables, engineers can design hydraulic systems that meet specific application requirements.
The primary factor affecting the speed of a hydraulic motor is the flow rate of hydraulic fluid. Higher flow rates result in faster motor speeds.
Motor displacement affects the speed of a hydraulic motor by determining how much fluid is required to achieve a certain speed. Higher displacement motors require more fluid to turn at the same speed as lower displacement motors.
System pressure impacts the motor's ability to generate torque and overcome load resistance. Higher pressure can increase torque but may also lead to inefficiencies if excessive.
Fluid viscosity affects hydraulic system performance by altering flow resistance. Higher viscosity at lower temperatures can reduce flow rates and motor speeds.
Incorrect hydraulic cylinder speed can lead to excessive heat generation, increased wear and tear, high friction levels, and reduced system lifespan.
