Bidirectional hydraulic motors are versatile components used in various hydraulic systems, enabling rotation in both clockwise and counterclockwise directions. This capability makes them essential for applications requiring reversible operation, such as vehicle propulsion systems, construction equipment, and hydraulic winches. In this article, we will delve into the workings of bidirectional hydraulic motors, their applications, and how they differ from unidirectional motors.
Hydraulic motors convert hydraulic energy into mechanical energy, providing rotational power for various applications. They are similar in design to hydraulic pumps but operate in the opposite manner, using pressurized fluid to drive a shaft connected to a load.
- Unidirectional Hydraulic Motors: These motors operate in only one direction of rotation. They are commonly used in applications where movement is primarily in one direction, such as conveyor belts and winches.
- Bidirectional Hydraulic Motors: As the name suggests, these motors can rotate in both clockwise and counterclockwise directions. They are used in applications where the direction of rotation needs to be changed frequently, such as in vehicle propulsion systems and construction equipment.
Bidirectional hydraulic motors achieve reversible operation through their design and control systems. They typically use a combination of hydraulic fluid flow and valve control to switch the direction of rotation.
1. Hydraulic Fluid: The energy source for the motor, which is pressurized and directed through the motor to cause rotation.
2. Valves: Control the flow of hydraulic fluid to change the direction of rotation.
3. Shaft: The output shaft connected to the load, which rotates as a result of the hydraulic fluid flow.

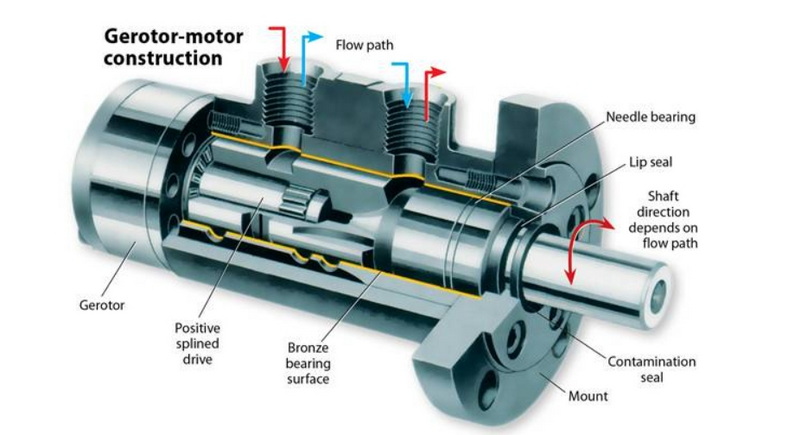

- Forward Rotation: Hydraulic fluid enters the motor through an inlet port and applies pressure to a series of pistons or vanes, causing the output shaft to rotate in one direction.
- Reverse Rotation: By adjusting the valve configuration, the flow of hydraulic fluid is redirected, causing the output shaft to rotate in the opposite direction.
Bidirectional hydraulic motors are used in a variety of applications where reversible motion is necessary:
- Vehicle Propulsion Systems: In some vehicles, bidirectional motors are used for propulsion and braking.
- Construction Equipment: Used in machinery that requires frequent changes in direction, such as excavators and cranes.
- Hydraulic Winches: Bidirectional operation allows for both pulling and releasing loads.
Hydraulic motors have several advantages over electric motors, particularly in applications requiring high torque at low speeds and the ability to reverse direction quickly without damage.
| Feature | Hydraulic Motor | Electric Motor |
|---|---|---|
| Torque at Low Speed | High torque at low speeds | Lower torque at low speeds |
| Direction Reversal | Can reverse direction quickly without damage | Difficult to reverse direction quickly |
| Compactness | Often more compact for equivalent power | Can be bulky for high power applications |
Bidirectional hydraulic motors come in various designs, including piston and vane motors.
- Inline Piston Motors: These motors have pistons aligned in a straight line and are connected to a swashplate that converts the linear motion into rotational motion.

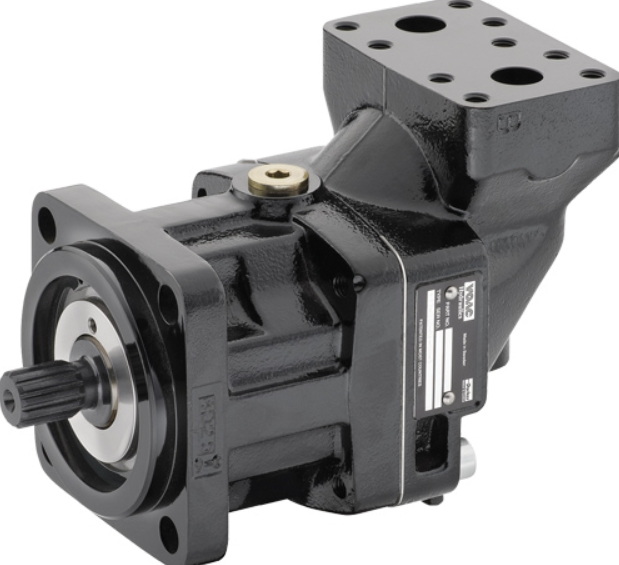

- Bent-Axis Piston Motors: Similar to inline motors but with the piston barrel at an angle to the swashplate, providing a more compact design.
- Vane motors use a rotor with vanes that slide in and out as hydraulic fluid enters and exits, causing rotation.
Regular maintenance is crucial for extending the lifespan of bidirectional hydraulic motors. Common issues include fluid contamination, seal wear, and valve malfunction.
- Regular Fluid Checks: Ensure hydraulic fluid is clean and at the recommended level.
- Seal Inspection: Regularly inspect seals for wear and replace them as needed.
- Valve Calibration: Ensure valves are properly calibrated for smooth direction changes.
Advancements in hydraulic motor technology are focused on improving efficiency, reducing size, and enhancing control systems. The integration of smart sensors and IoT technologies is expected to enhance monitoring and predictive maintenance capabilities.
- Energy Efficiency: New designs aim to reduce energy consumption while maintaining performance.
- Compact Designs: Smaller motors with equivalent power output are being developed for more versatile applications.
- Digital Control Systems: Advanced control systems allow for precise control over motor operation and real-time monitoring.
As environmental concerns grow, the hydraulic industry is shifting towards more sustainable practices. This includes the use of eco-friendly hydraulic fluids and designing motors for reduced energy consumption.
- Eco-Friendly Fluids: Using biodegradable hydraulic fluids reduces environmental impact.
- Energy Efficiency: Improving motor efficiency helps reduce overall energy consumption.
Bidirectional hydraulic motors are crucial components in hydraulic systems that require reversible operation. Their ability to rotate in both directions makes them ideal for applications in vehicle propulsion, construction equipment, and hydraulic winches. Understanding the design and operation of these motors is essential for selecting the right motor for specific hydraulic applications.
Bidirectional hydraulic motors can rotate in both clockwise and counterclockwise directions, making them suitable for applications requiring reversible operation.
Reversible operation is achieved through the use of valves that control the flow of hydraulic fluid to change the direction of rotation.
Common applications include vehicle propulsion systems, construction equipment, and hydraulic winches.
Hydraulic motors provide high torque at low speeds and can reverse direction quickly without damage, unlike electric motors.
Bidirectional hydraulic motors are available in piston and vane designs, each with its own advantages and applications.
